WS Aware Dual-Wire Monitor with Standard Remotes & Ethernet Output – P/N 770067 – Advanced ESD Monitoring System
Comprehensive Dual Workstation Monitoring with Intelligent ESD Control
SCS WS Aware Dual-Wire Monitor (P/N 770067) is a high-performance dual workstation continuous monitoring system designed to provide real-time verification of grounding integrity for operators, worksurfaces, and metal tools. Engineered for ESD protected areas (EPAs), this system supports full compliance with ANSI/ESD S20.20 and delivers advanced monitoring capabilities for critical environments.
With Ethernet connectivity and integration into the Static Management Program (SMP), users can collect and analyze detailed data including operator resistance, voltage, mat resistance, and tool performance. Featuring Digital Signal Processing Technology and ultra-low test voltage, the WS Aware Monitor ensures safe handling of highly sensitive electronic components.
Key Features & Benefits
- Dual Workstation Continuous Monitoring: Monitors two operators, two worksurfaces, and two metal tools simultaneously
- ANSI/ESD S20.20 Compliant: Meets requirements in accordance with ESD TR1.0-01-01
- Ethernet Connectivity: Integrates with SMP for real-time data collection and reporting
- Digital Signal Processing Technology: Ultra-low 0.05V test voltage protects sensitive components
- Operator Body Voltage Detection: Alerts if voltage levels pose a risk to ESD-sensitive items
- EMI Monitoring on Metal Grounds: Detects high-frequency noise that may cause EOS damage

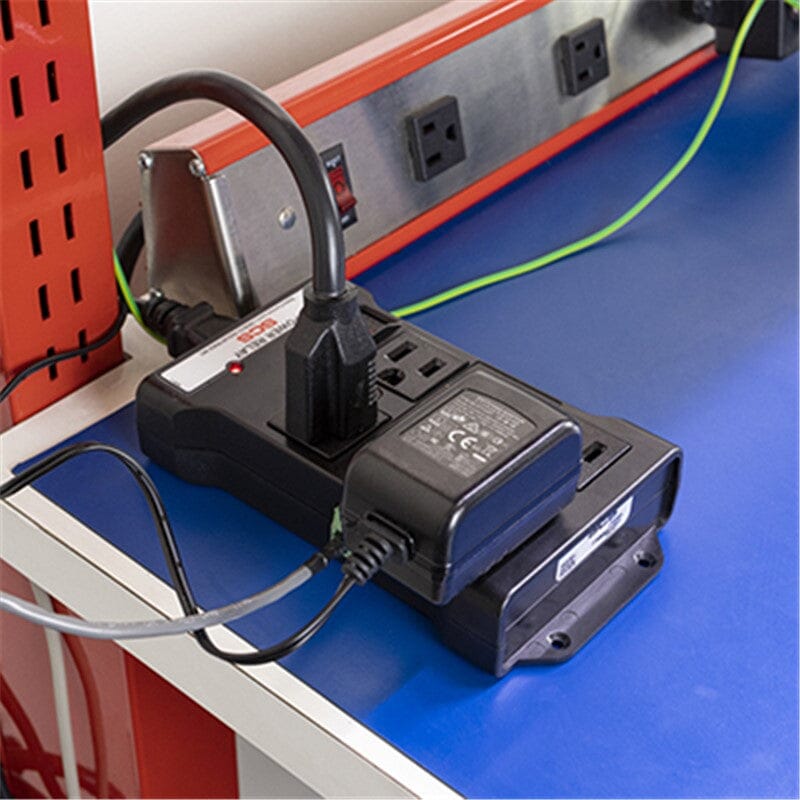

- Power Relay Compatibility (770069): Controls power to tools and workstations based on monitor status
- Fast, Reliable Alerts: Immediate audible and visual alarms for grounding failures

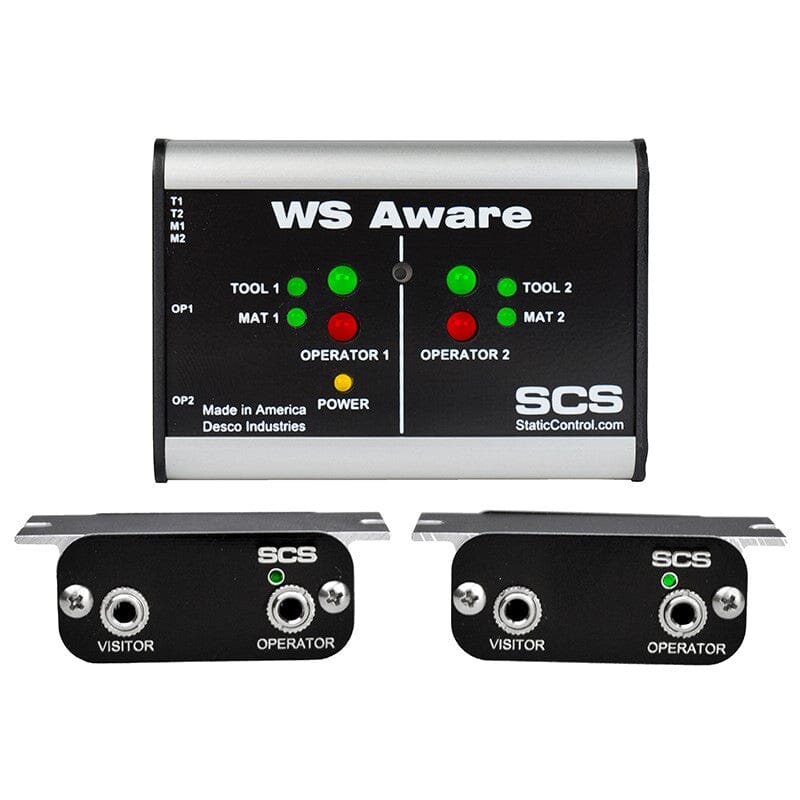

- Dual Remote Terminals Included: Flexible installation with terminals up to 10 feet away
- Visitor & Operator Jacks: Each remote includes monitored and unmonitored connections
- Replaceable Operator Jack: Easy replacement using CTA245 PCB without soldering
- Field Calibration Support: Compatible with SCS CTE701 calibration unit
- NIST Calibrated: Traceable calibration with downloadable certificate
- Global Power Supply: 100–240VAC NRTL listed adapter with interchangeable plugs
- Made in the USA: Built for industrial-grade performance and reliability
Applications
- Electronics manufacturing & assembly
- ESD protected areas (EPAs)
- Cleanrooms and laboratories
- Medical device production
- Aerospace and defense electronics
Specifications
- Brand: SCS
- Model: WS Aware Dual-Wire Monitor
- Part Number: 770067
- Monitoring Type: Continuous dual workstation (2 operators, 2 mats, 2 tools)
- Technology: Digital Signal Processing (DSP)
- Test Voltage: 0.05V ultra-low operator test voltage
- Connectivity: Ethernet (SMP compatible)
- Alarm Type: Audible and visual
- Remote Terminals: Two included (up to 10 ft distance)
- Wrist Strap Type: Dual-wire compatible
- Power Control: Compatible with SCS 770069 power relay
- Calibration: NIST traceable (certificate available)
- Verification: Compatible with SCS CTE701 calibration unit
- Power Supply: 100–240VAC NRTL listed adapter with interchangeable plugs
- Country of Origin: United States
Technical Information
WS Aware Monitor Installation, Operation and Maintenance
