SCS SW Aware Monitor with North America Power Adapter

SCS SW Aware Monitor with North America Power Adapter – P/N 770151 – Continuous ESD Monitoring

Advanced Single-Workstation Monitoring with Network Connectivity

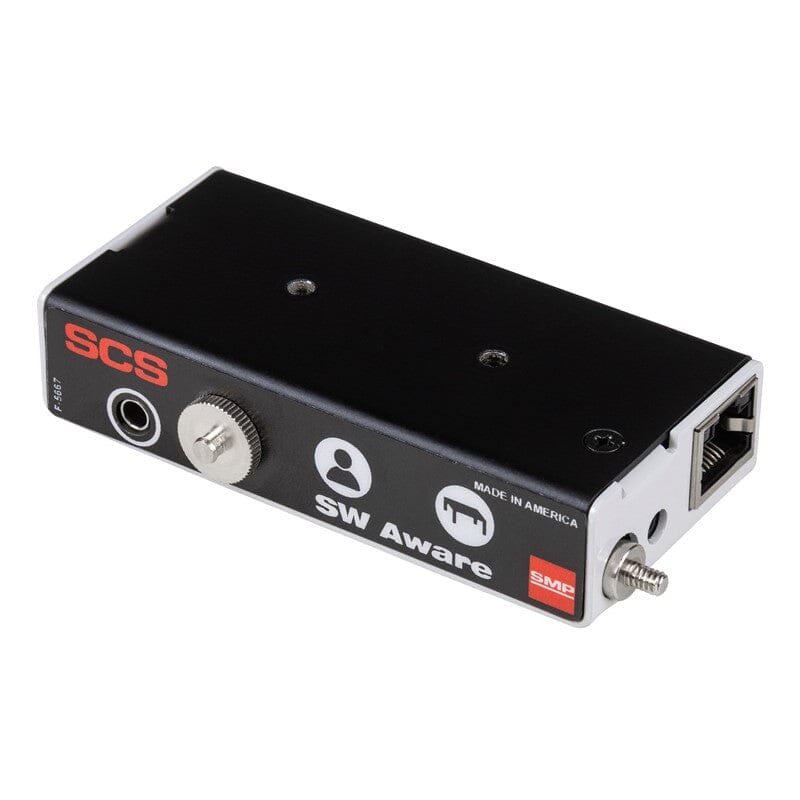

SCS SW Aware Monitor (P/N 770151) is a high-performance single workstation continuous monitor designed to verify the path-to-ground integrity of both an operator and ESD worksurface in real time. Ideal for ESD protected areas (EPAs), this system enhances compliance, reduces risk, and provides actionable monitoring data for critical environments.

Featuring Ethernet connectivity, the SW Aware Monitor integrates with the Static Management Program (SMP) to collect, track, and report grounding status. With audible and visual alarms, ultra-fast response time, and advanced monitoring technology, it ensures immediate detection of failures and continuous protection of sensitive components.

Key Features & Benefits

• Single Workstation Continuous Monitor: Monitors one operator and one ESD worksurface simultaneously
• Impedance Monitoring Technology (IMT): Provides stable, continuous monitoring of wrist strap path-to-ground and 1 megohm resistor
• Ethernet Connectivity: Integrates with SCS Static Management Program (SMP) for data collection and reporting
• Fast Alarm Response: <50 millisecond response time identifies failures instantly
• Audible & Visual Alarms: Immediate notification with adjustable alarm volume
• 1.2 Volt Test Voltage: Reduces risk of electrical overstress (EOS) on sensitive components
• Park Delay Timer & Parking Snap: 8-second delay allows safe disconnection without false alarms
• Mat Monitor Switch: Disable worksurface monitoring when not in use

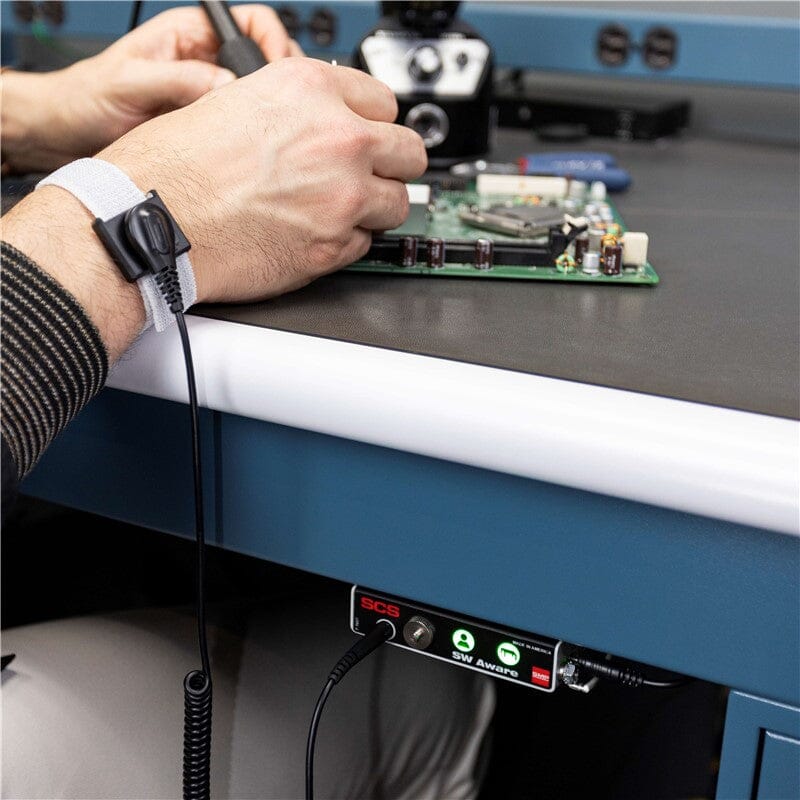

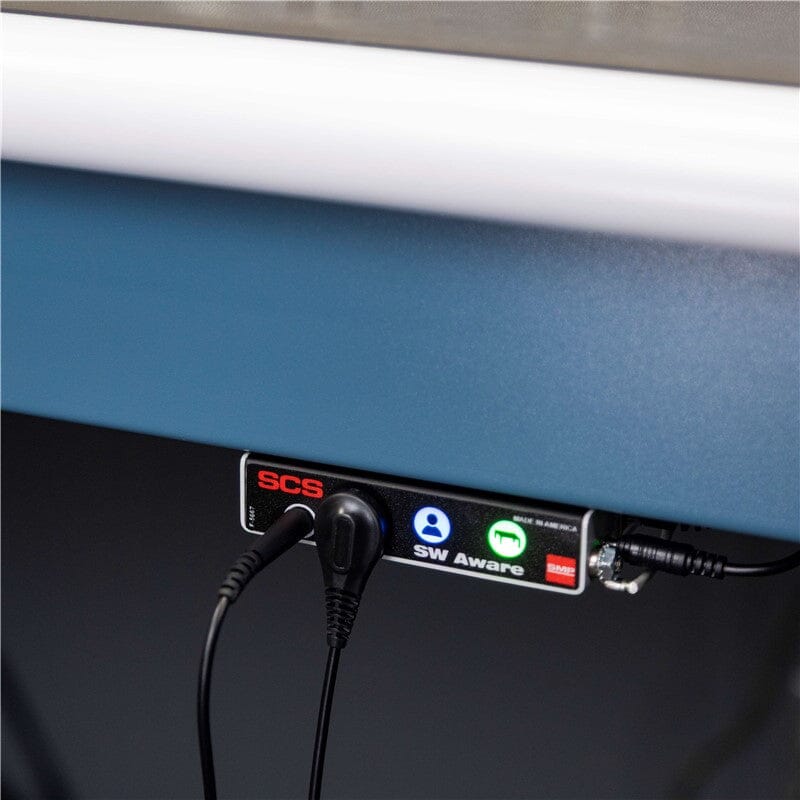

• Mountable Enclosure: Designed for installation in workbenches and equipment setups
• Calibration Verification: Compatible with SCS 770153 Verification Tester for in-place testing
• NIST Calibrated: Traceable to national standards with downloadable calibration certificate

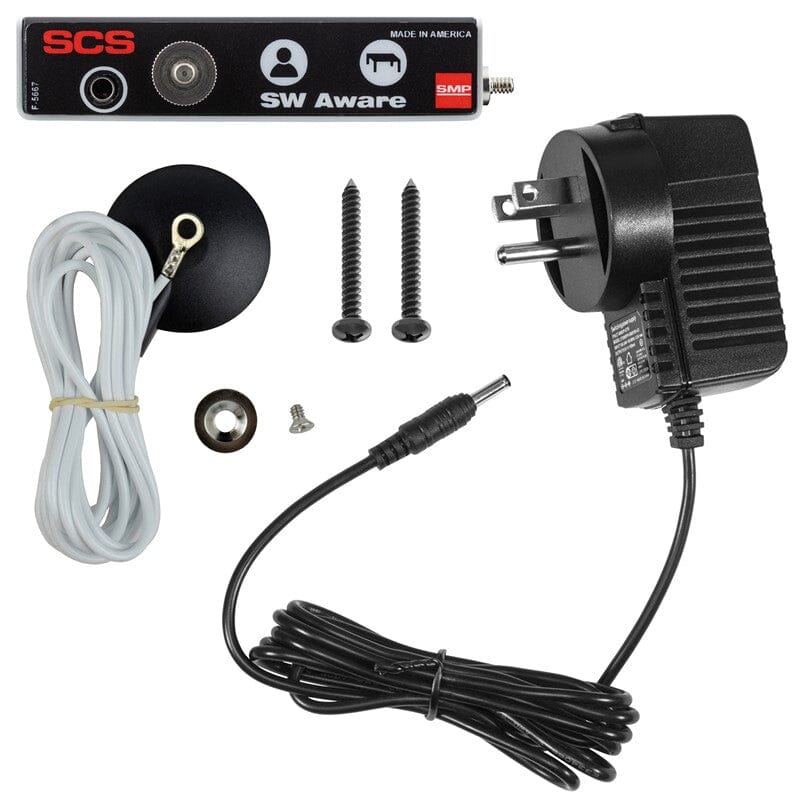

• Global Power Compatibility: 100–240VAC NRTL listed adapter with North American plug
• Made in the USA: Built for quality and reliability in demanding environments

Applications

• Electronics manufacturing & assembly
• ESD protected areas (EPAs)
• Cleanrooms and laboratories
• Medical device production
• Aerospace and defense electronics

Specifications

• Brand: SCS
• Model: SW Aware Monitor
• Part Number: 770151
• Monitoring Type: Continuous single workstation (operator + worksurface)
• Technology: Impedance Monitoring Technology (IMT)
• Connectivity: Ethernet (SMP compatible)
• Alarm Type: Audible and visual (adjustable volume)
• Alarm Response Time: <50 milliseconds
• Test Voltage: 1.2V operator test voltage
• Power Supply: 100–240VAC NRTL listed adapter with North American plug
• Calibration: NIST traceable (certificate available)
• Verification: Compatible with SCS 770153 tester
• Installation: Enclosure with mounting holes for workbench integration
• Country of Origin: United States
