ProVue 5 Diopter (2.25x Magnification) Magnifying Lamp

Enhance your precision work with the ProVue 5 Diopter Magnifying Lamp from Aven. A professional-grade tool designed for detailed inspection in electronics, jewelry, and laboratory settings. This lamp combines powerful magnification, customizable lighting, and ergonomic design to deliver exceptional clarity and reliability.

🔍 Superior Magnification & Lens Quality

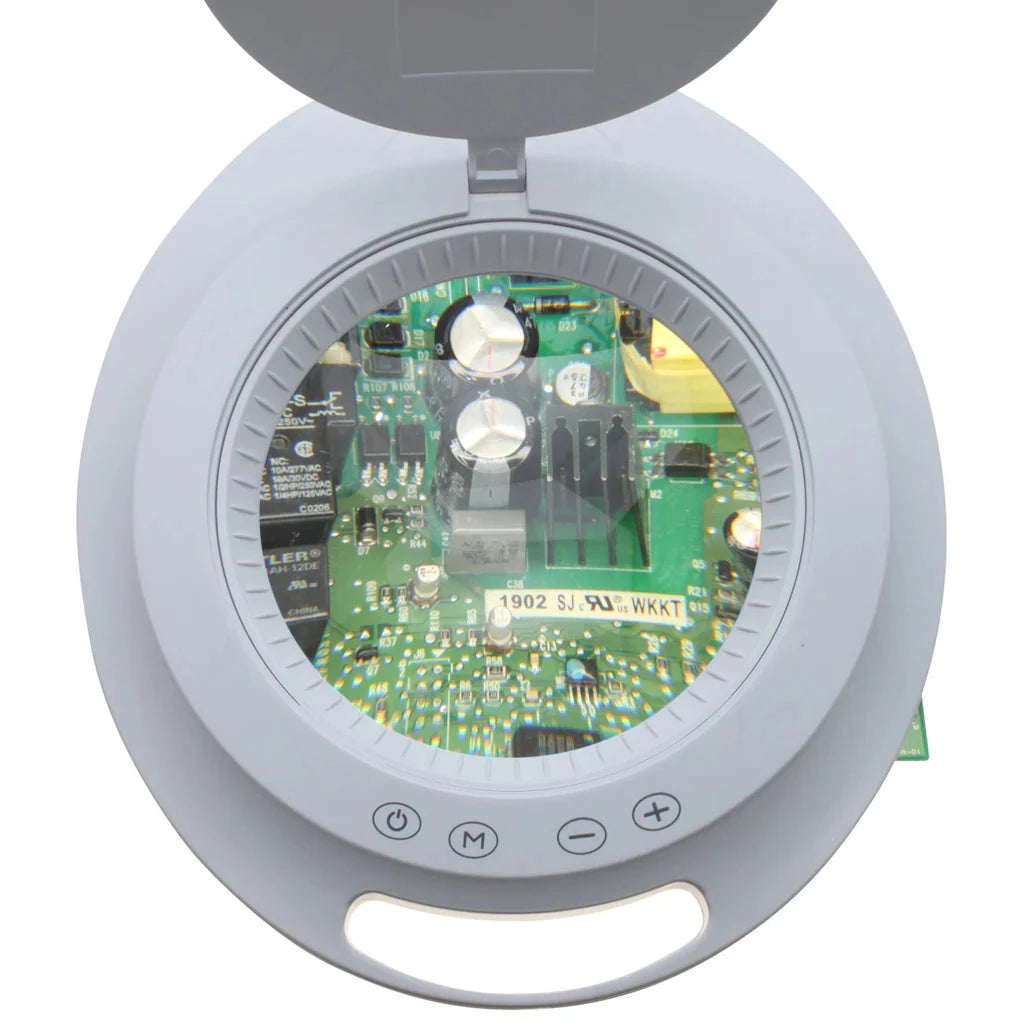

• 5 Diopter Glass Lens: Offers 2.25x magnification with a 5-inch viewing area, providing a sharp, distortion-free image for intricate tasks.
• Replaceable Lens Design: Ensures long-term usability and cost-effective maintenance.

💡 Customizable LED Lighting

• 60 High-Intensity LEDs: Deliver up to 800 lumens of bright, dimmable light with a 25,000-hour lifespan, perfect for general illumination.
• Adjustable Color Temperatures: Choose between warm white (3500K), cool white (6500K), and daylight (5000K) to suit your specific needs.
• Touch-Sensitive Controls: Easily adjust brightness levels and toggle between color temperatures without disrupting your workflow.
• Memory Function: Remembers your last used settings for added convenience.

⚙️ Ergonomic & Flexible Design

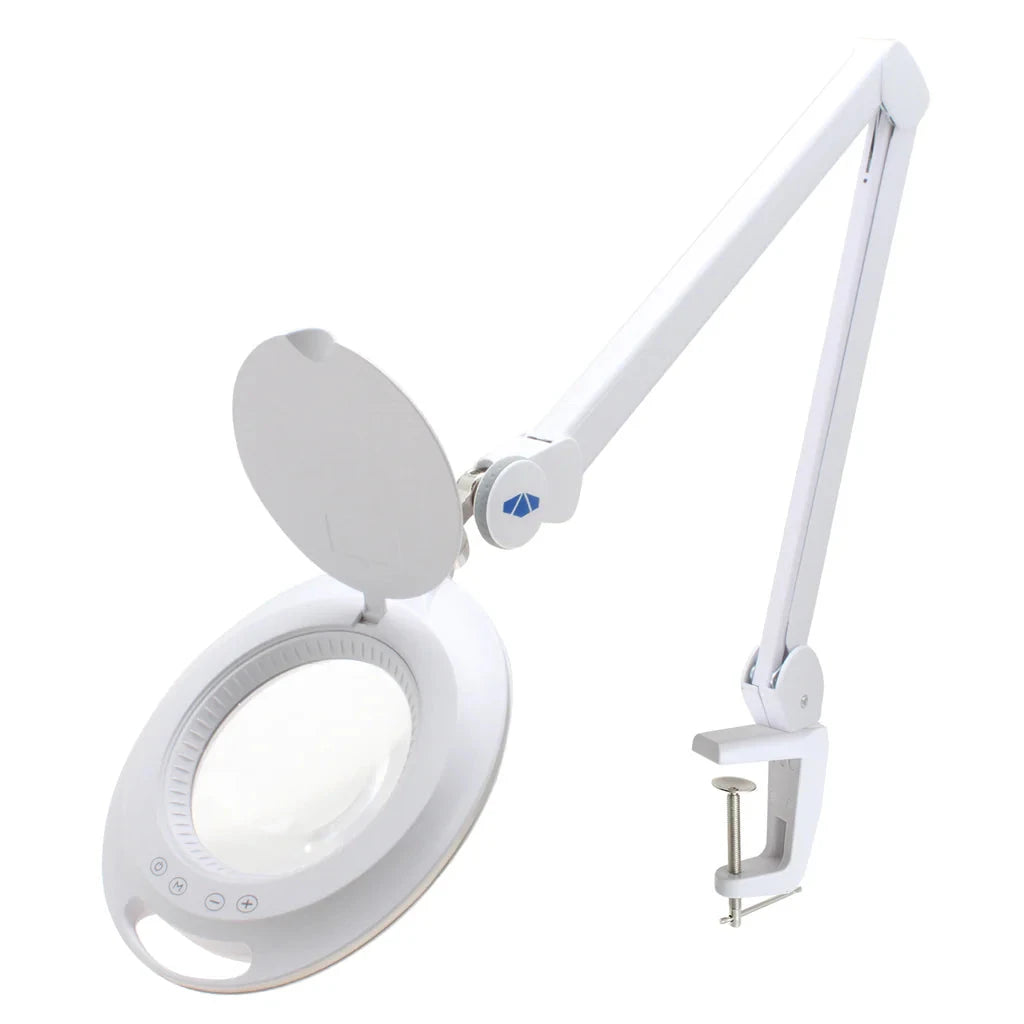

• Spring-Balanced Arm: Extends up to 31.5 inches (80 cm) with a patented swivel joint, allowing precise positioning without exposed wires.
• Ergonomic Knob: Features a rubber grip for quick and comfortable adjustments, reducing strain during extended use.
• Clamp Opening: Accommodates surfaces up to 2.36 inches (6 cm) thick, providing versatility in mounting options.

🧰 Specifications

• Lens Size: 5 inches
• Magnification: 2.25x (5 Diopter)
• LED Count: 60
• Color Temperature Options: 3500K (Warm White), 5000K (Daylight), 6500K (Cool White)
• Lumen Output: Up to 800 lm
• LED Lifespan: 25,000 hours
• Arm Reach: 31.5 inches (80 cm)
• Clamp Opening: 0.59–2.36 inches (1.5–6 cm)
• Power Input: 100–240V AC
• Power Output: 20V DC
• Power Cord Length: 5 feet (1.5 meters)
• Weight: 4.78 lbs (2.17 kg)

Whether you're inspecting circuit boards, assembling fine jewelry, or conducting laboratory research, the ProVue 5 Diopter Magnifying Lamp offers the clarity, versatility, and comfort you need. Its combination of high-quality optics, customizable lighting, and ergonomic design makes it an invaluable tool for professionals seeking precision and reliability.

Product Flyer
