PROTEKTIVE PAK

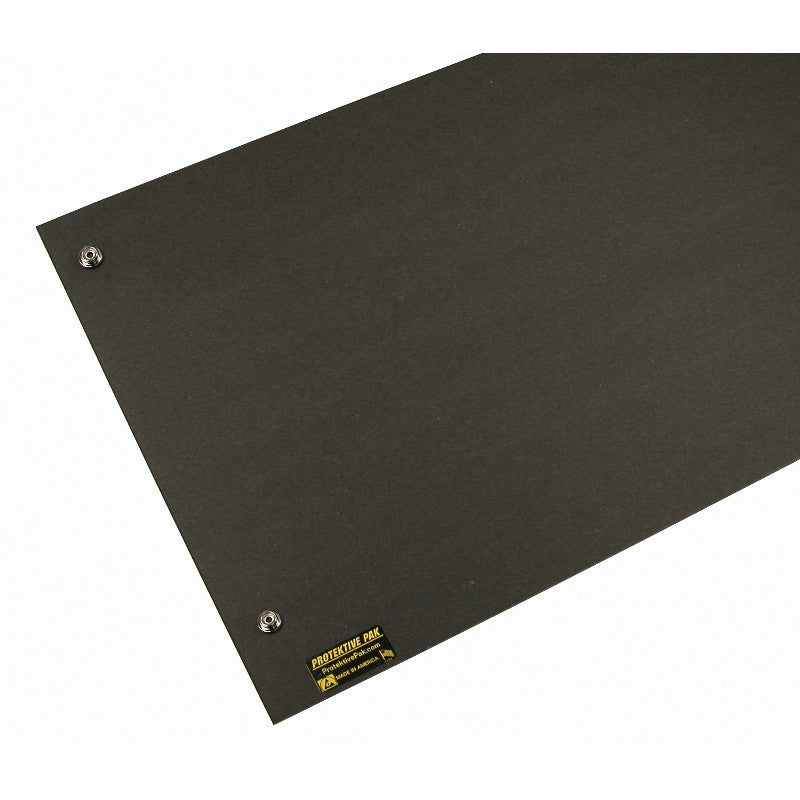

PRO-MAT, MALE SNAPS, 11-3/4 X 59-1/2 X 1/16 IN

PRO-MAT, MALE SNAPS, 11-3/4 X 59-1/2 X 1/16 IN

SKU:PPK-37672

Regular price $20.12
Regular price Sale price $20.12
Sale Sold out
Shipping calculated at checkout.
  • In stock - will ship in 3 days or less
  • Solid fiberboard construction with a buried conductive layer
  • Includes two installed 3/8" stud snaps - socket snaps available
  • Resists damage by hot soldering irons, solder, or flux
  • RTT of top and bottom layers: 10E6 - 10E8 ohms - meets worksurface recommendation of ANSI/ESD S4.1
  • Thickness: 0.060" (1.5mm)
  • Lead-free RoHS compliant
  • Made in the United States of America

    "The most important functional consideration for worksurfaces is the RTG resistance from the top of the surface to the groundable point." ANSI/ESD S20.20 Table 1 recommends a requirement of less than 1 X 10^9 ohms. "If Charged Device Model damage is a concern then setting a lower resistance limit should be considered. Typically, 1 x1 0^6 ohms." "Durability factors that should be considered are hardness, abrasion resistance, tear resistance, etc. Worksurfaces may require special heat resistant materials. Light reflection may be an important ergonomic consideration." (Ref: TR 20.20 section 5.3.1).
