Plain Tilting Stage

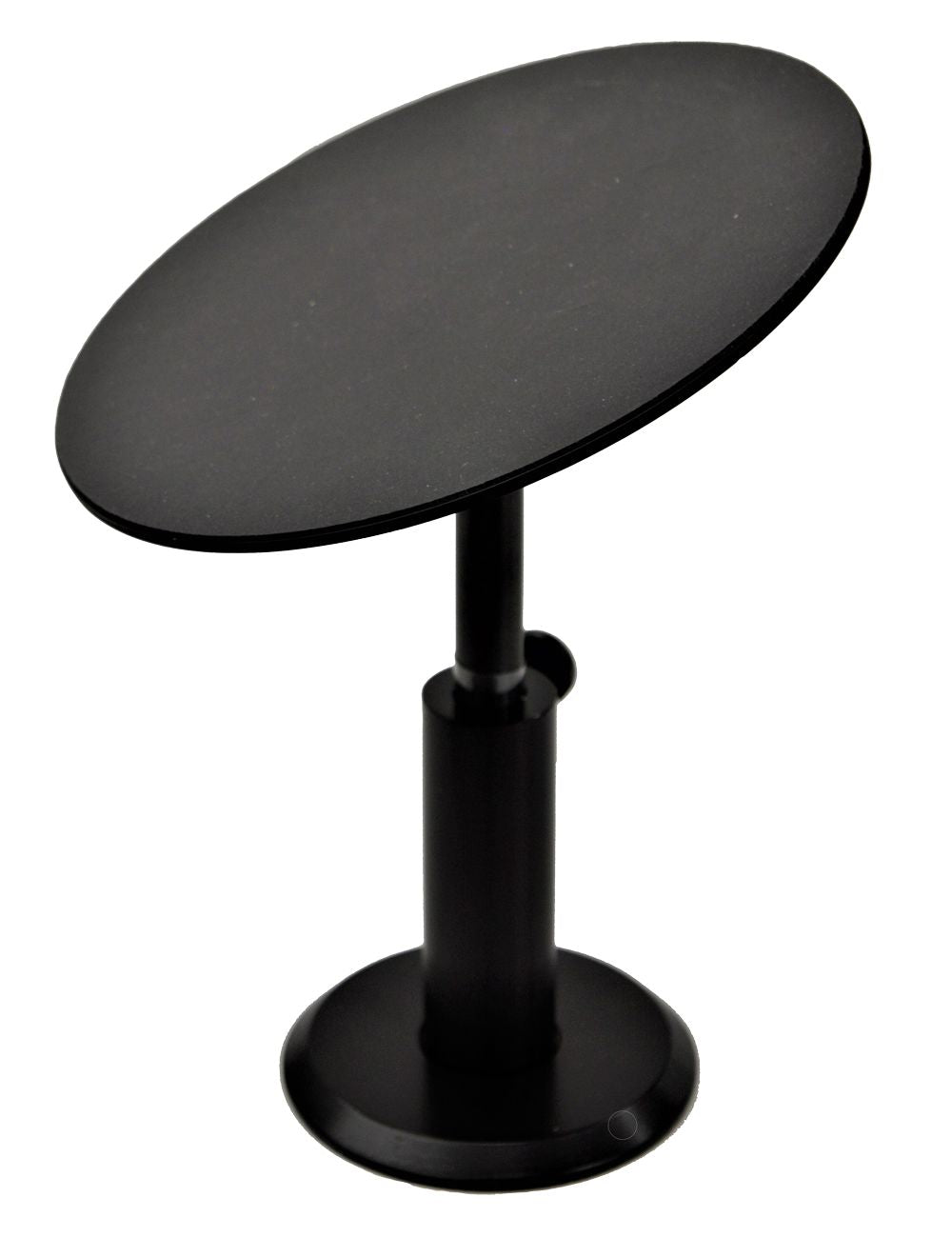

Vision Engineering Plain Tilted Stage for Mantis PIXO & ERGO Inspection Systems

Enhance inspection accessibility and comfort with the Plain Tilted Stage from Vision Engineering, designed to complement the ergonomic performance of the Mantis PIXO and Mantis ERGO stereo inspection systems.

The Plain Tilted Stage positions samples at an inclined angle, providing improved visibility of angled or contoured surfaces without needing to reposition the inspection head or the operator. This simple yet effective accessory improves inspection efficiency and visual access, especially for components with height variations or edge features.

Key Features:

• Fixed Angled Surface: Allows consistent viewing of inclined samples for improved inspection of depth and geometry.
• Flat, Non-Threaded Design: Ideal for quick placement and inspection of a wide variety of sample types.
• Sturdy and Reliable: Ensures a stable platform for precision viewing without vibration or movement.
• Fully Compatible: Designed for seamless use with Mantis PIXO and ERGO systems with no additional setup.

Whether inspecting PCBs, mechanical components, or delicate assemblies, the Plain Tilted Stage offers a simple and effective way to improve access and maintain ergonomic efficiency throughout your inspection process.
