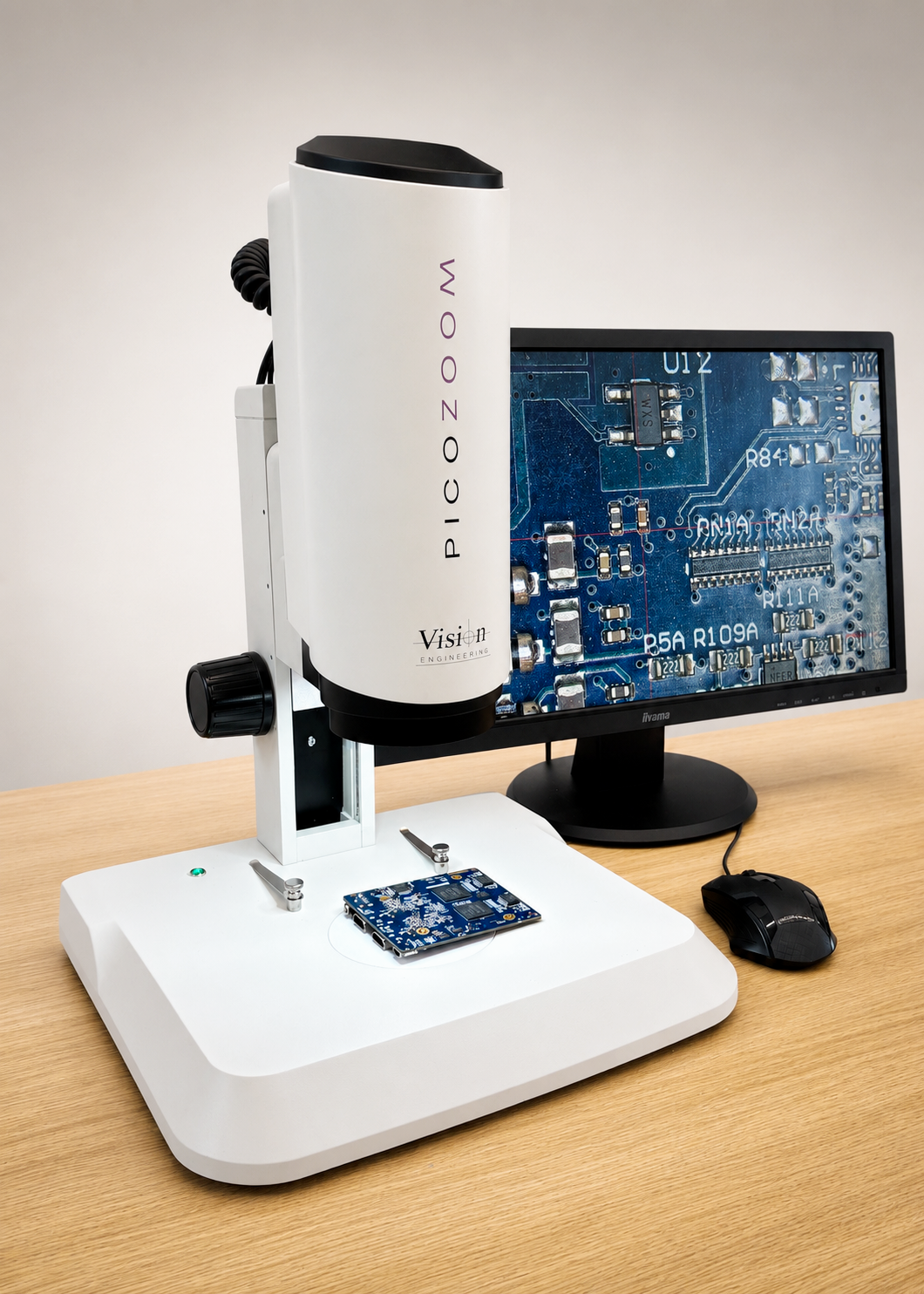

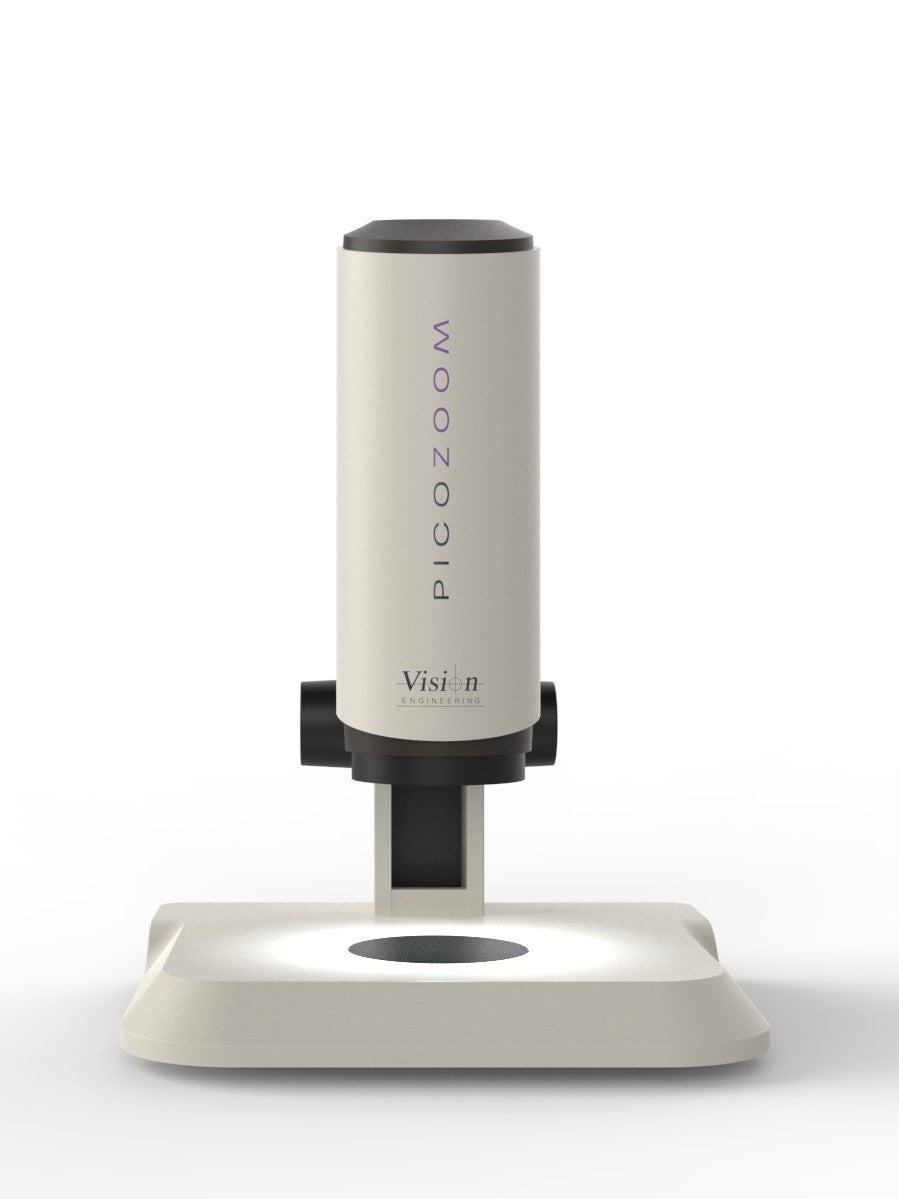

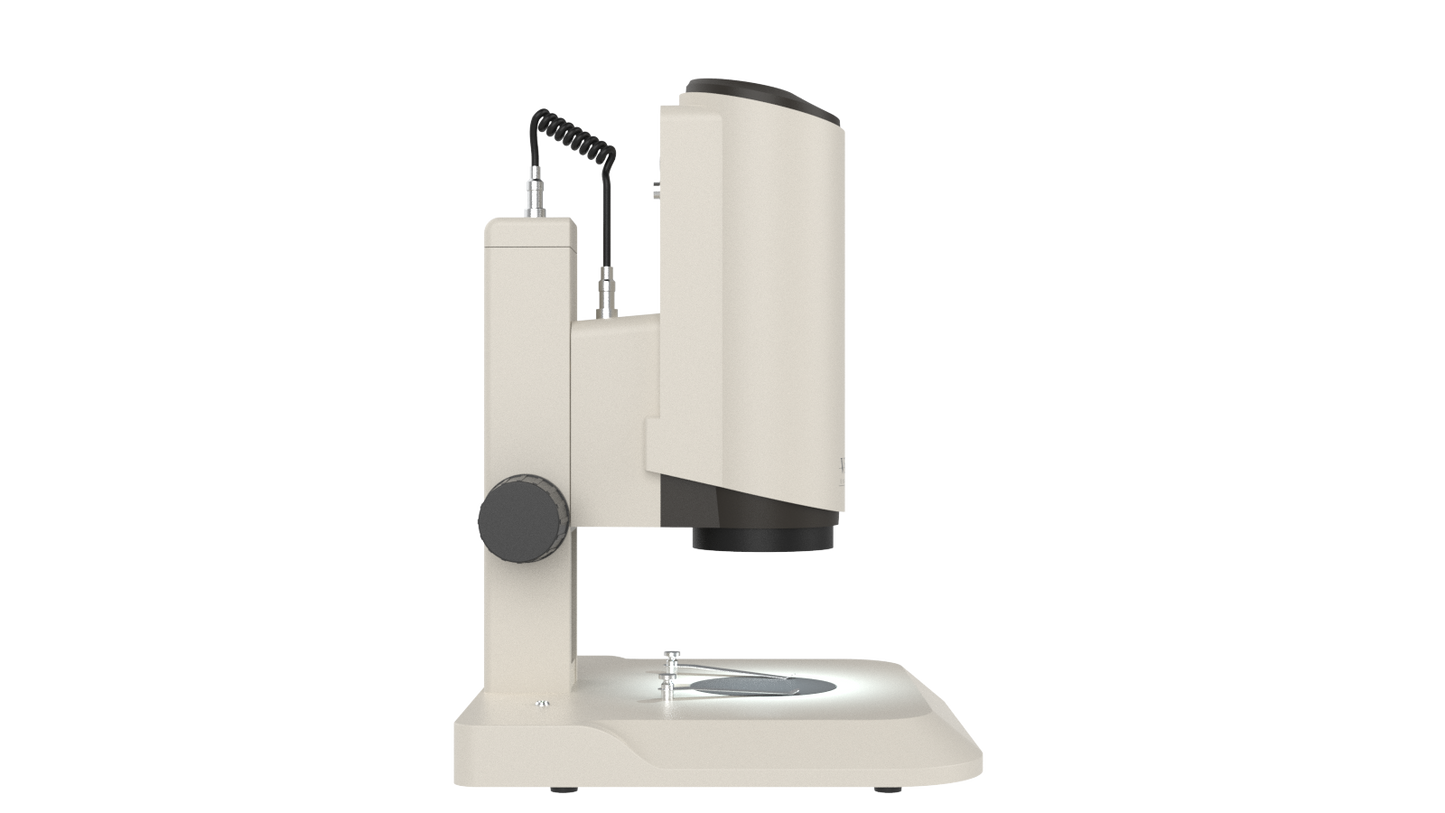

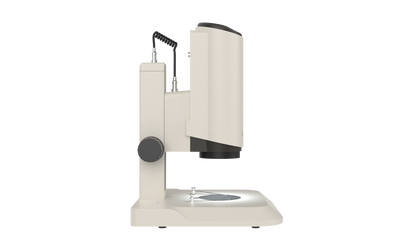

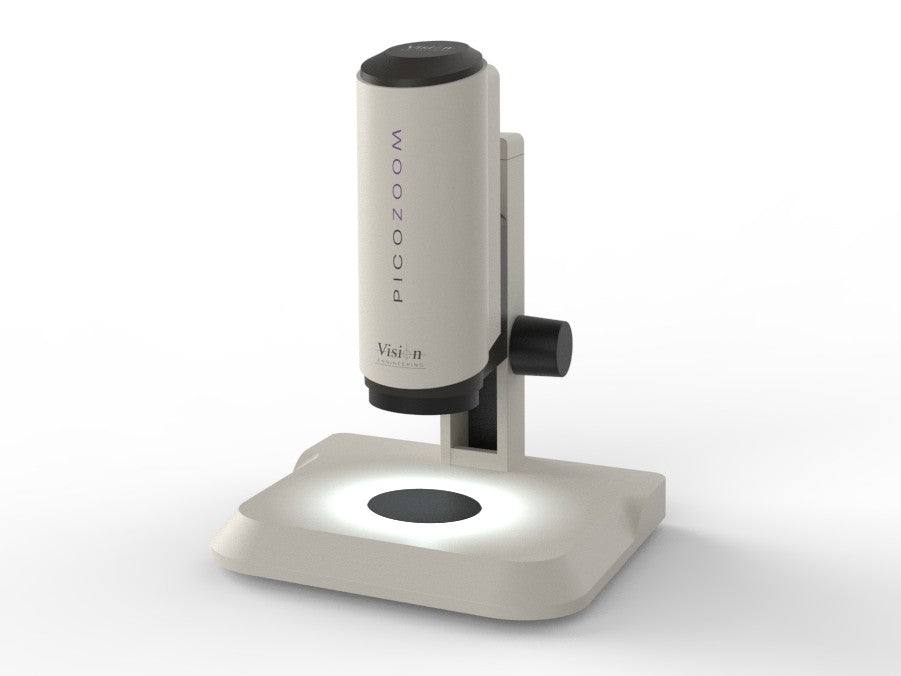

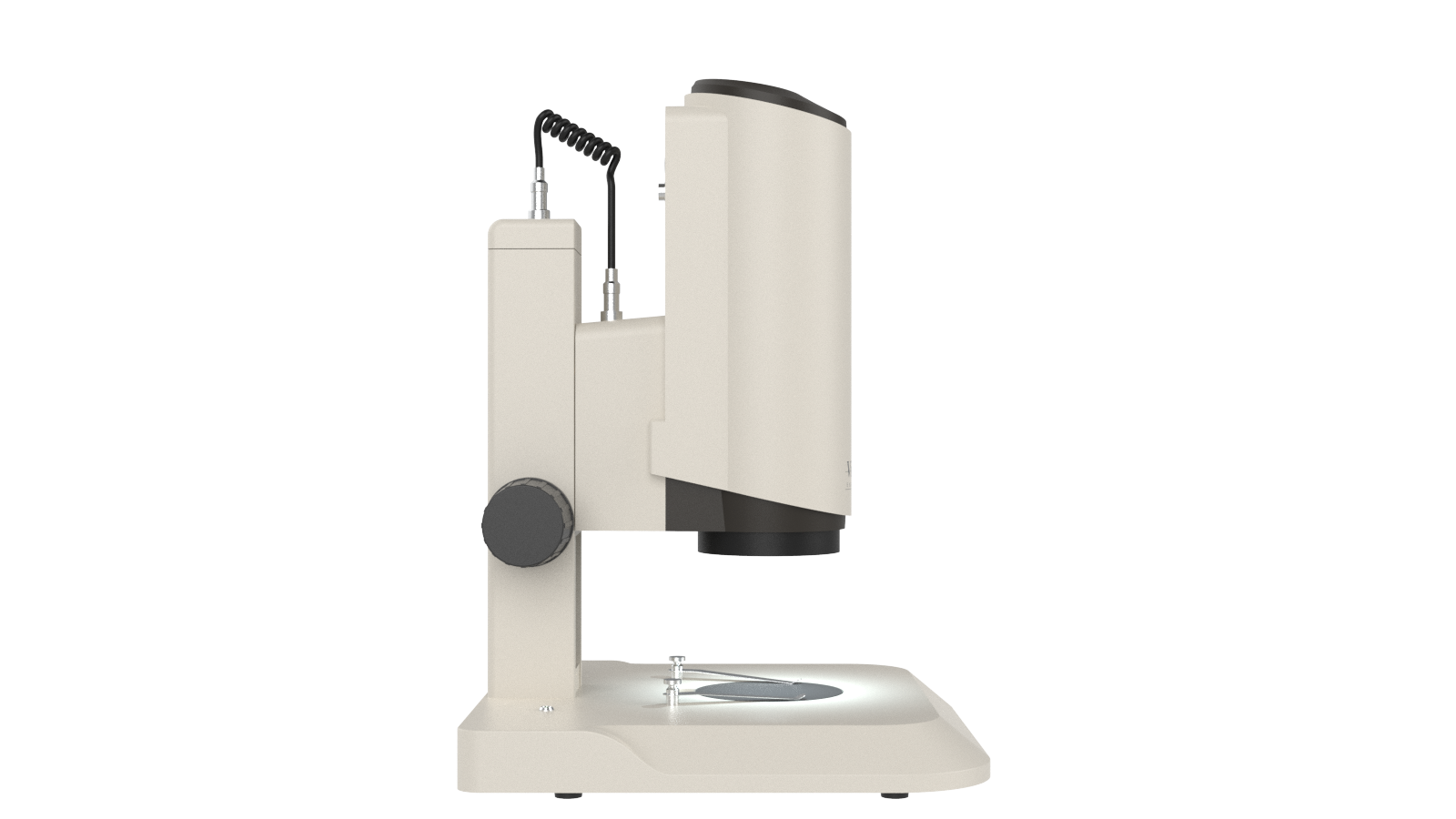

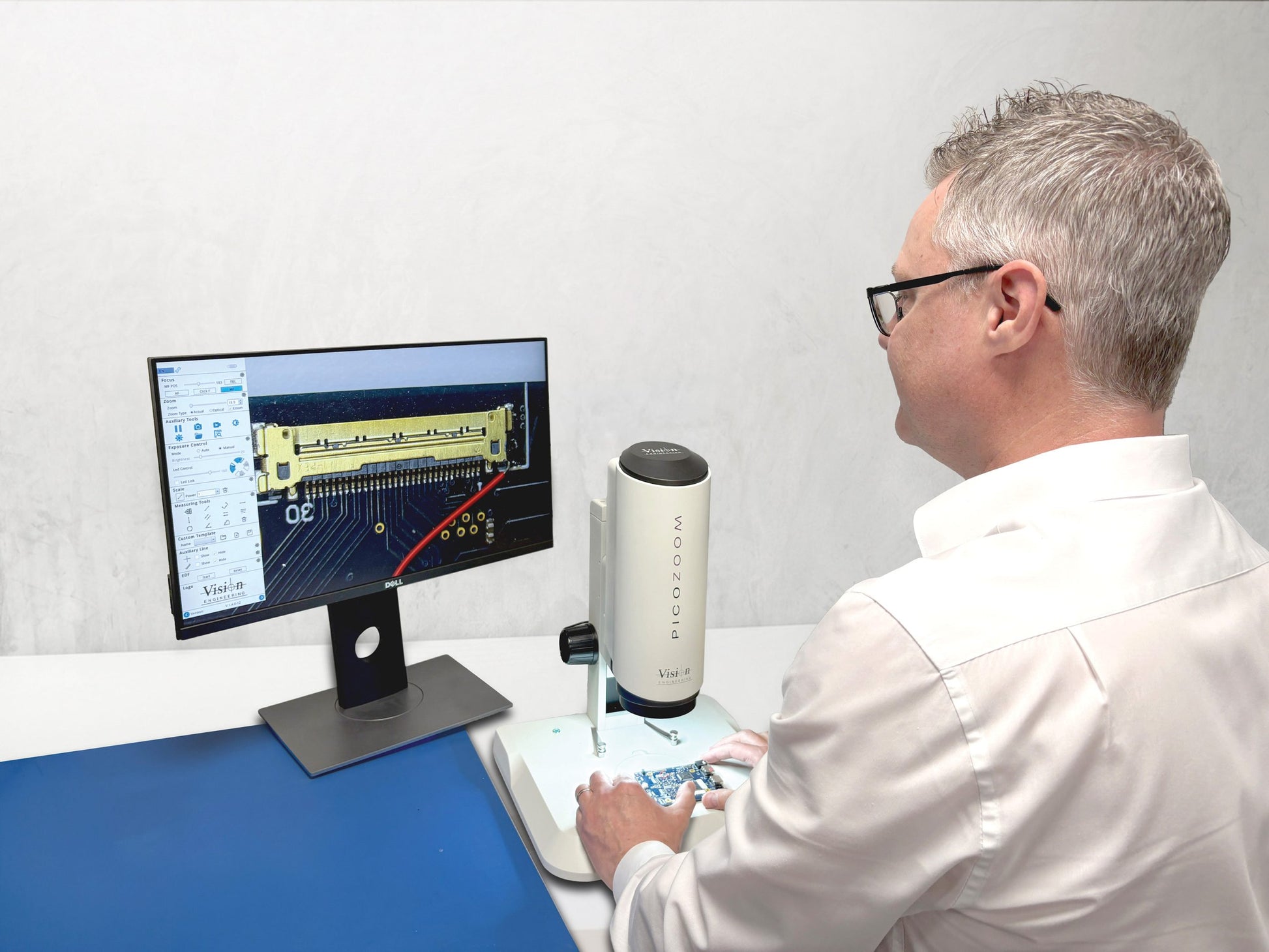

PicoZoom Autofocus Digital Inspection Microscope

Vision Engineering PicoZoom Autofocus Digital Inspection Microscope

The Vision Engineering PicoZoom Autofocus Digital Inspection Microscope is a compact, all-in-one digital inspection system designed to improve inspection speed, accuracy, and ease of use in manufacturing, electronics, quality control, and laboratory environments. Featuring a 7:1 motorized zoom, fast autofocus, integrated quadrant-controlled LED illumination, and over 30 built-in measurement and annotation tools, PicoZoom delivers professional inspection capabilities in a simple, intuitive platform.

Designed with productivity in mind, PicoZoom combines advanced digital imaging with intuitive mouse control, configurable measurement tools, and automated reporting to reduce training time and increase inspection efficiency. Extended Depth of Field (EDF) technology produces sharp, detailed images by stacking multiple focus layers, making it easier to inspect complex components with greater clarity.

Key Features

• 7:1 Motorized Zoom – Smooth digital zoom provides magnification from 20x to 140x for detailed inspections across a wide range of applications.
• Fast Autofocus – Automatically maintains sharp focus, reducing operator adjustments and improving inspection throughput.
• Integrated Quadrant LED Illumination – Adjustable lighting enhances surface detail and minimizes shadows for superior image quality.
• Extended Depth of Field (EDF) – Focus stacking technology combines multiple images to create exceptionally sharp images with greater depth of focus.
• 30 Measurement & Annotation Tools – Perform accurate measurements, add text annotations, identify edges, and generate professional inspection reports.
• User Configurable Calibrations – Easily customize measurement settings for different inspection tasks.
• Built-In Reporting – Create inspection reports with integrated report data tables and measurement results.
• LAN Connectivity – Connect to your network, configure file names, and set image-saving destinations for seamless workflow integration.
• USB Image & Video Capture – Save high-quality still images and videos directly to a USB drive for documentation and traceability.
• Compact All-in-One Design – Integrated stand and sleek housing provide a small footprint that is easy to clean and ideal for modern workstations.

Specifications

• Brand: Vision Engineering
• Product: PicoZoom Digital Inspection Microscope
• Magnification: 18.9x–121.8x System Magnification (20x–140x nominal)
• Optical Zoom: 0.7x–4.5x
• Motorized Zoom: Yes
• Autofocus: Yes
• Camera Sensor: CMOS, 1/2-inch
• Resolution: 2 MP, 1080p Full HD
• Frame Rate: 60 fps
• Working Distance: 100 mm
• Lighting: Integrated Quadrant-Controlled LED Illumination
• Measurement: Built-in Measurement & Reporting Software

Interfaces: HDMI, USB 3.0, LAN

• Storage: USB Flash Drive or PC Storage
• Display: External 22-inch HDMI Monitor (sold separately)

Product Brochure

• PicoZoom English (US) (PDF)

What's Included

• PicoZoom inspection microscope on integrated stand
• USB Mouse
• Power Supply with Multi-Region Plugs
• HDMI Cable
• USB Thumb Drive

Note: An HDMI monitor is required and is sold separately.

Ideal Applications

• Electronics assembly and PCB inspection
• Quality control and quality assurance
• Manufacturing process verification
• Failure analysis
• Precision component inspection
• Medical device manufacturing
• Research and laboratory imaging

Why Choose the Vision Engineering PicoZoom?

PicoZoom combines powerful imaging technology with an intuitive user experience, making it an excellent inspection solution for manufacturers looking to increase productivity while maintaining exceptional image quality. With motorized zoom, autofocus, extended depth of field, integrated reporting, and network connectivity, PicoZoom simplifies inspection workflows without sacrificing performance.
