Metcal UFC-7CH5112S UltraFine Soldering Cartridge 700 Series

Precision Meets Performance in High-Temperature Soldering

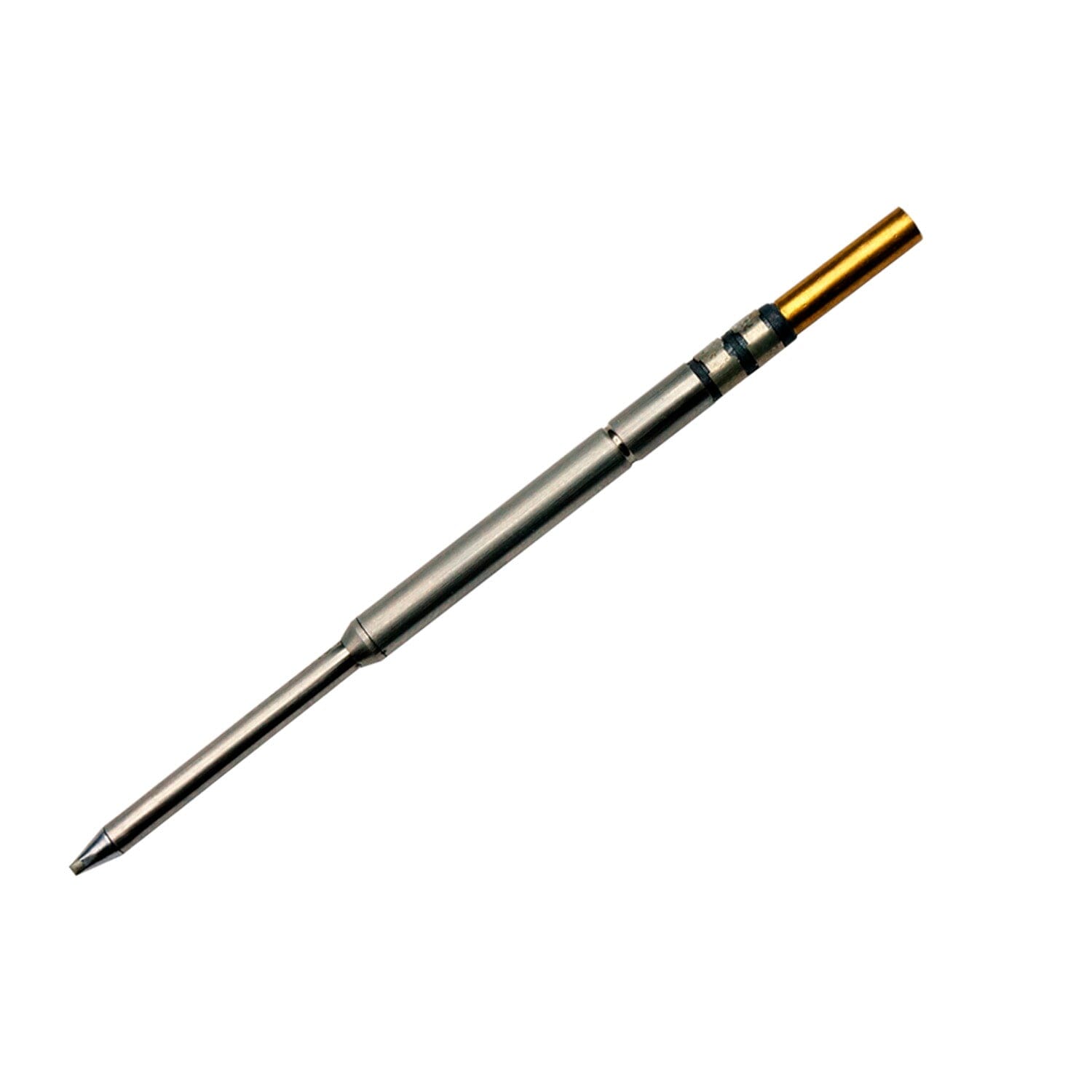

The Metcal UFC-7CH5112S UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems is engineered for ultra-precise soldering applications requiring consistent thermal performance and pinpoint accuracy. Designed for professional electronics technicians and manufacturing environments, this 700 Series chisel tip cartridge delivers reliable heat transfer even at high thermal loads. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

With a 1.2 mm x 5.1 mm chisel tip, the UFC-7CH5112S is ideal for drag soldering, pad bridging, and tight component lead work. Its UltraFine design ensures access to miniature pads and dense PCB assemblies, making it an essential tool for precision soldering and rework tasks.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-7CH5112S
• Series: UltraFine 700 Series
• Tip Geometry: Chisel

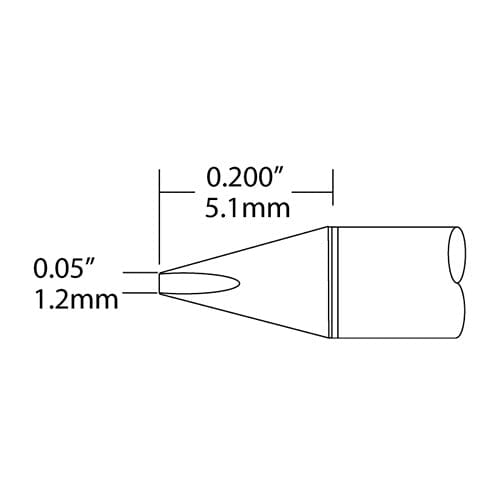

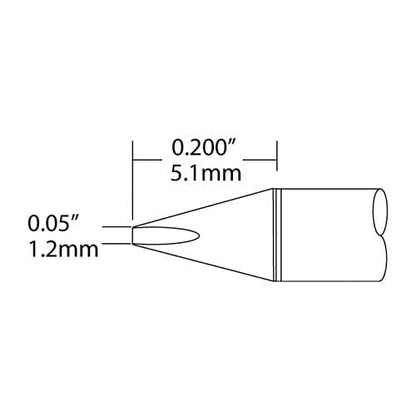

• Tip Dimensions: 1.2 mm wide x 5.1 mm long
• Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
• Temperature Range: Designed for 700 Series operation (~380°C)
• Application: Surface mount soldering, rework, fine pitch components, dense PCB layouts

Key Features

• UltraFine Tip Geometry: Provides superior access and control for intricate solder joints.
• Optimized for Thermal Demand: The Metcal "SmartHeat®-Technology" maintains stable temperature under continuous use.
• Quick Cartridge Change: Easy-to-replace tip design minimizes downtime in production.
• RoHS Compliant: Environmentally safe and lead-free process compatible.
• Ideal For: Microelectronics assembly, SMT component repair, and precision soldering tasks.

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf

Enhance your soldering precision today with the Metcal UFC-7CH5112S — engineered for performance and built for accuracy.
