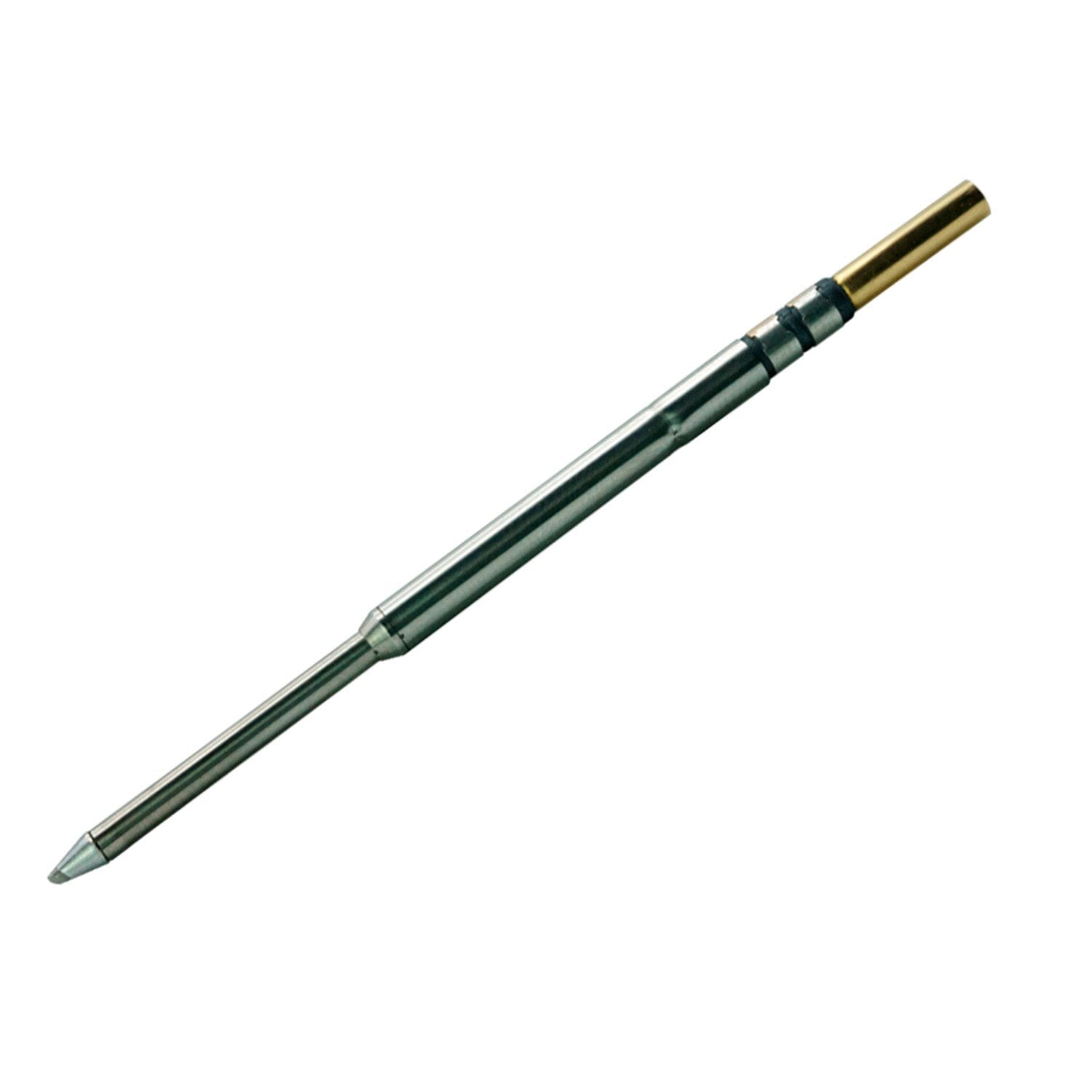

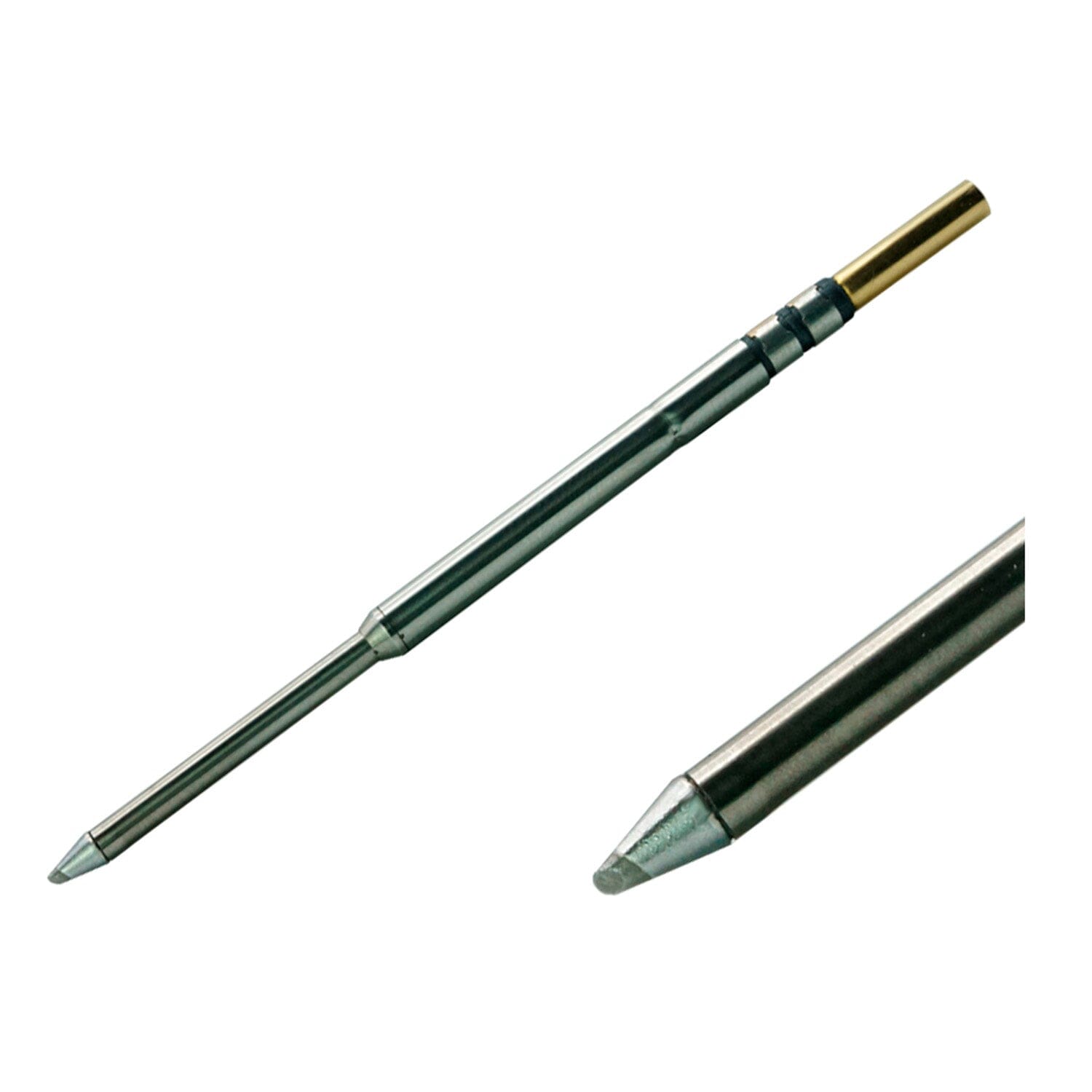

Metcal UFC-7HF5112S UltraFine Rework Cartridge, Hoof, 1.21 mm × 5.1 mm, 700 Series

The Metcal UFC-7HF5112S UltraFine Rework Cartridge is designed for precise multi-lead soldering and drag soldering applications. Its hoof-style tip (1.21 mm × 5.1 mm) delivers consistent heat transfer for high-quality solder joints. Part of the 700 Series, it operates at approximately ~390 °C, providing higher thermal capacity for more demanding rework tasks on fine-pitch and temperature-sensitive PCBs. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

Key Features

• Hoof tip (1.21 mm × 5.1 mm): Ideal for drag soldering and multi-lead component rework.
• 700 Series (~390 °C): Provides higher heat capacity for robust soldering.
• Optimized for microscope use: Improved control and visibility for precision soldering.
• Tool-free cartridge swaps: Fast tip changes to maintain productivity.
• RoHS compliant: Safe for lead-free and environmentally responsible soldering.

Specifications

• Manufacturer: Metcal
• Part Number: UFC-7HF5112S
• Series: UltraFine 700 Series
• Tip Geometry: Hoof
• Tip Dimensions: 1.21 mm (width) × 5.1 mm (length)
• Typical Operating Temperature: ~390 °C (700 Series)
• Compatibility: Metcal CV-5200 & CV-500 Series soldering systems
• Applications: Drag soldering, multi-lead rework, fine-pitch PCB soldering
• Compliance: RoHS

Ideal For

• Technicians performing drag soldering of multi-lead SMD components
• Precision rework on high-density PCBs
• Microscope-assisted soldering tasks
