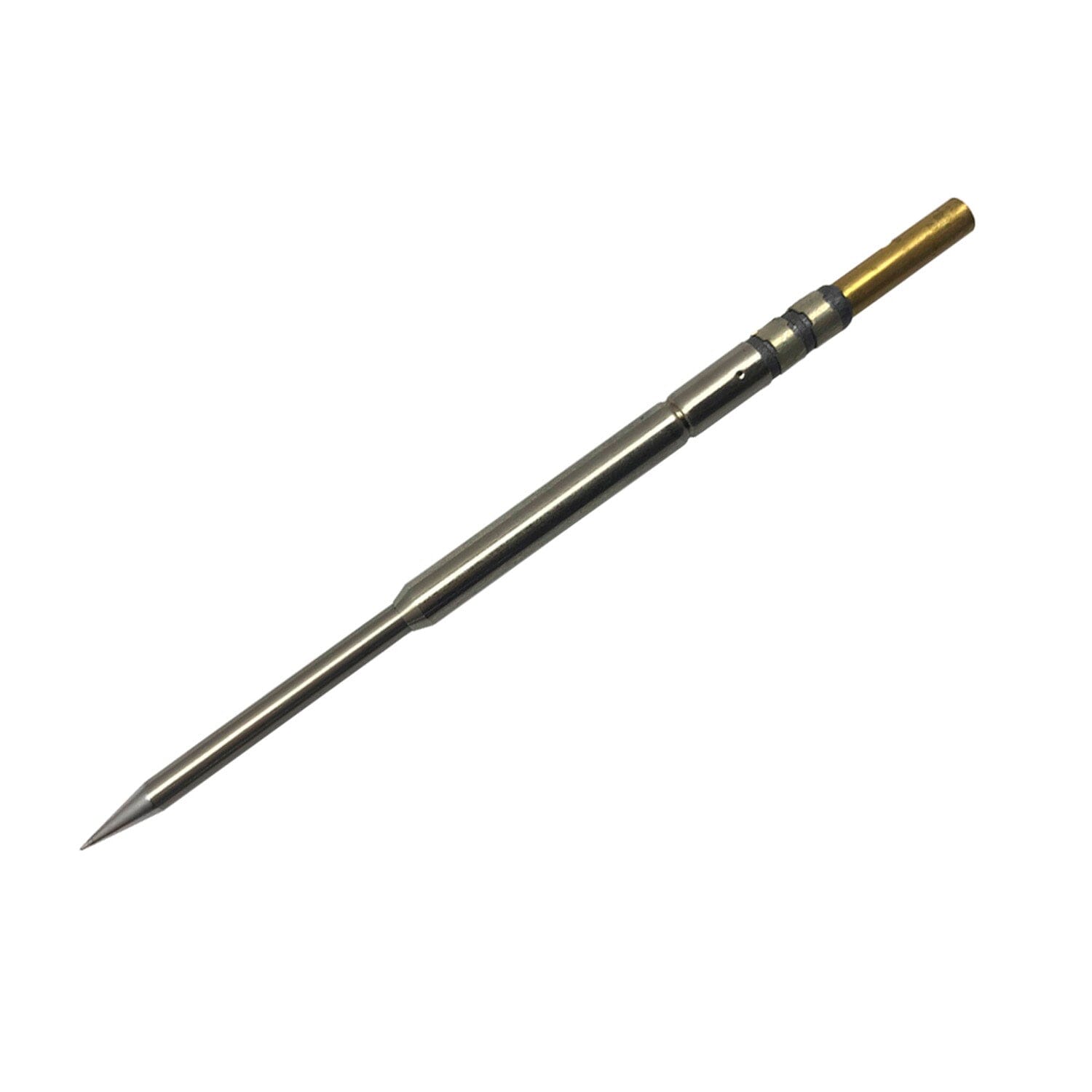

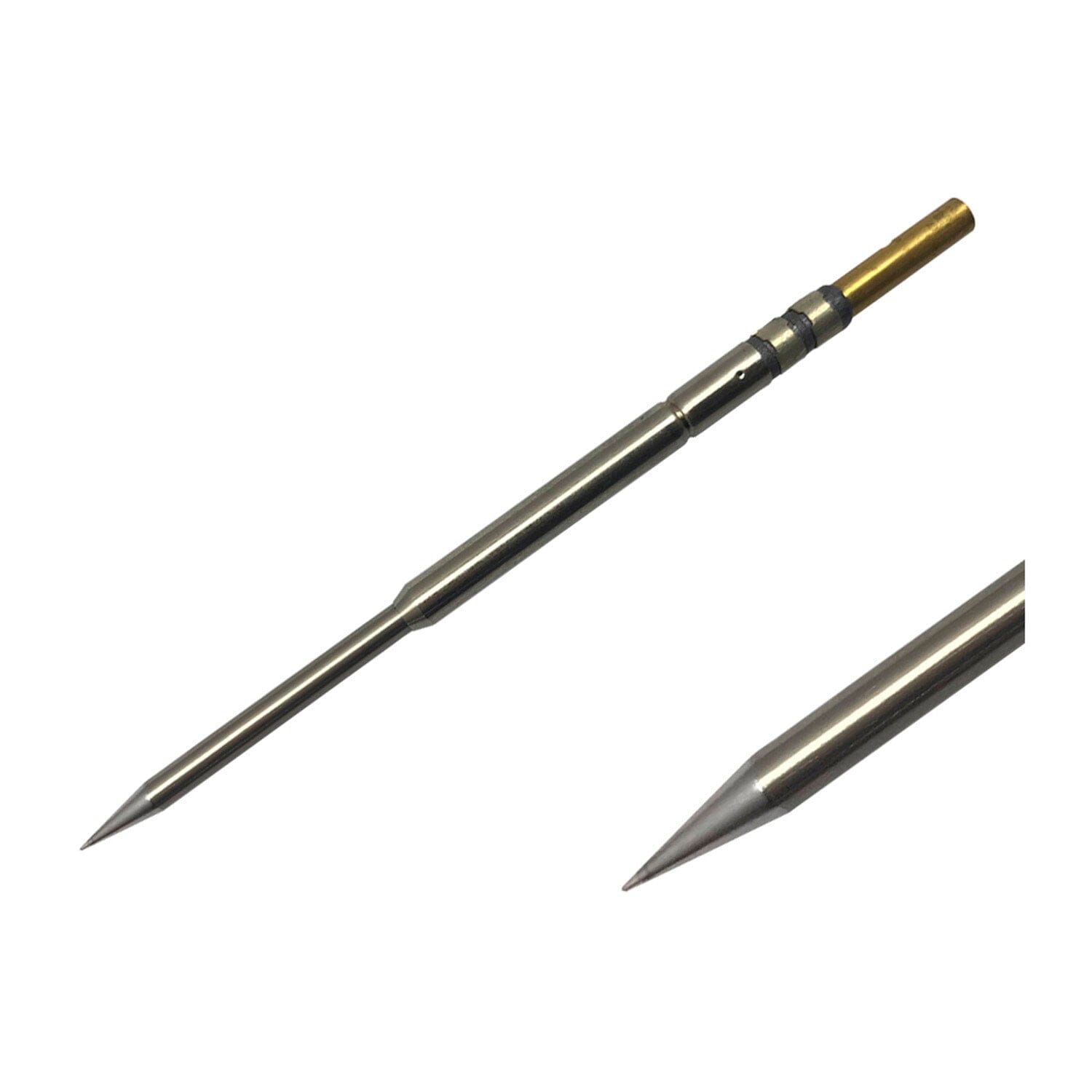

Metcal UFC-7CN8004S UltraFine Soldering Cartridge, Conical, 0.4 mm × 8.0 mm, 700 Series

The Metcal UFC-7CN8004S UltraFine Soldering Cartridge is engineered for ultra-precise soldering and rework tasks. Featuring a 0.4 mm × 8.0 mm conical tip, this cartridge provides excellent visibility and control for fine-pitch components and high-density PCB layouts. As part of the 700 Series, it operates at approximately ~390 °C, delivering the extra thermal capacity needed for more demanding soldering applications. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

Key Features

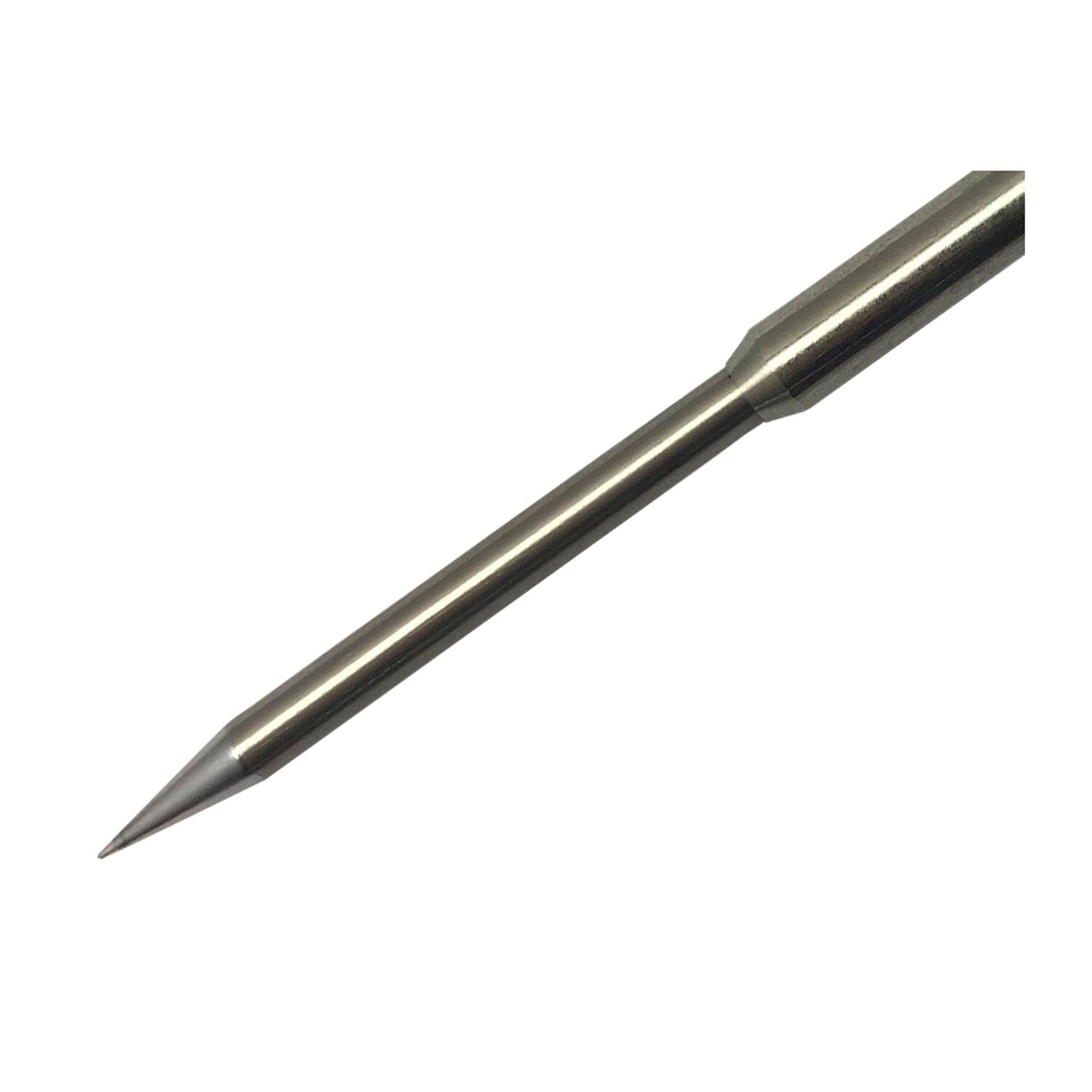

• Conical tip (0.4 mm × 8.0 mm): Ideal for precision soldering and access to tight component areas.
• 700 Series (~390 °C): Provides higher thermal performance for tough soldering tasks.
• Optimized for microscope use: Designed for control and accuracy in fine-pitch soldering.
• Quick cartridge swaps: Tool-free design allows fast tip changes to maximize productivity.
• RoHS compliant: Suitable for lead-free and environmentally safe soldering processes.

Specifications

• Manufacturer: Metcal
• Part Number: UFC-7CN8004S
• Series: UltraFine 700 Series
• Tip Geometry: Conical

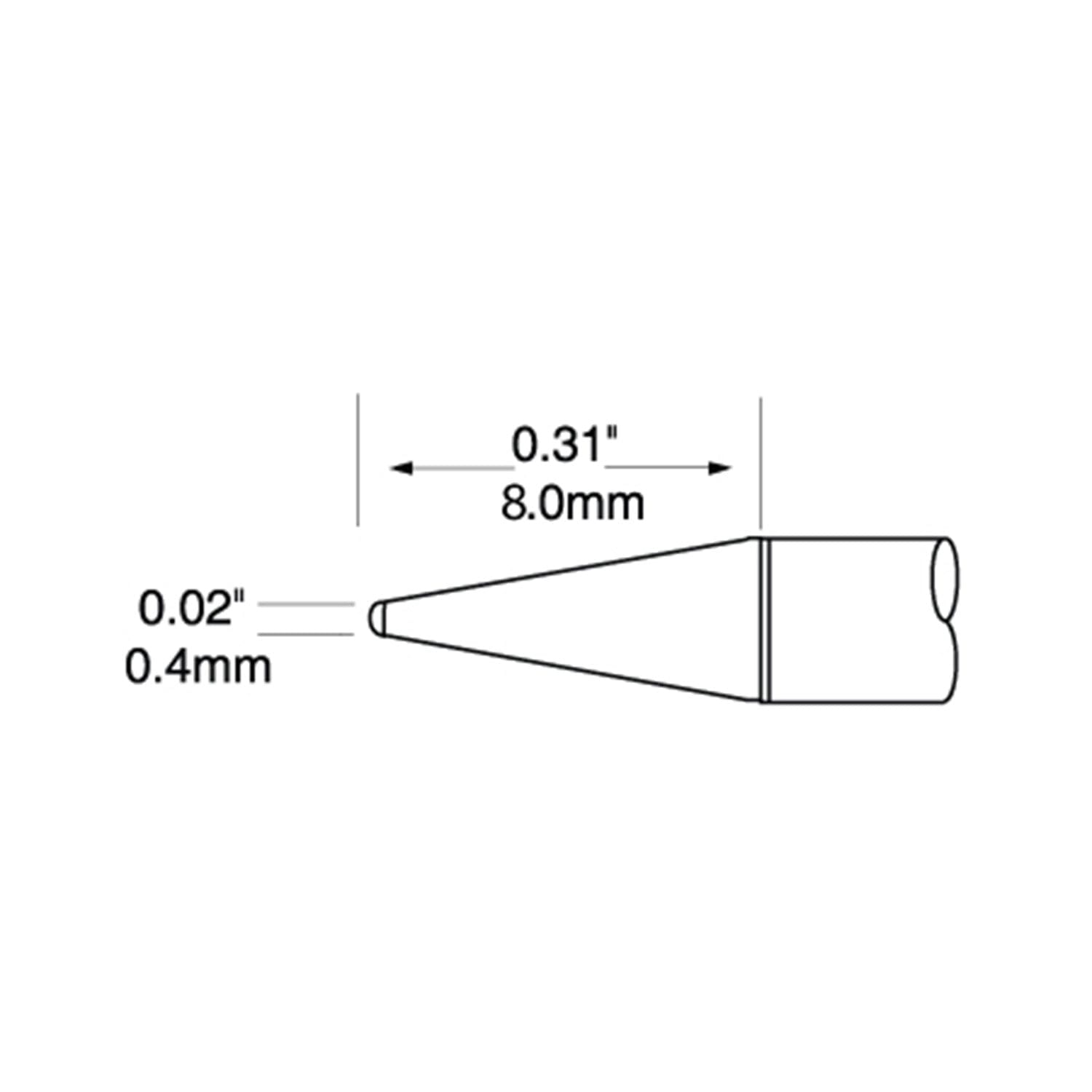

• Tip Dimensions: 0.4 mm (width) × 8.0 mm (length)
• Typical Operating Temperature: ~390 °C (700 Series)
• Compatibility: Metcal CV-5200 & CV-500 Series soldering systems
• Applications: Fine-pitch soldering, rework, high-density PCBs
• Compliance: RoHS

Ideal For

• Technicians working with precision SMD components
• High-density circuit board assembly and rework
• Microscope-assisted fine soldering tasks
