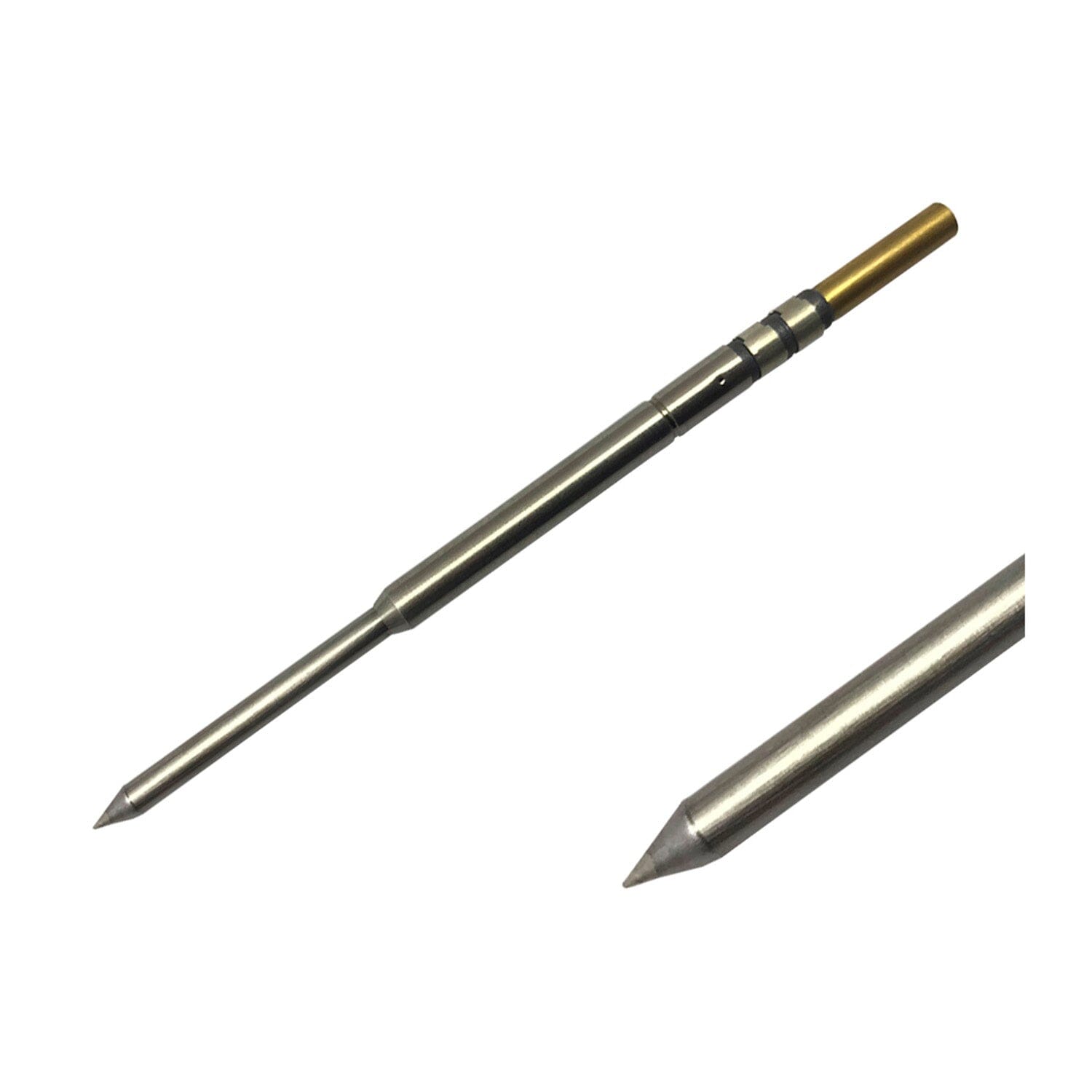

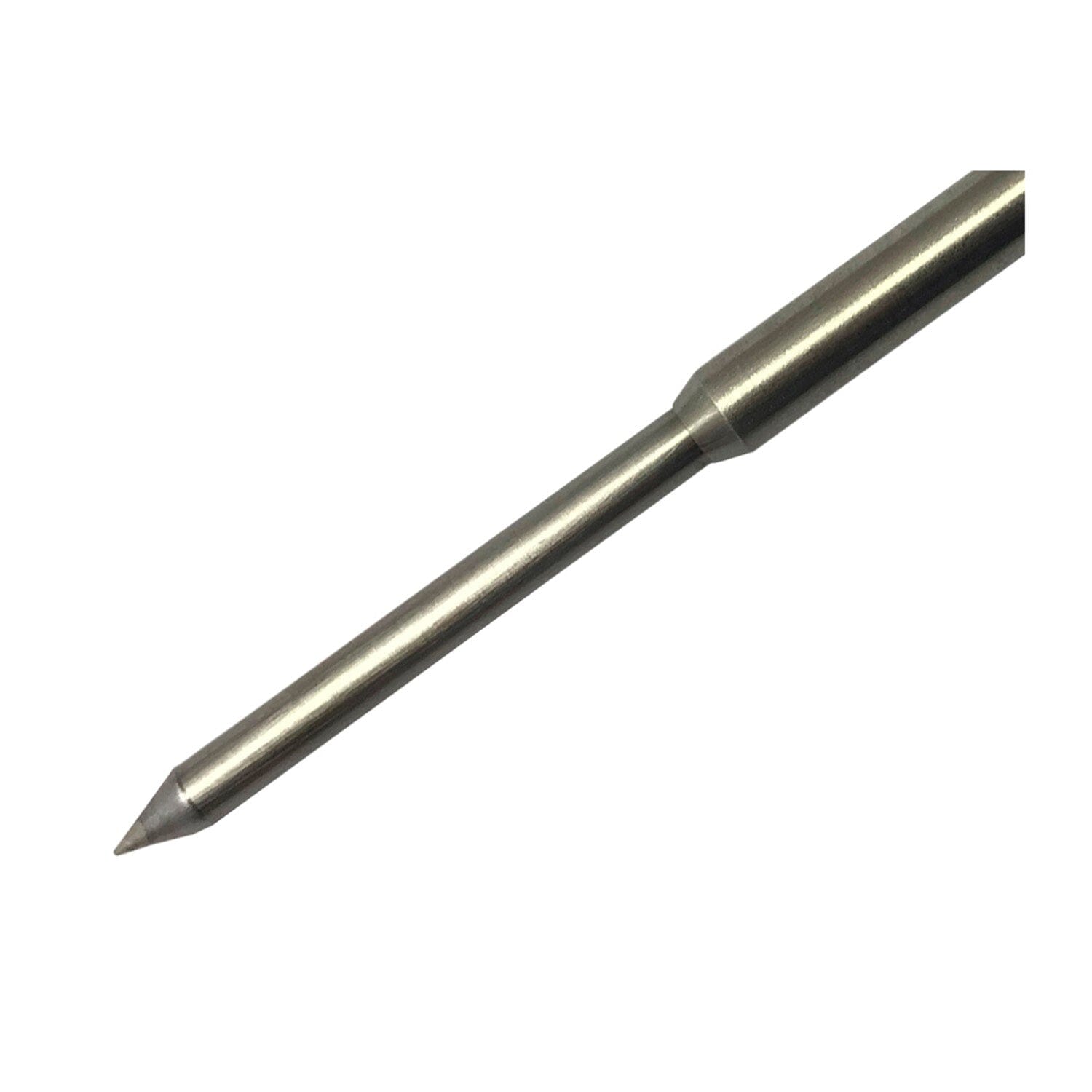

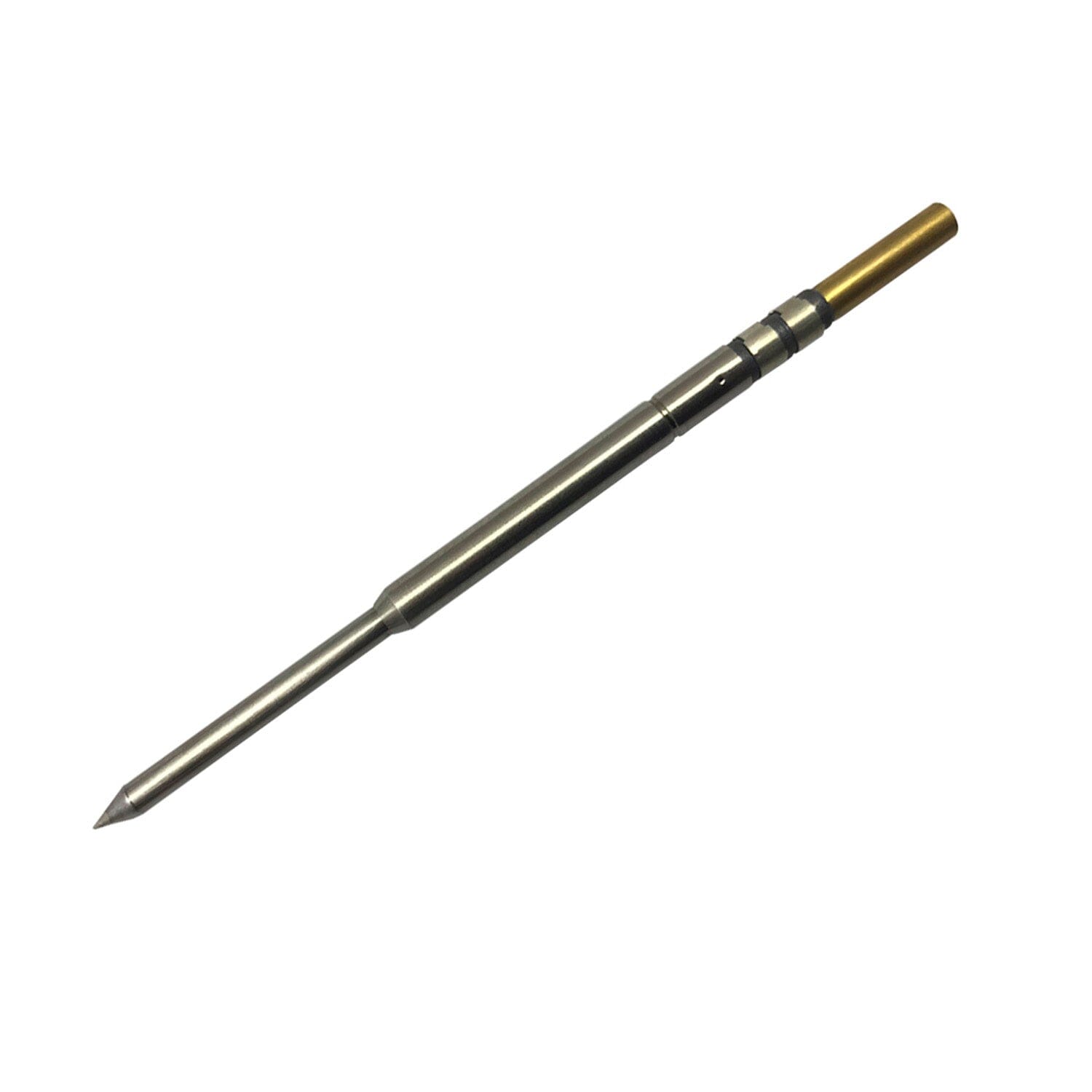

Metcal UFC-7CN5504S UltraFine Soldering Cartridge, Conical, 0.4 mm × 5.1 mm, 700 Series

The Metcal UFC-7CN5504S UltraFine Soldering Cartridge delivers precise soldering performance for fine-pitch components. Featuring a 0.4 mm × 5.1 mm conical tip, it provides excellent control and visibility for dense PCB layouts. Part of the 700 Series, it operates at approximately ~390 °C, offering higher thermal capacity for demanding soldering and rework applications. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

Key Features

• Conical tip (0.4 mm × 5.1 mm): Optimized for fine-pitch and tight component access.
• 700 Series (~390 °C): Provides higher thermal performance for robust soldering.
• Microscope-friendly design: Enhanced precision and control during detailed soldering tasks.
• Tool-free cartridge swaps: Fast changeover for increased efficiency.
• RoHS compliant: Safe for lead-free soldering processes.

Specifications

• Manufacturer: Metcal
• Part Number: UFC-7CN5504S
• Series: UltraFine 700 Series
• Tip Geometry: Conical

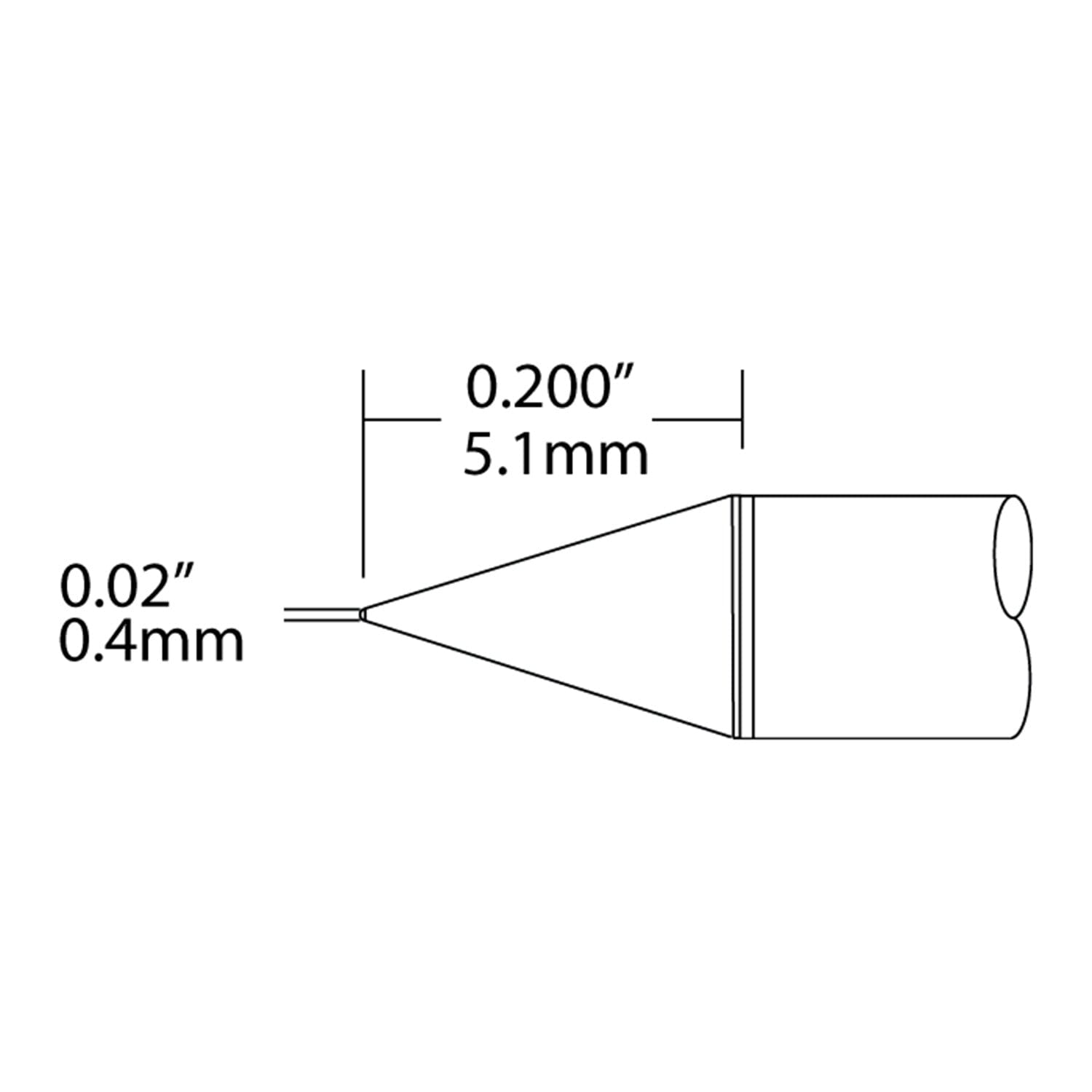

• Tip Dimensions: 0.4 mm (width) × 5.1 mm (length)
• Typical Operating Temperature: ~390 °C (700 Series)
• Compatibility: Metcal CV-5200 & CV-500 Series soldering systems
• Applications: Fine-pitch soldering, dense PCB rework, high-precision SMD tasks
• Compliance: RoHS

Ideal For

• Technicians working with fine-pitch SMD components
• High-density PCB assembly and rework
• Microscope-assisted soldering tasks
