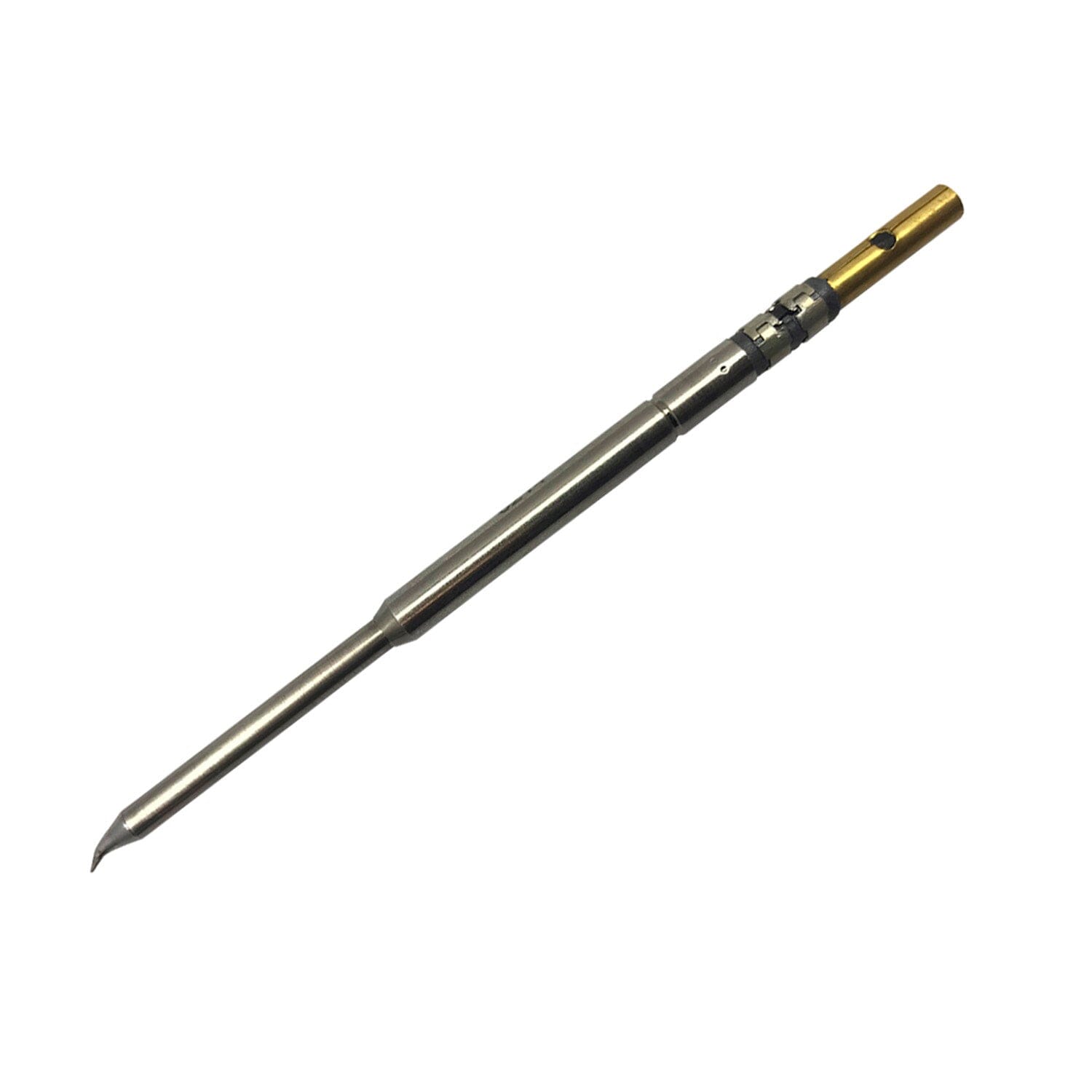

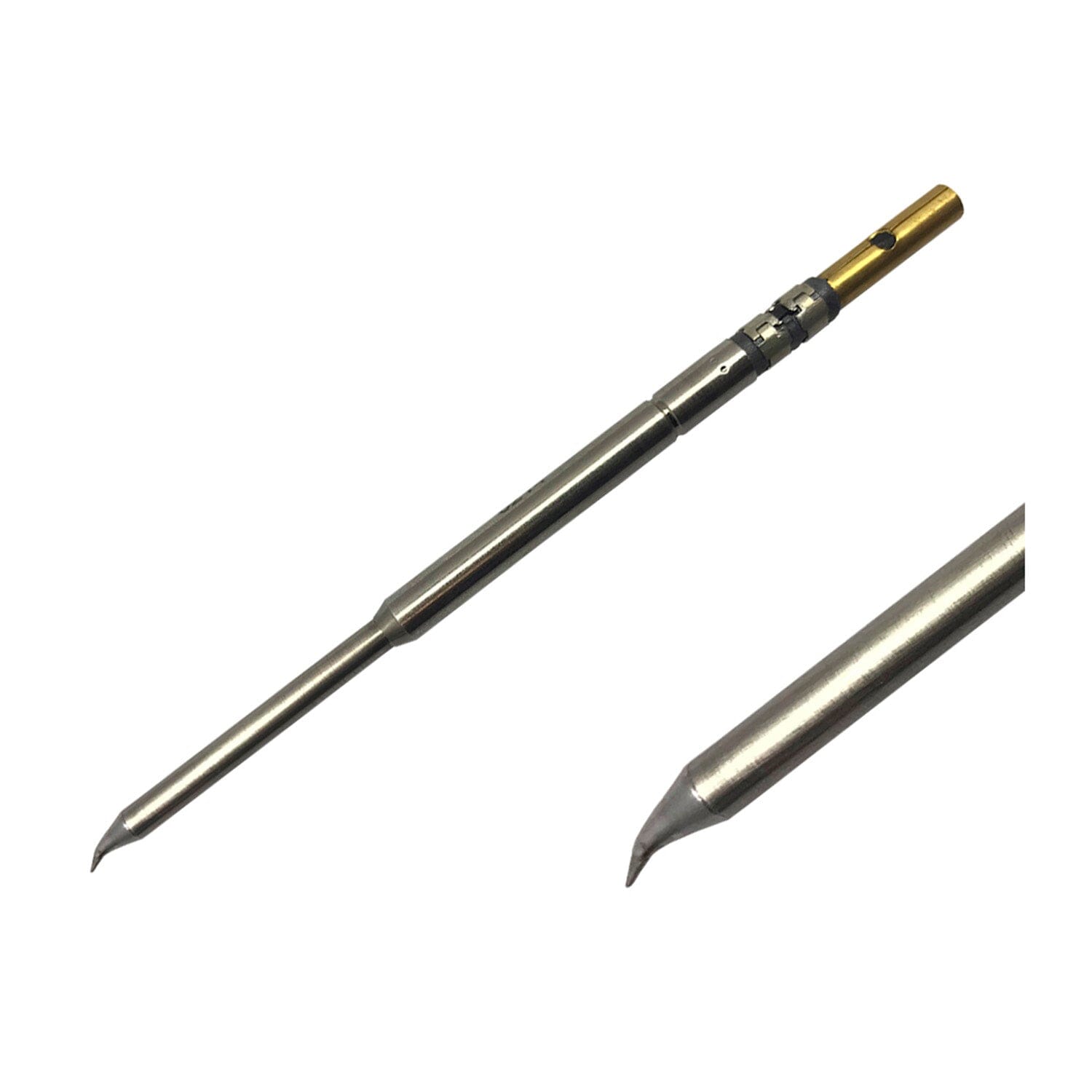

Metcal UFC-7CN5504R UltraFine Soldering Cartridge, Conical, Bent, 700 Series

Precision Access and Performance for High-Temperature Soldering

The Metcal UFC-7CN5504R UltraFine Soldering Cartridge is designed for high-precision soldering applications where reach, visibility, and performance are critical. Featuring a 0.4 mm x 5.6 mm bent conical tip, this cartridge is optimized for fine-pitch components and confined areas, providing excellent access to tight solder joints and intricate layouts.

Part of Metcal’s 700 Series, the UFC-7CN5504R is intended for use with CV-5200 and CV-500 Series Soldering Systems and operates at a higher working temperature (~390°C), making it suitable for standard lead-free soldering, multilayer boards, and components with higher thermal mass.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-7CN5504R
• Series: UltraFine 700 Series
• Tip Geometry: Conical, Bent

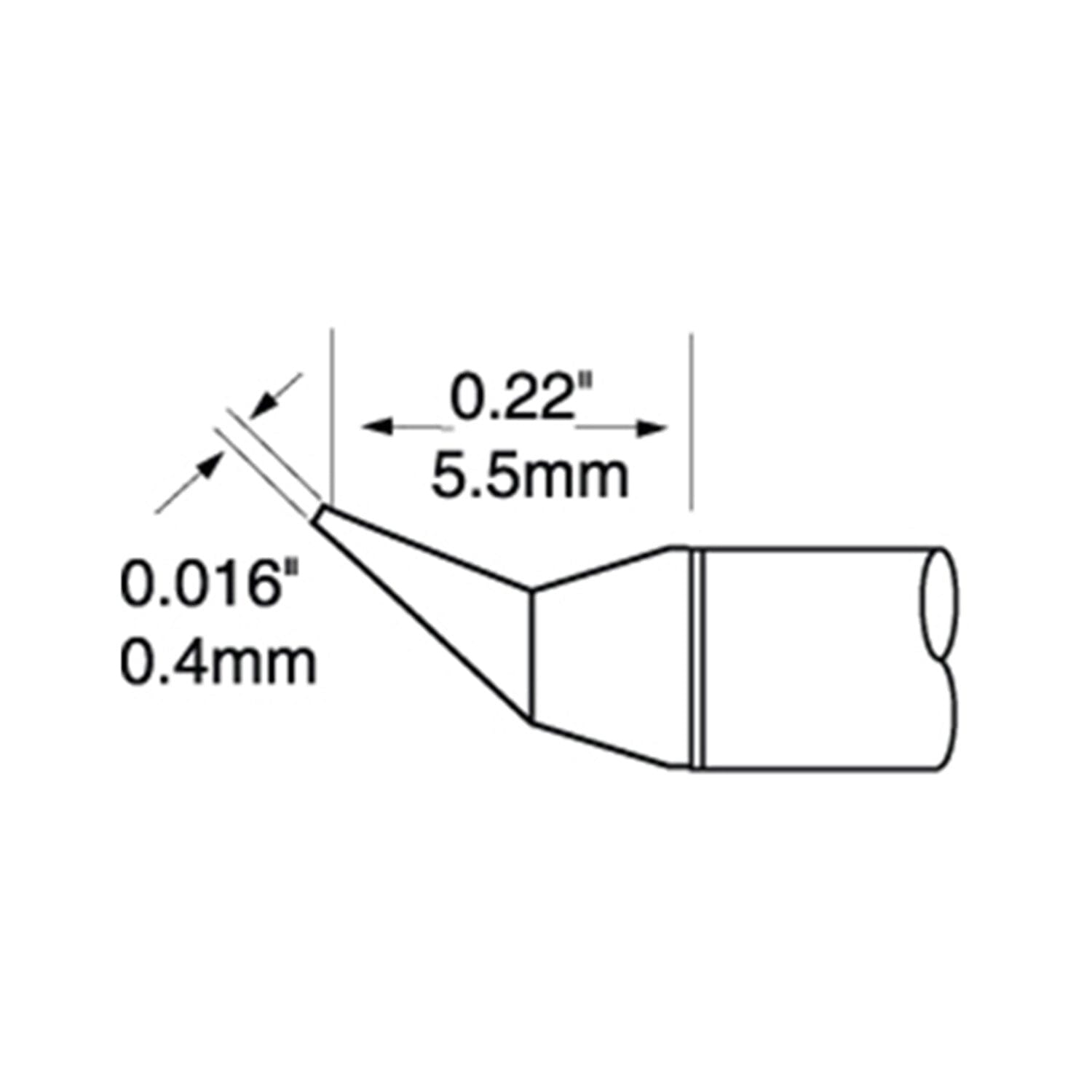

• Tip Dimensions: 0.4 mm wide x 5.6 mm long
• Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
• Operating Temperature: ~390°C (700 Series)
• Application: Precision soldering, fine-pitch components, high-density assemblies, lead-free soldering

Key Features

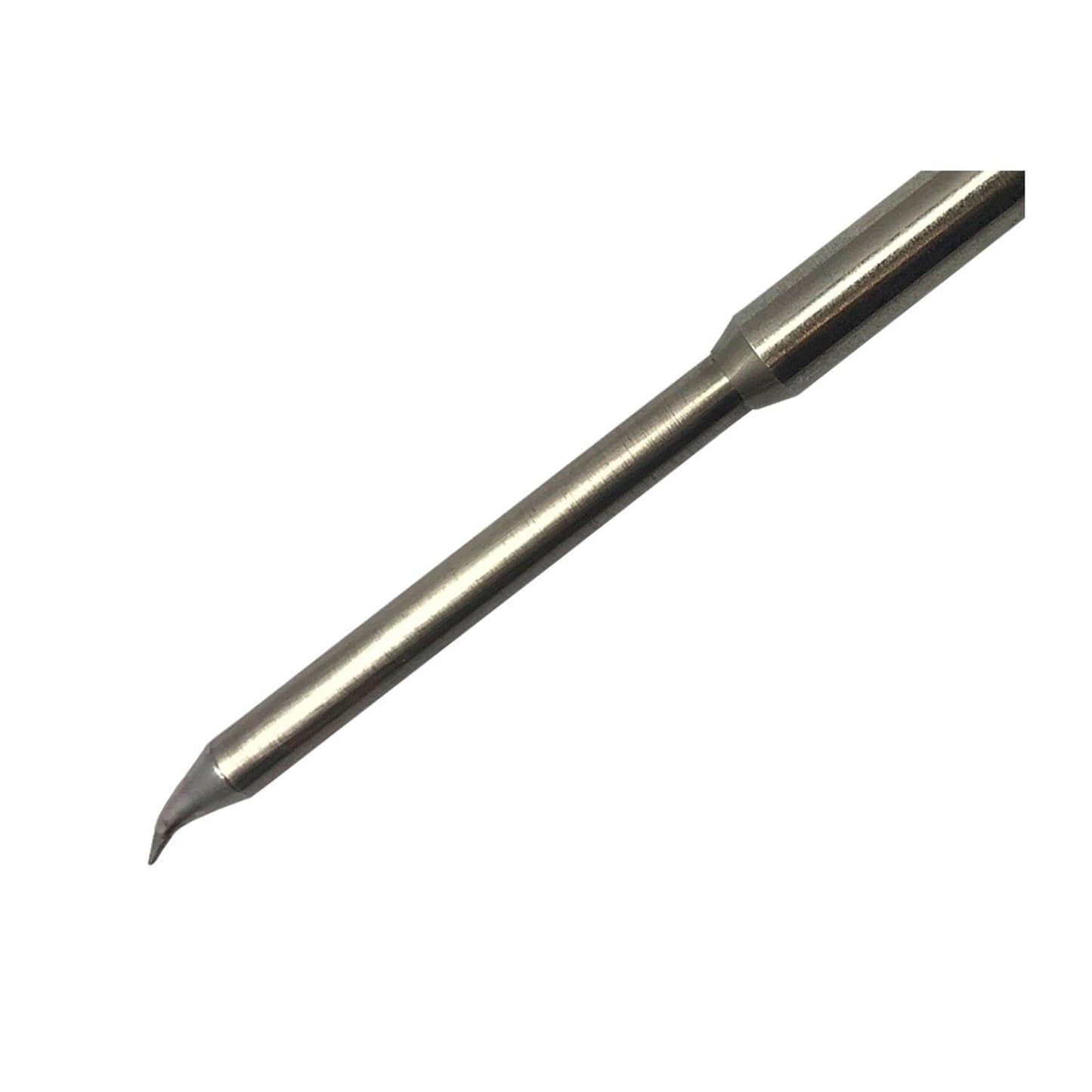

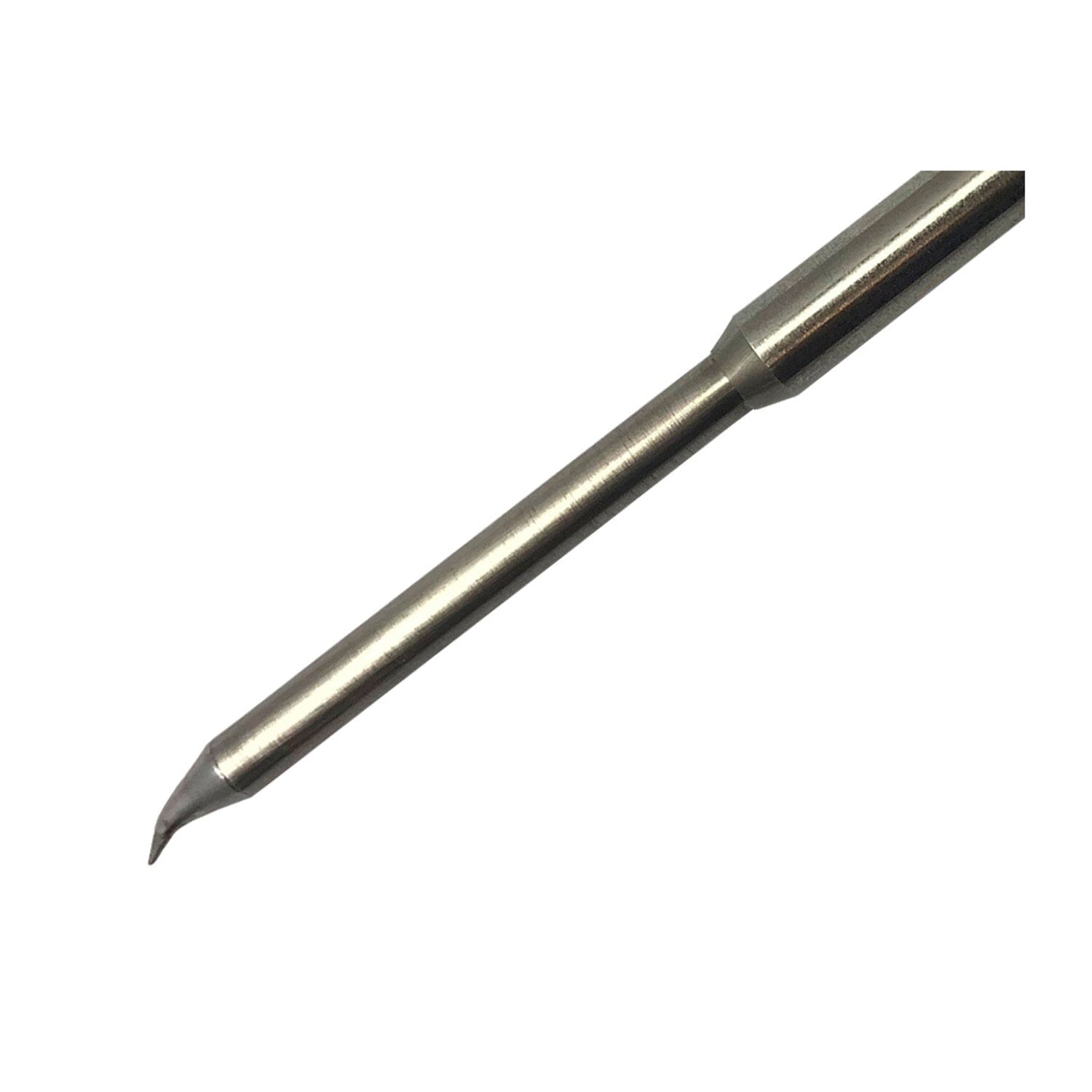

• UltraFine Bent Conical Tip: Enables access to recessed or obstructed joints with precision heat transfer.
• High-Temperature Capability: Ideal for lead-free processes and components with larger thermal mass.
• Microscope-Friendly: Slim profile supports use under magnification or in detailed rework stations.
• Quick Cartridge Swap: Tool-free changeover boosts efficiency during assembly or rework tasks.
• RoHS Compliant: Suitable for environmentally responsible manufacturing.

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf


Choose the Metcal UFC-7CN5504R for high-precision soldering in complex, high-temperature electronics applications where control and access are essential.
