Metcal UFC-7CN5502R UltraFine Soldering Cartridge, Conical, Bent, 0.2 mm x 5.6 mm, 700 Series

Metcal UFC-7CN5502R UltraFine Soldering Cartridge, Conical, Bent, 0.2 mm x 5.6 mm, 700 Series

MET-UFC-7CN5502R

$43.40
$43.40
Sale Sold out
Shipping calculated at checkout.

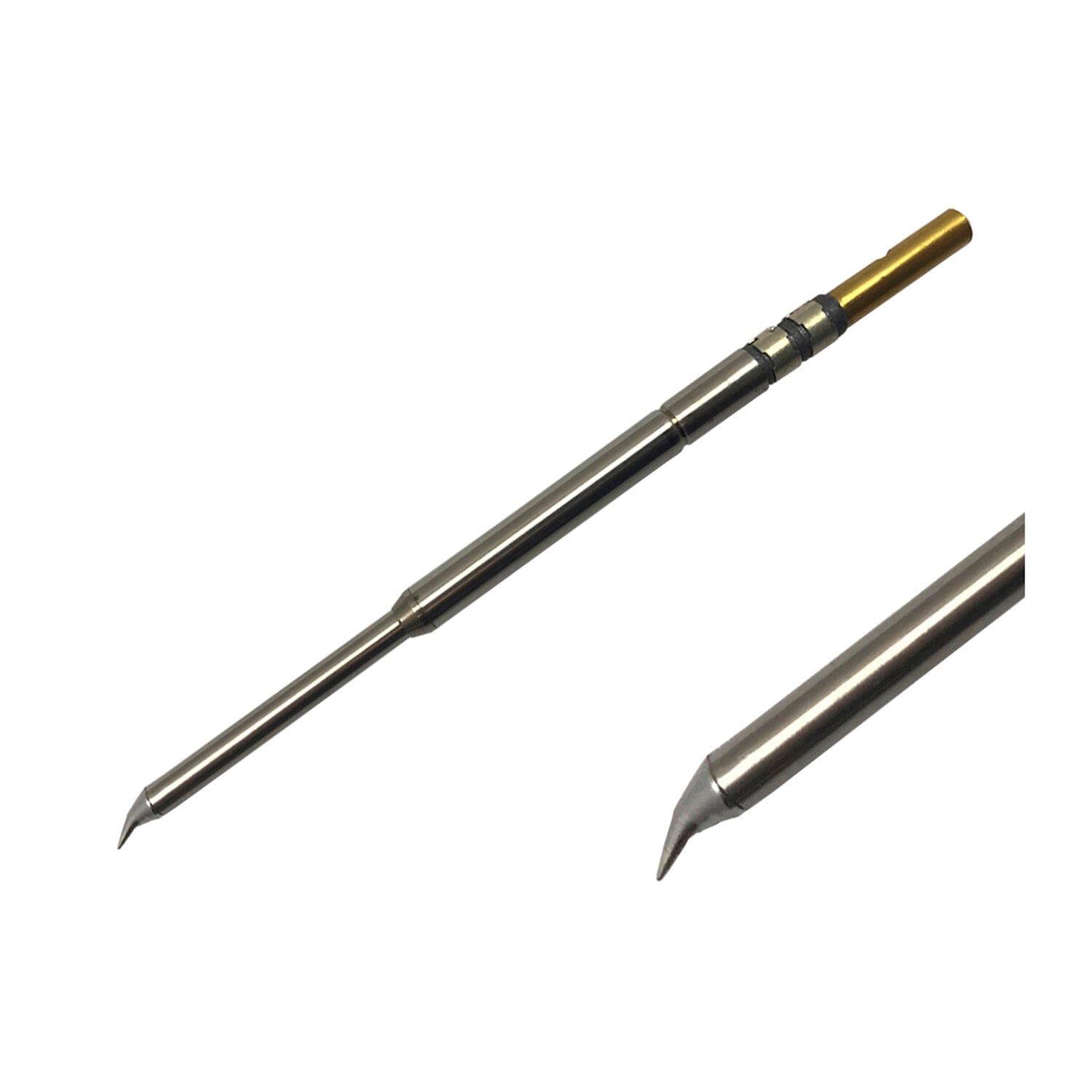

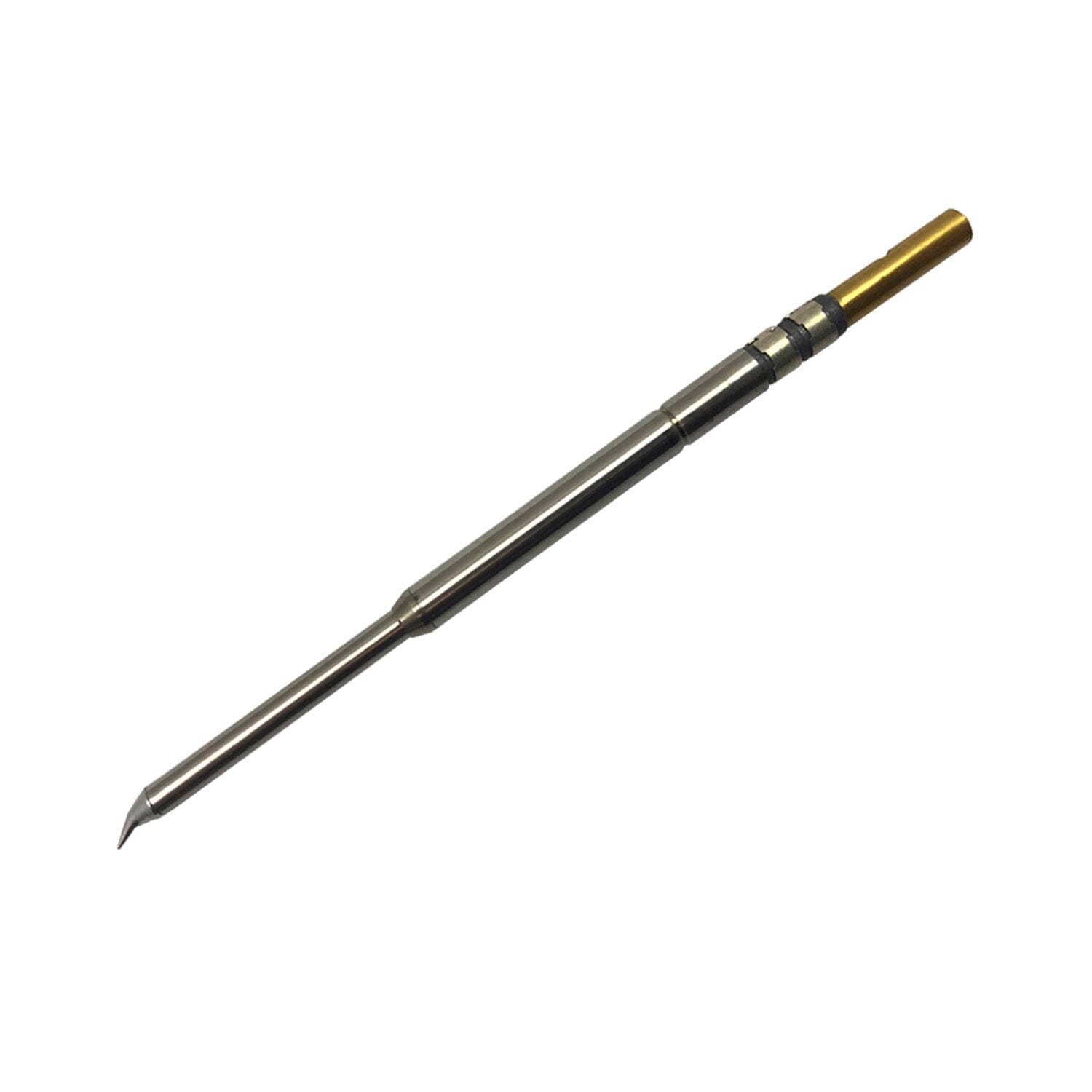

Metcal UFC-7CN5502R UltraFine Soldering Cartridge – Bent Conical Tip, 700 Series

High-Performance Precision for Complex Soldering Tasks

The Metcal UFC-7CN5502R UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems features a bent conical tip (0.2 mm x 5.6 mm) engineered for soldering professionals who require both precision and flexibility. Ideal for tight spaces and awkward angles, this tip geometry provides excellent control for micro-soldering, rework, and dense PCB layouts.

Part of Metcal’s high-temperature 700 Series, this cartridge operates at approximately 385°C, delivering reliable thermal performance in lead-free and high-throughput production environments. The bent conical design is particularly well-suited for microscope-assisted soldering or applications with obstructed access.

Technical Specifications

  • Manufacturer: Metcal
  • Model Number: UFC-7CN5502R
  • Series: UltraFine 700 Series

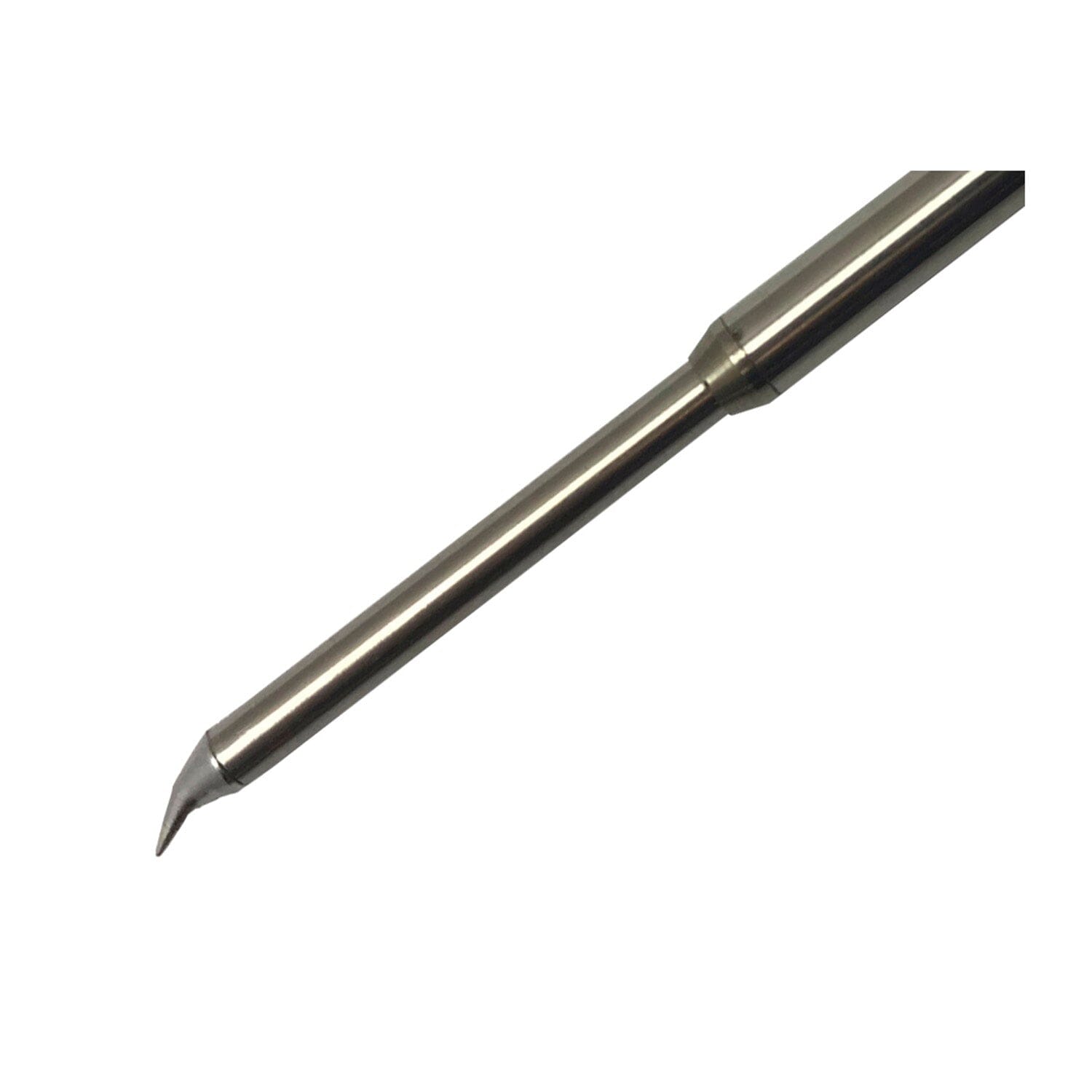

  • Tip Geometry: Bent Conical

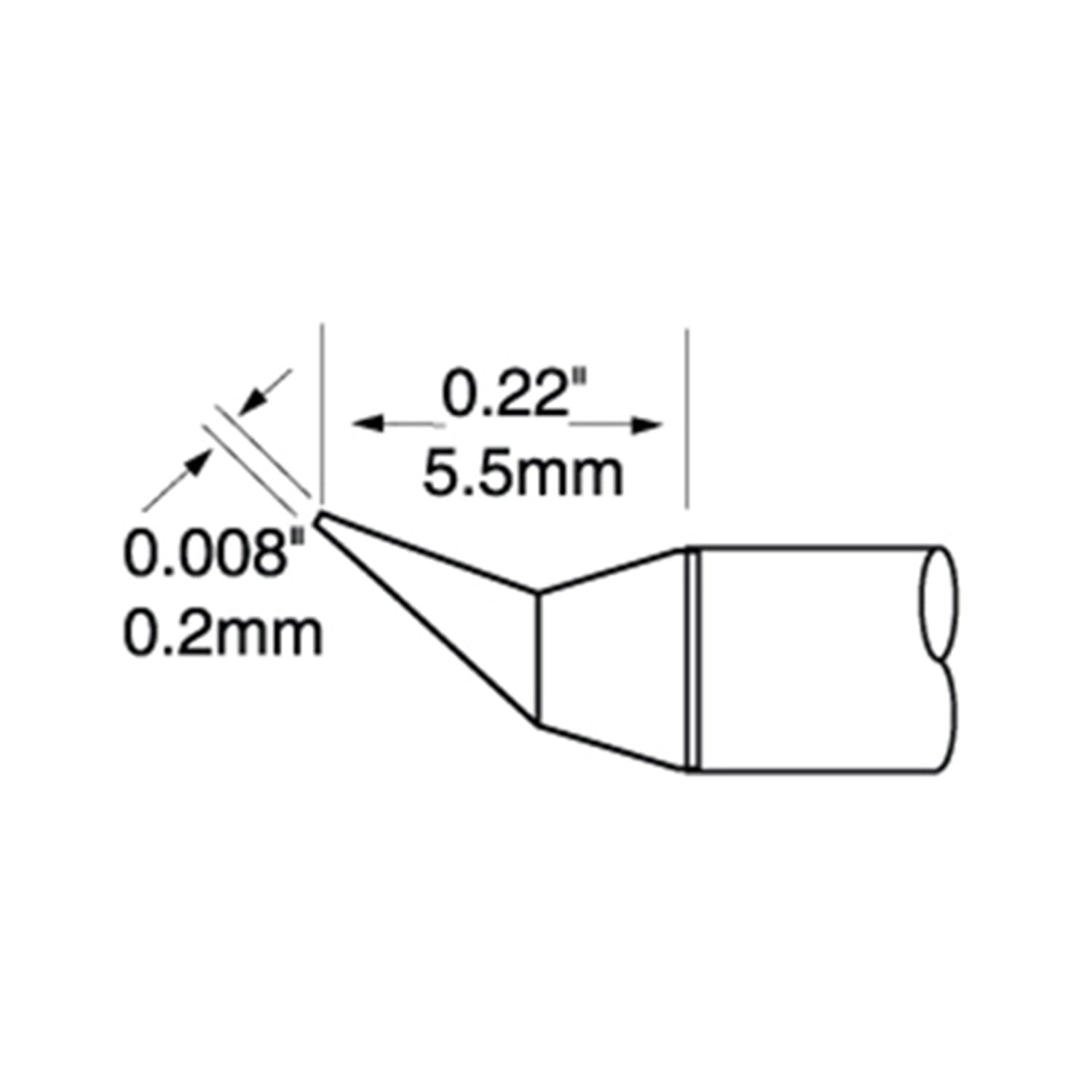

  • Tip Dimensions: 0.2 mm diameter x 5.6 mm long
  • Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
  • Temperature Range: Designed for 700 Series operation (~385°C)
  • Application: Precision soldering, fine-pitch SMD work, rework, angled solder joints

Key Features

  • Bent UltraFine Tip: Optimized for difficult-to-reach areas and angled solder joints.
  • High-Temperature Capability: Suitable for demanding applications and lead-free soldering.
  • Superior Thermal Recovery: The Metcal SmartHeat®-Technology maintains consistent temperature during continuous use.
  • Tool-Free Cartridge Swap: Simplifies replacement to keep production flowing.
  • RoHS Compliant: Safe for environmentally responsible, lead-free assembly lines.

Additional Documentation

Master tight angles and detailed soldering with the Metcal UFC-7CN5502R — precision-engineered for professionals in high-performance environments.
