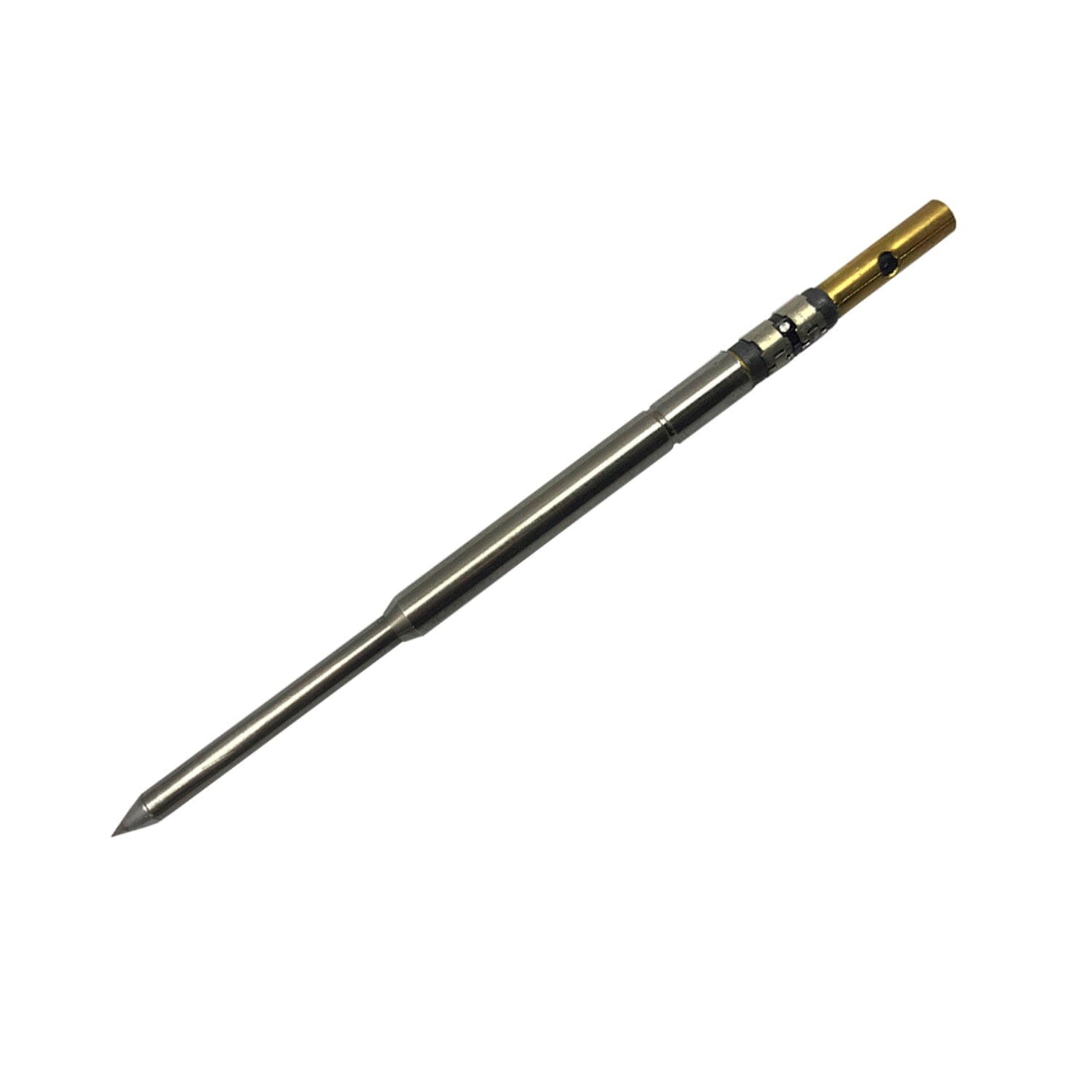

Metcal UFC-7CN5102S UFC UltraFine Soldering Cartridge, Conical, 0.2 mm x 5.1 mm, 700 Series
Metcal UFC-7CN5102S UFC UltraFine Soldering Cartridge, Conical, 0.2 mm x 5.1 mm, 700 Series
SKU:MET-UFC-7CN5102S
Couldn't load pickup availability
Metcal UFC-7CN5102S UltraFine Soldering Cartridge 700 Series
Extreme Precision Meets High-Temperature Performance
The Metcal UFC-7CN5102S UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems delivers pinpoint accuracy and consistent heat for high-precision soldering in demanding environments. With a 0.2 mm x 5.1 mm conical tip, this cartridge is engineered for detailed soldering applications, including fine-pitch SMD components and microelectronics assembly.
Designed as part of the Metcal 700 Series, the UFC-7CN5102S operates at higher temperatures (~385°C), providing excellent thermal recovery and performance for continuous-use production environments. Its UltraFine geometry gives you superior access and visibility for delicate and high-density circuit boards.
Technical Specifications
- Manufacturer: Metcal
- Model Number: UFC-7CN5102S
- Series: UltraFine 700 Series
- Tip Geometry: Conical
- Tip Dimensions: 0.2 mm diameter x 5.1 mm long
- Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
- Temperature Range: Designed for 700 Series operation (~385°C)
- Application: High-precision soldering, rework, fine-pitch SMD, dense PCB layouts
Key Features
- UltraFine Conical Tip: Enables precise soldering in compact and high-density areas.
- High-Temperature Operation: Suitable for lead-free soldering and thermally demanding applications.
- Superior Thermal Control: Maintains stable tip temperature even during extended use.
- Quick Change Cartridge: Tool-free replacement for efficient workflow.
- RoHS Compliant: Safe for use in modern, environmentally responsible production.
Additional Documentation
Trust the Metcal UFC-7CN5102S for exceptional soldering control in the most demanding fine-pitch applications.
