Metcal UFC-7CN5101S UltraFine Soldering Cartridge, Conical, 0.13 mm × 5.1 mm, 700 Series

The Metcal UFC-7CN5101S UltraFine Soldering Cartridge is designed for extreme precision soldering of fine-pitch and high-density PCB components. Its 0.13 mm × 5.1 mm conical tip allows for highly accurate solder placement in tight areas. Part of the 700 Series, it operates at approximately ~390 °C, providing sufficient thermal capacity for demanding soldering tasks. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

Key Features

• Conical tip (0.13 mm × 5.1 mm): Ideal for ultra-fine pitch components and tight soldering areas.
• 700 Series (~390 °C): Provides high thermal performance for challenging soldering applications.
• Microscope-friendly design: Optimized for precision soldering and visual control.
• Tool-free cartridge swaps: Quick changeover to maintain workflow efficiency.
• RoHS compliant: Suitable for lead-free soldering processes.

Specifications

• Manufacturer: Metcal
• Part Number: UFC-7CN5101S
• Series: UltraFine 700 Series
• Tip Geometry: Conical

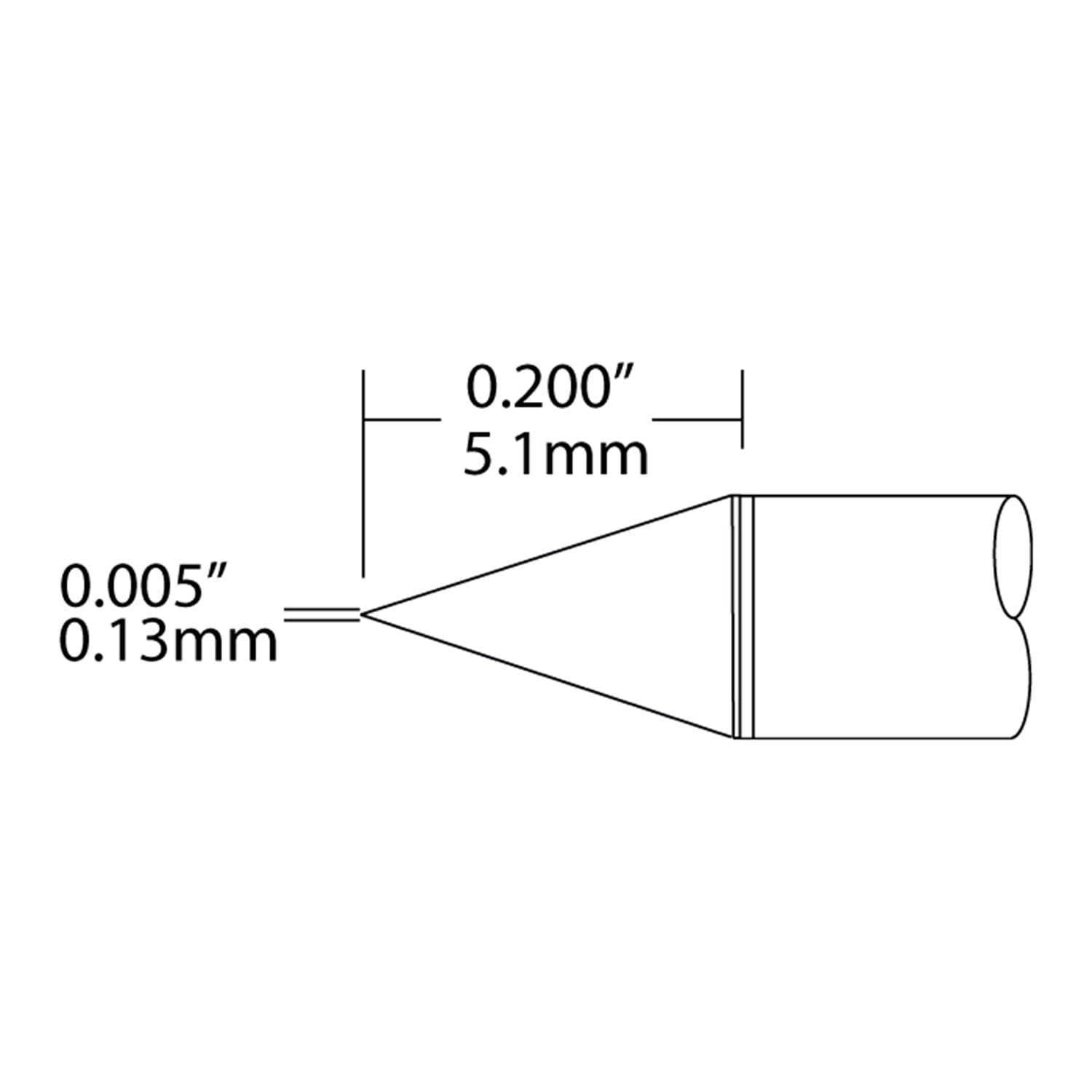

• Tip Dimensions: 0.13 mm (width) × 5.1 mm (length)
• Typical Operating Temperature: ~390 °C (700 Series)
• Compatibility: Metcal CV-5200 & CV-500 Series soldering systems
• Applications: Ultra-fine-pitch soldering, dense PCB rework, high-precision SMD tasks
• Compliance: RoHS

Ideal For

• Technicians soldering ultra-fine-pitch SMD components
• High-density PCB assembly and rework
• Microscope-assisted soldering tasks requiring extreme precision
