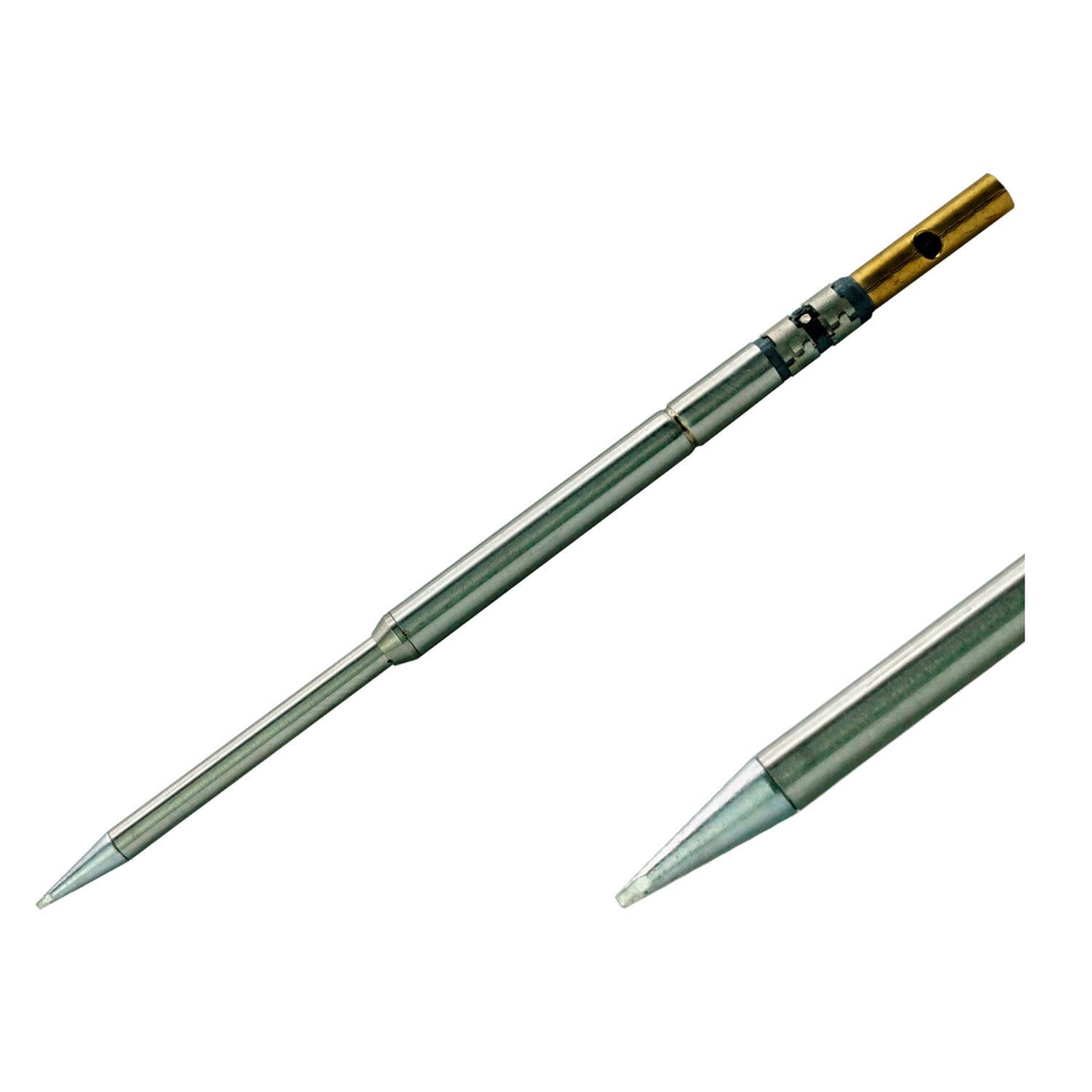

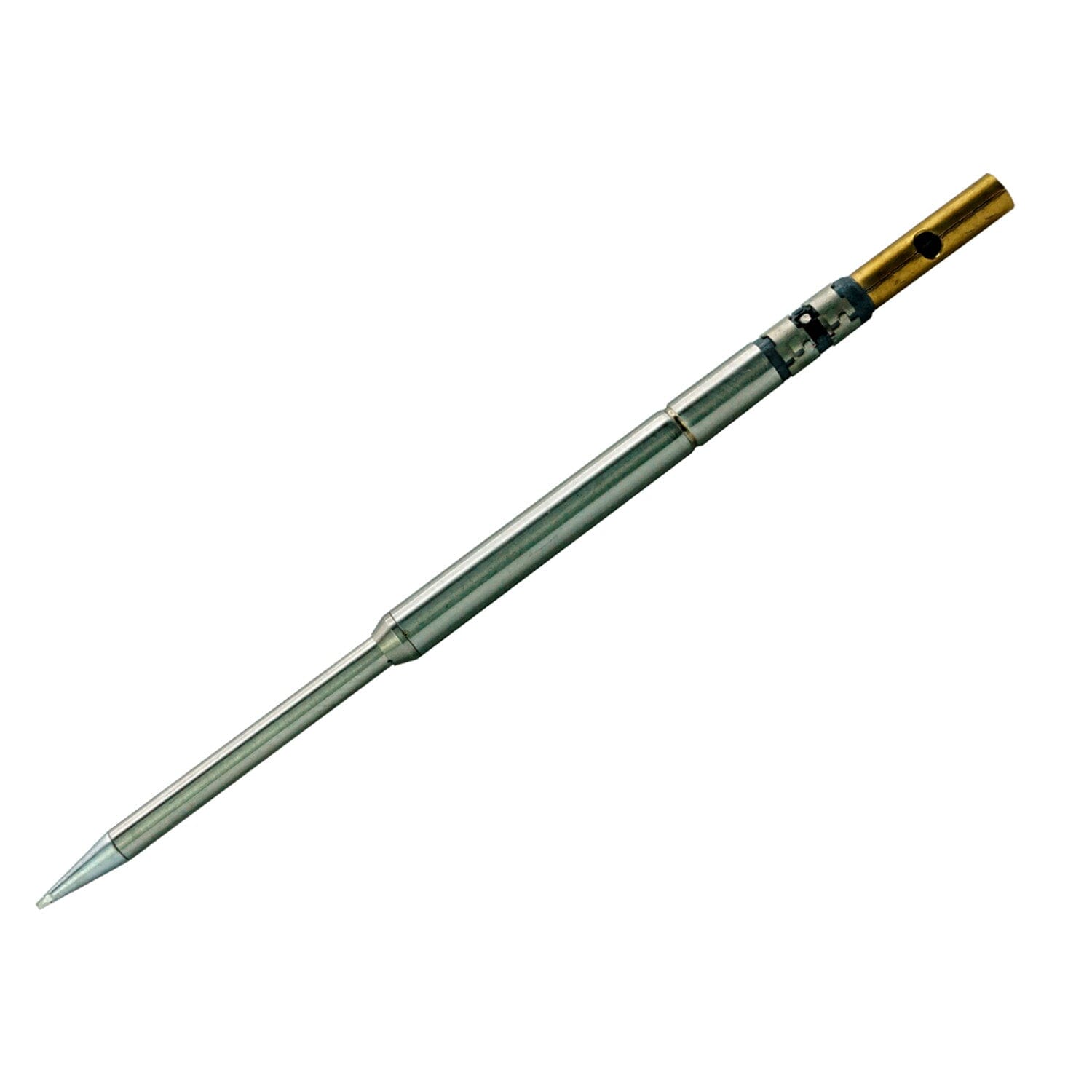

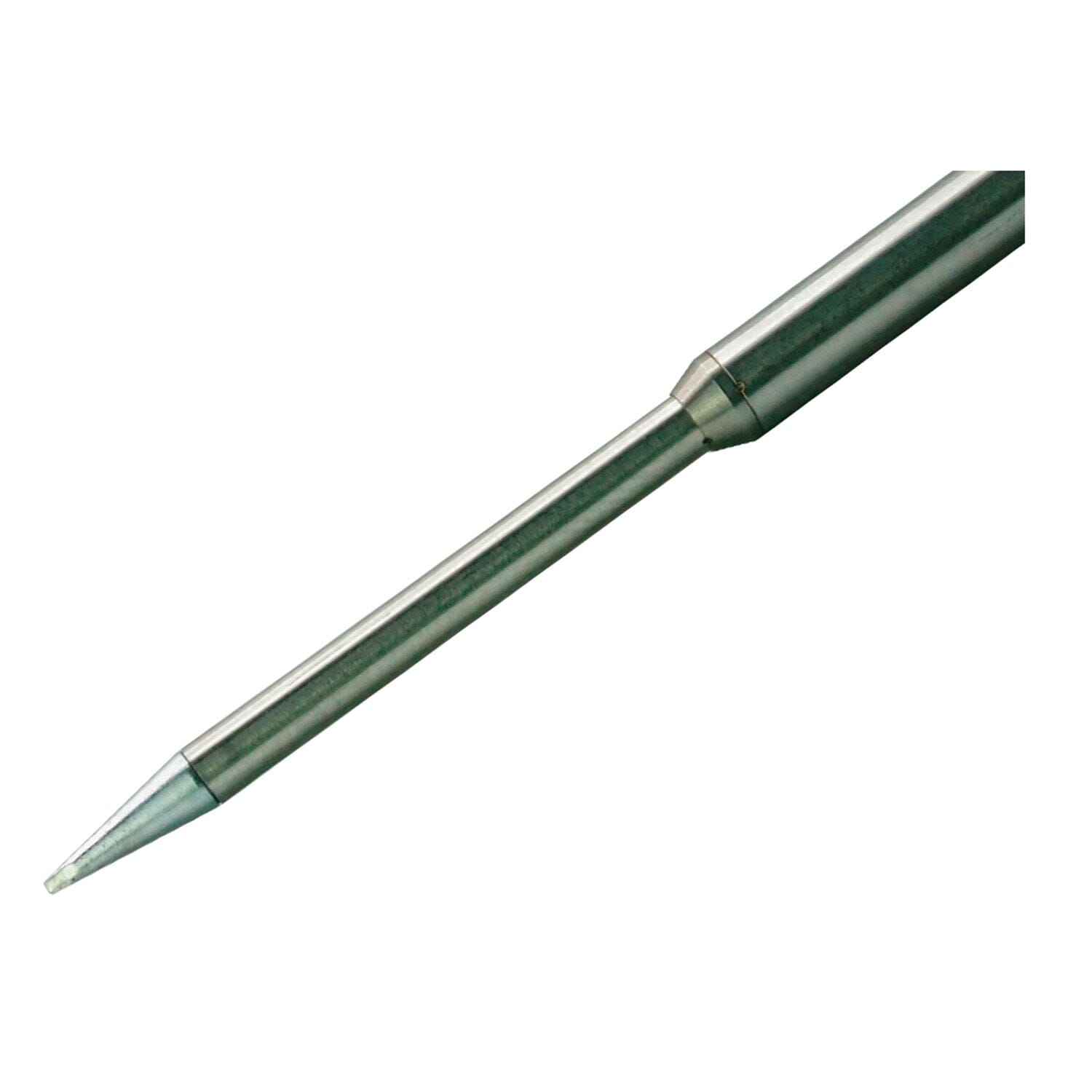

Metcal UFC-7CH9008S UltraFine Soldering Cartridge, Chisel, 0.8 mm × 9.0 mm, 700 Series

The Metcal UFC-7CH9008S UltraFine Soldering Cartridge is designed for high-precision soldering of fine-pitch and high-density assemblies. Its 0.8 mm × 9.0 mm chisel tip provides excellent heat transfer and control for component leads and pads. Part of the 700 Series, it operates at approximately ~390 °C, delivering the thermal capacity needed for demanding soldering tasks. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

Key Features

• Chisel tip (0.8 mm × 9.0 mm): Optimized for component leads, pads, and extended reach applications.
• 700 Series (~390 °C): Provides higher thermal performance for robust soldering.
• Precision design: Ideal for fine-pitch and high-density SMD soldering.
• Tool-free cartridge swaps: Quick changeover for increased productivity.
• RoHS compliant: Safe for lead-free soldering environments.

Specifications

• Manufacturer: Metcal
• Part Number: UFC-7CH9008S
• Series: UltraFine 700 Series
• Tip Geometry: Chisel

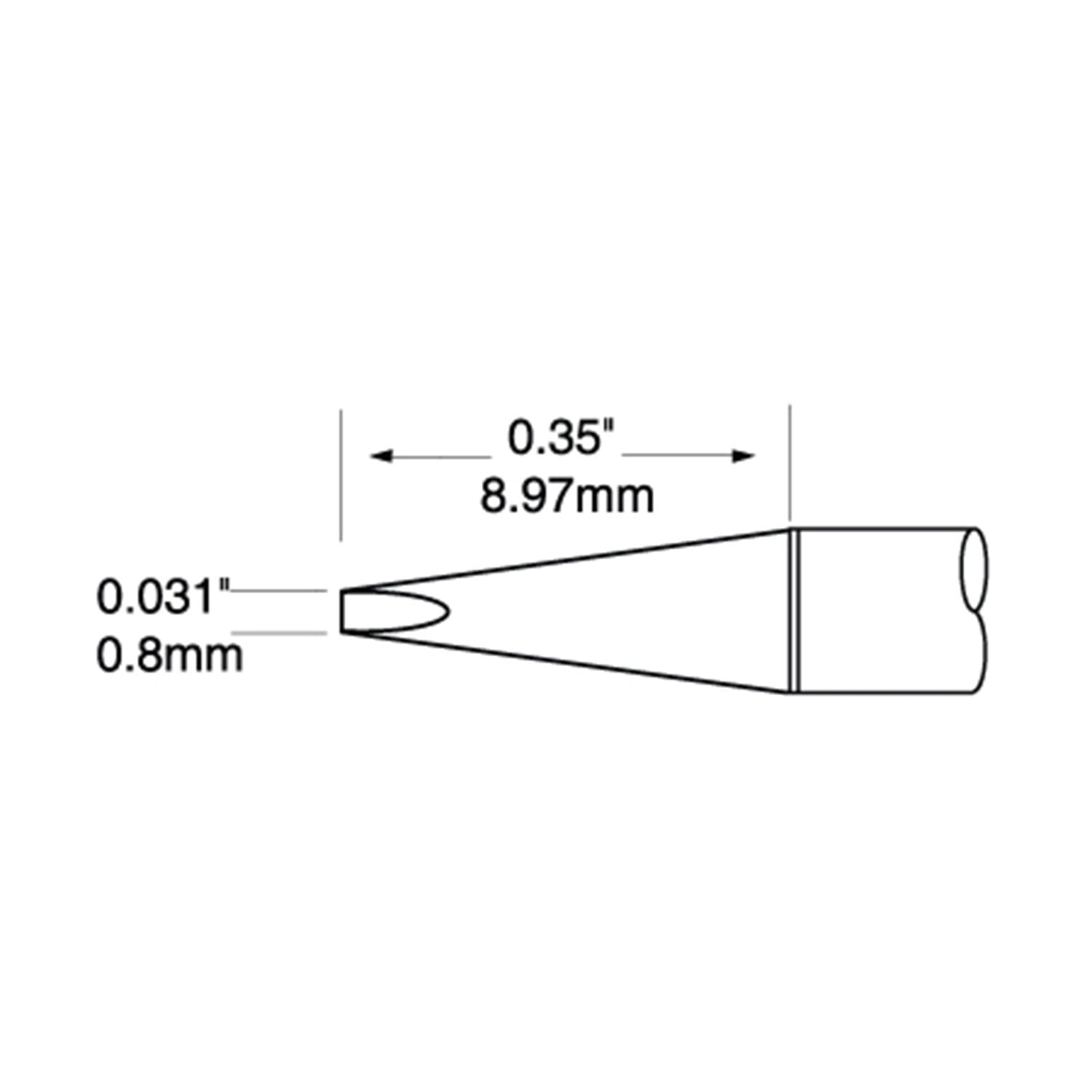

• Tip Dimensions: 0.8 mm (width) × 9.0 mm (length)
• Typical Operating Temperature: ~390 °C (700 Series)
• Compatibility: Metcal CV-5200 & CV-500 Series soldering systems
• Applications: Fine-pitch soldering, component lead soldering, high-density PCB assembly
• Compliance: RoHS

Ideal For

• Technicians working on dense PCB layouts
• High-precision SMD soldering and rework
• Microscope-assisted soldering tasks requiring extended reach
