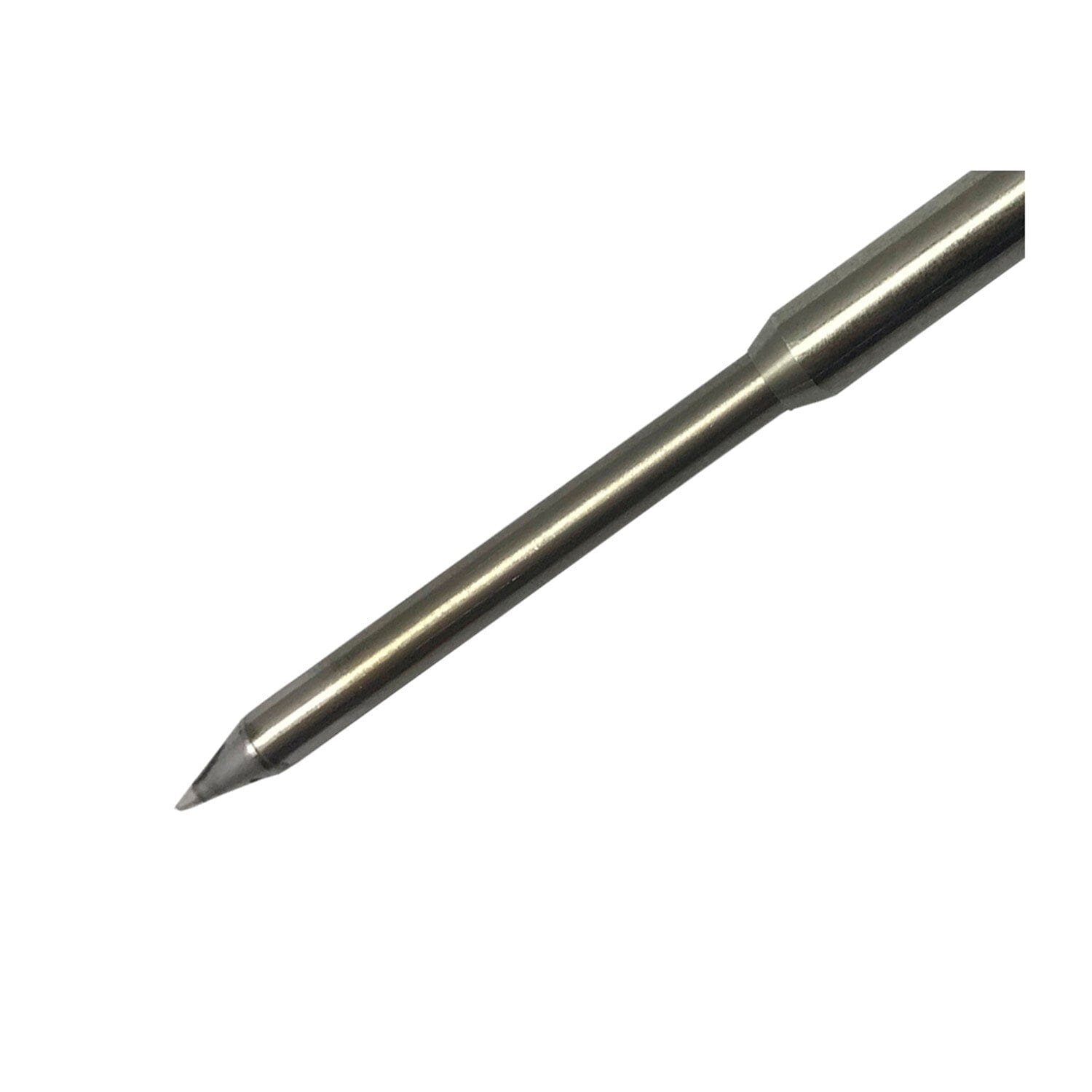

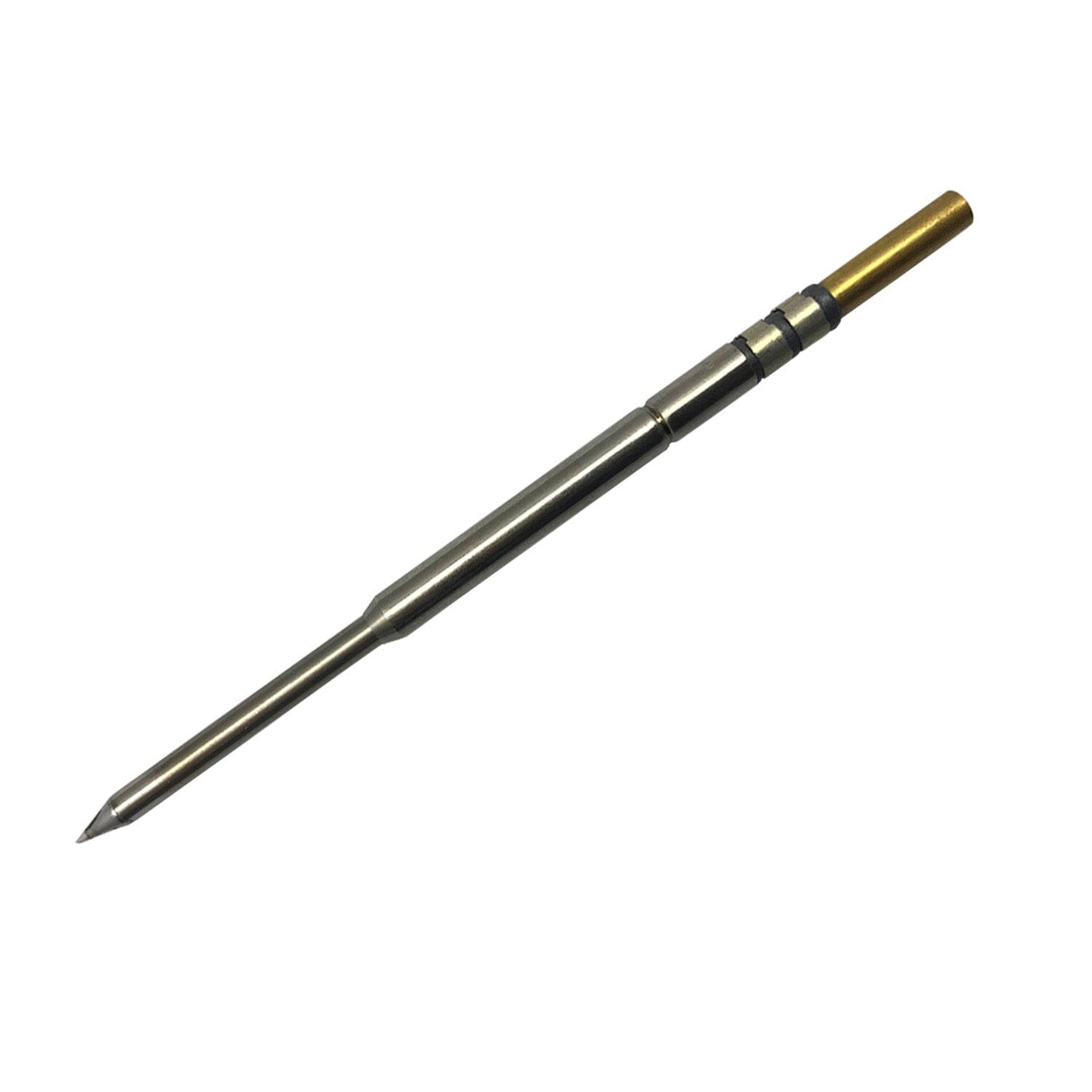

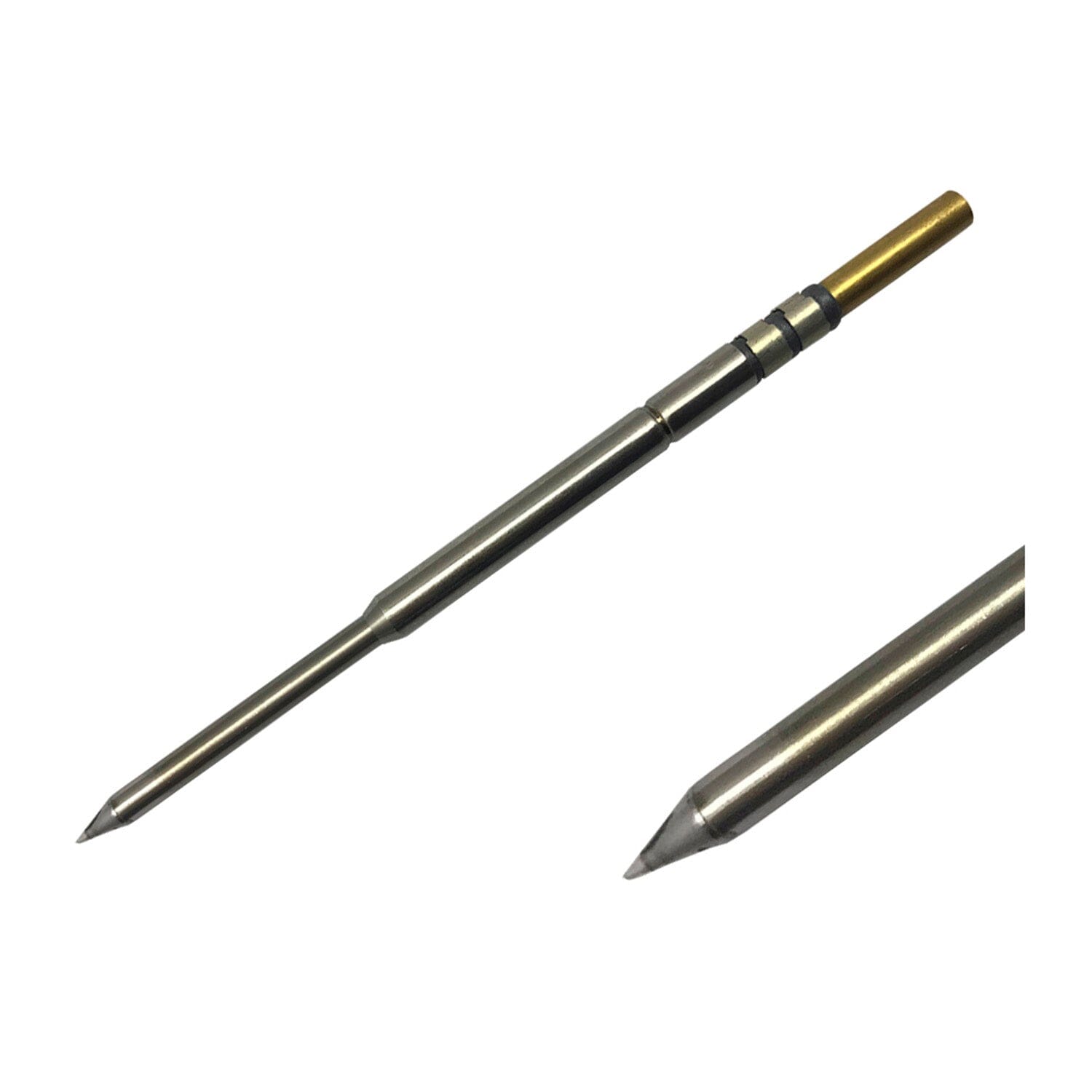

Metcal UFC-7CH5106S UltraFine Soldering Cartridge, Chisel, 0.6 mm × 5.1 mm, 700 Series

The Metcal UFC-7CH5106S UltraFine Soldering Cartridge delivers precise soldering performance for fine-pitch and high-density assemblies. Its 0.6 mm × 5.1 mm chisel tip ensures excellent heat transfer and control for component leads and pads. Part of the 700 Series, it operates at approximately ~390 °C, providing higher thermal capacity for demanding soldering tasks. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

Key Features

• Chisel tip (0.6 mm × 5.1 mm): Optimized for component leads and pad soldering.
• 700 Series (~390 °C): Provides higher thermal performance for robust soldering tasks.
• Precision design: Ideal for fine-pitch and high-density SMD soldering.
• Tool-free cartridge swaps: Fast changeover to maintain productivity.
• RoHS compliant: Safe for lead-free manufacturing environments.

Specifications

• Manufacturer: Metcal
• Part Number: UFC-7CH5106S
• Series: UltraFine 700 Series
• Tip Geometry: Chisel

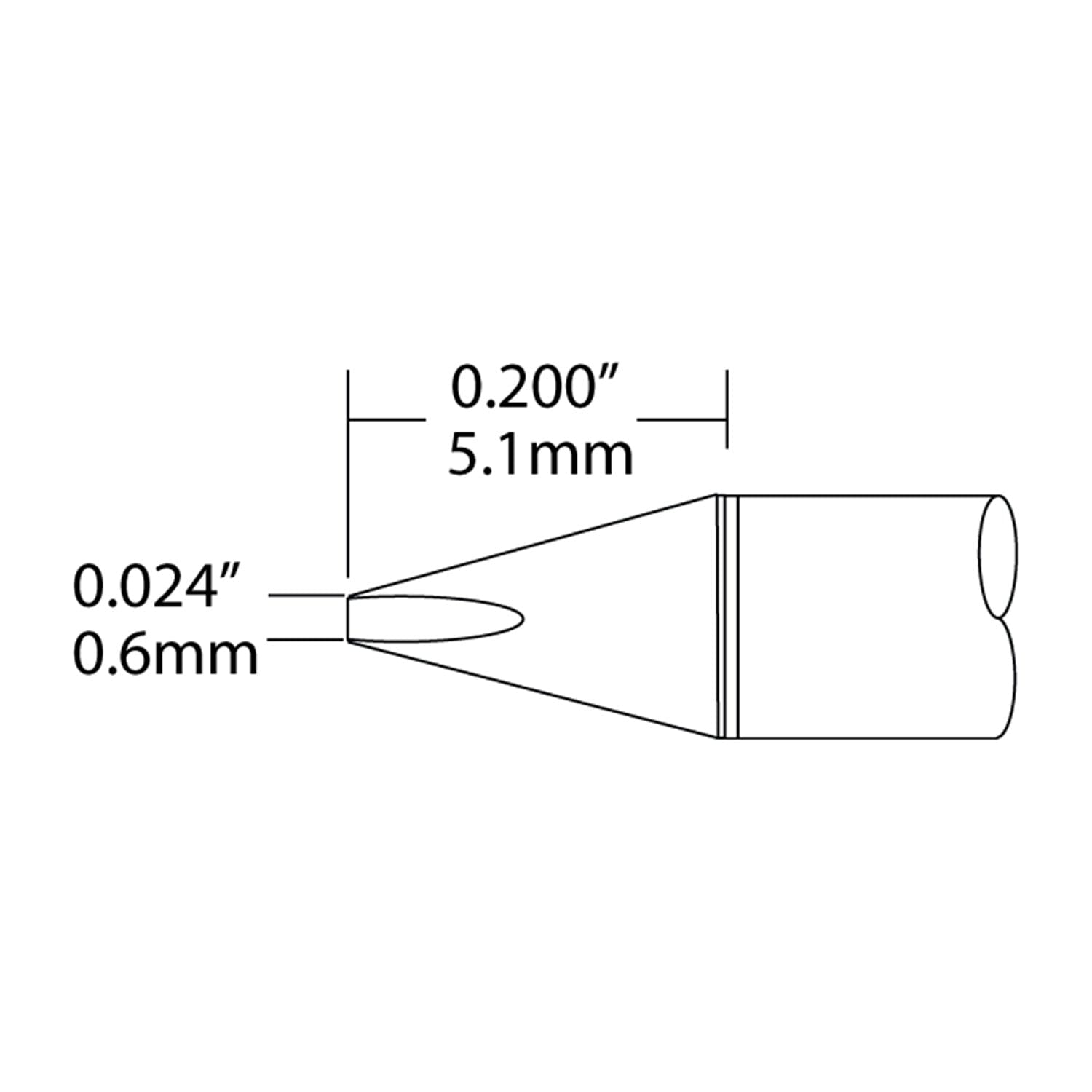

• Tip Dimensions: 0.6 mm (width) × 5.1 mm (length)
• Typical Operating Temperature: ~390 °C (700 Series)
• Compatibility: Metcal CV-5200 & CV-500 Series soldering systems
• Applications: Fine-pitch soldering, component lead soldering, high-density PCB assembly
• Compliance: RoHS

Ideal For

• Technicians working on dense PCB layouts
• Soldering tasks requiring higher heat capacity
• Microscope-assisted SMD soldering and rework
