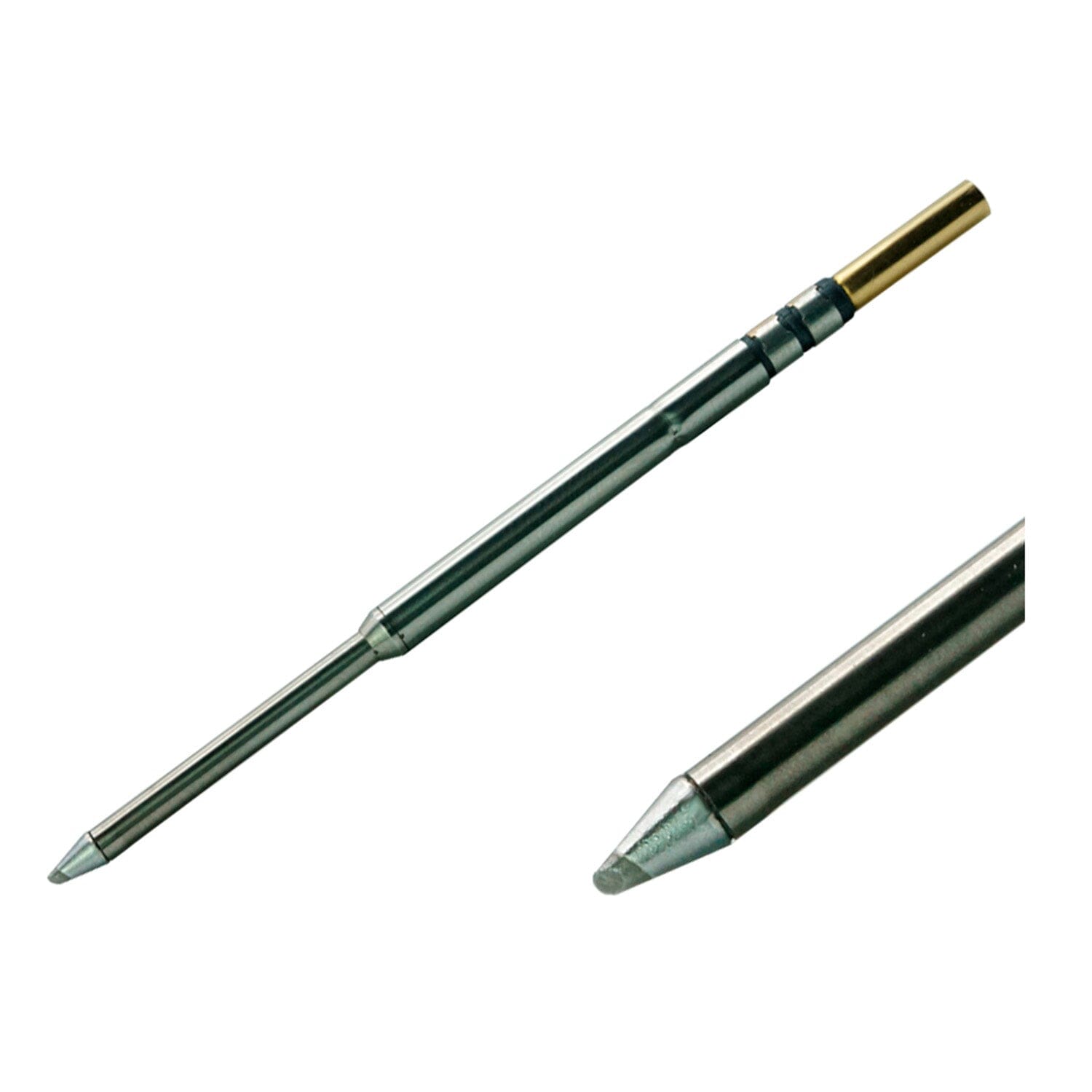

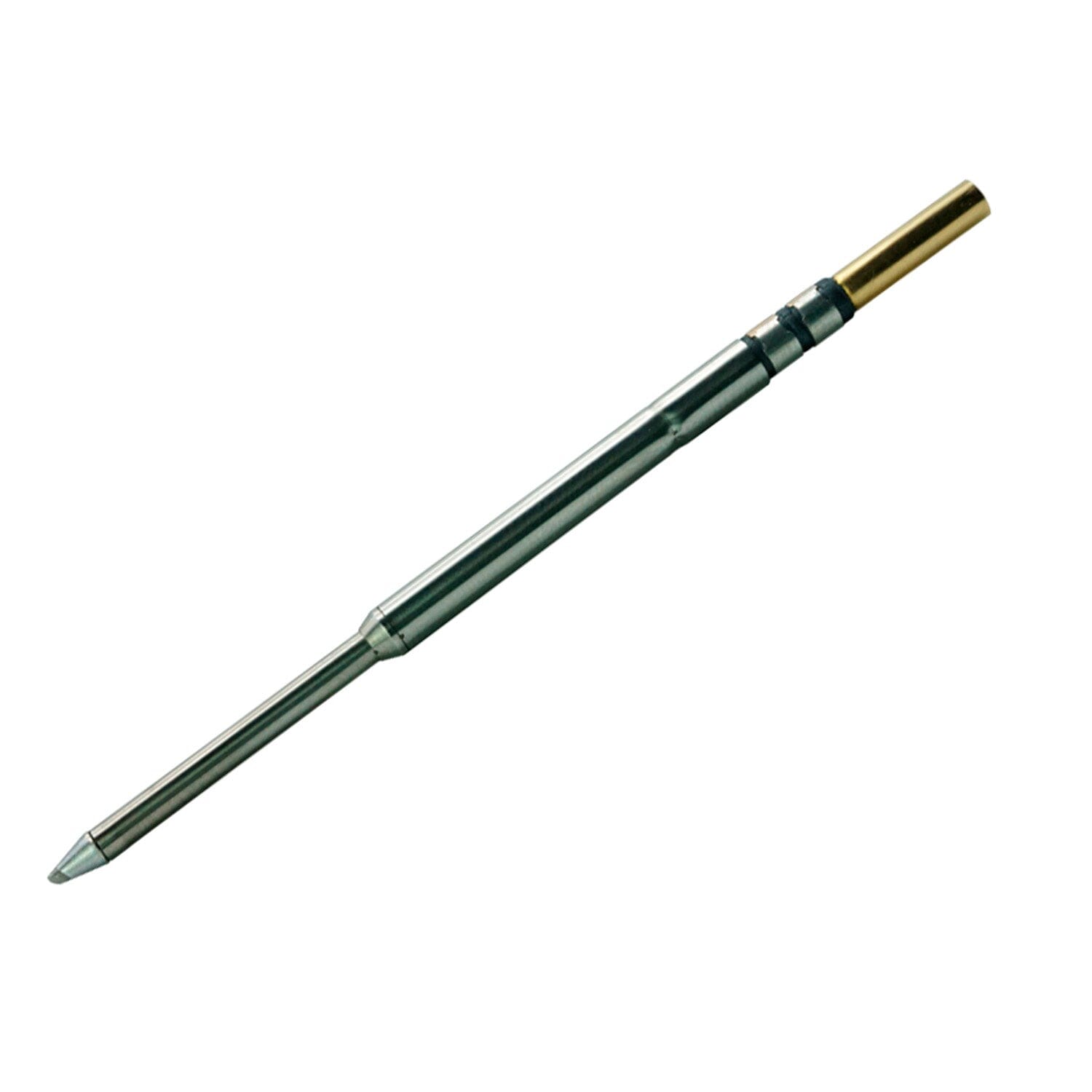

Metcal UFC-6HF5112S UltraFine Rework Cartridge, Hoof, 1.21 mm × 5.1 mm, 600 Series

The Metcal UFC-6HF5112S UltraFine Rework Cartridge is designed for precision soldering and rework of fine-pitch components. Its hoof-style tip (1.21 mm × 5.1 mm) enables excellent solder delivery and heat transfer across multi-lead joints and drag soldering applications. Part of the 600 Series, it operates at approximately ~330 °C for safe use on temperature-sensitive PCBs. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

Key Features

• Hoof tip (1.21 mm × 5.1 mm): Ideal for drag soldering and multi-lead component rework.
• Low-temperature 600 Series (~330 °C): Helps protect sensitive components from heat stress.
• Optimized for microscope use: Provides control and visibility during detailed soldering tasks.
• Quick cartridge swaps: Tool-free changeovers for maximum efficiency.
• RoHS compliant: Suitable for lead-free soldering processes.

Specifications

• Manufacturer: Metcal
• Part Number: UFC-6HF5112S
• Series: UltraFine 600 Series
• Tip Geometry: Hoof

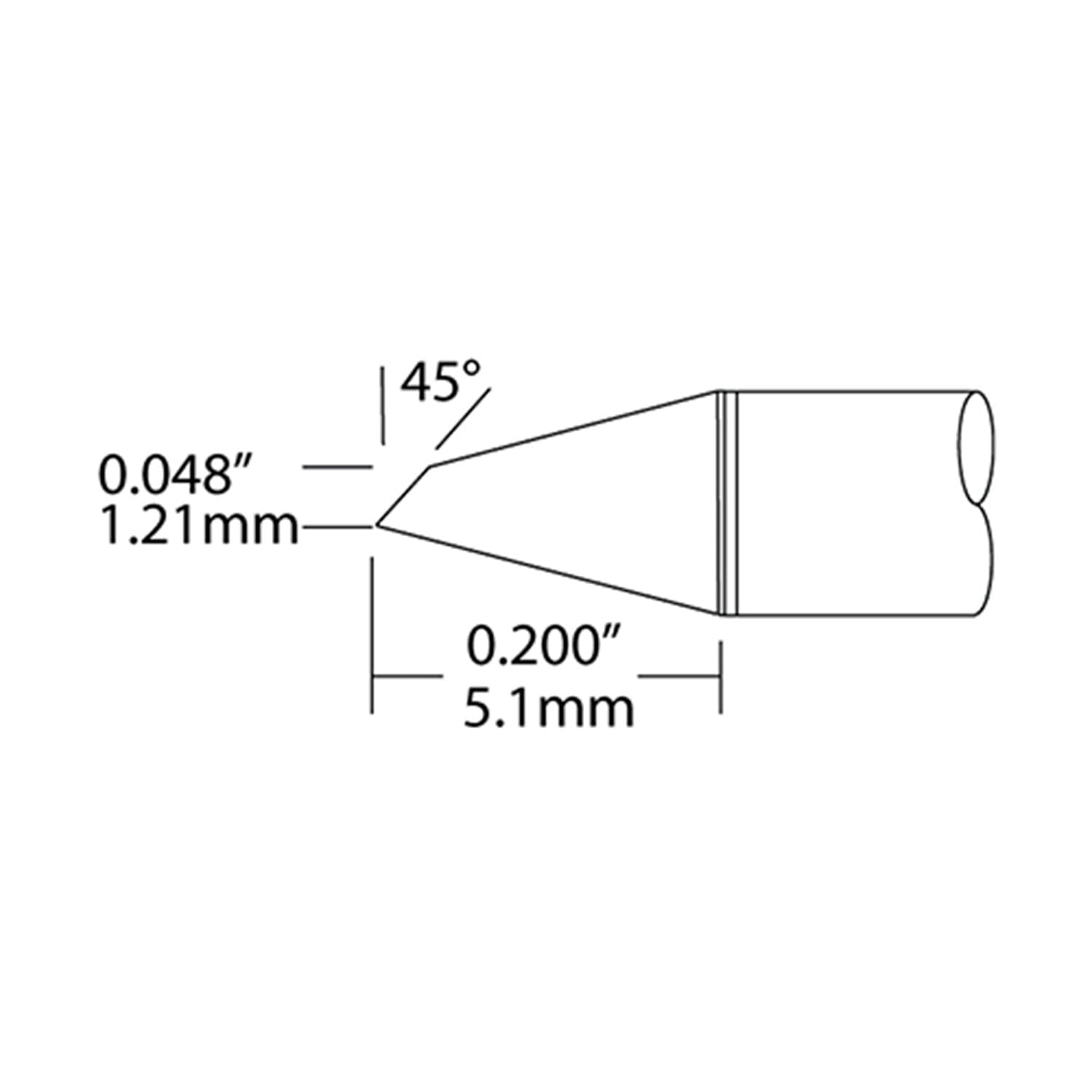

• Tip Dimensions: 1.21 mm (width) × 5.1 mm (length)
• Typical Operating Temperature: ~330 °C (600 Series)
• Compatibility: Metcal CV-5200 & CV-500 Series soldering systems
• Applications: Drag soldering, multi-lead rework, fine-pitch component soldering
• Compliance: RoHS

Ideal For

• Rework of fine-pitch SMD packages
• Drag soldering multiple leads in one pass
• Microscope-assisted precision soldering
