Metcal UFC-6HF5108S UltraFine Rework Cartridge, Hoof, 600 Series

Precision Rework with Optimized Heat Transfer for Sensitive Electronics

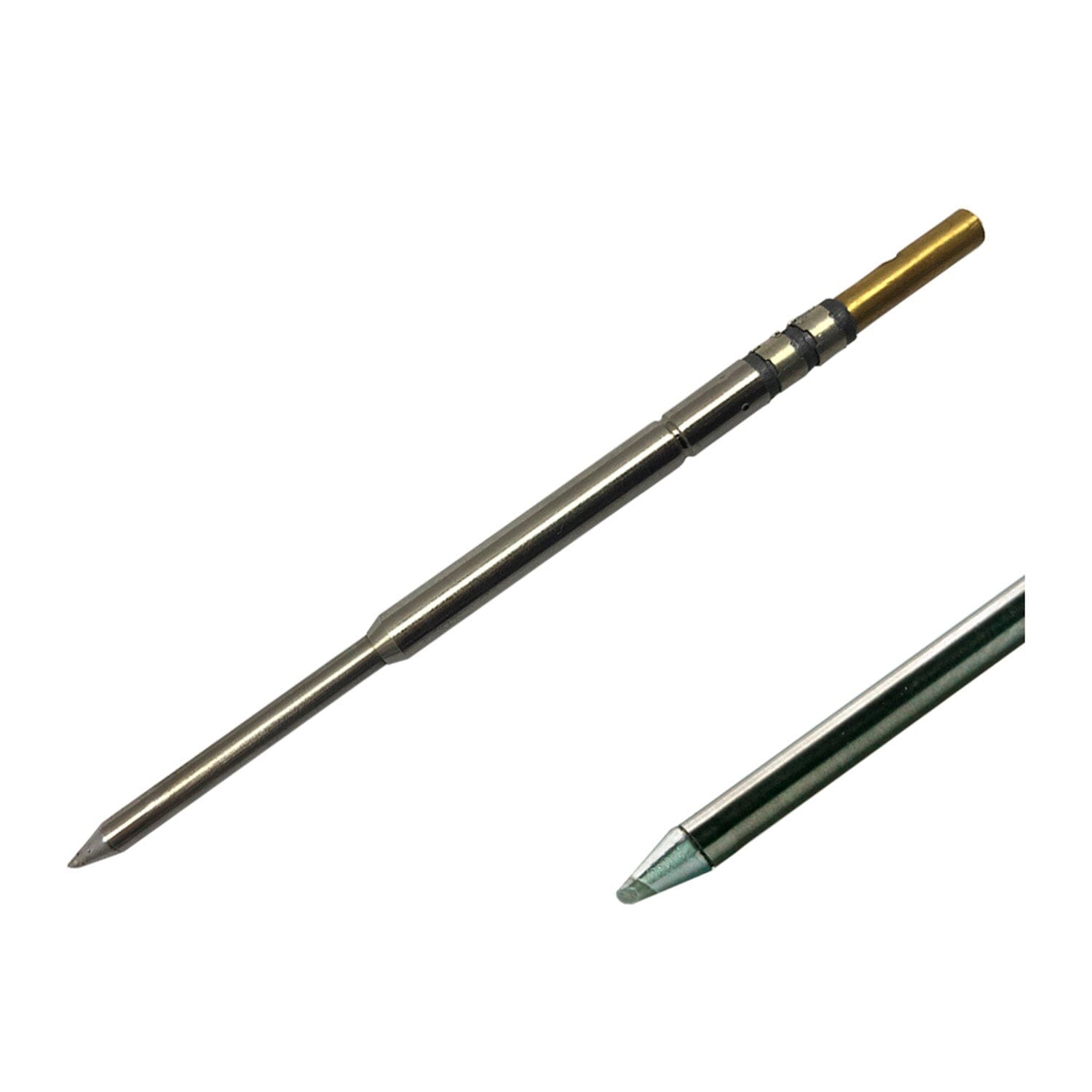

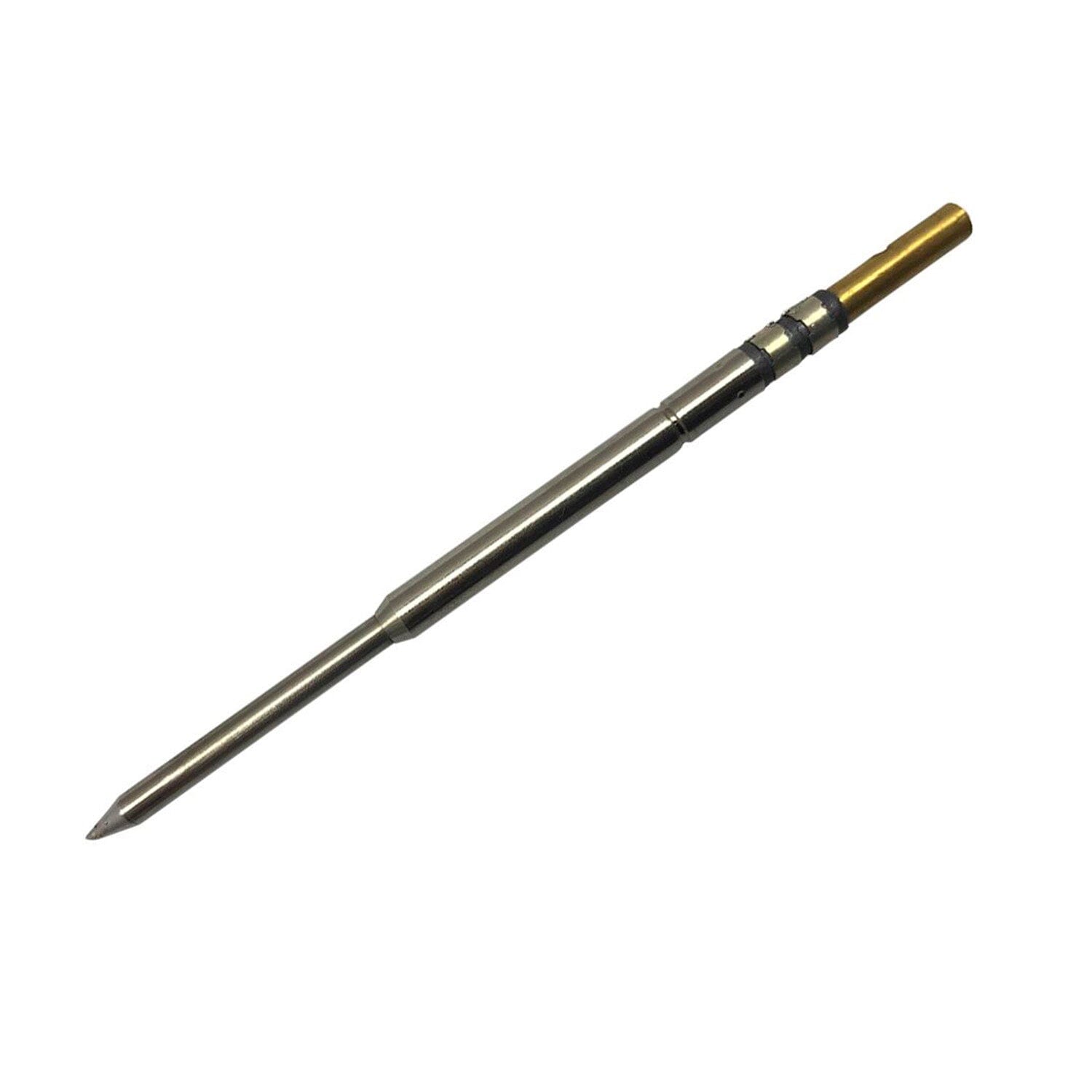

The Metcal UFC-6HF5108S UltraFine Rework Cartridge is engineered for high-precision soldering and rework tasks on heat-sensitive components and densely populated PCBs. Designed for use with the CV-5200 and CV-500 Series soldering systems, this 600 Series cartridge features a 0.8 mm x 5.1 mm hoof tip—ideal for applications that require reliable heat delivery to curved or irregular surfaces, such as drag soldering and touch-up work on surface-mount devices.

Operating at a lower temperature of approximately 330°C, the 600 Series ensures effective thermal control while preventing damage to delicate components, making it a dependable choice for rework professionals and advanced assembly environments.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-6HF5108S
• Series: UltraFine 600 Series
• Tip Geometry: Hoof

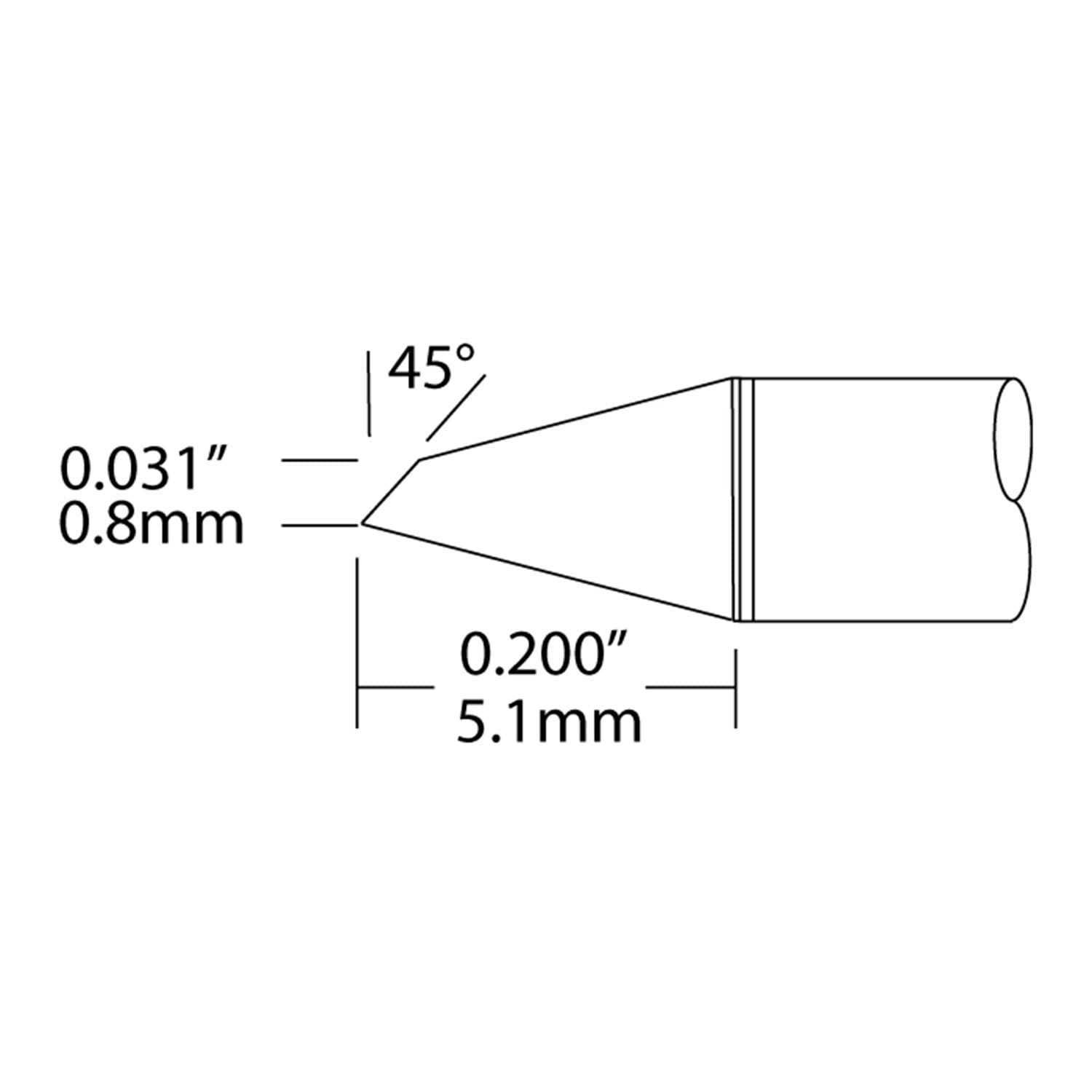

• Tip Dimensions: 0.8 mm wide x 5.1 mm long
• Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
• Operating Temperature: ~330°C (600 Series)
• Application: Rework, drag soldering, SMT touch-up, precision soldering, heat-sensitive components

Key Features

• UltraFine Hoof Tip: Delivers consistent heat to pads and leads, particularly effective for drag soldering and curved joints.
• Low-Temperature Operation: Preserves component integrity on thermally sensitive boards.
• Enhanced Control: Narrow tip profile provides excellent access and visibility for microscope-assisted work.
• Tool-Free Changeover: Cartridge swaps quickly and easily without tools, minimizing downtime.
• RoHS Compliant: Designed for modern, lead-free assembly standards.

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf

Choose the Metcal UFC-6HF5108S for accurate, controlled rework on complex electronics, ensuring optimal results with sensitive materials and compact layouts.
