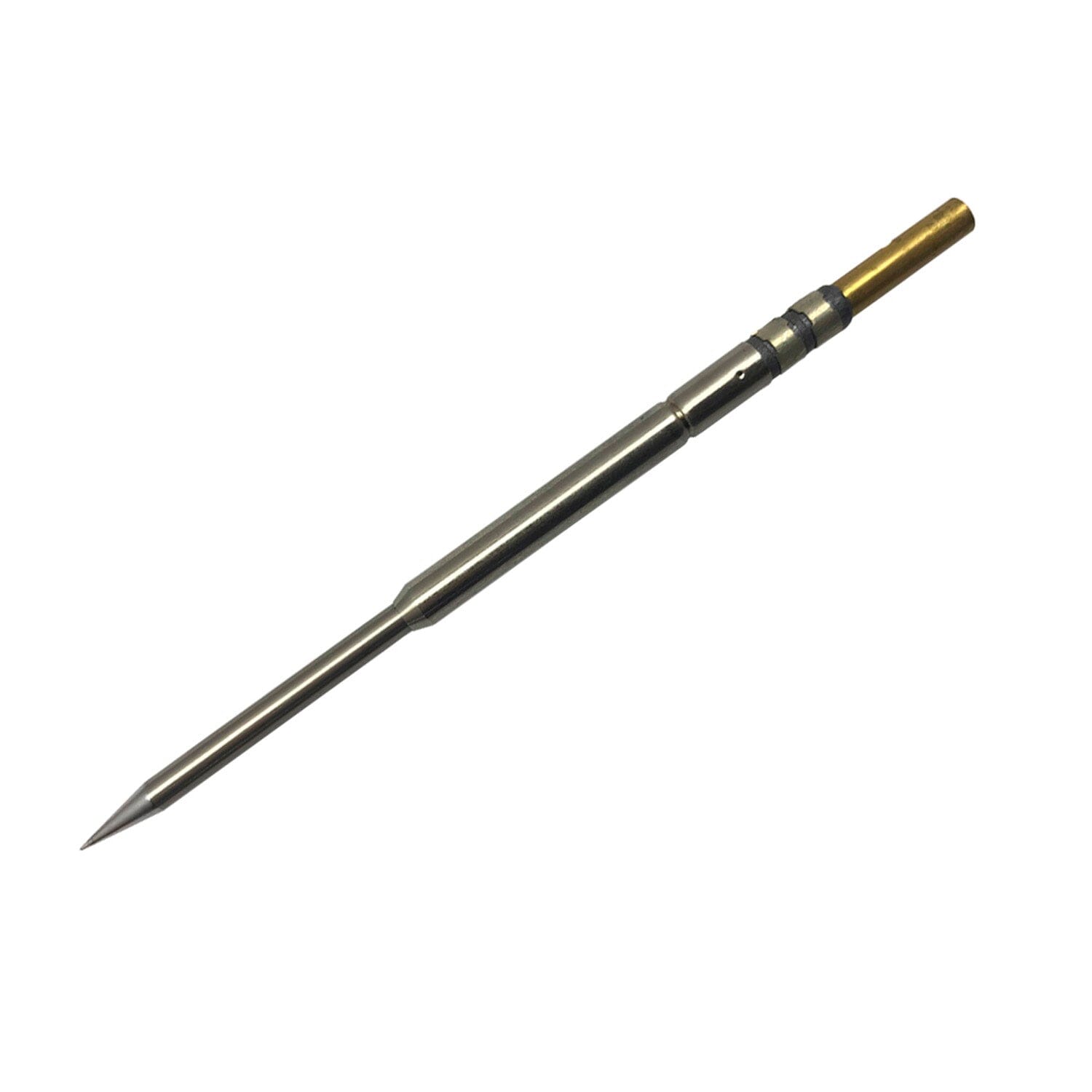

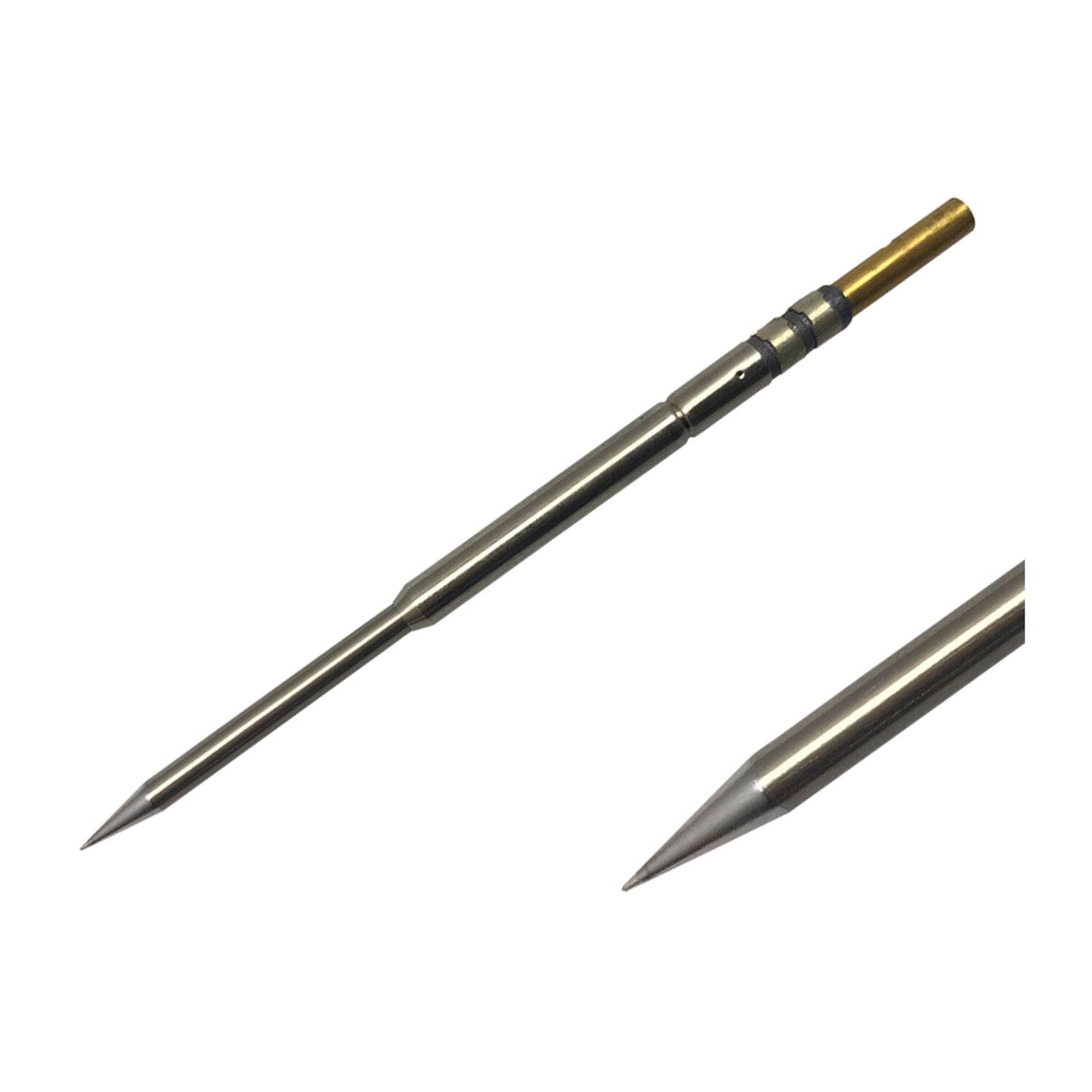

Metcal UFC-6CN8004S UltraFine Soldering Cartridge, Conical, 0.4 mm × 8.0 mm, 600 Series

The Metcal UFC-6CN8004S UltraFine Soldering Cartridge provides precision performance for fine-pitch soldering and rework in temperature-sensitive environments. Featuring a straight conical 0.4 mm × 8.0 mm tip, it enables accurate heat delivery in hard-to-reach areas. As part of Metcal’s 600 Series, it operates at approximately ~330 °C, making it ideal for delicate PCB assemblies and microscope-assisted work. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

Key Features

• UltraFine conical tip (0.4 mm × 8.0 mm): Extended length for deeper access into components.
• Low-temperature 600 Series (~330 °C): Helps protect sensitive devices during soldering.
• Microscope-optimized design: Narrow profile improves precision and visibility under magnification.
• Fast, tool-free cartridge swaps: Maintain productivity without downtime.
• RoHS compliant: Suitable for modern, lead-free soldering processes.

Specifications

• Manufacturer: Metcal
• Part Number: UFC-6CN8004S
• Series: UltraFine 600 Series
• Tip Geometry: Conical (straight)

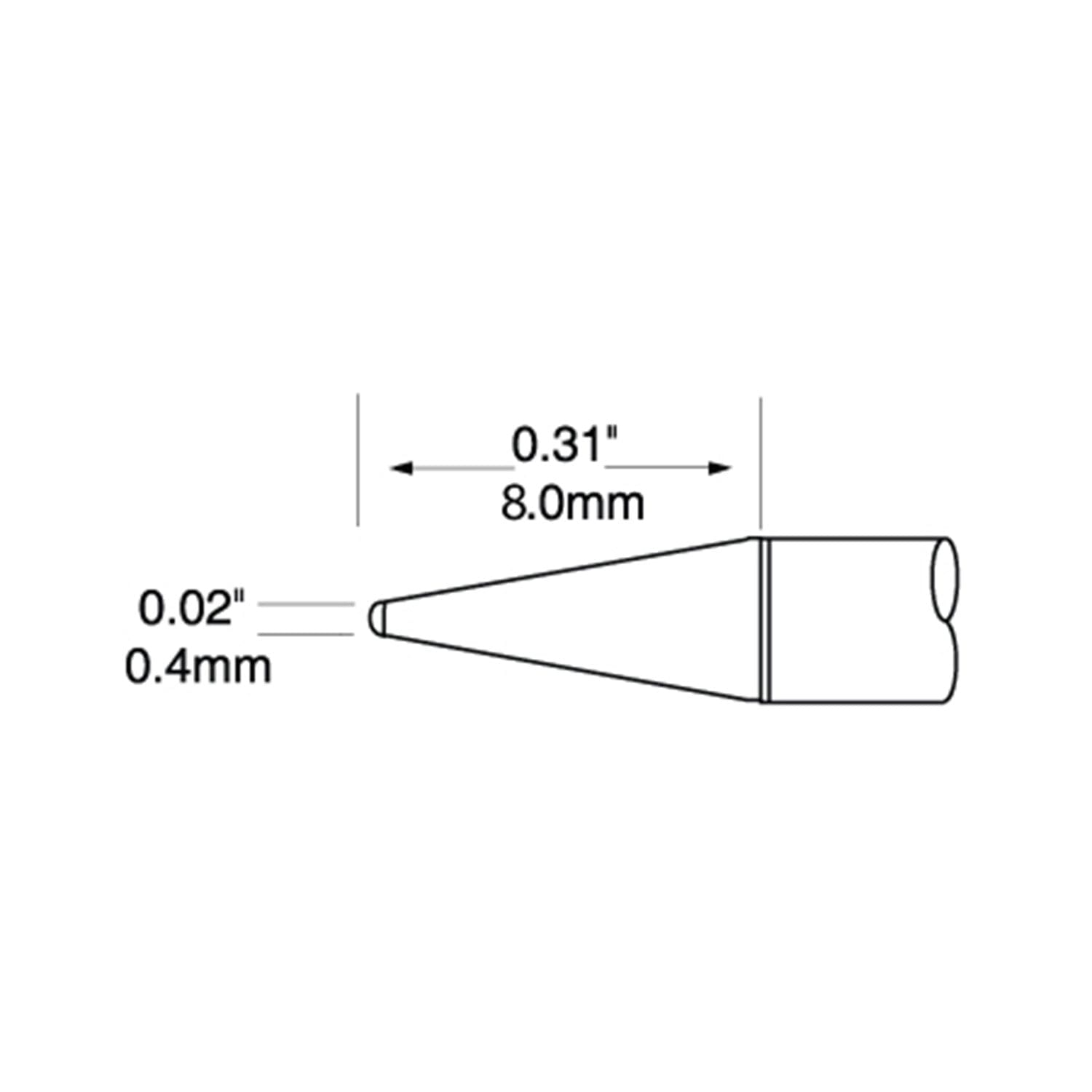

• Tip Dimensions: 0.4 mm (diameter) × 8.0 mm (length)
• Typical Operating Temperature: ~330 °C (600 Series)
• Compatibility: Metcal CV-5200 & CV-500 Series soldering systems
• Applications: Fine-pitch SMD rework, microscope-assisted soldering, heat-sensitive PCBs
• Compliance: RoHS

Ideal For

• Technicians working with dense SMT layouts requiring extended reach
• Precision soldering with minimal thermal stress
• Microscope-assisted rework of fine-pitch components

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf
