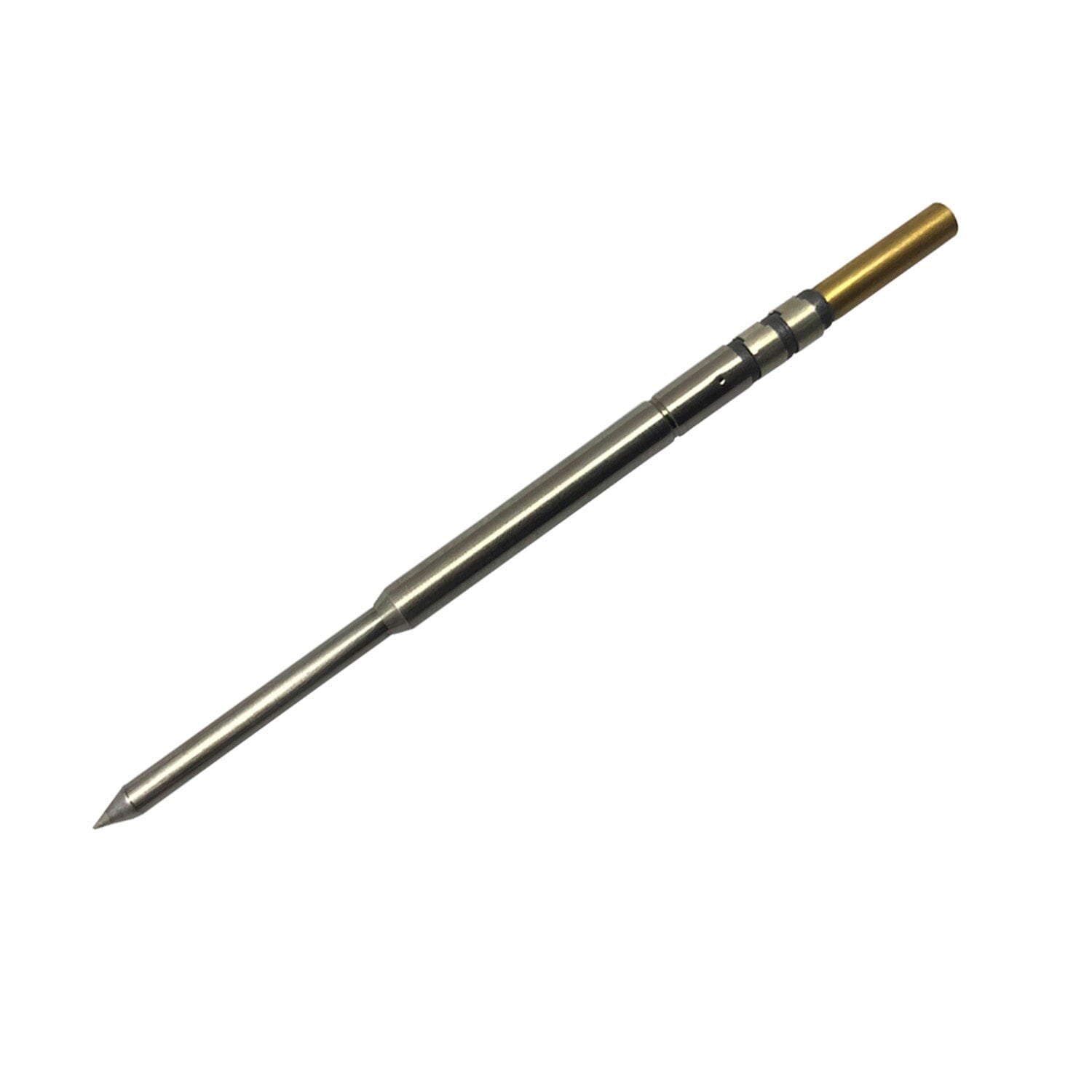

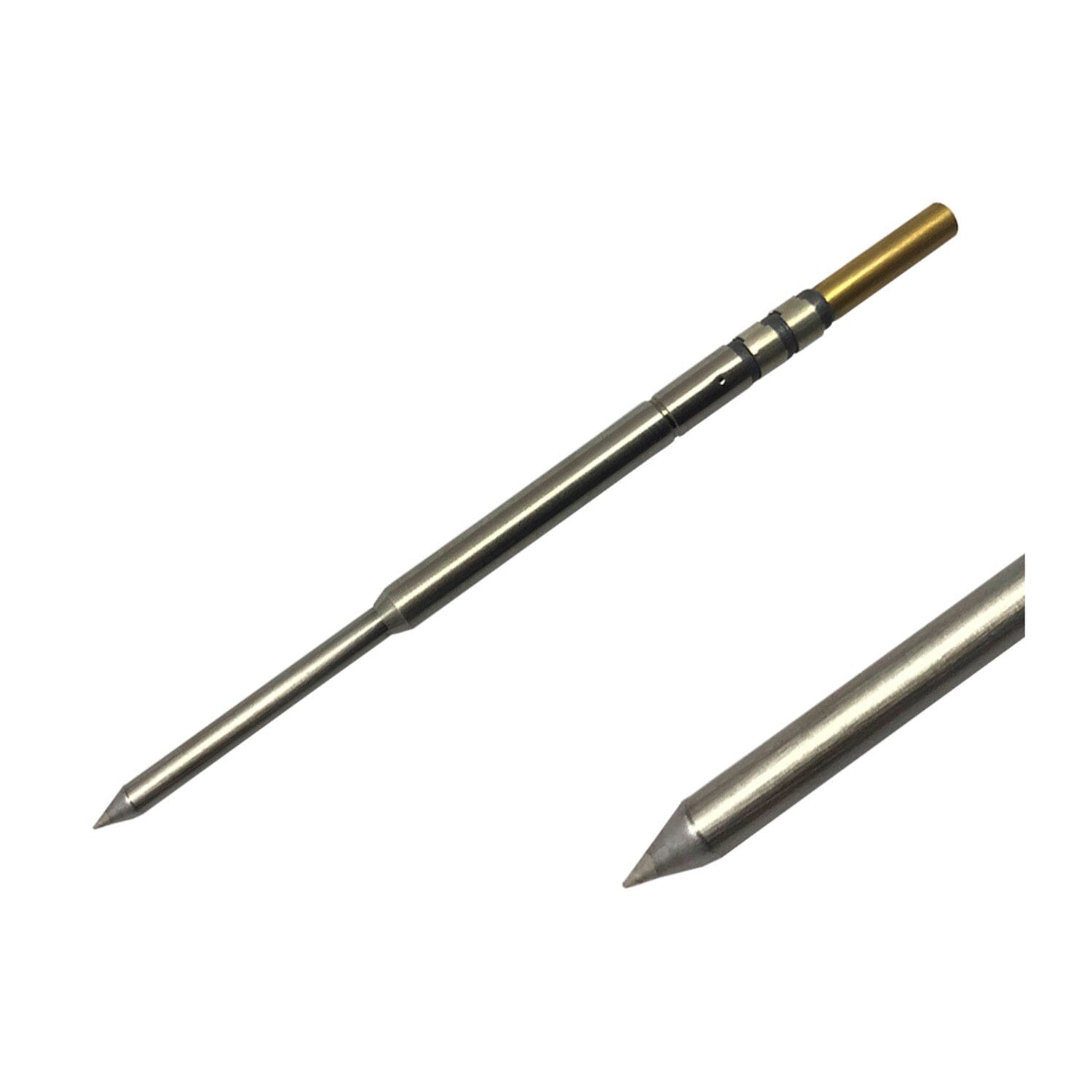

Metcal UFC-6CN5504S UFC UltraFine Soldering Cartridge, Conical, 0.4 mm × 5.1 mm, 600 Series

The Metcal UFC-6CN5504S UltraFine Soldering Cartridge delivers precise, low-temperature performance for fine-pitch and heat-sensitive work. Its straight conical 0.4 mm × 5.1 mm tip provides controlled heat into tight component areas—ideal for microscope-assisted SMD soldering and delicate rework. Part of Metcal’s 600 Series, it operates at approximately ~330 °C for added component safety. The Metcal "SmartHeat®-Technology" automatically adjusts power levels during each soldering operation.

Key Features

• UltraFine conical tip (0.4 mm × 5.1 mm): Excellent access to densely packed boards.
• Low-temperature 600 Series (~330 °C): Helps protect heat-sensitive components and substrates.
• High visibility under a microscope: Slim profile increases precision and control.
• Fast, tool-free cartridge changes: Maintain workflow efficiency across tasks.
• RoHS compliant: Suitable for modern, lead-free manufacturing processes.

Specifications

• Manufacturer: Metcal
• Part Number: UFC-6CN5504S
• Series: UltraFine 600 Series

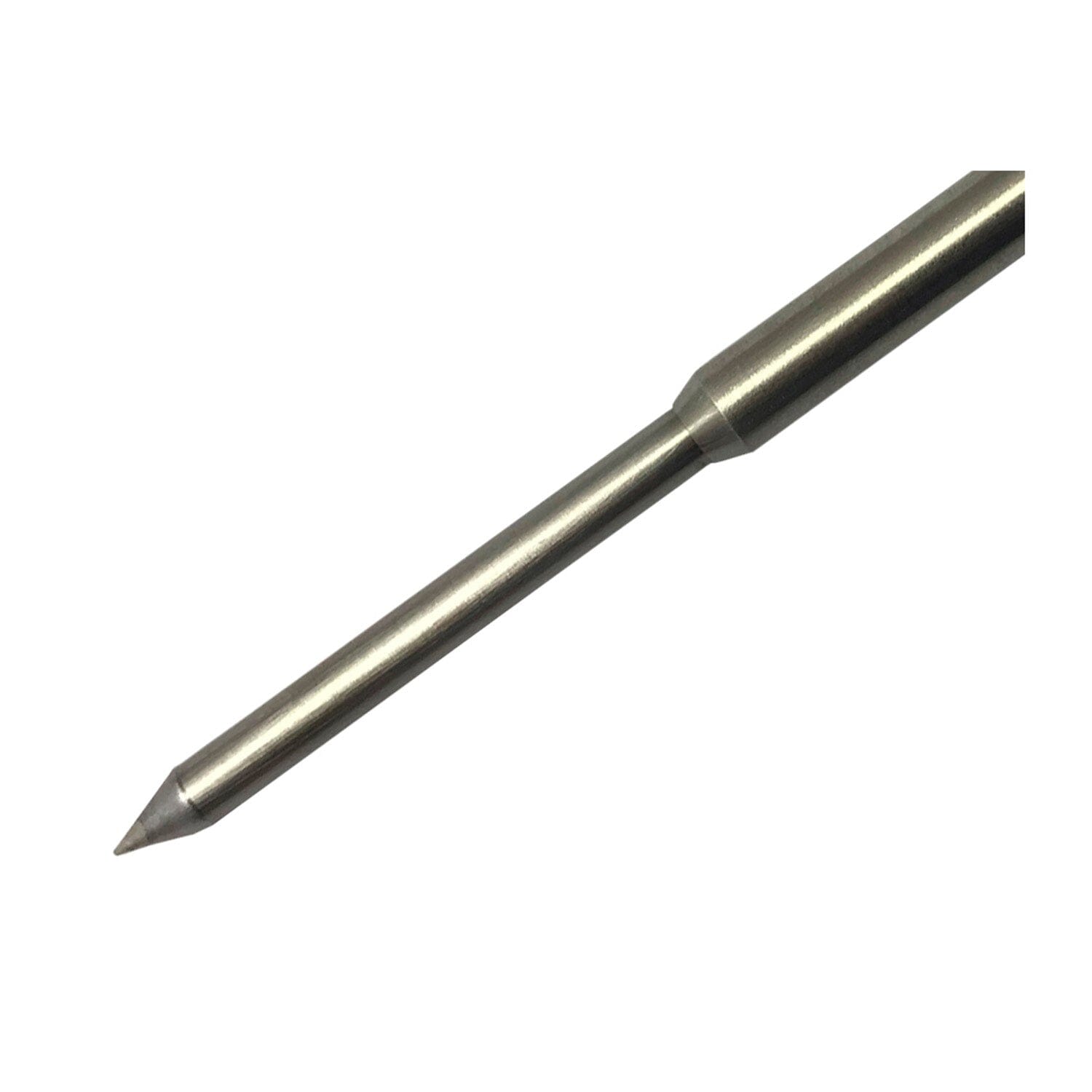

• Tip Geometry: Conical (straight)

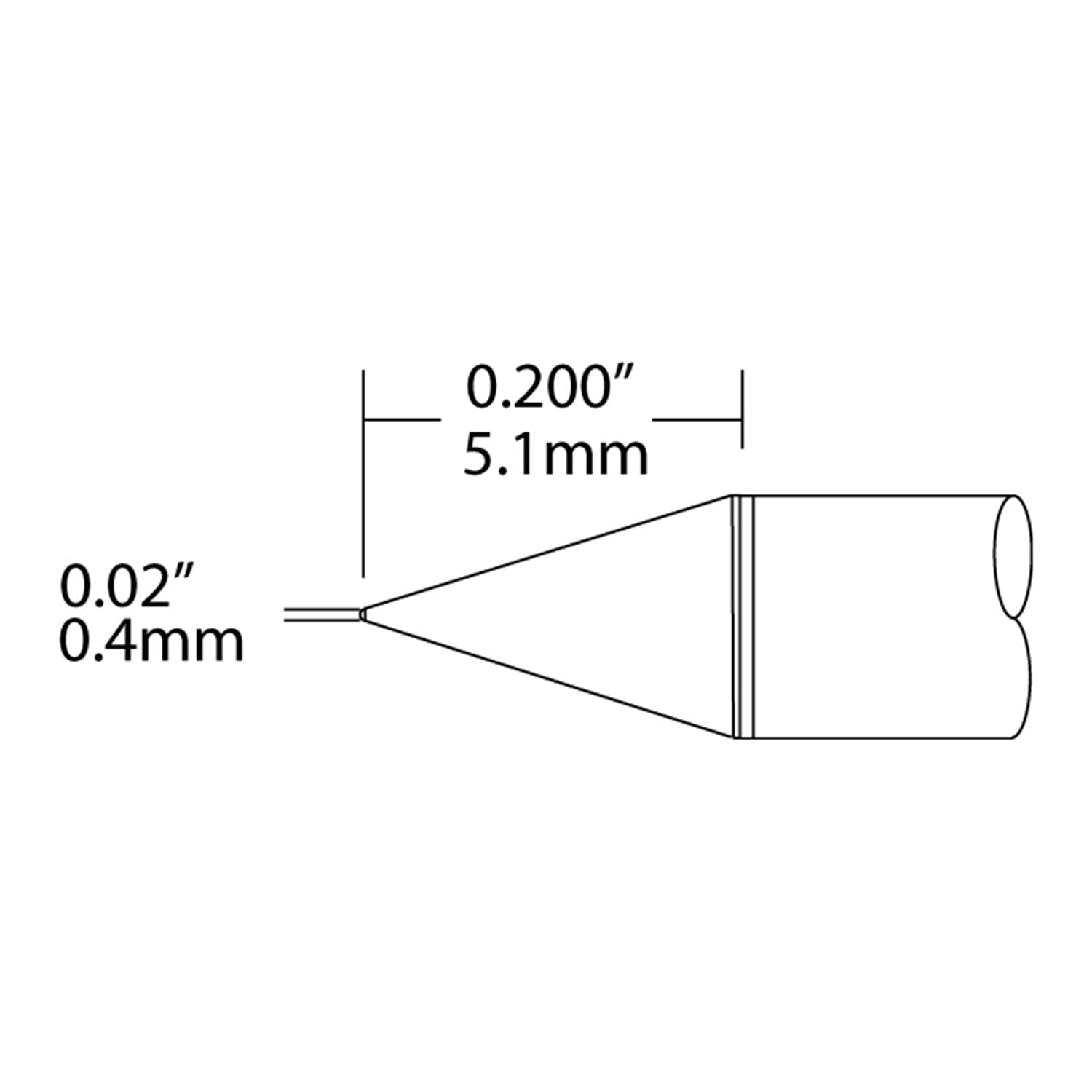

• Tip Dimensions: 0.4 mm (diameter) × 5.1 mm (length)
• Typical Operating Temperature: ~330 °C (600 Series)
• Compatibility: Metcal CV-5200 & CV-500 Series soldering systems
• Applications: Fine-pitch SMD assembly and rework, microscope-assisted soldering, heat-sensitive PCBs
• Compliance: RoHS

Ideal For

• Technicians and engineers working on dense SMT layouts
• Precision rework with minimal thermal impact
• Microscope-assisted solder joints and micro-components

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf
