Metcal UFC-6CN5504R UltraFine Soldering Cartridge, Conical, Bent, 600 Series

Ultra-Precise Soldering for Heat-Sensitive and Fine-Pitch Applications

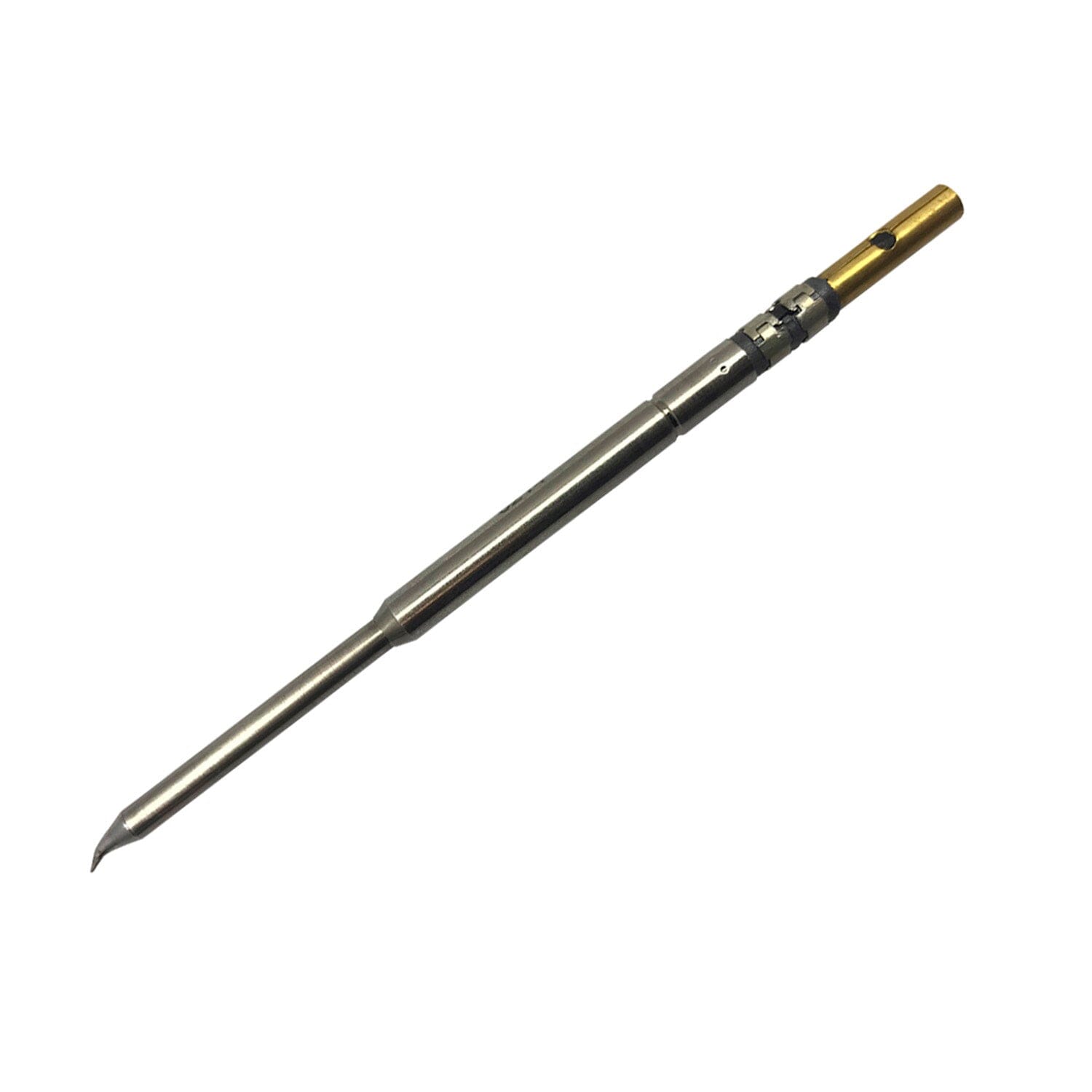

The Metcal UFC-6CN5504R UltraFine Soldering Cartridge is crafted for soldering professionals who demand maximum control and access during precision work. With a 0.4 mm x 5.6 mm bent conical tip, this cartridge is ideal for accessing tight spaces and performing detailed soldering on fine-pitch and high-density circuit boards.

As part of the 600 Series, it operates at a reduced temperature of approximately 330°C, making it the perfect choice for applications involving thermally sensitive components and delicate assemblies. Compatible with Metcal CV-5200 and CV-500 Series Soldering Systems, the UFC-6CN5504R delivers performance and protection in equal measure.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-6CN5504R
• Series: UltraFine 600 Series
• Tip Geometry: Conical, Bent
• Tip Dimensions: 0.4 mm wide x 5.6 mm long
• Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
• Operating Temperature: ~330°C (600 Series)
• Application: Precision soldering, microscope work, heat-sensitive PCBs, fine-pitch components

Key Features

• Bent Conical UltraFine Tip: Offers precise heat delivery in tight or recessed areas, perfect for dense SMD layouts.
• Low-Temperature Operation: Designed to protect sensitive components and avoid thermal stress.
• Optimized for Visibility: Slim, angled tip geometry provides enhanced control under magnification.
• Tool-Free Cartridge Replacement: Enables fast tip changes to maintain efficiency on the line.
• RoHS Compliant: Safe for use in lead-free and environmentally conscious manufacturing.

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf


Choose the Metcal UFC-6CN5504R for consistent, low-heat performance when working with sensitive electronics and precision soldering applications.
