Metcal UFC-6CN5502R UltraFine Soldering Cartridge – Bent Conical Tip, 600 Series

Precision Access for Hard-to-Reach Soldering Applications

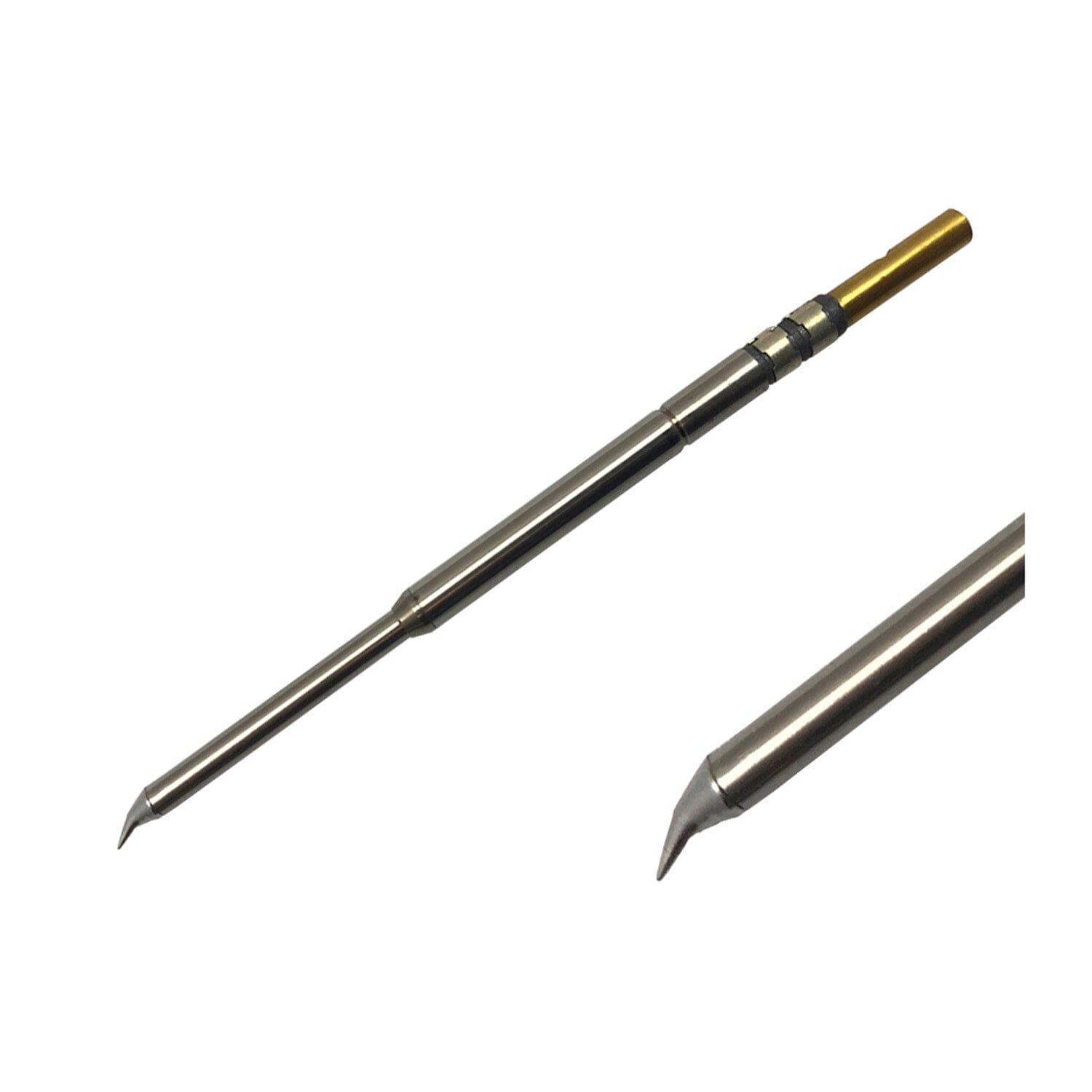

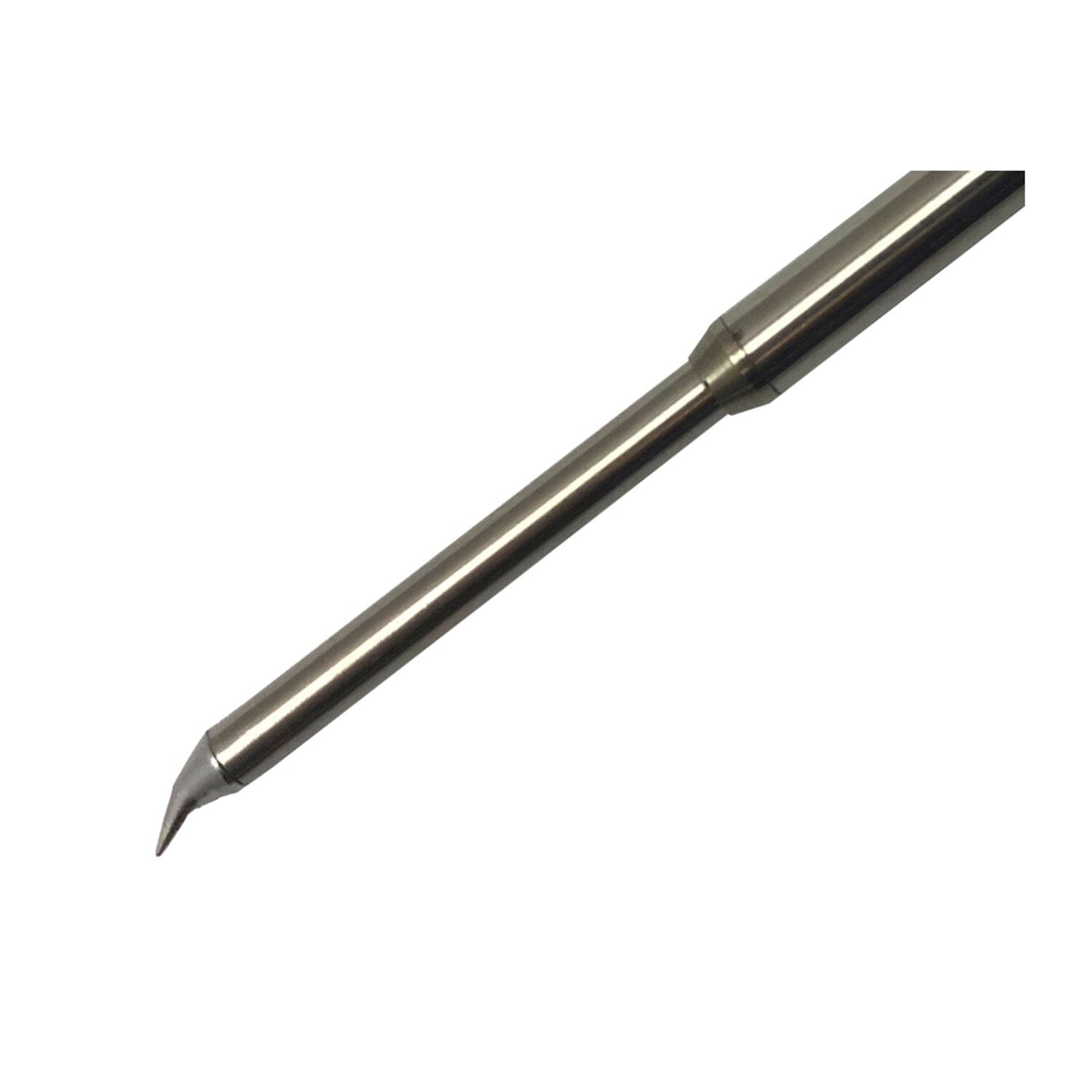

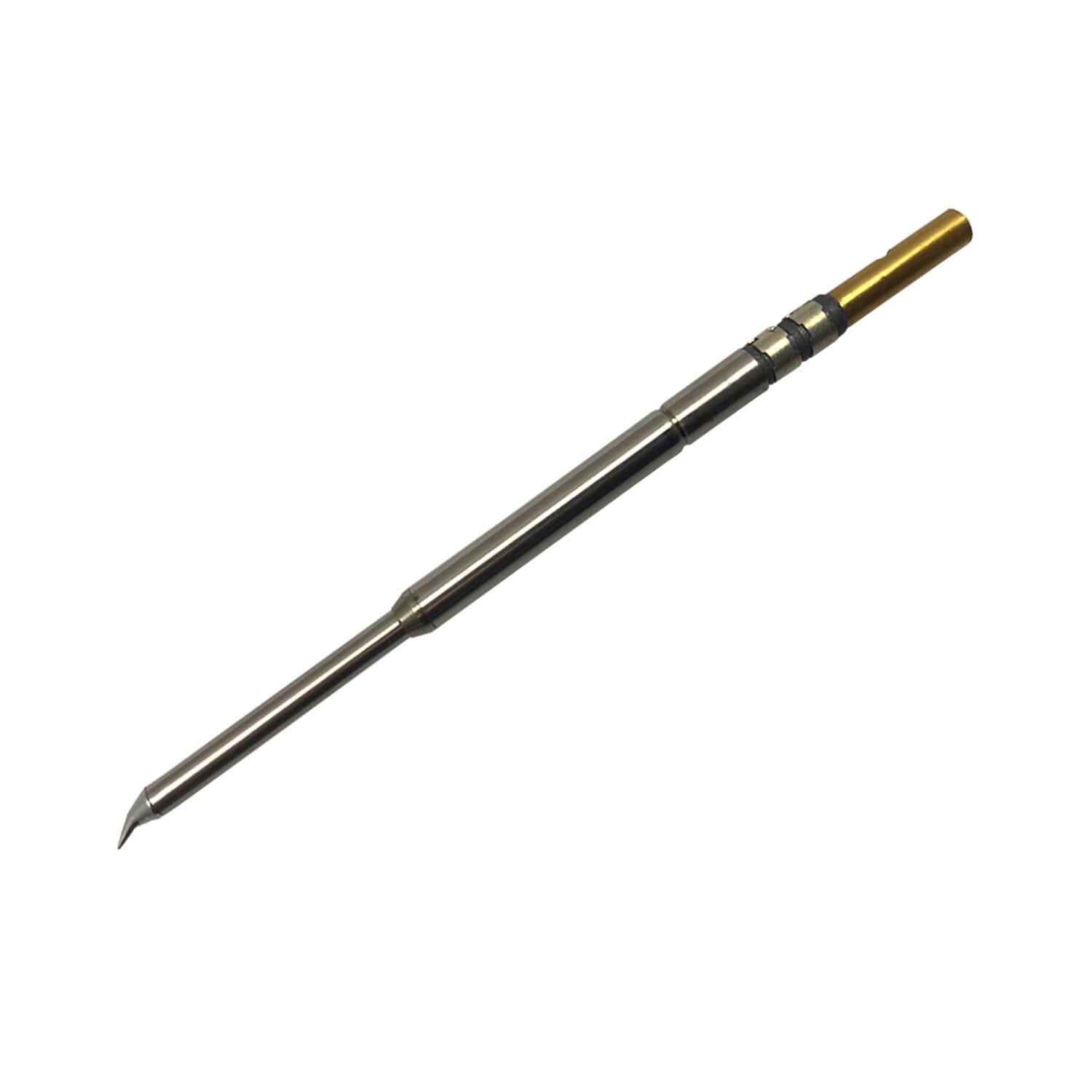

The Metcal UFC-6CN5502R UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems is purpose-built for micro-soldering tasks that demand both precision and maneuverability. Featuring a bent conical tip measuring 0.2 mm x 5.6 mm, this cartridge allows technicians to easily access tight angles and challenging solder joints on high-density circuit boards.

As part of the 600 Series, this cartridge operates at a lower temperature (~330°C), making it ideal for temperature-sensitive components and lead-free soldering processes. The bent conical tip is perfect for working under microscopes or in rework stations where visibility and control are paramount.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-6CN5502R
• Series: UltraFine 600 Series
• Tip Geometry: Bent Conical

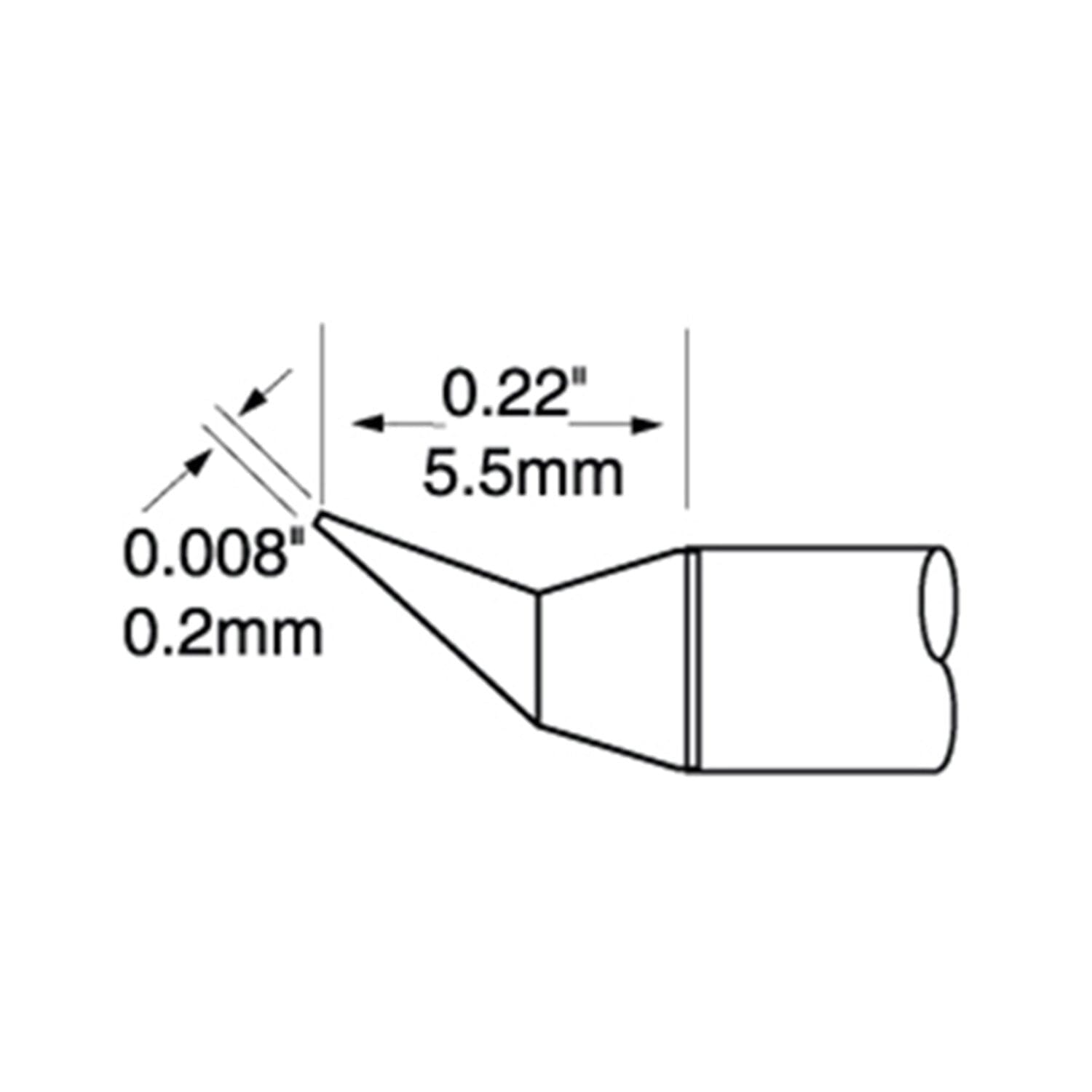

• Tip Dimensions: 0.2 mm diameter x 5.6 mm long
• Compatible Systems: Metcal CV-5200 AND CV-500 Series Soldering Systems
• Temperature Range: Designed for 600 Series operation (~330°C)
• Application: Fine-pitch soldering, rework, tight-angle access, microscope-assisted soldering

Key Features

• Bent UltraFine Tip: Enables precise soldering at difficult angles and hard-to-reach areas.
• Lower Operating Temperature: Helps protect sensitive components during soldering.
• Ideal for Rework: Designed for controlled soldering under magnification or inspection scopes.
• Quick Cartridge Change: Tool-free design enhances efficiency on the production line.
• RoHS Compliant: Fully compatible with lead-free and environmentally safe practices.

Get superior angle access and fine-detail precision with the Metcal UFC-6CN5502R — engineered for the most demanding soldering tasks.
