Metcal UFC-6CN5102S UltraFine Soldering Cartridge 600 Series

Ultra-Precision Soldering for the Most Delicate Applications

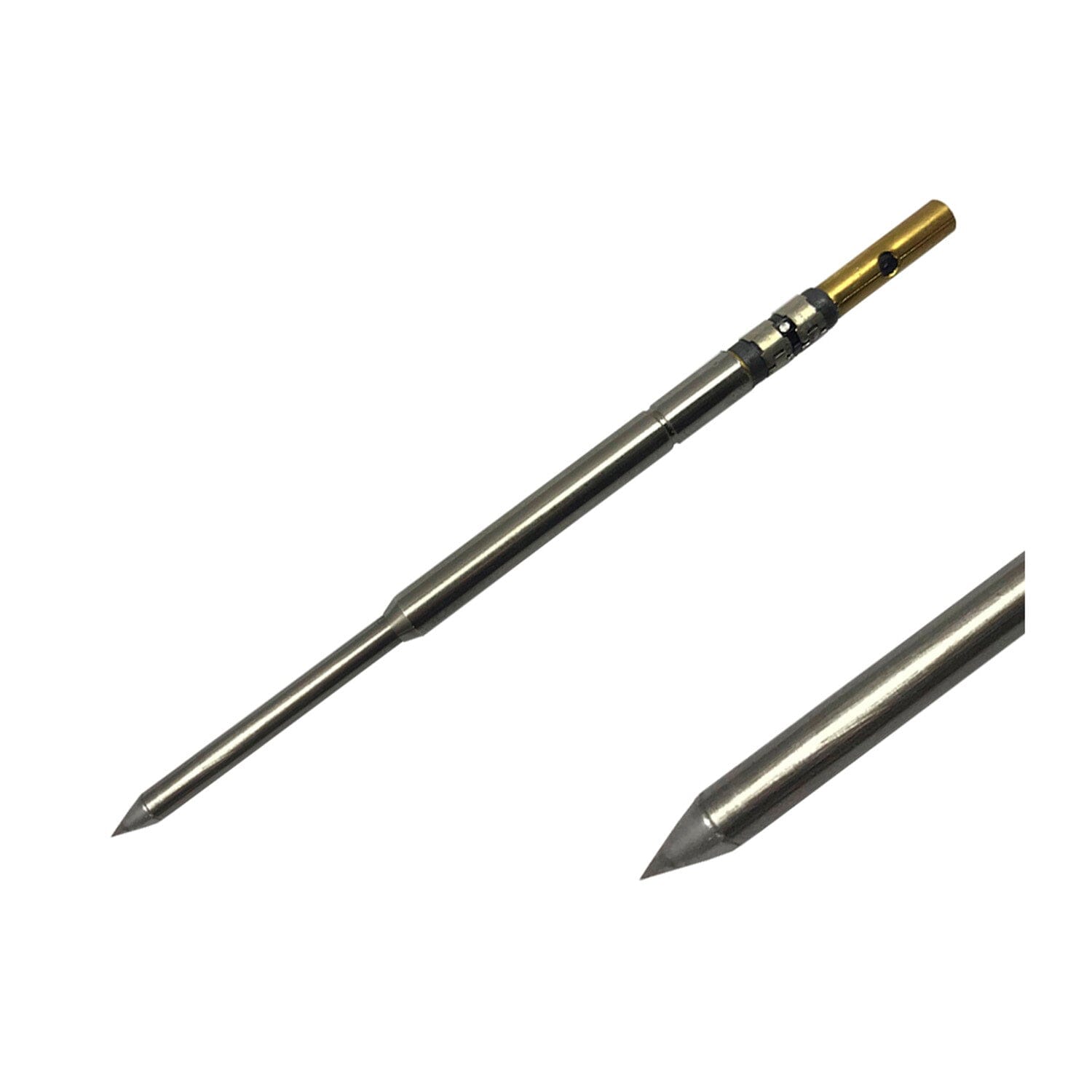

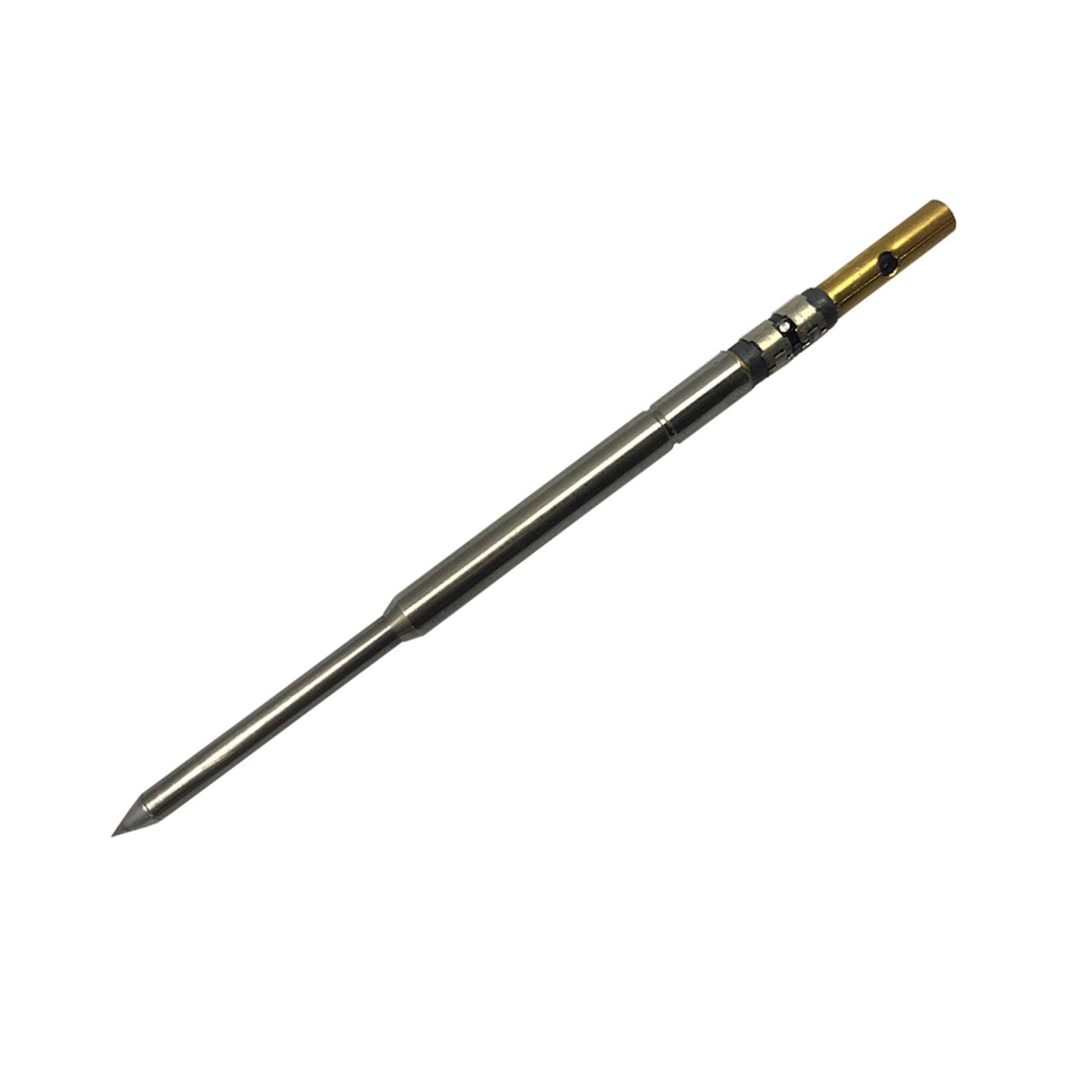

The Metcal UFC-6CN5102S UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems is designed for unmatched precision in micro-soldering applications. Featuring a 0.2 mm x 5.1 mm conical tip, this cartridge is part of Metcal’s high-performance 600 Series, optimized for lower temperature operation while maintaining thermal consistency and control.

This UltraFine conical cartridge is perfect for fine-pitch components, miniature pads, and intricate soldering environments. Whether you're working on advanced circuit board rework or tight assembly lines, the UFC-6CN5102S offers accuracy, longevity, and ease of use with Metcal MX Series systems.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-6CN5102S
• Series: UltraFine 600 Series

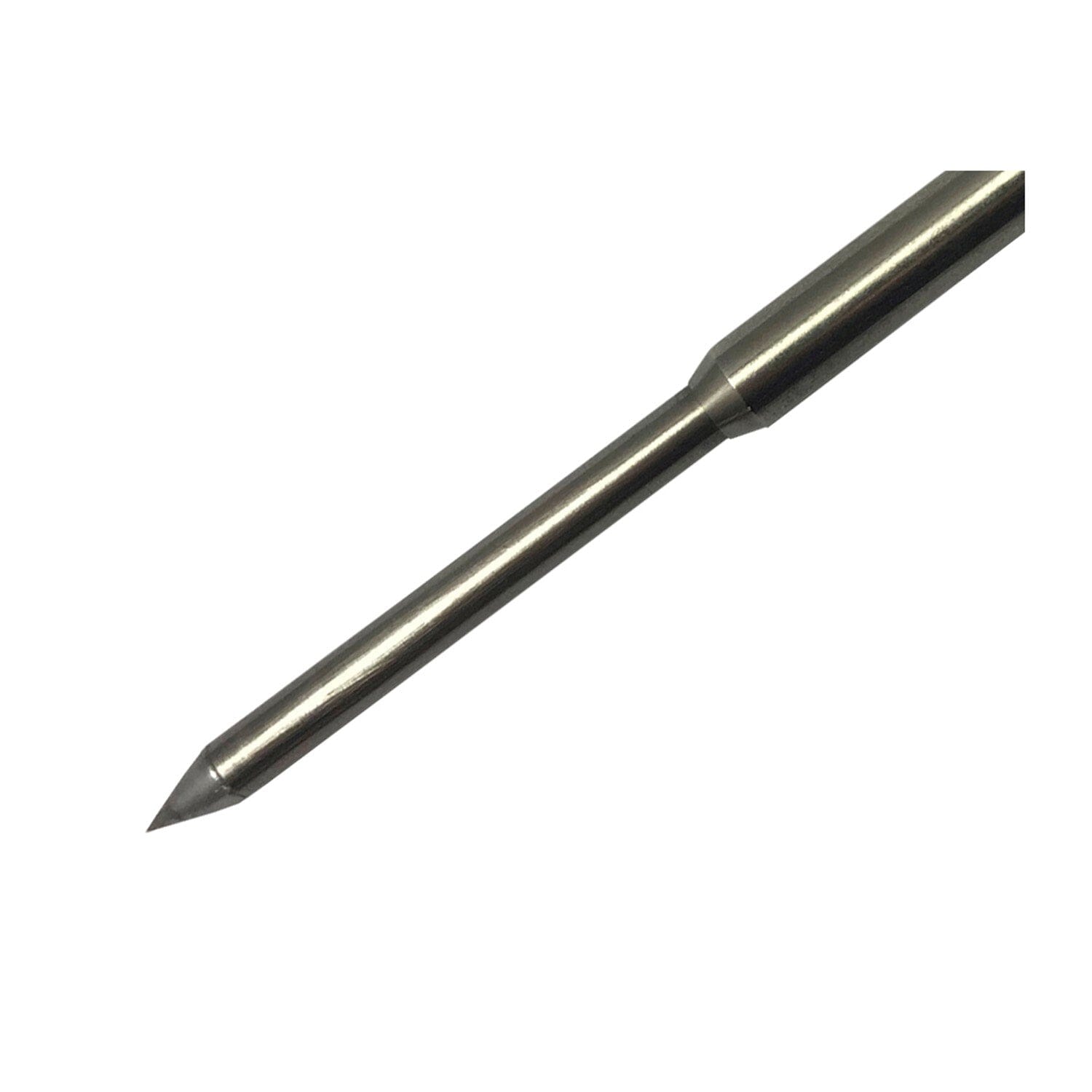

• Tip Geometry: Conical

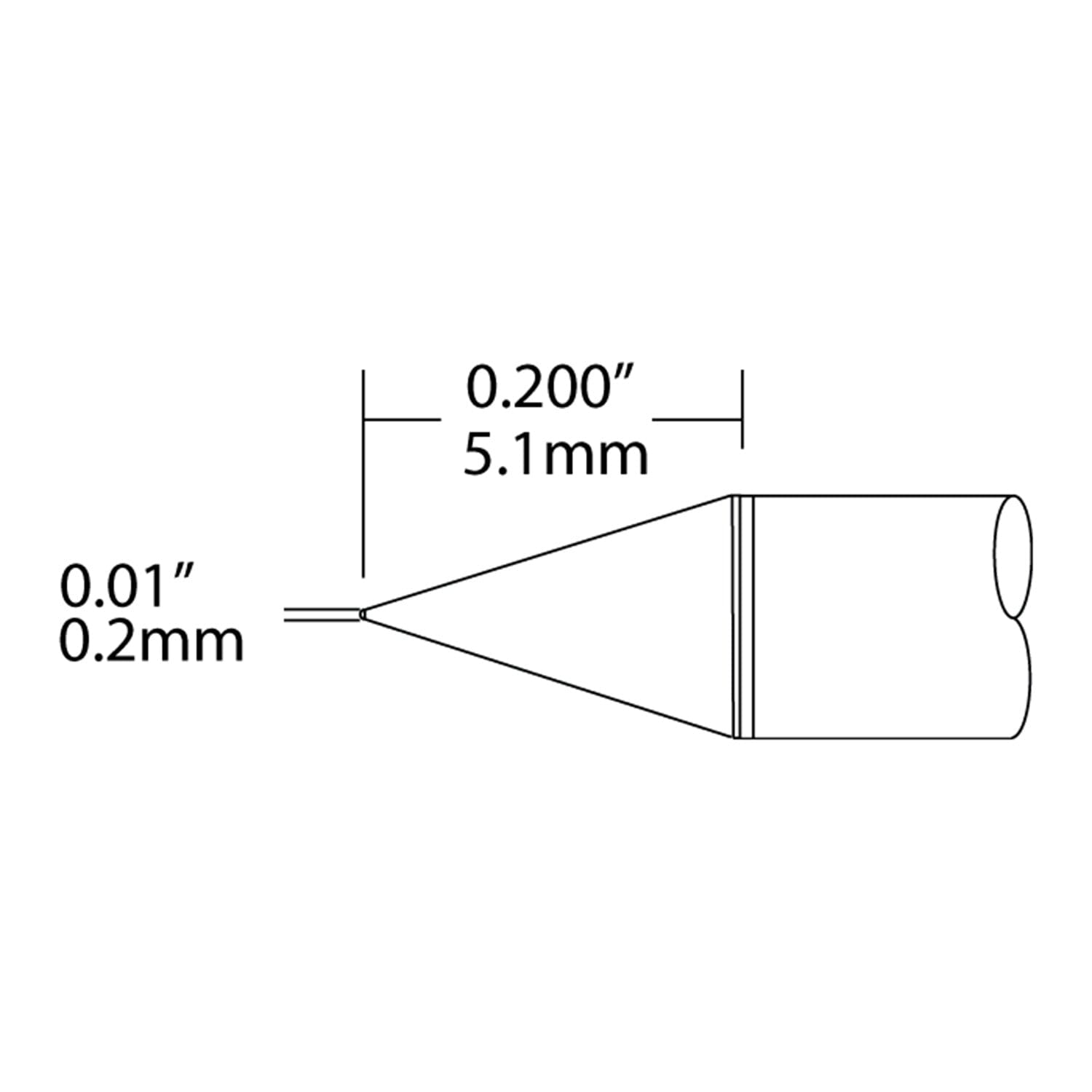

• Tip Dimensions: 0.2 mm diameter x 5.1 mm long
• Compatible Systems: Metcal CV-5200 and CV-500 Soldering Systems
• Temperature Range: Designed for 600 Series operation (~330°C)
• Application: Micro-soldering, PCB rework, fine-pitch SMD components

Key Features

• UltraFine Conical Tip: Ideal for detailed and precision-focused soldering tasks.
• Lower Temperature Series: Operates at reduced temperatures to protect sensitive components.
• Stable Thermal Recovery: The Metcal "SmartHeat®-Technology maintains performance during extended use in production environments.
• Fast Cartridge Change: Tool-less tip replacement saves time on the production line.
• RoHS Compliant: Lead-free compatible and safe for use in modern manufacturing.

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf

Choose the Metcal UFC-6CN5102S for fine-detail soldering tasks where precision and component safety are essential.
