Metcal UFC-6CN5101S UltraFine Soldering Cartridge, 600 Series

Ultra-Precision Soldering for the Most Delicate Electronic Applications

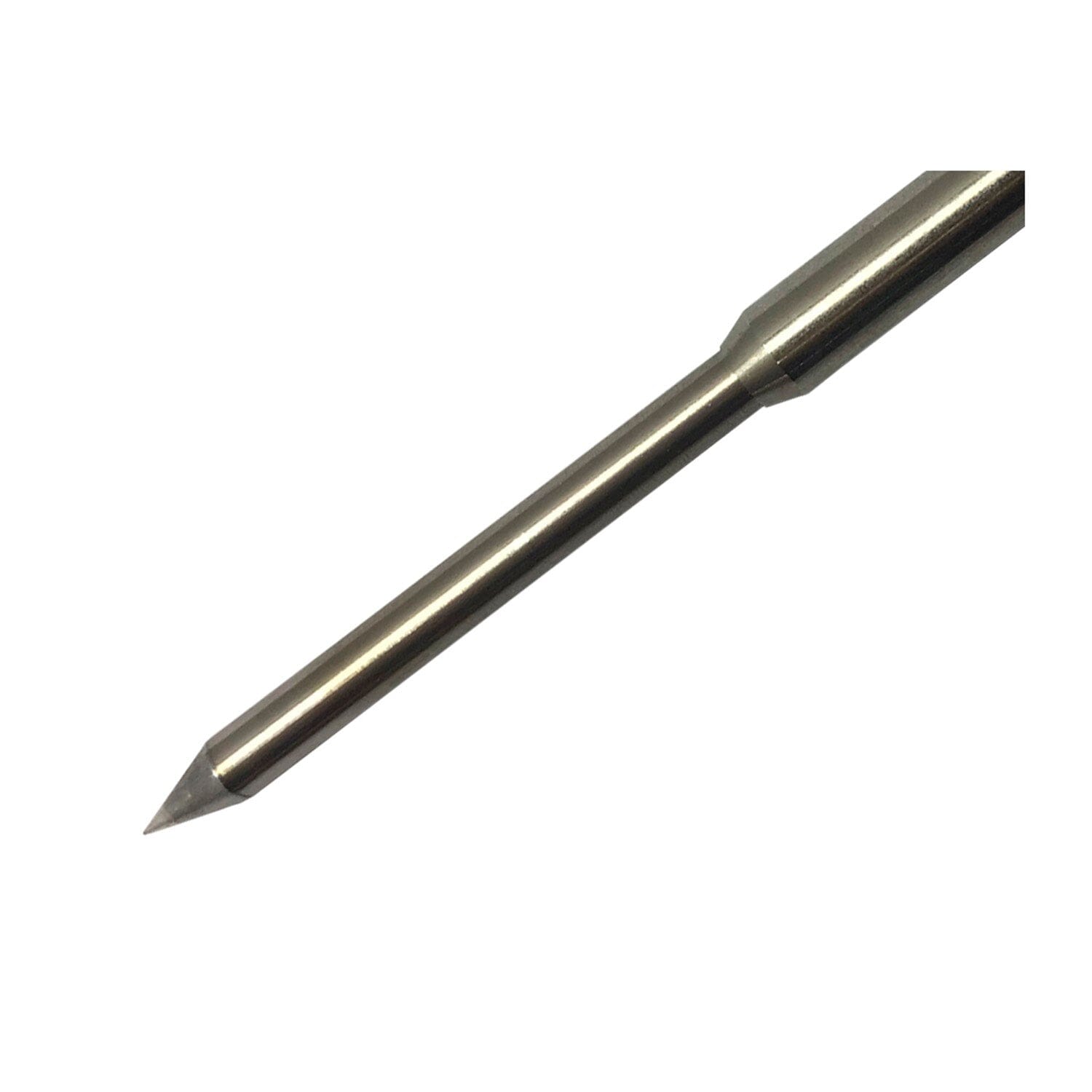

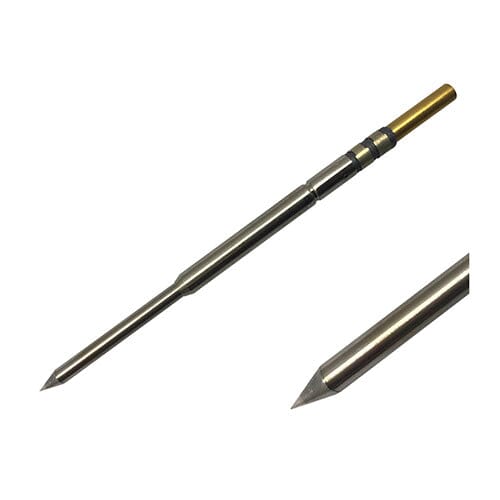

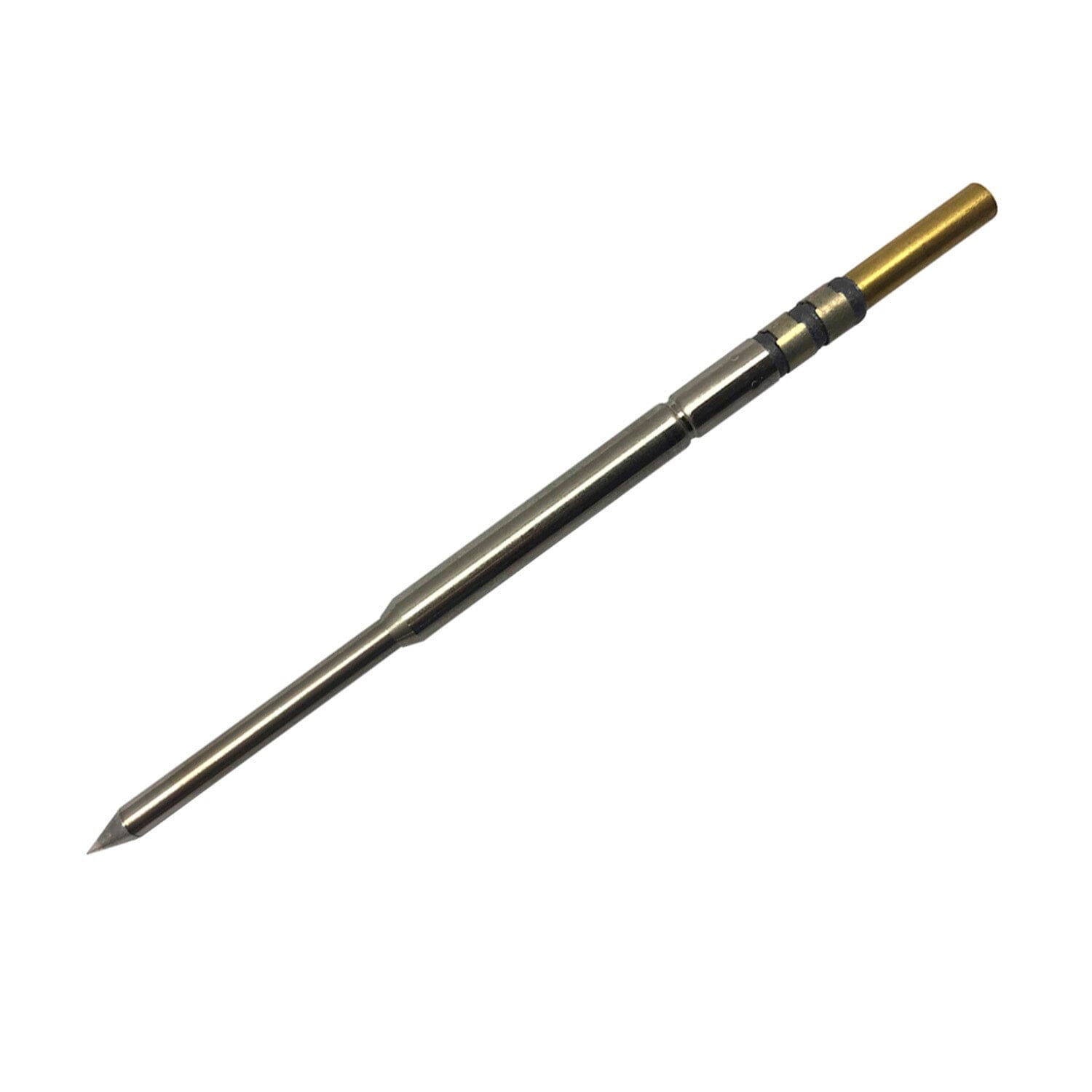

The Metcal UFC-6CN5101S UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems features a needle-sharp 0.13 mm x 5.1 mm conical tip, making it the ideal tool for ultra-fine soldering under a microscope, including work on microelectronics, miniature SMT components, and high-density PCBs.

As part of the 600 Series, this cartridge is designed for lower-temperature operation (~330°C), offering optimal control when working with sensitive or thermally delicate components. The ultra-fine conical geometry delivers exceptional precision, access, and visibility in the most confined or intricate soldering environments.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-6CN5101S
• Series: UltraFine 600 Series
• Tip Geometry: Conical

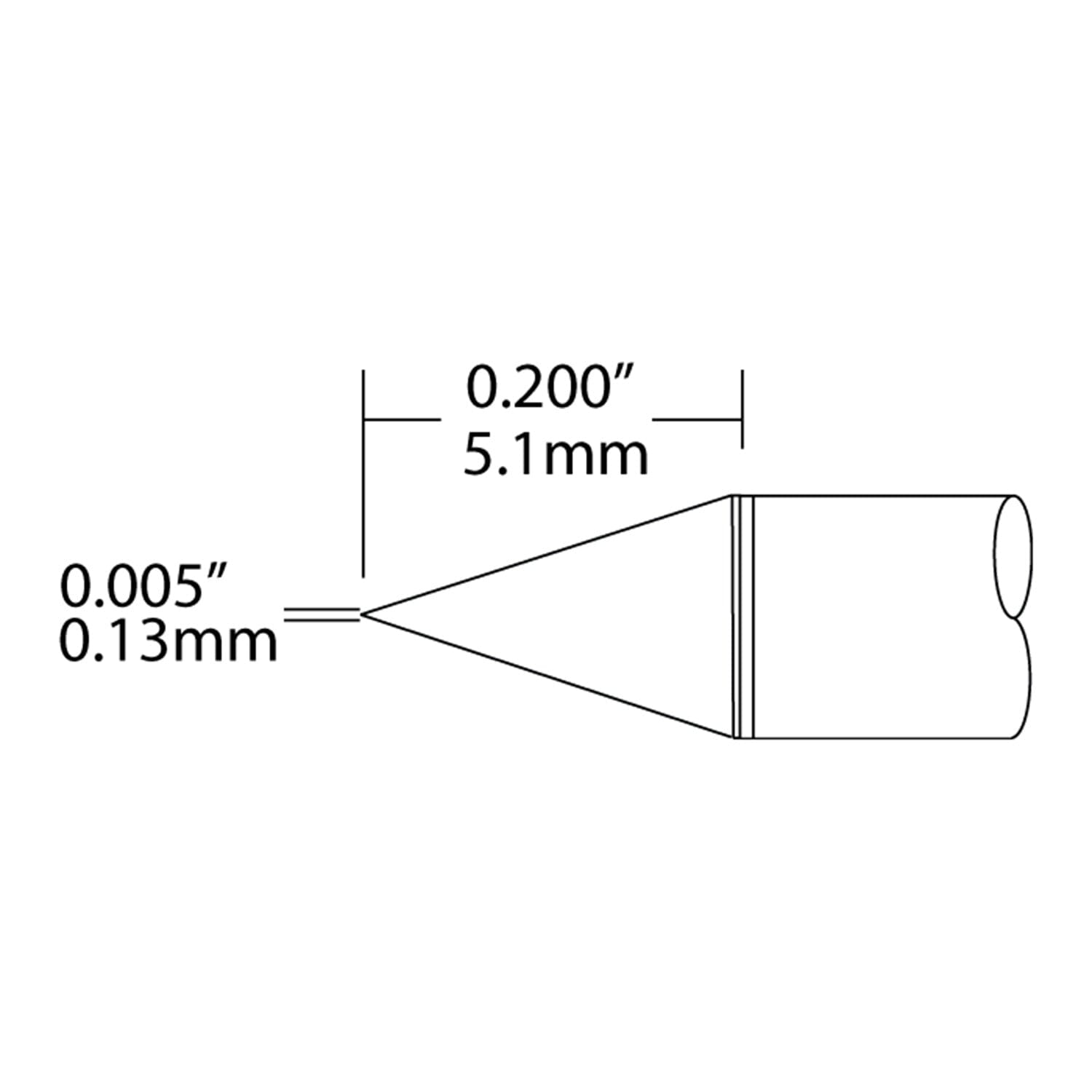

• Tip Dimensions: 0.13 mm diameter x 5.1 mm long
• Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
• Operating Temperature: ~330°C (600 Series)
• Application: Micro-soldering, fine-pitch SMT work, microscope-assisted soldering, precision rework

Key Features

• Ultra-Narrow Conical Tip: Perfect for micro pads, ultra-fine pitch components, and pinpoint precision.
• Low-Temperature Performance: Reduces thermal stress on delicate assemblies.
• High Accessibility: Enables work under magnification in tight or recessed areas.
• Tool-Free Replacement: Quick cartridge swap streamlines workflow and minimizes downtime.
• RoHS Compliant: Safe for lead-free soldering and environmentally responsible processes.

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf

Choose the Metcal UFC-6CN5101S for the highest level of soldering accuracy in microelectronics and ultra-fine-pitch PCB applications.
