Metcal UFC-6CH9008S UltraFine Soldering Cartridge, 600 Series

Extended Reach and Precision for Low-Temperature Soldering Applications

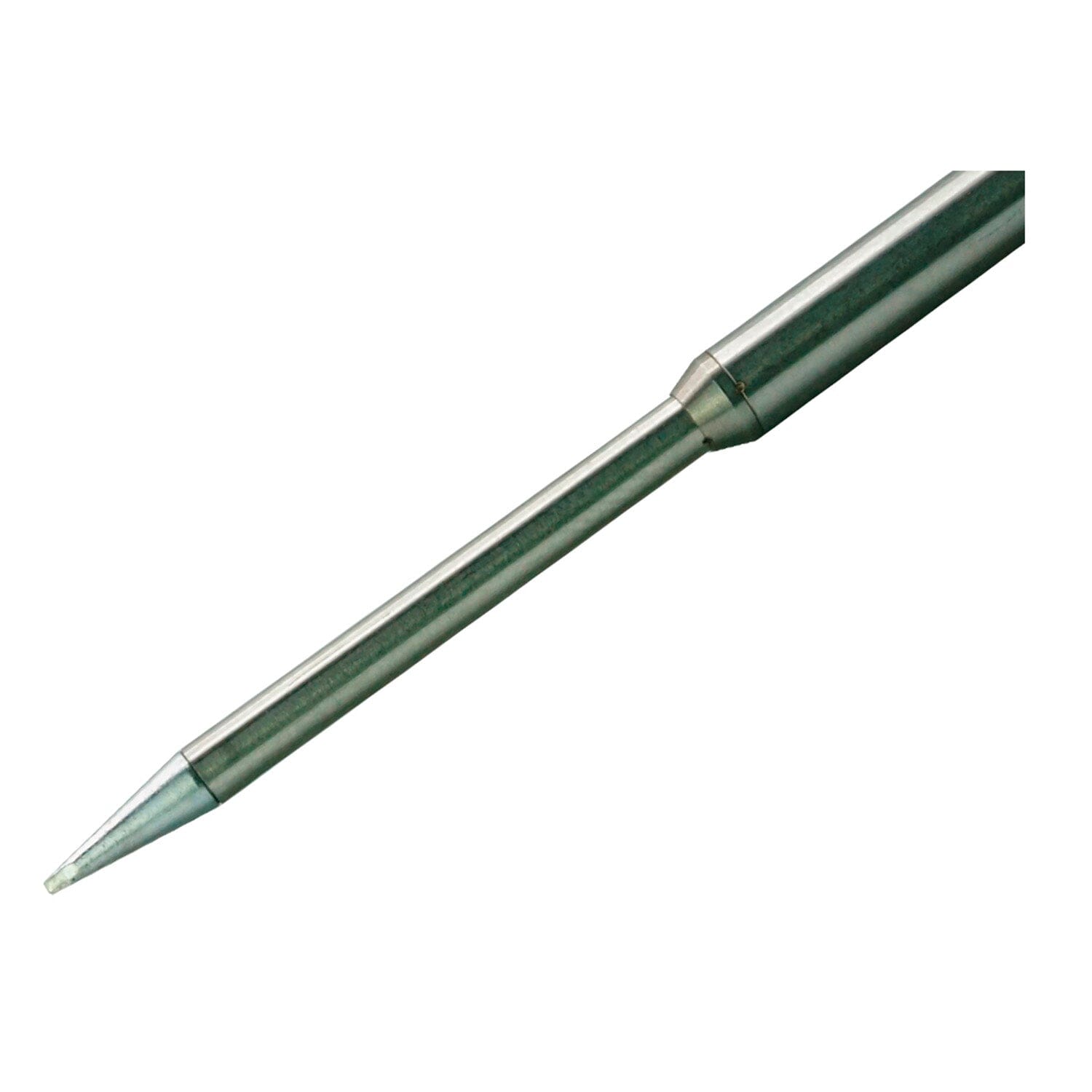

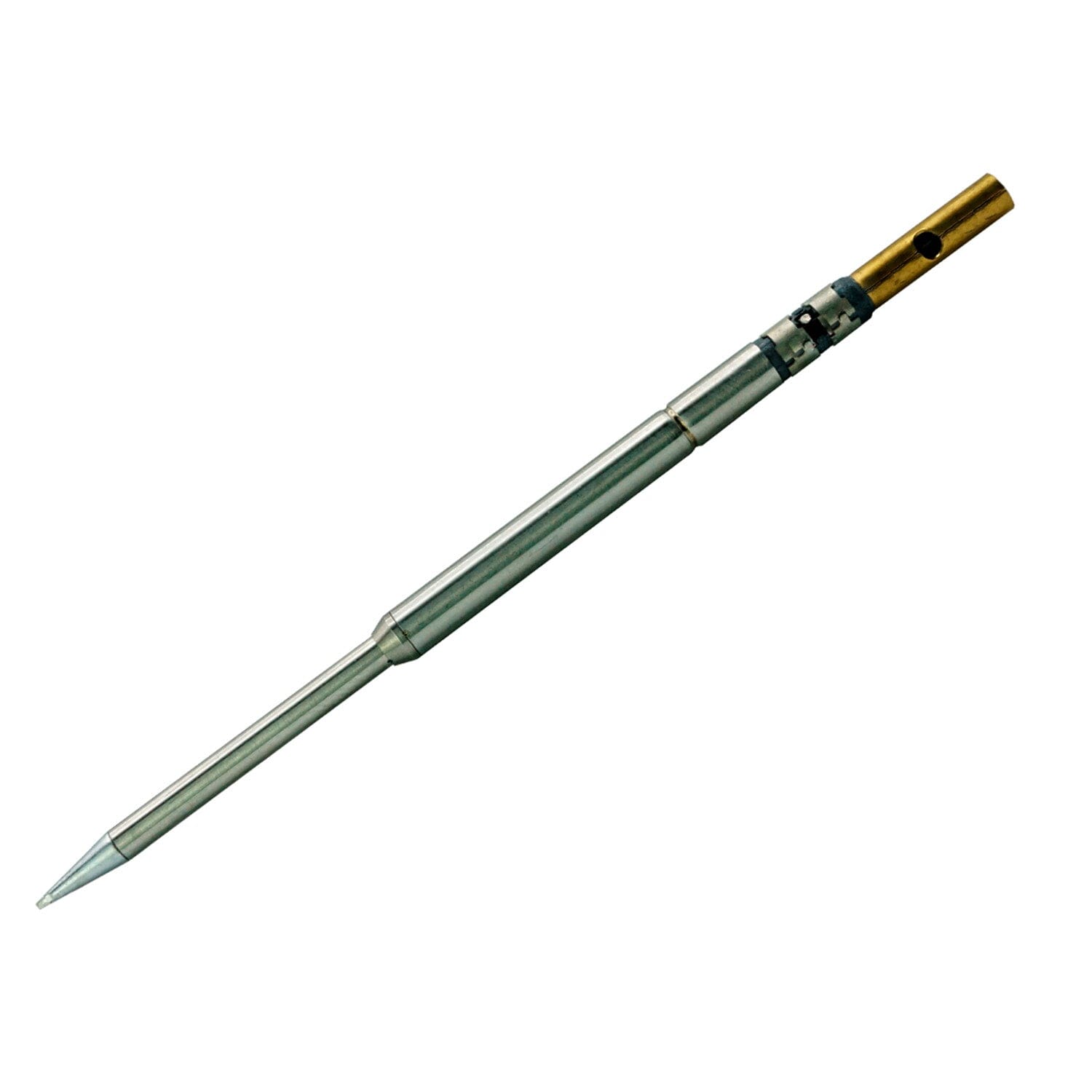

The Metcal UFC-6CH9008S UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems is engineered for professionals who demand reach, precision, and control. With a 0.8 mm x 9.0 mm chisel tip, this cartridge is ideal for drag soldering, fine-pitch SMT work, and hard-to-access joints in densely populated PCBs.

Part of Metcal’s 600 Series, the UFC-6CH9008S operates at a lower tip temperature (~330°C), making it an excellent choice for heat-sensitive components and temperature-critical assemblies. The extended tip length provides enhanced access without sacrificing stability or thermal performance, making it suitable for detailed work under magnification.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-6CH9008S
• Series: UltraFine 600 Series
• Tip Geometry: Chisel
• Tip Dimensions: 0.8 mm wide x 9.0 mm long
• Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
• Operating Temperature: ~330°C (600 Series)
• Application: SMT soldering, drag soldering, precision rework, heat-sensitive electronics, fine-pitch PCB work

Key Features

• Extended Chisel Tip: Provides greater reach for difficult-to-access pads and traces.
• Precision Thermal Control: Optimized for temperature-sensitive soldering environments.
• Sharp Edge Definition: Ideal for clean, consistent solder joints on flat surfaces.
• Microscope-Friendly Design: UltraFine tip shape improves visibility and accuracy under magnification.
• Tool-Free Installation: Easily swapped without tools to maximize workflow efficiency.

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf

Optimize your soldering station with the Metcal UFC-6CH9008S — engineered for high-precision, long-reach soldering in low-temperature, fine-pitch applications.
