Metcal UFC-6CH9006S UltraFine Soldering Cartridge, 600 Series

Extended Reach with Precision for Fine-Pitch and Low-Temperature Soldering

The Metcal UFC-6CH9006S UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems delivers high-precision performance in applications requiring extra reach and controlled thermal delivery. Featuring a narrow 0.6 mm x 9.0 mm chisel tip, this cartridge is perfect for accessing tight or recessed solder joints, especially in dense or multilayered PCB assemblies.

Engineered as part of Metcal’s 600 Series, this cartridge operates at approximately 330°C, making it ideal for soldering heat-sensitive components and assemblies. The longer tip length enhances accessibility while maintaining excellent thermal transfer and accuracy, particularly under magnification or microscope-assisted workflows.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-6CH9006S
• Series: UltraFine 600 Series
• Tip Geometry: Chisel

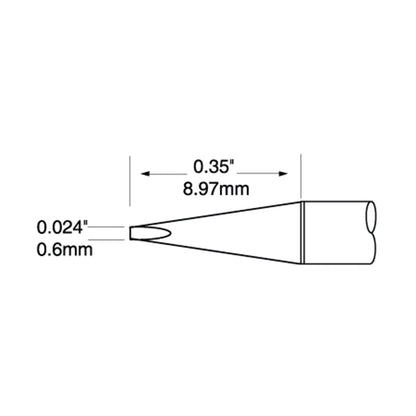

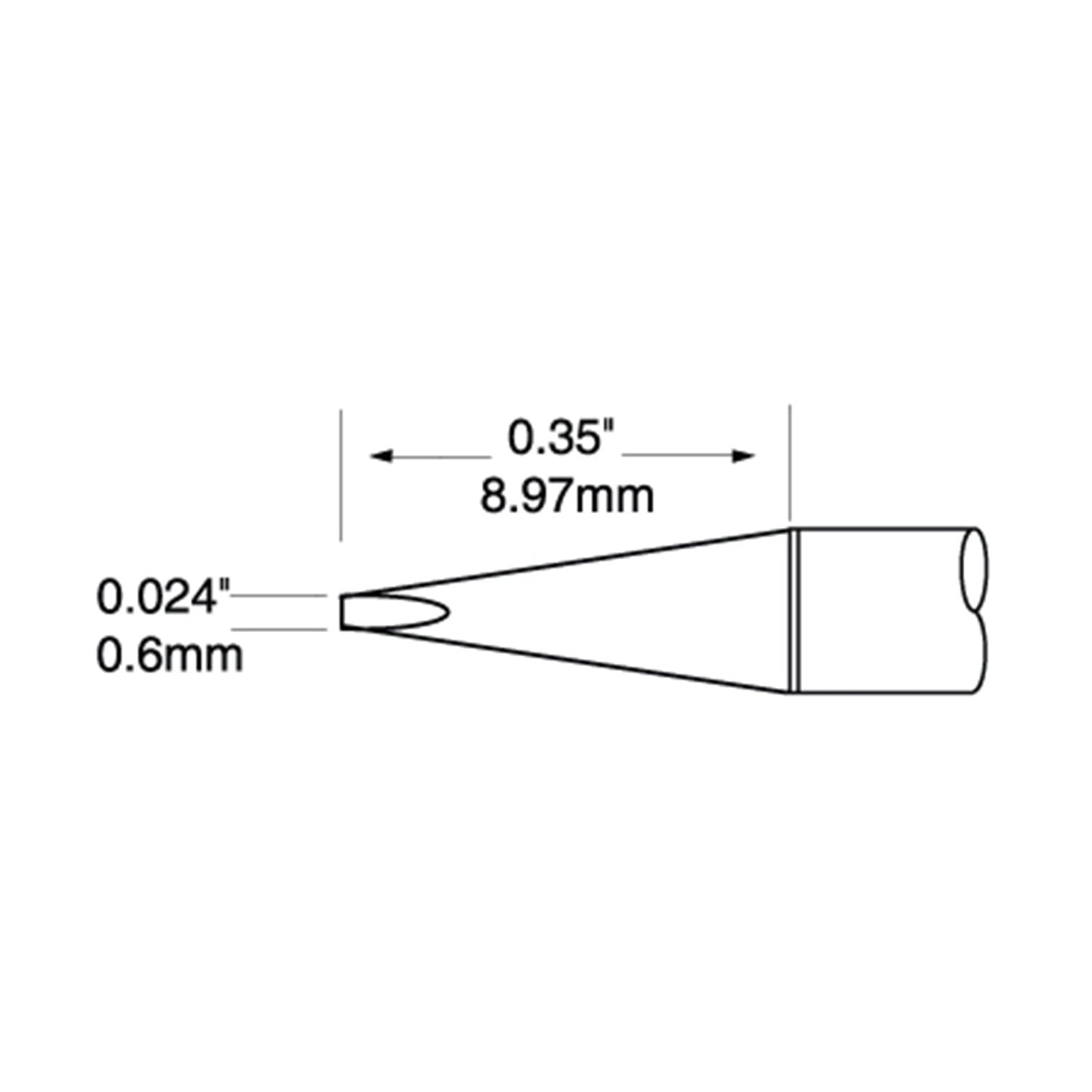

• Tip Dimensions: 0.6 mm wide x 9.0 mm long
• Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
• Operating Temperature: ~330°C (600 Series)
• Application: Precision soldering, long-reach access, SMT rework, microelectronics, heat-sensitive components

Key Features

• Long UltraFine Chisel Tip: Enables precision soldering in deep, narrow, or recessed areas.
• Low-Temperature Operation: Designed for delicate components and thermally sensitive boards.
• Enhanced Control: Fine-tip geometry supports high-accuracy work under a microscope.
• Tool-Free Replacement: Quick-change design keeps production lines running efficiently.
• RoHS Compliant: Safe for lead-free and environmentally responsible electronics assembly.

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf

Achieve accurate, extended-reach soldering with the Metcal UFC-6CH9006S — engineered for professionals working on sensitive and complex electronics.
