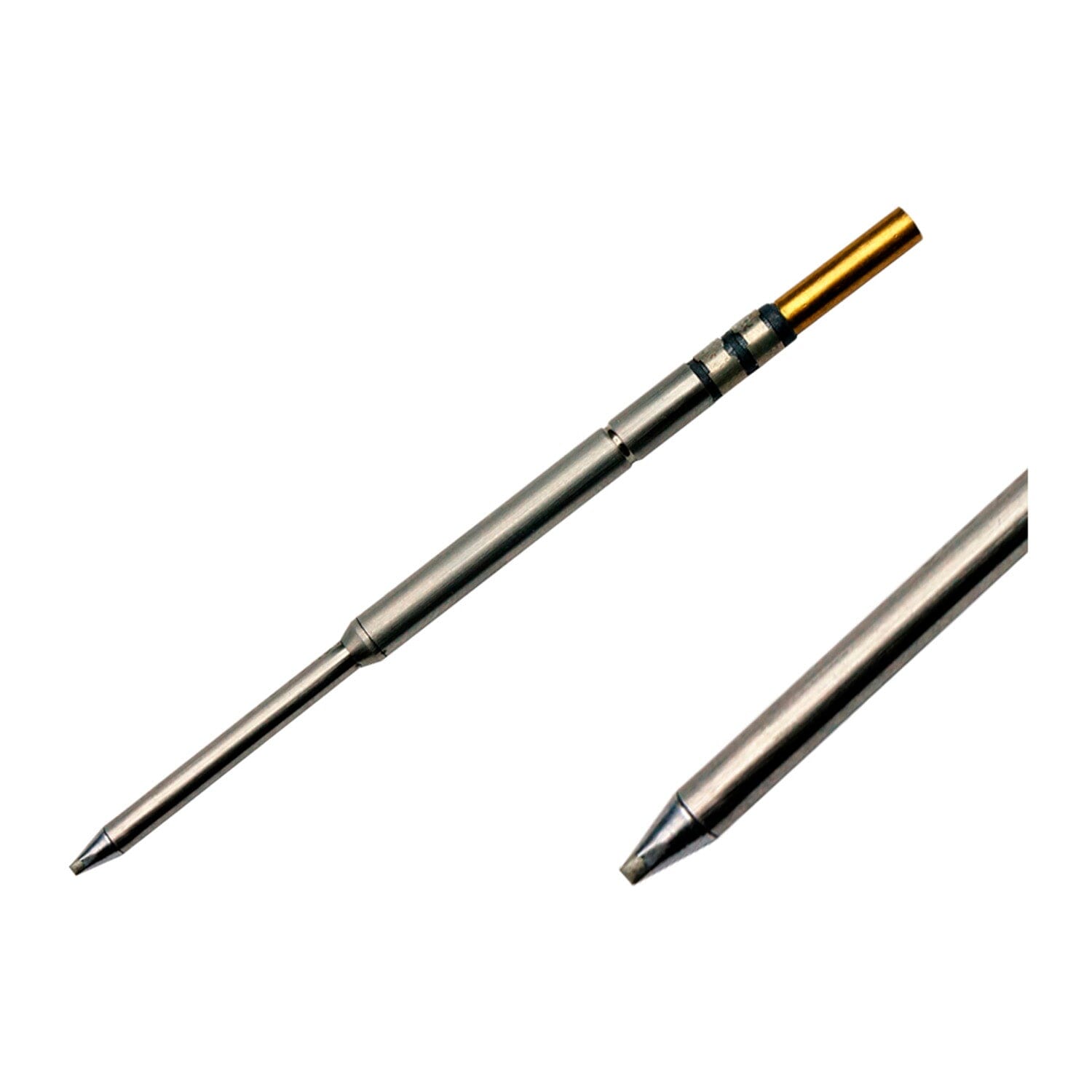

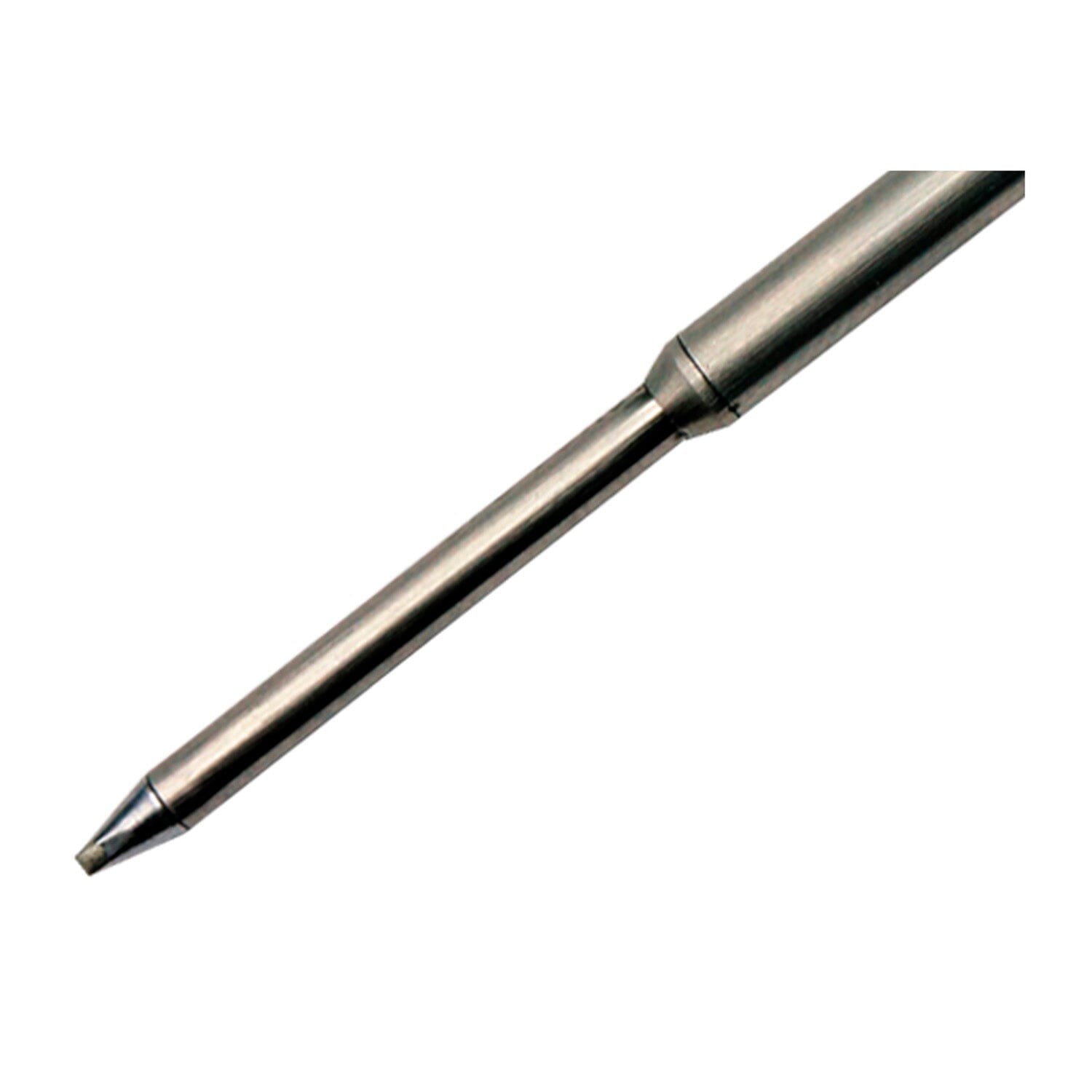

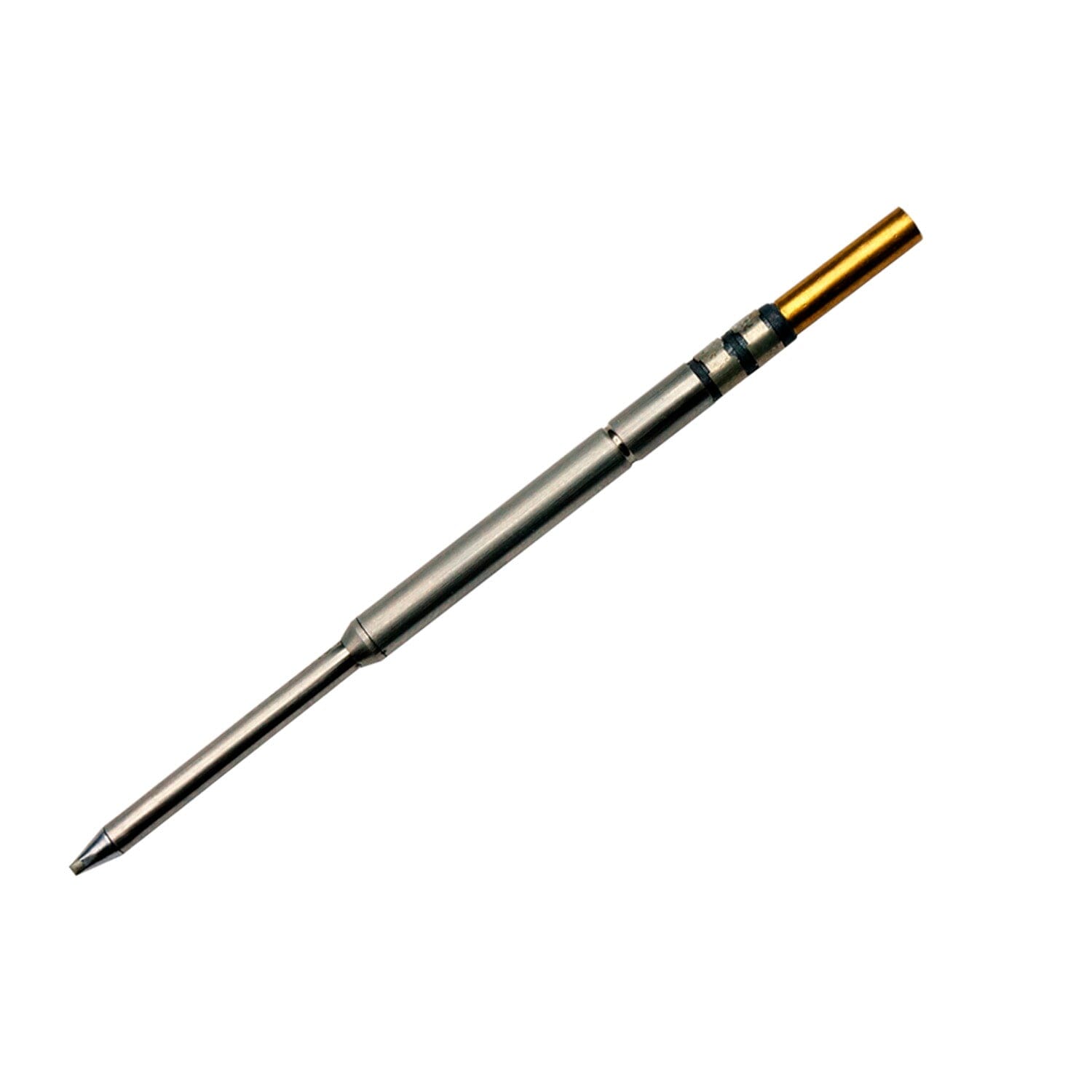

Metcal UFC-6CH5112S UltraFine Soldering Cartridge, Chisel, 1.2 mm x 5.1 mm, 600 Series

Metcal UFC-6CH5112S UltraFine Soldering Cartridge, Chisel, 1.2 mm x 5.1 mm, 600 Series

MET-UFC-6CH5112S

$43.40
$43.40
Sale Sold out
Shipping calculated at checkout.

Metcal UFC-6CH5112S UltraFine Soldering Cartridge, 600 Series

Wide Chisel Precision for Low-Temperature Soldering Applications

The Metcal UFC-6CH5112S UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems features a wider 1.2 mm x 5.1 mm chisel tip, making it an excellent choice for drag soldering, larger SMT pads, and applications requiring greater surface contact. Designed for use with Metcal CV Series systems, this cartridge delivers consistent thermal performance and precise control for demanding electronics work.

As part of the 600 Series, the UFC-6CH5112S operates at a lower tip temperature (~330°C), reducing thermal stress on heat-sensitive components while maintaining strong joint reliability. Whether you're reworking PCBs or assembling fine-pitch devices, this tip offers the ideal combination of coverage and control.

Technical Specifications

  • Manufacturer: Metcal
  • Model Number: UFC-6CH5112S
  • Series: UltraFine 600 Series
  • Tip Geometry: Chisel

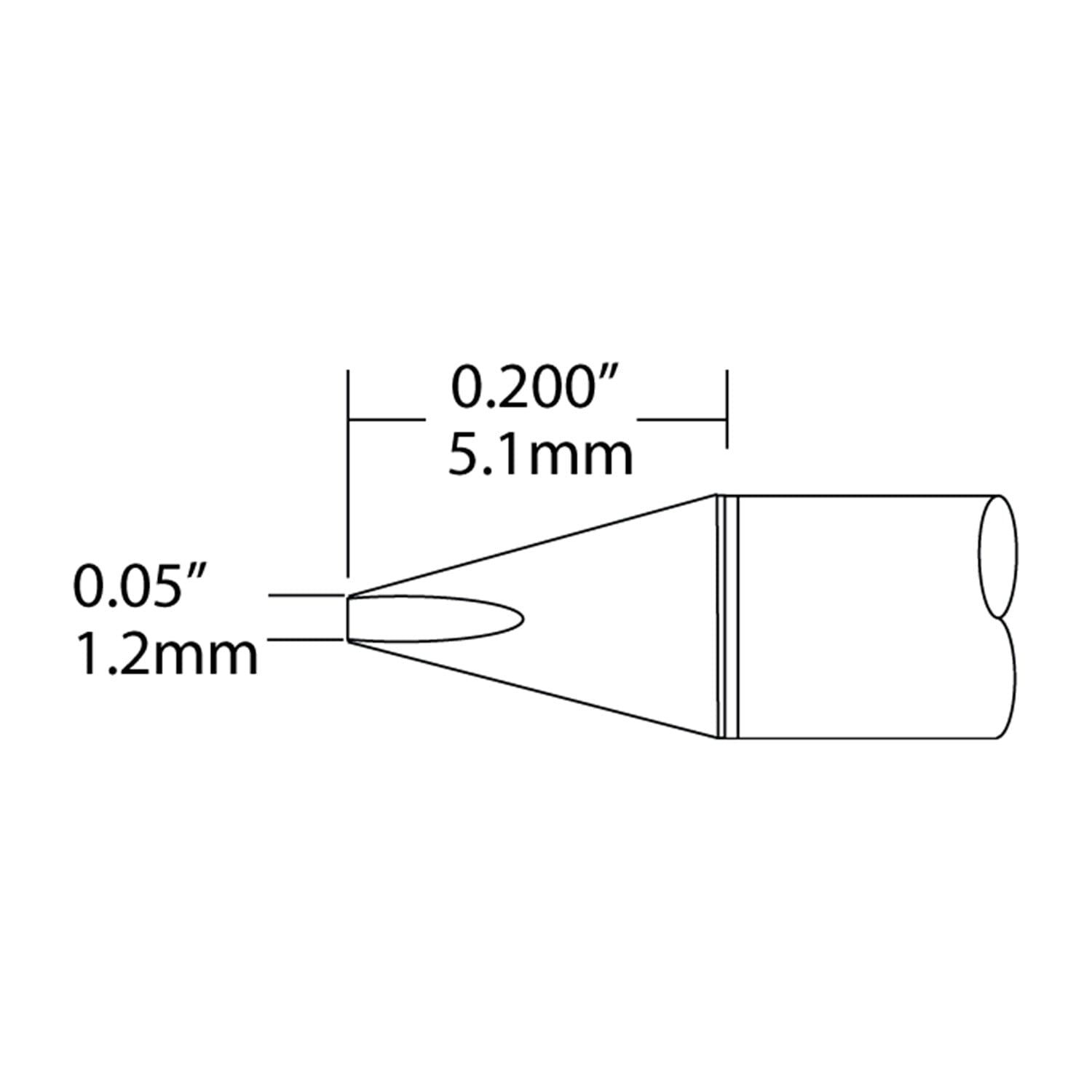

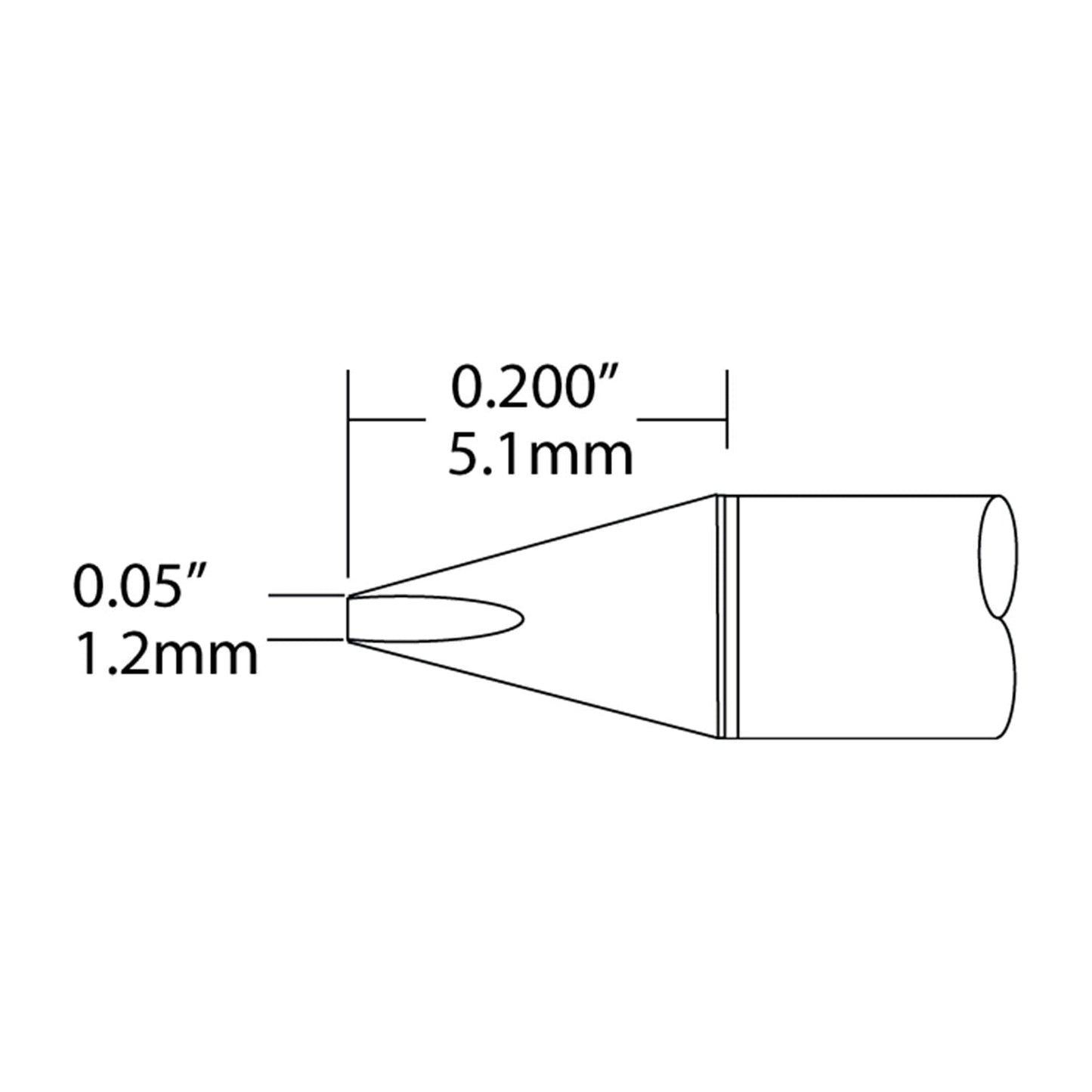

  • Tip Dimensions: 1.2 mm wide x 5.1 mm long
  • Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
  • Operating Temperature: ~330°C (600 Series)
  • Applications: SMT soldering, drag soldering, rework, low-temperature soldering, larger pad coverage

Key Features

  • Wide Chisel Tip: Ideal for larger joints and efficient heat transfer over broader areas.
  • Low-Temperature Operation: Designed to protect delicate or heat-sensitive components.
  • Consistent Performance: Maintains thermal stability across repeated use and varied applications.
  • Tool-Free Installation: Easy cartridge replacement enhances productivity and minimizes downtime.
  • RoHS Compliant: Fully compatible with lead-free soldering processes.

Additional Documentation

Achieve optimal solder coverage and thermal control with the Metcal UFC-6CH5112S — designed for wide-area, low-temp soldering precision.
