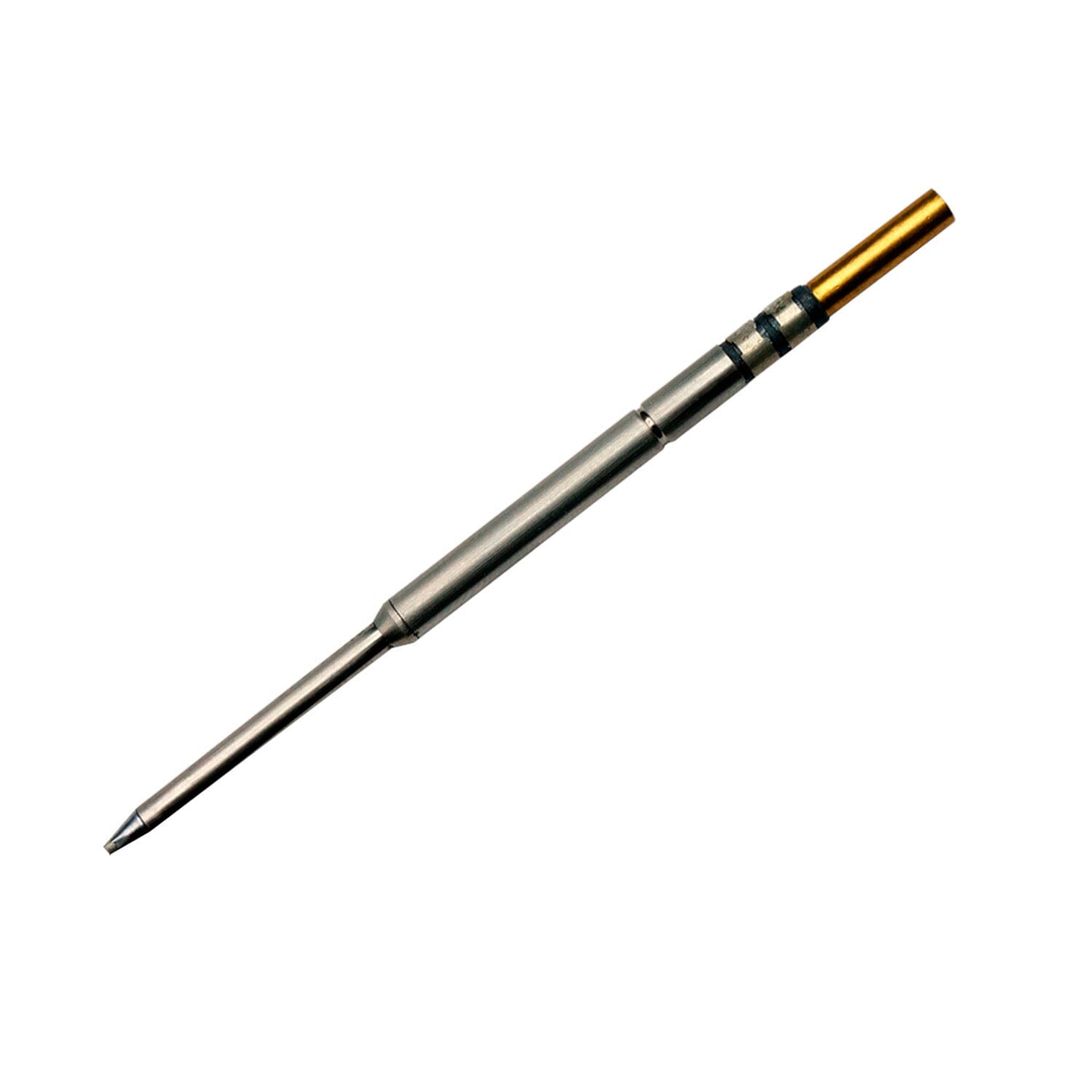

Metcal UFC-6CH5108S UltraFine Soldering Cartridge, 600 Series

Reliable Precision for Fine-Pitch and Temperature-Sensitive Soldering

The Metcal UFC-6CH5108S UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems is designed for soldering professionals who require precision, control, and consistent performance. Featuring a 0.8 mm x 5.1 mm chisel tip, this cartridge is ideal for fine-pitch components, drag soldering, and detailed rework on high-density PCBs.

Part of the 600 Series, this cartridge operates at a lower temperature (~330°C), making it perfect for use with heat-sensitive components and assemblies that require delicate thermal management. Its UltraFine design provides greater visibility and accuracy, especially under magnification or in microscope-assisted workflows.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-6CH5108S
• Series: UltraFine 600 Series

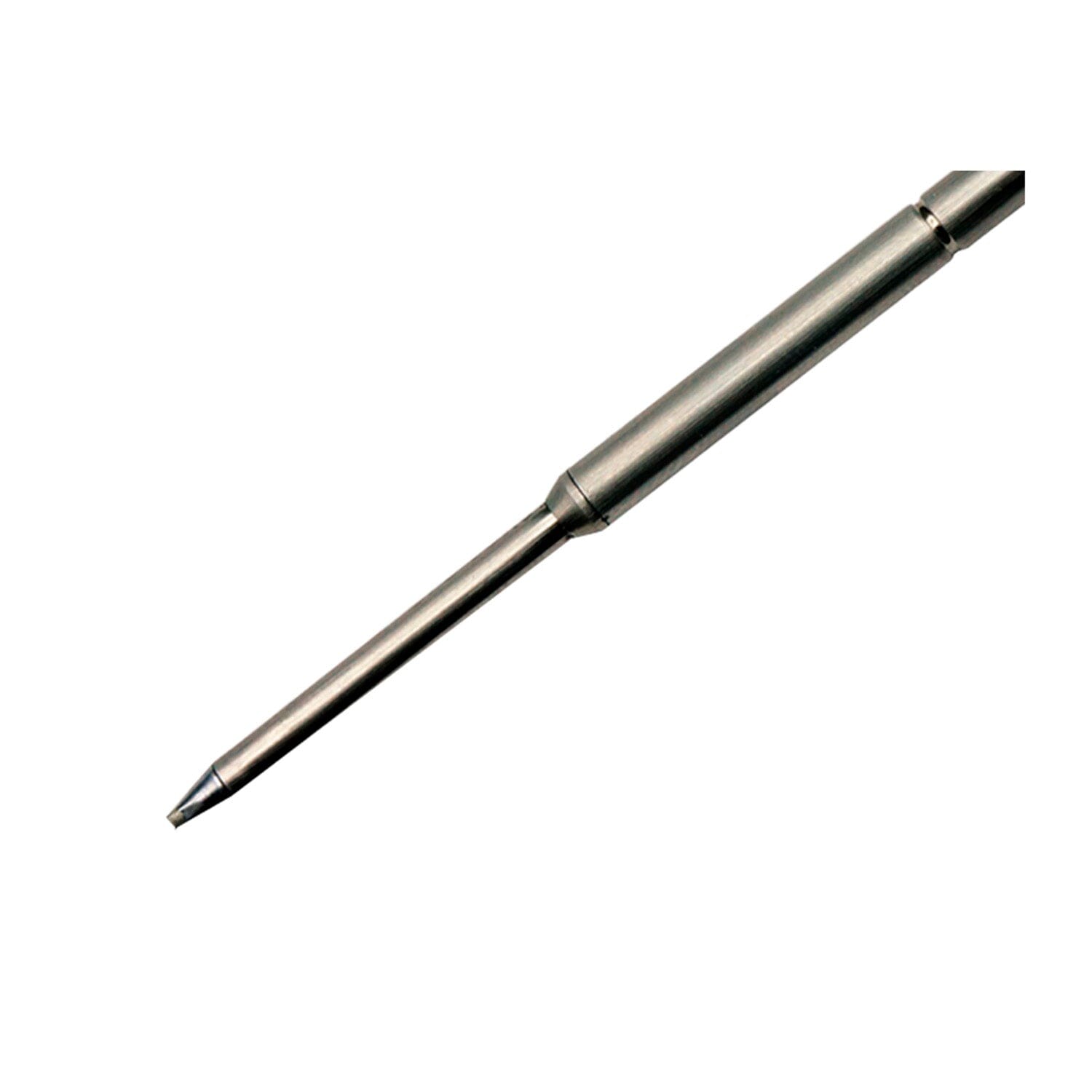

• Tip Geometry: Chisel

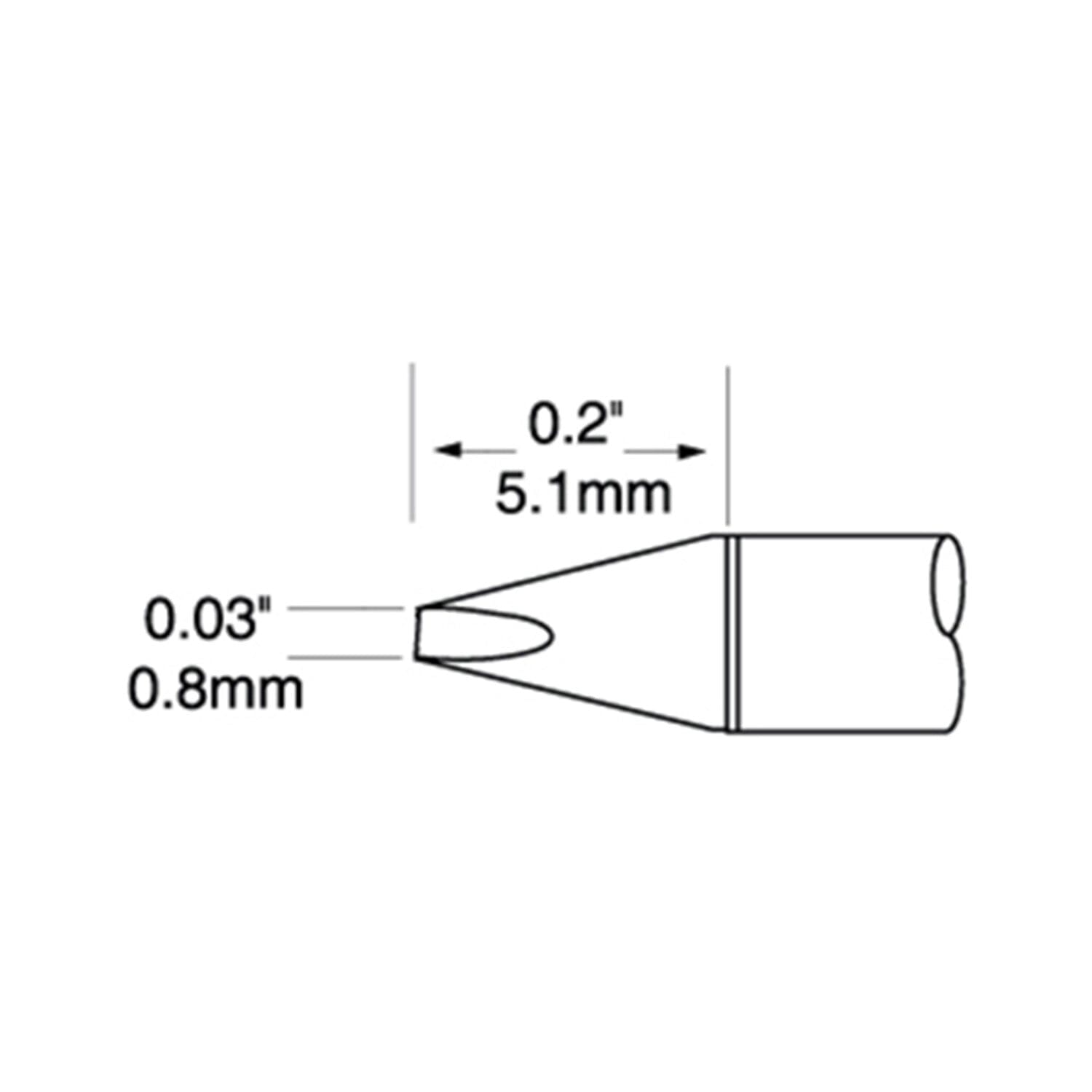

• Tip Dimensions: 0.8 mm wide x 5.1 mm long
• Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
• Operating Temperature: ~330°C (600 Series)
• Application: Precision soldering, fine-pitch rework, SMT component soldering, heat-sensitive electronics

Key Features

• UltraFine Chisel Tip: Ideal for drag soldering and delivering consistent heat to flat joints.
• Lower Temperature Operation: Designed to protect delicate or thermally sensitive components.
• High Accuracy: Slim tip geometry enhances visibility and control under a microscope.
• Quick Swap Design: Tool-free cartridge replacement improves workflow efficiency.
• RoHS Compliant: Safe for lead-free and environmentally responsible applications.

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf

Choose the Metcal UFC-6CH5108S for precise, low-heat soldering performance in fine-pitch and heat-sensitive electronics applications.
