Metcal UFC-6CH5106S UltraFine Soldering Cartridge, 600 Series

Compact Precision for Heat-Sensitive Soldering Applications

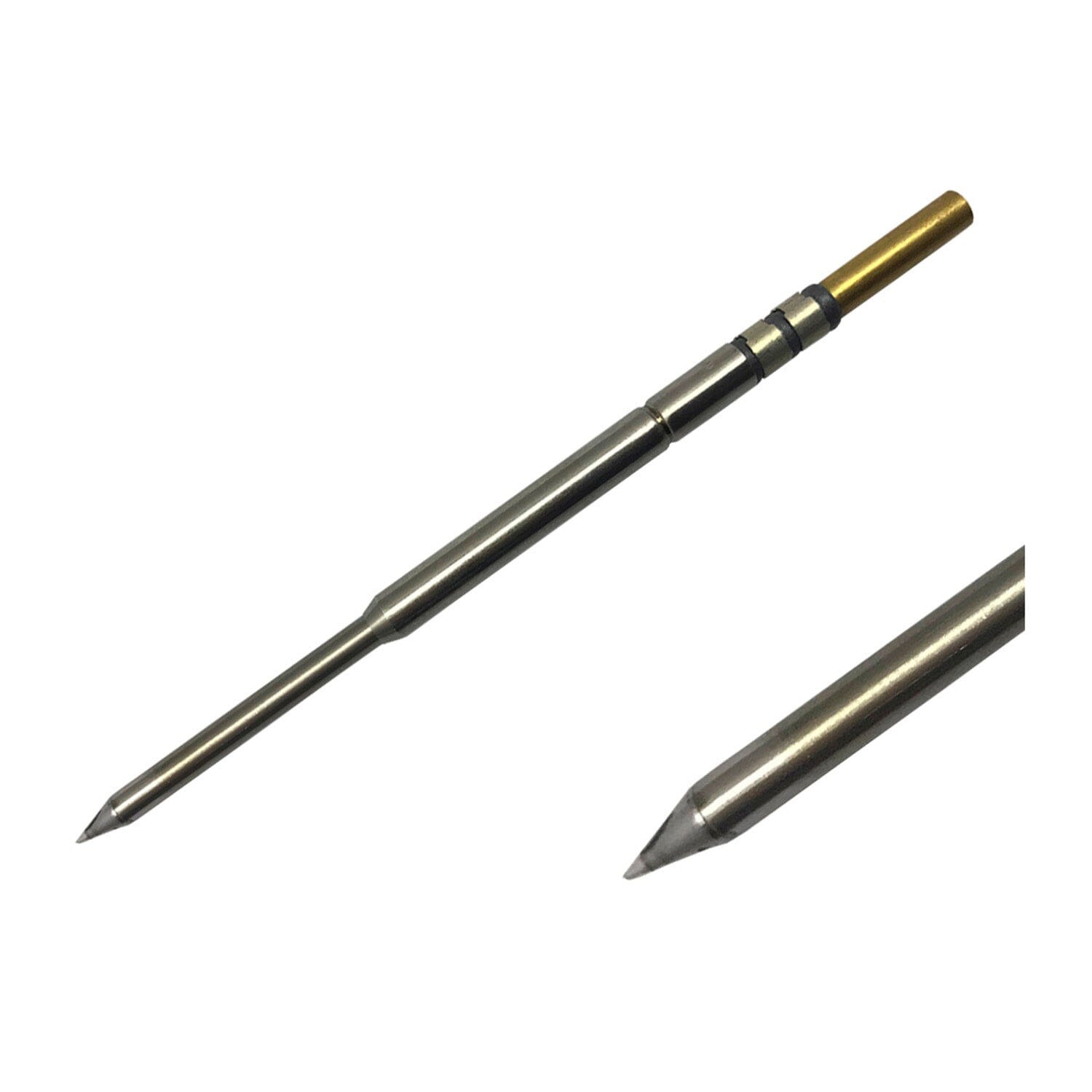

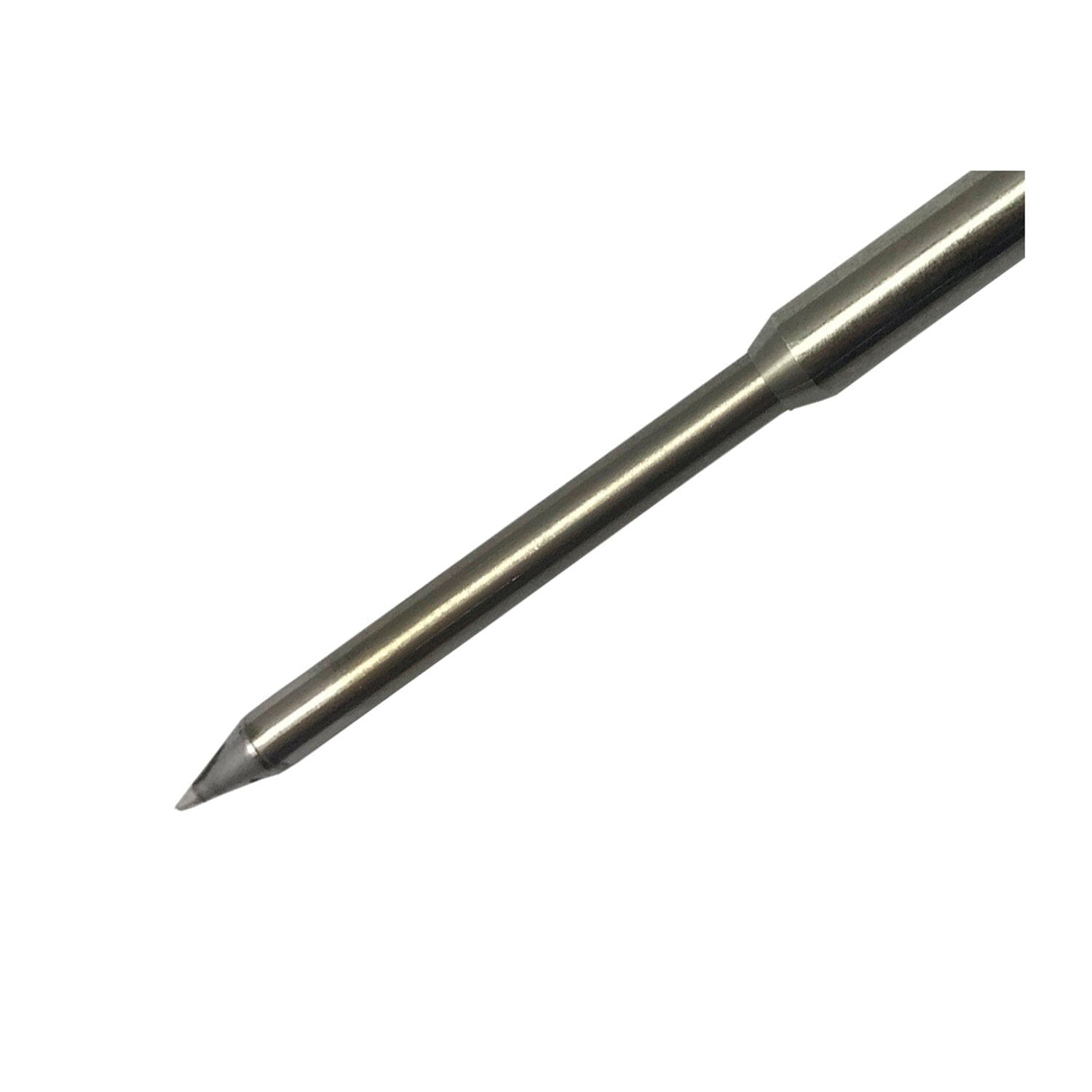

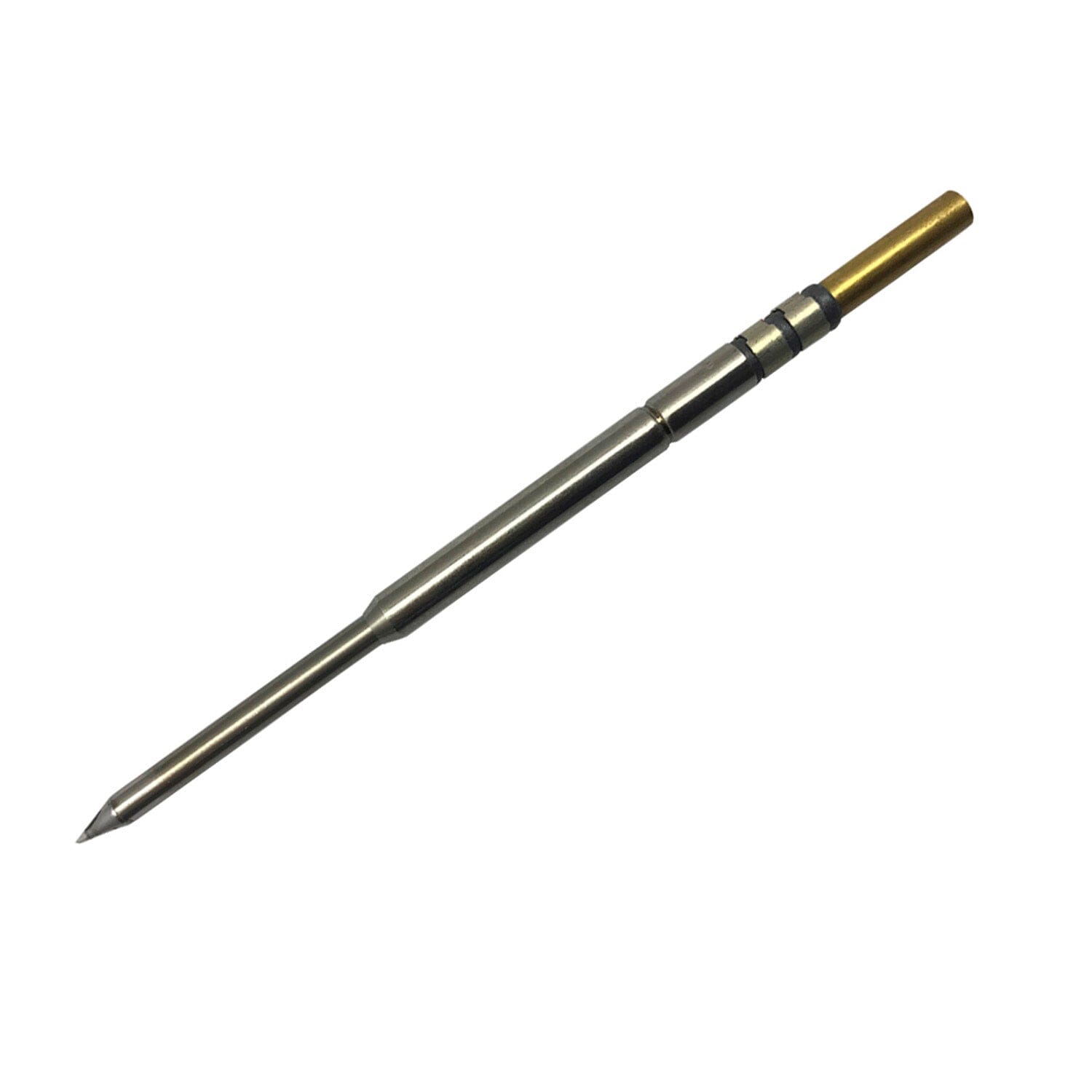

The Metcal UFC-6CH5106S UltraFine Soldering Cartridge for the CV-5200 and CV-500 series soldering systems features a compact 0.6 mm x 5.1 mm chisel tip, engineered for high-precision soldering on fine-pitch and surface mount components. Its slim chisel design offers superior access and thermal control, making it ideal for use in tight spaces and under magnification.

Part of Metcal’s 600 Series, this cartridge operates at a lower tip temperature (~330°C), minimizing the risk of thermal damage to sensitive components. Whether you’re working on SMT rework, fine-pitch PCBs, or temperature-critical applications, the UFC-6CH5106S delivers the accuracy and reliability you need.

Technical Specifications

• Manufacturer: Metcal
• Model Number: UFC-6CH5106S
• Series: UltraFine 600 Series
• Tip Geometry: Chisel

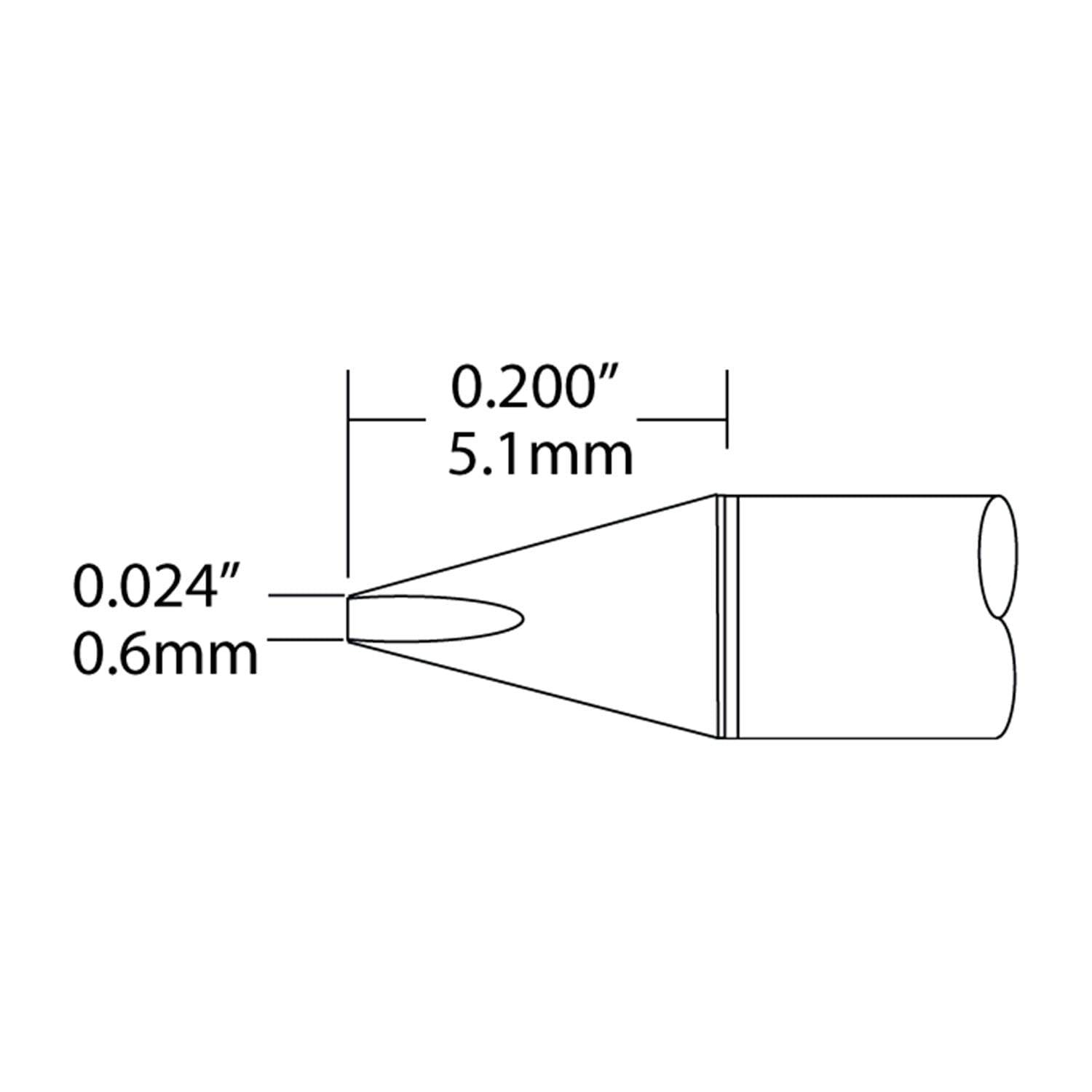

• Tip Dimensions: 0.6 mm wide x 5.1 mm long
• Compatible Systems: Metcal CV-5200 and CV-500 Series Soldering Systems
• Operating Temperature: ~330°C (600 Series)
• Applications: Fine-pitch soldering, SMT rework, microelectronics, heat-sensitive assembly

Key Features

• UltraFine Chisel Tip: Precision geometry for optimal thermal transfer and joint quality.
• Low-Temperature Operation: Protects delicate components from heat-related damage.
• Microscope-Ready Design: Ideal for soldering under magnification or in compact assemblies.
• Tool-Free Cartridge Swap: Quick and easy tip changes for continuous workflow.
• RoHS Compliant: Lead-free and environmentally safe for modern manufacturing environments.

Additional Documentation

• Metcal_CV-MX-Cartridges-Catalogue_EN.pdf
• Metcal-Maximum-Tip-Temperature_ver-2.pdf

Enhance your soldering accuracy and protect sensitive components with the Metcal UFC-6CH5106S — built for precision and reliability in low-temperature soldering environments.
