Metcal

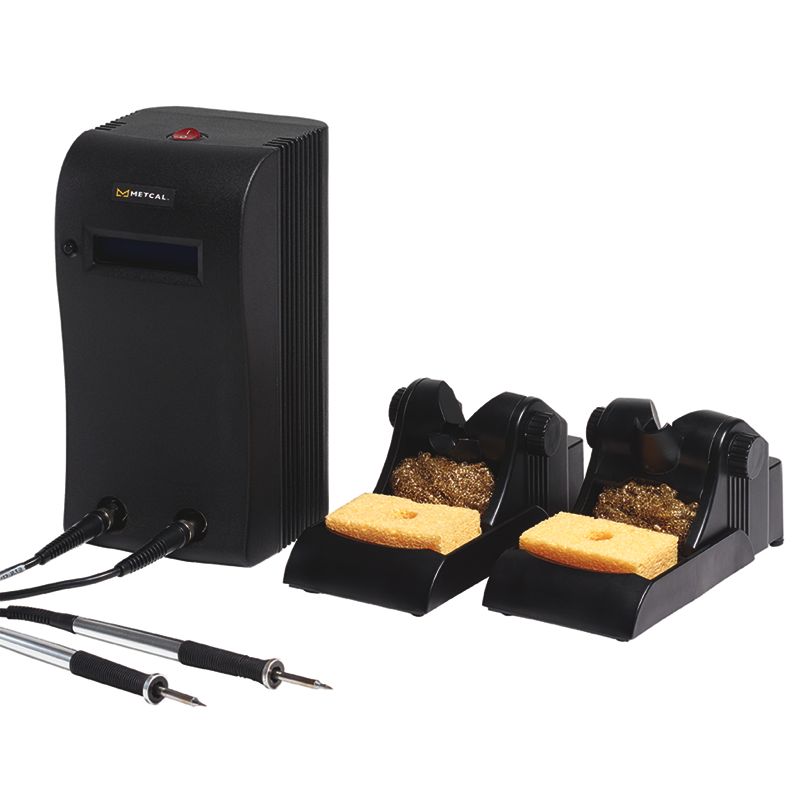

Metcal MX-5211 Dual Simultaneous Soldering/Rework System with Two MX-H1-AV Soldering Hand-Pieces
Metcal MX-5211 Dual Simultaneous Soldering/Rework System with Two MX-H1-AV Soldering Hand-Pieces
SKU:MET-MX-5211
Regular price
$1,235.00
Regular price
Sale price
$1,235.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
New Metcal MX-5211 Dual Port Simultaneous Soldering and Rework System highly effective for soldering applications including: lead-free, high mass components or boards, thermally sensitive components requiring low operating temperature, high volume production soldering and touch-up soldering operations. In addition, the MX-5211 can be used for conduction rework of SMDs when using SMTC Series soldering cartridges simultaneously.
Features and Benefits:
- Can be operated with two hand-pieces dynamically sharing the 80 watts output power based on demand adding even more application flexibility and speed.
- Configured with the Metcal Advanced Soldering and Rework Hand-piece.
- Microprocessor controlled power supply providing more power for challenges such as high mass components, multi-layered boards and lead-free solders.
- Improved ergonomics with lightweight hand-pieces.
- Greater process control with SmartHeat® Technology.
- ESD safe with incoming AC ground monitoring circuitry.
- Built-in power indication meter with digital display and bar graph that dynamically provides the operator with feedback on the status of the soldering operation.
- Metcal TipSaver™ Workstand improves tip life with its “Auto-Sleep” function.
Item Contents:
- MX-PS5200:Power supply, 100 to 240 VAC input, dual switch port with LCD Display
- Two MX-H1-AV:Metcal Advanced™ Hand-piece, Soldering and Rework with two cartridge removal pads.
- Two MX-W1AV:Workstand for Metcal Advanced™ Hand-piece, Soldering and Rework with two sponges and two brass pads.
NOTE: No tip/cartridge included
Specifications:
Ambient Operating Temperature: | 10- 40°C (50°F - 104°F) |
Maximum Enclosure Temperature: | 55°C (131°F) |
Input Line Voltage: | 100- 240 VAC, grounded circuit |
Input Line Frequency: | 50/60 Hz |
Power Consumption: | 125 Watts |
Output Power Maximum: | 80 Watts max. Per channel at 22°C (when operated with two hand-pieces dynamically, the 80 watts output power is is shared based on demand) |
Output Frequency: | 13.56 MHzC |
Power Cord 3-Wire: | 183cm (18/3") SJT |
Dimensions w x d x h: | 12.1cm x 13.0cm x 23.5cm (4.8" x 5.1" x 9.3") |
Certification / Marking: | cTUVus, CE |
Tip-to-Ground Potential: | < 2mV |
Tip-to-Ground Resistance: | < 2 ohms |
Idle Temperature Stability: | ± 1.1°C (2°F) in still air |
Hand-piece Cable Length: | L=178cm (70"), burn resistant, ESD safe |
Hand-piece Connector: | F connector |
Workstand Dimensions w x dx h: | 8.6cm x 19.1cm x 8.3cm (3.4" x 7.5" x 3.3") |
Weight of the power supply: | 7.4 lbs (3.35 kg) |
Weight of the * workstand: | 1.05 lbs (.476 kg) |
