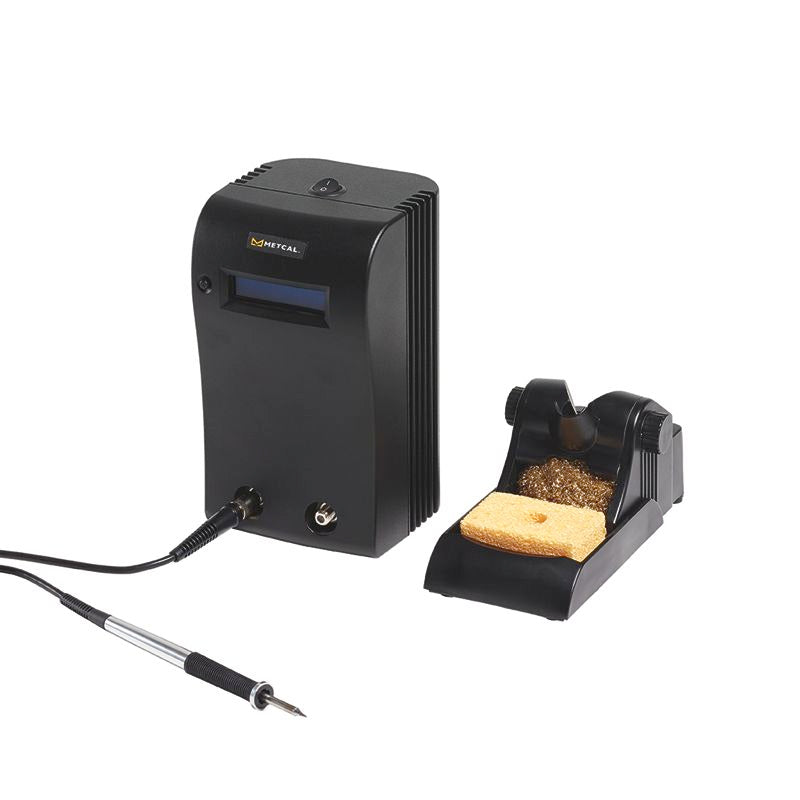

Metcal MX-500AV Dual Switchable Output Soldering/Rework System
Metcal MX-500AV Dual Switchable Output Soldering/Rework System
SKU:MET-MX-500AV
Couldn't load pickup availability
Metcal’s MX-500 Soldering and Rework System has been reimagined, adding features and a new look to a bench top icon.
The system utilizes SmartHeat® Technology, wherein each cartridge is equipped with a self-regulating heater which ‘senses’ its own temperature and closely maintains its pre-set idle temperature for the life of the heater-tip. The tip temperature is determined by the inherent metallurgical properties of the heater; no external adjustment or equipment is required. The MX-500 retains switchable dual port, 40W operation while introducing numerous new features in a new housing.
Features and Benefits:
- Integrated Power Indication Meter: a built-in net power meter which will display a graphical and numerical representation of the power applied to the cartridge.
- User Programmable PowerSave Mode: the time to enter PowerSave Mode is adjustable from 10 to 120 minutes.
- Ground Fault Interrupt: AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system. Only after the power line ground has been restored, can the MX-500 be restarted and soldering operations can be resumed.
- Universal Power Supply: automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance.
- Compatibility with all MX products: the MX-500 redesign allows full compatibility with existing and previous MX upgrade kits, tip-cartridges, hand-pieces and accessories.
- Greater process control with SmartHeat® Technology
- Reduced space requirements
MX-500AV Includes:
- Power supply
- MX-H1-AV: Metcal Advanced™ Hand-piece, Soldering and Rework with one cartridge removal pad
- MX-W1AV: Workstand for Metcal Advanced™ Hand-piece, Soldering and Rework with one sponge and one brass pad
Specifications:
Ambient Operating Temperature:10- 40°C (50°F - 104°F) | |
Maximum Enclosure Temperature: | 55°C (131°F) |
Input Line Voltage: | 100- 240 VAC, grounded circuit |
Input Line Frequency: | 50/60 Hz |
Power Consumption: | 70 Watts |
Output Power Maximum: | 40 Watts Max* |
Output Frequency: | 13.56 MHzC |
Dimensions w x d x h: | 12.1cm x 12.1cm x 22.2cm (4.8" x 4.8" x 8.8") |
Certification / Marking: | cNRTLus, CE |
Tip-to-Ground Potential: | < 2mV |
Tip-to-Ground Resistance: | < 2 ohms |
Idle Temperature Stability: | ± 1.1°C (2°F) in still air |
Hand-piece Cable Length: | L=178cm (70"), burn resistant, ESD safe |
Hand-piece Connector: | F connector |
Workstand Dimensions w x dx h: | 8.6cm x 19.1cm x 8.3cm (3.4" x 7.5" x 3.3") |
Weight of the power supply: | 5.85 lbs (2.655 kg) |
Weight of the * workstand: | 1.05 lbs (.476 kg) |
* RF SmartHeat Technology provides greater power.
