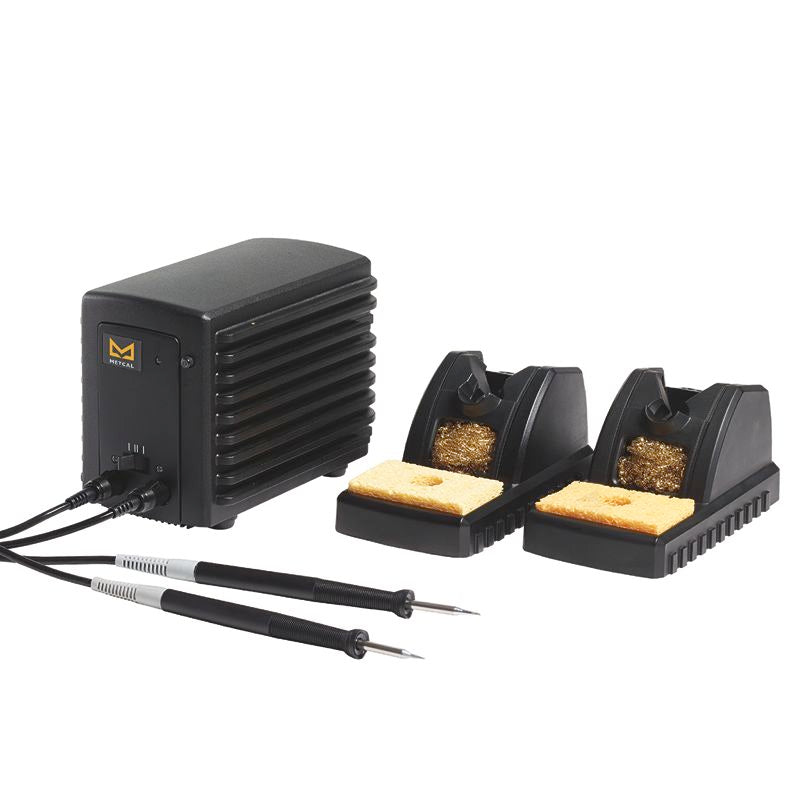

Metcal MFR-2211 Dual Output Soldering/Rework System - 2 Cartridge Handpieces

Metcal MFR-2211 Dual Output Soldering/Rework System - 2 Cartridge Handpieces

MET-MFR-2211

$877.00
$877.00
Sale Sold out
Shipping calculated at checkout.

Like the MFR-1100 Series, the MFR-2200 offers the same choice of multiple hand-pieces but with two ports. Flexibility can be increased by locking both systems together. The MFR-2211 includes 2 - Soldering cartridge handpieces which use small diameter cartridges for easy access and includes a full range of cartridges, including SMD rework.

Features and Benefits:

  • SmartHeat® Technology provides exceptional power for high thermal demand applications.
  • Single or Dual simultaneous outputs allow for single or dual hand-piece use.
  • Four hand-pieces available for increased application solutions for soldering and rework on one system.
  • Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility.
  • Hand-pieces are ergonomic for operator safety and comfort.


MFR-2211 Includes:

  • MFR-H1-SC2: New Style Hand-piece, Soldering Cartridge (2)
  • MFR-PS2200: Power Supply, Dual Simultaneous Output
  • WS1: Auto Sleep Workstand (2)

NOTE: No tip/cartridge included

Tips / Cartridges Series compatible with this system:

SxP Soldering Cartridges
RxP Rework Cartridges

Download Data Sheet

Specifications:

Input Line Voltage / Frequency: 100- 240 VAC , 50/60 Hz grounded circuit
Power Consumption: 130 Watts maximum
Output Power Maximum: 60 Watts max. at 22°C per output (two outputs)
Idle Temperature Stability: ± 1.1°C (2°F)
Ambient Operating Temperature: 10- 40°C (50°F - 104°F)
Maximum Enclosure Temperature: 55°C (131°F)
Power Cord 3-Wire: 183cm (18/3") SJT (S = 600 Volt Service Cord, J = JuniorService - 300 Volt, T = Thermoplastic)
Hand-piece Cable Length: L=122cm (48"), burn resistant, ESD safe
Hand-piece Connector: 8-pin cicular DIN
Tip-to-Ground Potential: < 2mV
Tip-to-Ground Resistance: < 2 ohms
Certification / Marking: cTUVus, CE
Power Supply Dimensions w x d x h: 170mm x 200mm x 152.5mm (7" x 8" x 6")
Workstand Dimensions w x d x h: 100 mm x 200 mm x 100 mm (4" x 8" x 4")
Surface Resistivity 105-109 Ohms
