Regular price $452.00
Metcal MFR-1110 Single Output Soldering/Rework System - Cartridge Handpiece
Shipping calculated at checkout.

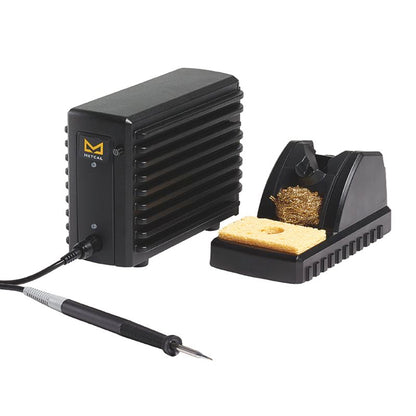

The MFR-1100 Single Output Series is highly versatile in that it can be used with either a soldering tip, cartridge or tweezers and offers a choice of four hand-pieces. The MFR-1110 comes with one cartridge soldering hand-piece. The cartridge hand-piece uses small diameter cartridges for easy access and includes a full range of cartridges, including SMD rework.
Features and Benefits:
- SmartHeat® Technology provides exceptional power for high thermal demand applications.
- Four hand-pieces available for increased application solutions for soldering and rework on one system
- Each hand-piece has a comprehensive range of cartridges or tips for maximum flexibility
- Hand-pieces are ergonomic for operator safety and comfort
- Small Bench Top foot print
- Can be combined and locked with its brother the MFR-2200 dual output series for increased application solutions for soldering and rework.
- MFR-PS1100: MFR Single Output Power Supply
- MFR-H1-SC2: New Style MFR Soldering Cartridge Hand-piece
- WS1: Soldering Workstand compatible with MFR-H1- SC Hand-piece
NOTE: No tip/cartridge included
Tips / Cartridges Series compatible with this system:
SxP Soldering Cartridges
RxP Rework Cartridges
|Ambient Operating Temperature:||10 - 40°C (50°F - 104°F)|
|Maximum Enclosure Temperature:||55°C (131°F)|
|Input Line Voltage:||100 - 240 VAC|
|Input Line Frequency:||50/60 Hz grounded circuit|
|Power Consumption:||65 Watts maximum|
|Output Power:||60 Watts maximum|
|Output Frequency:||450 KHz|
|Power Cord:||(3-wire) 183 cm 18/3 SJT|
|Dimensions (approx.) W x D x H:||90mm (3.5”) x 200mm (8”) x 152.5mm (6”)|
|Weight:||2.3kg (5.05 lbs)|
|Surface Resistivity:||105-109 Ohms|
|Certification / Marking:||cTUVus, CE|
|Hand-piece Cable Length:||L=122cm (48'), burn resistant, ESD safe|
