Metcal HCT-1000 Power Supply (HCT-PS1000)
Metcal HCT-1000 Power Supply (HCT-PS1000)
SKU:MET-HCT-PS1000
Couldn't load pickup availability

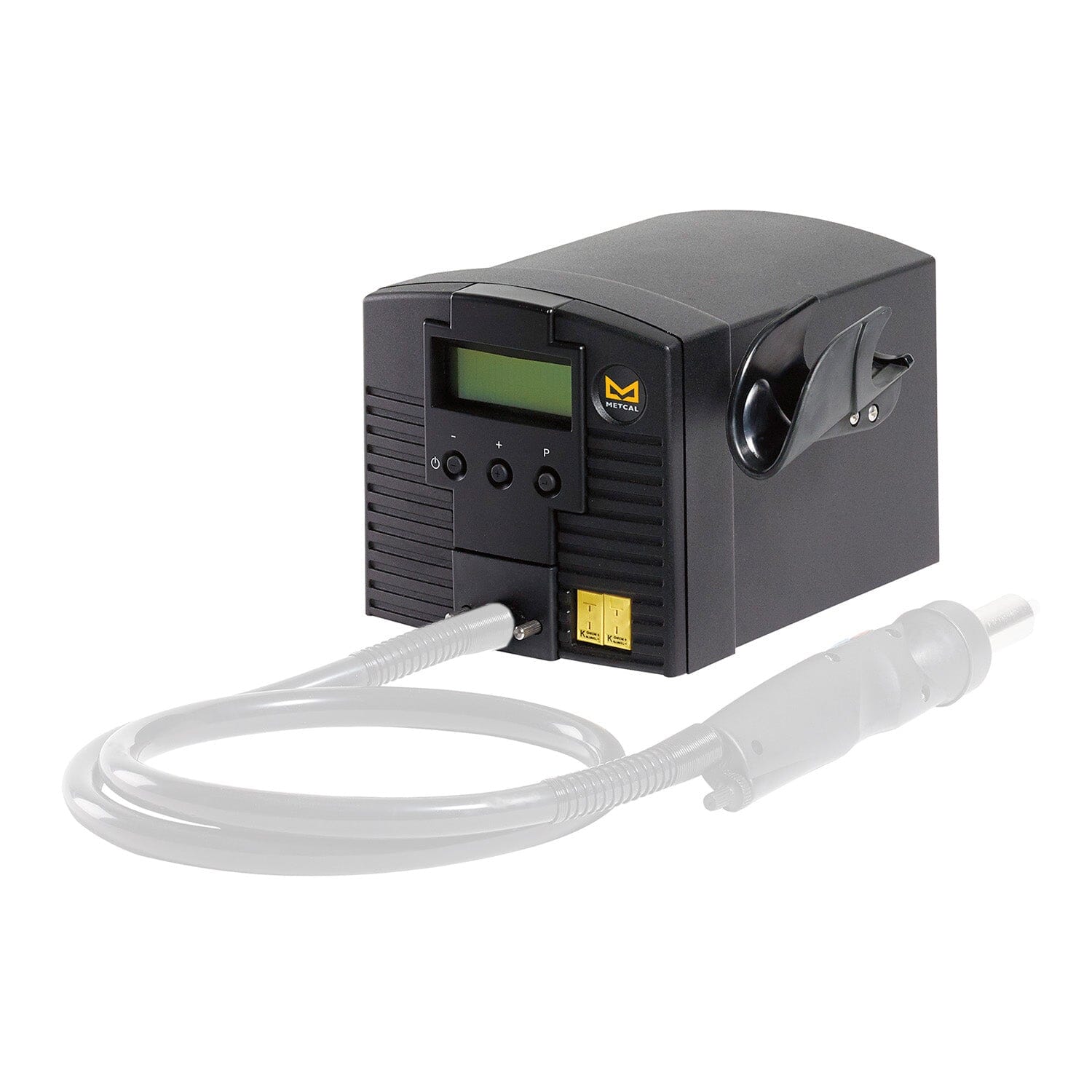

Metcal HCT-PS1000 Power Supply for HCT-1000 System (Base Unit Only)
Short Description
The Metcal HCT-PS1000 is the power supply base unit for the HCT-1000 Programmable Convection Rework System. Designed for precision SMT rework applications, it features digital temperature control, programmable profiles, and integrated vacuum pickup—ideal for high-reliability PCB rework environments.
Key Features
- Programmable hot air rework base station for SMT component placement and removal
- Supports up to 50 user-defined temperature and airflow profiles
- Digital airflow and temperature control up to 450 °C (840 °F)
- Integrated vacuum pickup for safe component handling
- Supports external thermocouple input for process verification
- Multiple operational modes including Setup, Run, Manual, and Active Setup
- Quiet operation with low noise level below 55 dBA
- LCD screen with 20x4 segment display for real-time feedback
Description
The Metcal HCT-PS1000 is the standalone power supply unit for the HCT-1000 programmable convection rework system. Engineered for advanced surface mount rework, it delivers high-performance hot air flow with precise thermal control—empowering technicians to safely remove and place small to medium SMT components.
The system supports the creation and storage of up to 50 solder profiles, enabling repeatability and process control. An integrated vacuum pump allows for seamless component lifting, while digital interface controls ensure operators can fine-tune heat and airflow to exacting standards.
When paired with compatible accessories like the HCT-HV1 Handpiece, HNA-1 Nozzle Adapter, and HN-J0005 Nozzle (sold separately), the HCT-PS1000 becomes a versatile, programmable rework solution. It can also be connected to the MRS-1100A or ATH-1100A systems for 4-zone heating and enhanced performance.
Technical Specifications
| Specification | Detail |
|---|---|
| Input Voltage | 100 - 240 VAC, 50/60 Hz |
| Rated Power | 600 W |
| Temperature Range | Up to 450 °C (840 °F) |
| Heating Method | Convection |
| Airflow | 5 - 25 l/min |
| Noise Level | < 55 dBA at maximum airflow |
| Surface Resistivity | 10⁷ – 10¹¹ Ω |
| Vacuum Pump | 381 mm Hg (15" Hg) |
| Display | LCD (20 x 4 segment) |
| Operational Modes | Setup, Run, Manual, Active Setup |
| Storable Profiles | Up to 50 |
| Dimensions (W x D x H) | 178 x 229 x 152 mm (7" x 9" x 6") |
| Weight | 5.4 kg (12 lb) |
| Certifications | TUV, CE |
| Storage Temperature | 0 – 50 °C (32 – 122 °F) |
| Warranty | 1 Year |
Included with Purchase
- Metcal HCT-PS1000 Power Supply Unit (Base Only)
Optional Accessories (Sold Separately)
- HCT-HV1 Handpiece
- HN-J0005 Nozzle
- HNA-1 Nozzle Adapter
Downloadable Resources
Why Buy the Metcal HCT-PS1000?
The HCT-PS1000 provides precision, flexibility, and control—everything a production technician or repair engineer needs for repeatable and safe SMT rework. As the core of the HCT-1000 system, this power supply ensures consistent thermal performance, programmable process control, and long-term reliability.
Upgrade your rework capabilities today with the trusted performance of the Metcal HCT-PS1000.
