Metcal GT90 Soldering System, 90 Watt

Metcal GT90 Soldering System, 90 Watt

MET-GT90-HP-T4

$275.00
$275.00
Sale Sold out
Shipping calculated at checkout.

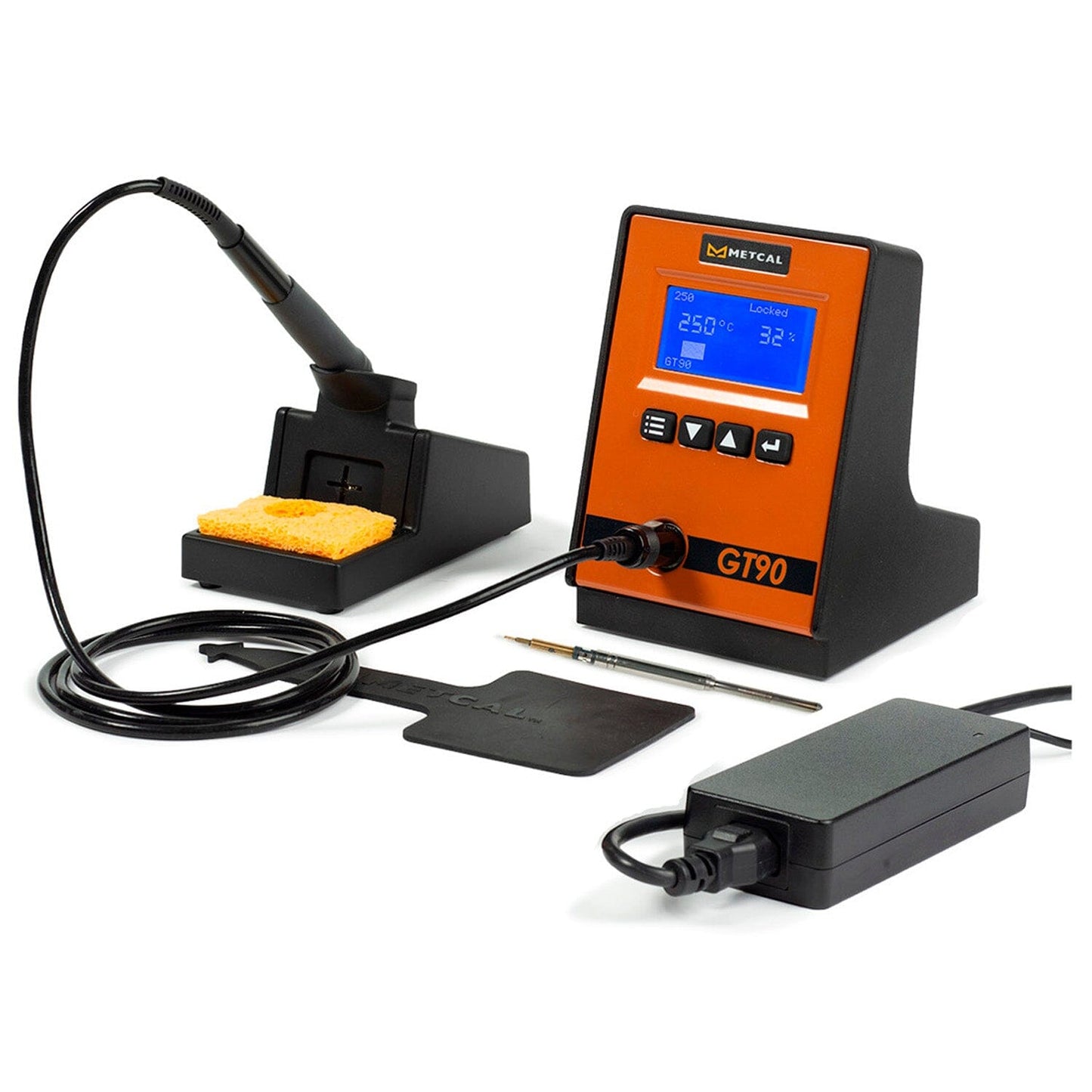

The Metcal GT90 Soldering System is an adjustable temperature station that uses inductive technology as the heating mechanism. The complete system includes a soldering station with an external power supply, a handpiece, and a work stand to support a variety of soldering and rework applications using the associated tips and cartridges.

The GT adjustable temperature technology has a fast and repeatable heating mechanism and encompasses the convenience of temperature adjustment with the stability and performance of inductive heating. This gives the GT systems a significant performance advantage with much faster time to temperature, thermal recovery, and temperature stability during soldering versus competitors in the same product category.

GT90 is a single port soldering station with best-in-class performance, 90 watts of power, and is ideal for single iron applications on the production line. The GT90 is supplied with a replaceable 90W external power supply allowing for a more compact design to save space on the bench and improve the quality and life of the system.

Features:

  • Inductive heating systems offering best in class performance
  • Adjustable temperature
  • Intuitive 4 button user-interface
  • Wide variety of cartridge and tip options
  • Compact to minimize the workbench footprint
  • Programmable password lock-out and temperature range limits
  • Standby and sleep settings to increase tip life
  • USB port to power accessories and enable firmware updates

Technical Data Sheet



Specifications:

Input Line Voltage: 100 – 240 VAC, grounded circuit
Input Frequency: 50/60 Hz
Power Output: 90 W max.
Output Line Frequency: 465 kHz
Heating Method: Inductive Heating
Display: 2.8” Monochrome LCD Display
Controls: 4 tactile buttons
Operation: Single Port
Tip-to-Ground Potential: < 2 mV
Tip-to-Ground Resistance: < 2 Ohm
Ground Detection: Permanent
Surface Resistivity: 105 Ω - 109 Ω, ESD-safe
Idle Temperature Stability: ± 1.1 °C in still air
Tip Temperature Accuracy: Meets or Exceeds IPC J-STD-001
Communications: 1 x USB-A connector
Warranty: 1 year
Dimensions (w x d x h): 110 x 125 x 160 mm (4.3” x 4.9” x 6.1”)
Weight: 1.68 kg (3.7 lb.)
Certification: CE, TUV
Power-Connector: Mini-DIN
Ambient Operating Temperature: 10 to 40 °C
Maximum Enclosure Temperature: 55 °C
