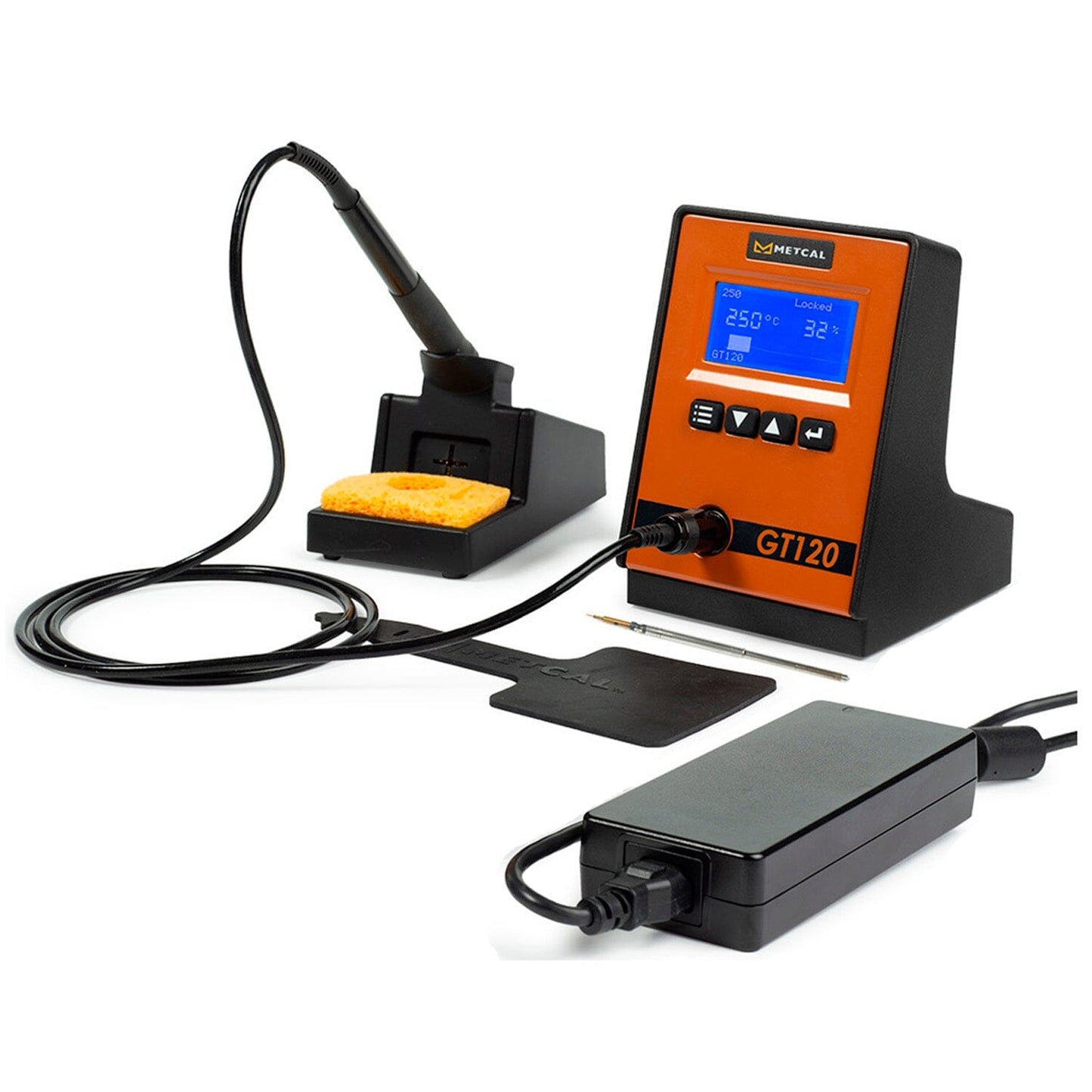

Metcal GT120 Soldering System, 120 Watt

Metcal GT120 Soldering System, 120 Watt

SKU:MET-GT120-HP-T6

Regular price $545.00
Regular price Sale price $545.00
Sale Sold out
Shipping calculated at checkout.

The Metcal GT120 Soldering System is an adjustable temperature station that uses inductive technology as the heating mechanism. The complete system includes a soldering station with an external power supply, a handpiece, and a work stand to support a variety of soldering and rework applications using the associated tips and cartridges.

The GT adjustable temperature technology has a fast and repeatable heating mechanism and encompasses the convenience of temperature adjustment with the stability and performance of inductive heating. This gives the GT systems a significant performance advantage with much faster time to temperature, thermal recovery, and temperature stability during soldering versus competitors in the same product category.

GT120 is a single port soldering station with best-in-class performance, 120 watts of power, and is ideal for single-iron applications on the production line. The GT120 is supplied with a replaceable 120W external power supply, allowing for a more compact design to save space on the bench and improve the quality and life of the system.

Features:

  • Inductive heating systems offering best-in-class performance
  • Adjustable temperature
  • Intuitive 4 button user-interface
  • Wide variety of cartridge and tip options
  • Compact to minimize the workbench footprint
  • Programmable password lock-out and temperature range limits
  • Standby and sleep settings to increase tip life
  • USB port to power accessories and enable firmware updates

Technical Data Sheet



Specifications:

Input Line Voltage 100 – 240 VAC, grounded circuit
Input Frequency 50/60 Hz
Power Output: 120 W max.
Output Line Frequency: 465 kHz
Heating Method Inductive Heating
Display 2.8” Monochrome LCD Display
Controls 4 tactile buttons
Operation Single Port
Tip-to-Ground Potential < 2 mV
Tip-to-Ground Resistance < 2 Ohm
Ground Detection Permanent
Surface Resistivity 105 Ω - 109 Ω, ESD-safe
Idle Temperature Stability ± 1.1 °C in still air
Tip Temperature Accuracy Meets or Exceeds IPC J-STD-001
Communications 1 x USB A connector
Warranty 2 years
Dimensions (w x d x h): 110 x 125 x 160 mm (4.3” x 4.9” x 6.1”)
Weight: 1.68 kg (3.7 lb.)
Certification: CE, TUV
Power-Connector Mini-DIN
Ambient Operating Temperature 10 to 40 °C
Maximum Enclosure Temperature 55 °C
Handpiece GT-HP-T6C Handpiece
Handpiece Connector: 8-pin circular DIN
Handpiece: 1.5 m length, burn proof, ESD-safe
