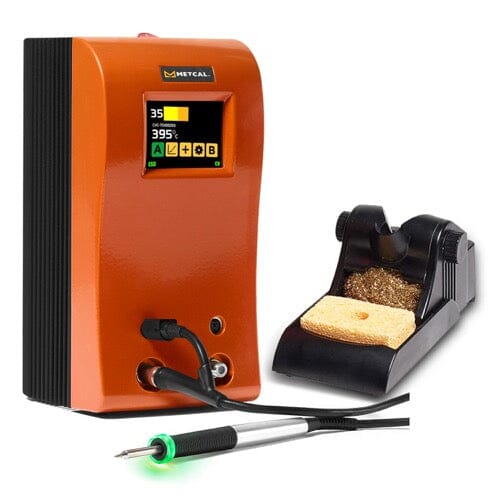

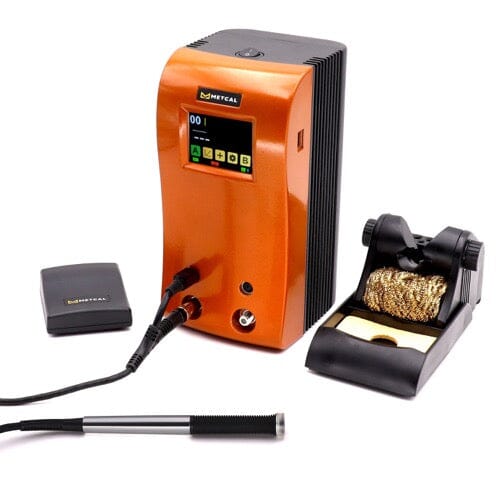

Metcal CV-5210 Connection Validation Soldering System with the CV-IOT Gateway Module

Metcal's 20% Off 20th Anniversary Promotion of the MX-5200 / Get 20% Off the CV-5210 System by entering Promo Code 20420 at checkout

Metcal soldering stations have led the way with SmartHeat® technology for 35 years. SmartHeat senses the thermal load and instantly delivers Power on Demand directly to the joint.

The embedded, self-regulating heater delivers the right amount of power based on the requirements of the solder joint. This provides a fast, safe and repeatable process with no calibration required. The intermetallic compound thickness is critical in the formation of a solder joint. Connection Validation (CV) evaluates the quality of the solder joint by calculating the intermetallic compound formation and provides closed loop feedback to the operator. CV provides feedback to the operator via the LED light ring integrated in the hand-piece. It takes the risk associated with the variables involved in the soldering activity and removes the success and failure determination of a good solder joint out of the hands of the operator. CV complements the skill of the operator to judge the quality of a solder joint by introducing an objective method of evaluating solder joint quality. This systemic and objective approach provides repeatability and a measureable standard to the soldering process.

The Metcal CV-IOT Gateway Module with a Metcal Connection Validation™ system enables you to capture real-time productivity data and track soldering events as they happen. Easy access to captured data for real-time process control and traceability of the soldering process.

Features and Benefits

CV-5210 Soldering System

• SmartHeat® Power-on-Demand Technology
• Patented Connection Validation® IMC Formation Technology
• 2.8” color touch screen with bold graphics
• Communications Port for process traceability data and firmware updates
• Precise tip temperature display
• Integrated NetPower Meter and power graph
• Patented Chip-in-Cartridge technology
• Closed-loop bi-directional communication

CV-IOT Module

• Capture all your soldering data
• Offers access to dynamic or static reports that can be generated locally or anywhere in the world
• Plug directly into your network
• Intuitive Dashboard enables you to view solder events, tip life, production floor updates which highlights how many stations are on/off, ground fault events, and total solder joints by station
• Data generated in real-time
• Easily view productivity and system status at-a-glance
• Refine data views through filters and user configurations
• Ability to download your detailed data to a CSV file to evaluate and create queries
• Easily add a barcode scanner (not included) to scan PCB boards or other items

DOWNLOAD: Technical Data Sheet

NOTE: No tip/cartridge included
