Vision Engineering

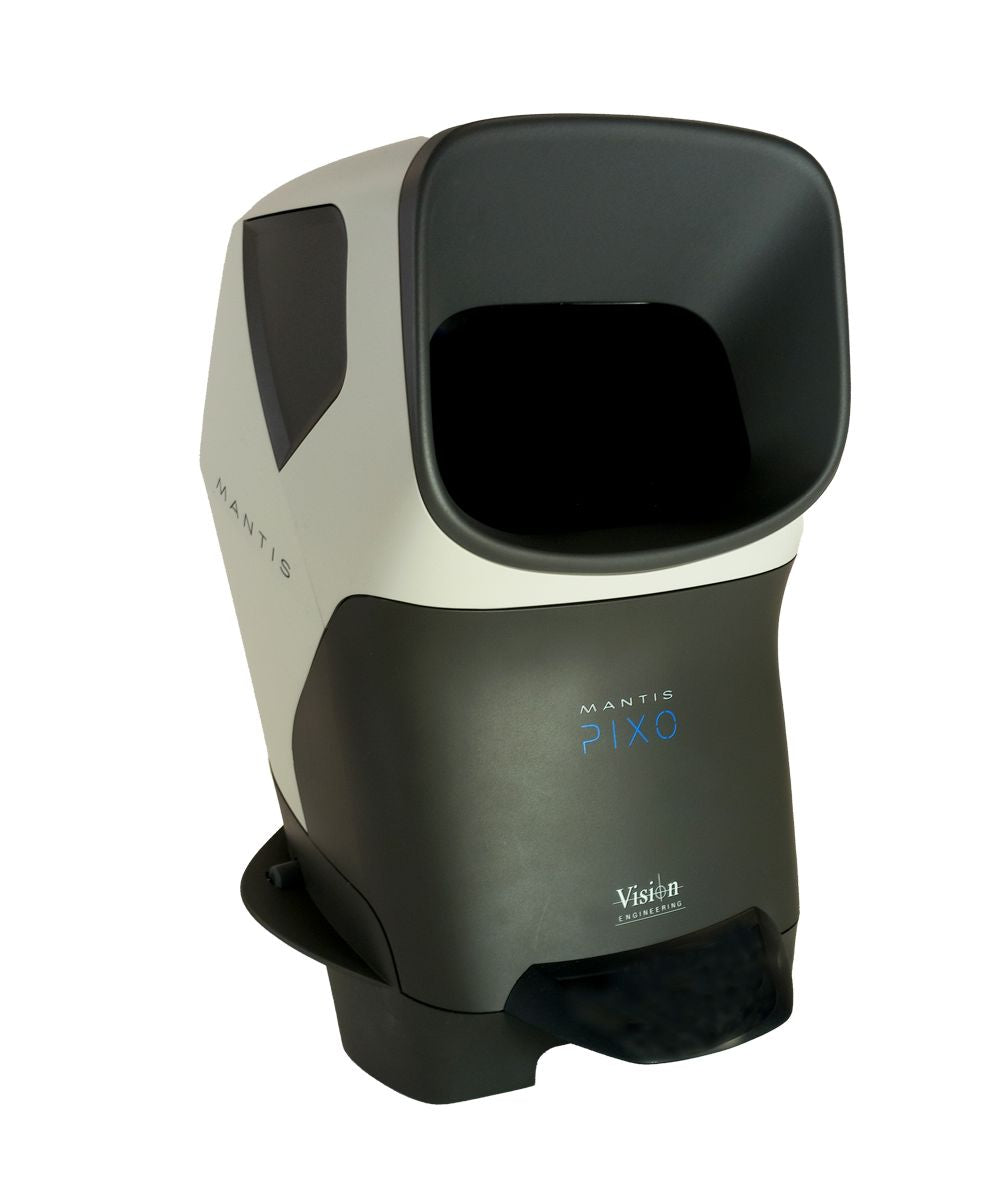

Mantis PIXO Optical Stereo Microscope with HD Camera

Mantis PIXO Optical Stereo Microscope with HD Camera

MPH001-MTB200

$5,935.00
$5,935.00
Sale Sold out
Shipping calculated at checkout.
Choose Head Type
Choose a Stand

Vision Engineering Mantis Pixo Eyepiece-less optical stereo microscope with integrated digital camera and dynamic view optics.

Key Features:

  • High quality optical stereo image
  • Ergonomic working position
  • Integrated high-definition camera
  • Video and image capture
  • On screen annotation
  • Custom overlays
  • Magnification 3x – 15x
  • 3 lens multi-view turret
  • Dynamic 3D lighting
  • White/UV lighting option

The Mantis PIXO / ERGO / IOTA (3rd Generation) is the latest addition to its best-selling and award winning Mantis (Classic) range of ergonomic stereo microscopes. It incorporates the latest developments in optics, digital cameras and fully adjustable LED lighting.

Optical:

 Objective Lens Working Distance
 Max. Field of View Pupil Diameter
3x 100 mm 44.1 mm 23.5 mm
4x 100 mm 35.7 mm 23.6 mm
6x 68 mm 24.2 mm 22.4 mm
8x 60 mm 18 mm 19.4 mm
10x 54 mm 14.2 mm 17.0 mm
15x 40 mm 9.1 mm 12.3 mm

Camera:

Camera Resolution 5.04 Mp
Best Capture Resolution 2595 x 1944 pixels
Frame Refresh Rate Max 48 frames per second
Sensor Type Rear-Illuminated CMOS
Colour Depth 12-bit
Interface USB 3.0
Output Connection USB c to PC
File Capture Formats PNG - 19MB, BMP - 19MB, JPG - 400KB


Stand Options:

Stabila Stand

Counter sprung for ease of use, Stabila’s compact, stable design features long range of focus travel and an optional illuminated base. Dimensions:

  • Focus travel – 150 mm
  • Throat depth – 218 mm
  • Max. subject height – 146 mm

Pilot stage for Stabila stand

100mm x 100mm travel stage with autolock to prevent unwanted movement.

Verso stand

Versatile lift and lower Verso stand enables any Mantis to be swung in and out of position when needed. Dimensions:

  • Focus travel – 230 mm
  • Throat depth – 380 – 505 mm
  • Max. subject height – 166 mm

Verso stand extension

Adds extra stand reach with pivot point, rotation 270°. Dimensions:

  • Throat depth – 630 – 755 mm
  • Max. subject height – +10 mm

Software Options:

ViCapture Image and video capture (supplied).
DimensionOne Image capture, annotation, on-screen measurement.
DimensionTwo Image capture, annotation, on-screen measurement, camera control.
Vifox Image capture, analysis, enhancement, annotation, on-screen measurement, camera control, reporting.
ViPlus Image capture, annotation, on-screen measurement, camera control, reporting.

Product Brochure

Datasheet
