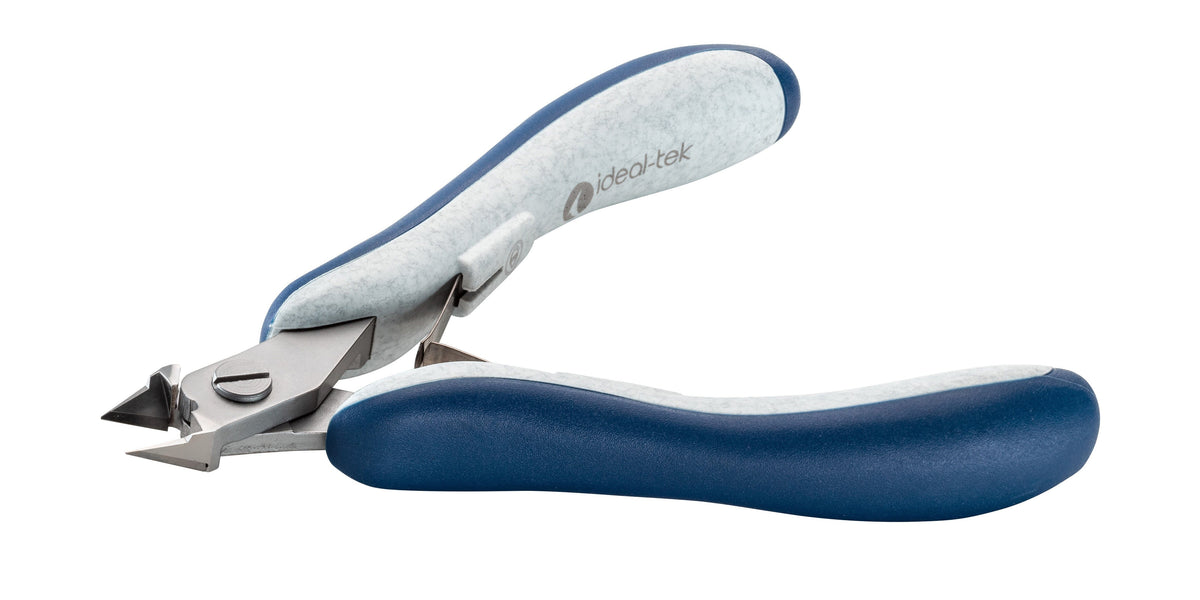

Ideal-tek High Precision TX Hard Wire Cutter – Small Taper-Relief – Full Flush – 120mm (4.7″) – ESD – Made in Italy

Ideal-tek High Precision TX Cutter – Small Taper-Relief – Full Flush – 120mm (4.7″) – ESD – Made in Italy

Clean, Accurate Cutting in Confined Work Areas

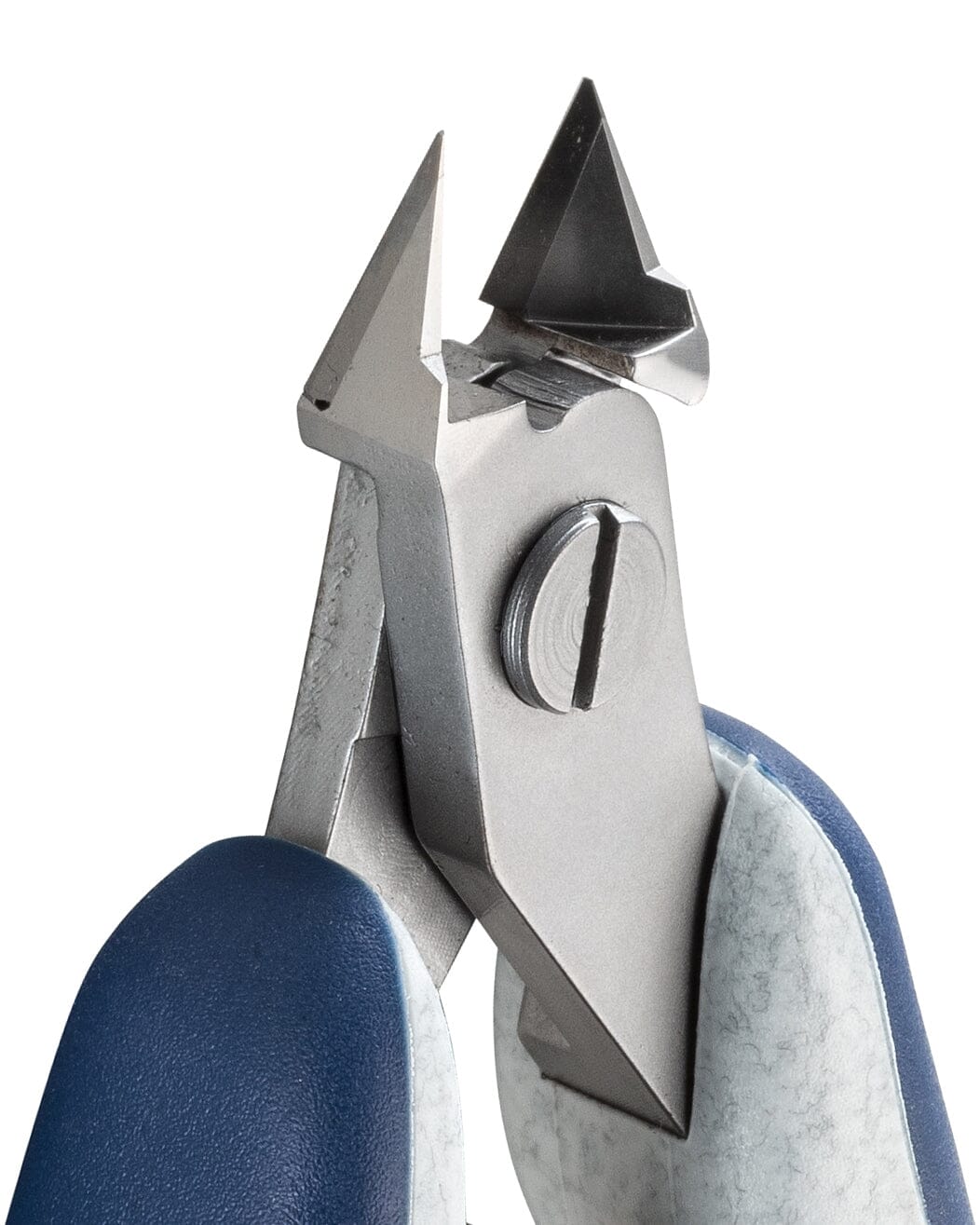

Ideal-tek Tungsten Carbide Cutters (ES542TX.CR.BGO.ITU) are Made in Italy and manufactured from Chrome Steel. The 542TX is a high precision cutter belonging to the small Tungsten Carbide cutters family. The tapered and relieved geometry combined with the head dimensions offer the best advantage to access small areas and to support tip cuts. The full-flush cutting edge is suitable to perform very clean cuts on the hardest wires. The 542TX is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The Tungsten Carbide insert blades are 82HRC hardness.

Key Features

• Tungsten carbide cutting edges designed for hard materials
• Anti-shock system protects the carbide inserts during cutting operations
• Suitable for precision cutting of stents, catheters and guide wires
• Designed for repetitive cutting with extended cutting edge lifetime
• Maintains cutting accuracy in demanding medical device and precision manufacturing applications

Specifications

• Material: Chrome Steel
• Full body coating/finishing/treatment: Sandblasted
• Tip Material: Tungsten Carbide
• Grip handle: Ergo-tek Slim - Thermoplastic Elastomer and Polypropylene
• ESD Safe: Yes
• Head Size/Type: Small
• Head Shape: Tapered & Relieved
• Cutting Edges: Full-Flush

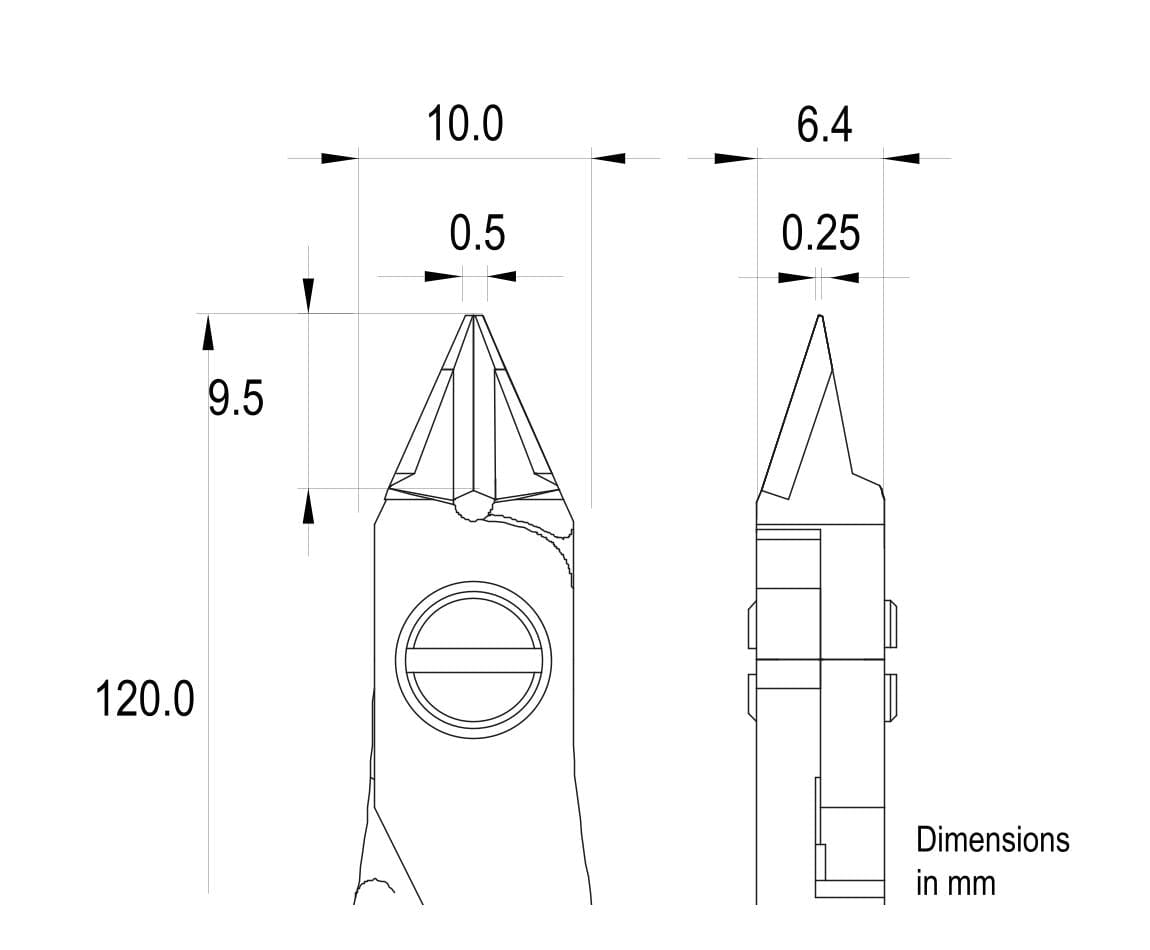

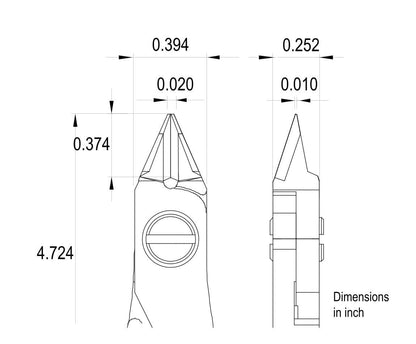

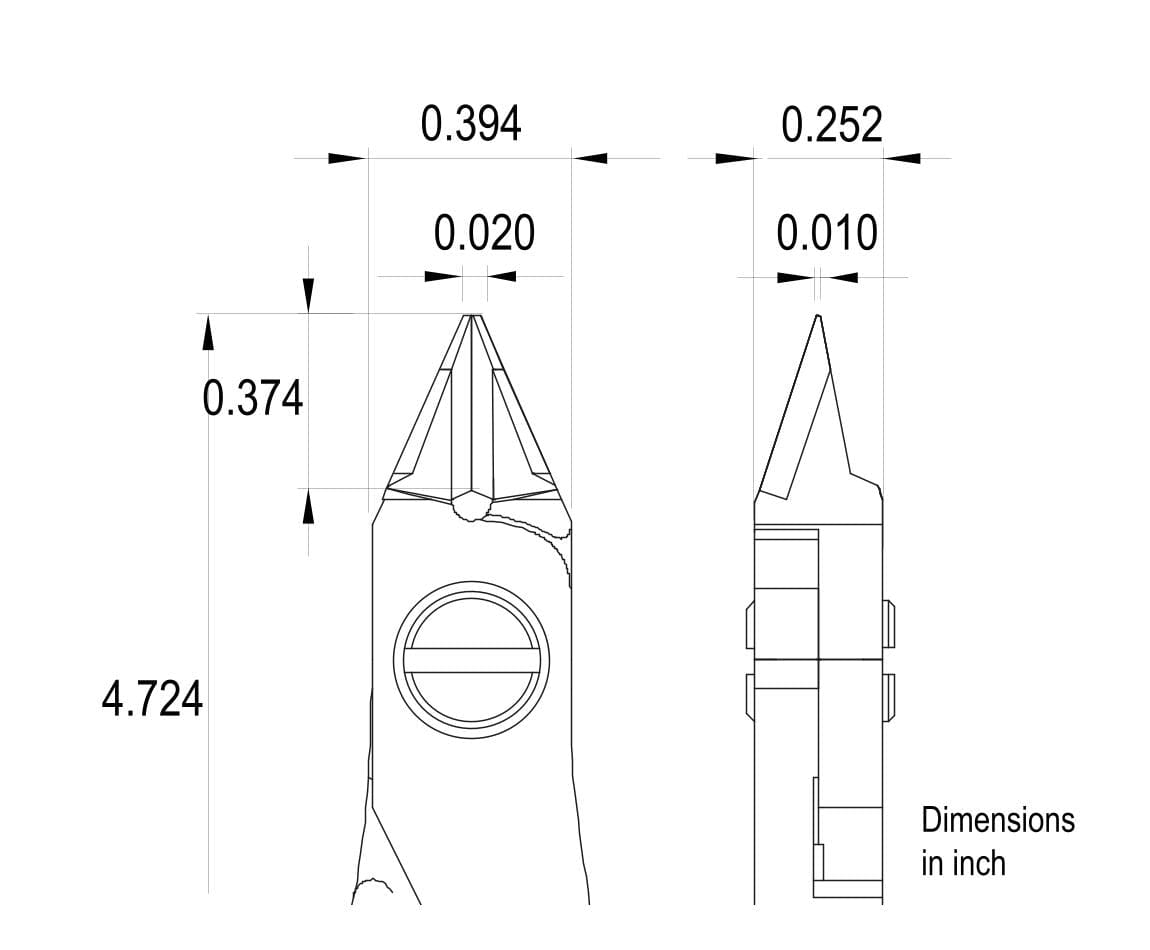

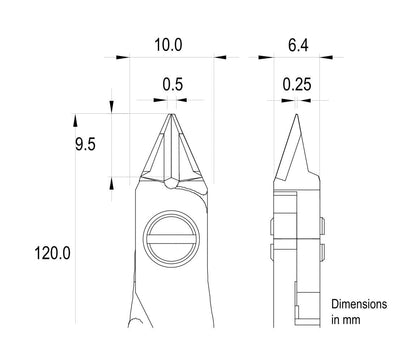

• Head length (B): 0.374 in
• Head width (C): 0.394 in
• Head thickness (D): 0.252 in
• Tip width (E): 0.02 in
• Tip thickness (F): 0.01 in
• Cutting capacity hard: 0.03-0.3 mm (48-29 AWG)
• Overall Length: 120mm (4.7″)
• Country of Origin: Italy
• Manufacturer Warranty: 1 Year
• Part Number (MPN): ES542TX.CR.BGO.ITU
• EAN: 7640144719074

Applications

These Ideal-tek precision cutters are built for electronics assembly and precision manufacturing, delivering clean cuts on wire and leads with access to tight, confined areas.
