Ideal-tek High Precision TX Hard Wire Cutter – Large Tapered Head – Flush – 118mm (4.6″) – ESD – Made in Italy

Ideal-tek High Precision TX Cutter – Large Tapered Head – Flush – 118mm (4.6″) – ESD – Made in Italy

Clean, Accurate Cutting in Confined Work Areas

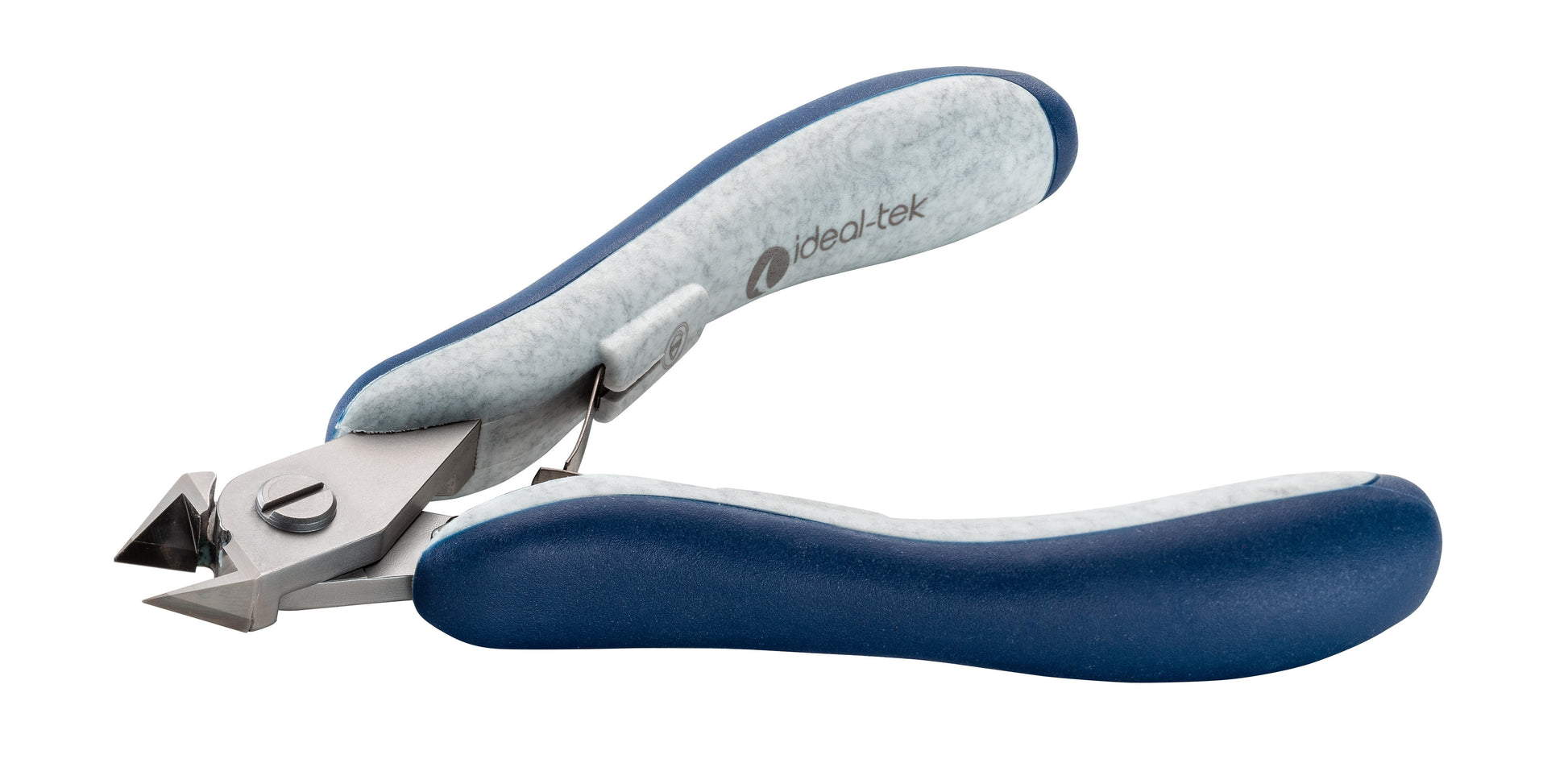

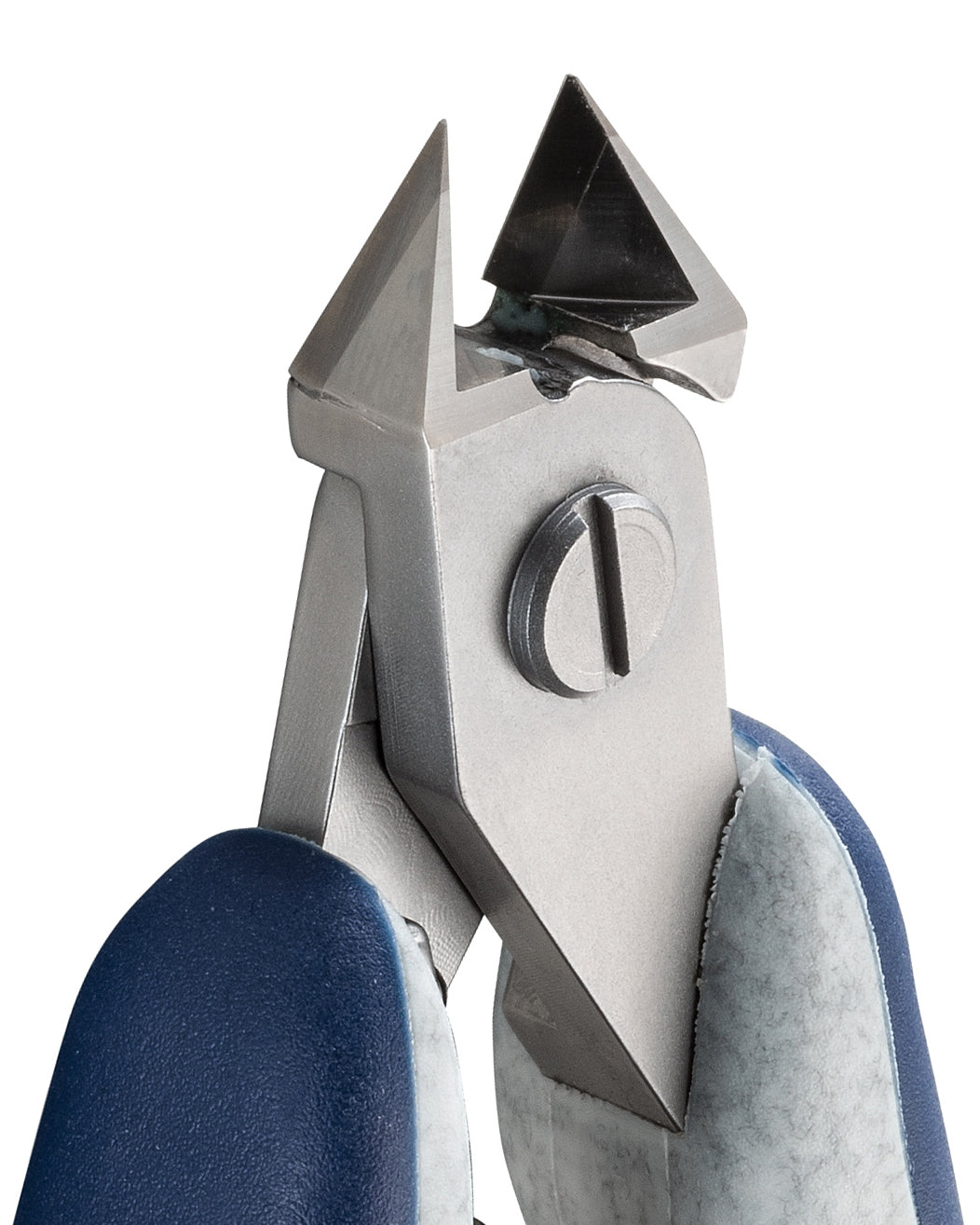

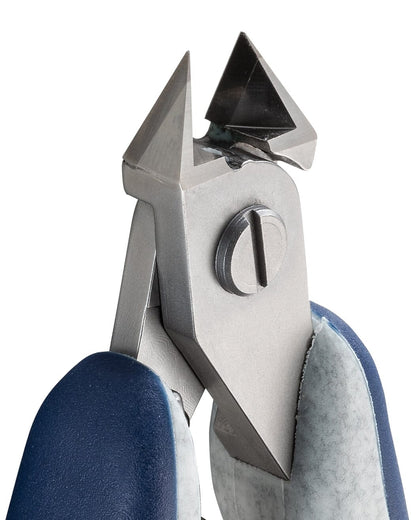

Ideal-tek Tungsten Carbide Cutters (ES351TX.CR.BGO.ITU) are Made in Italy and manufactured from Chrome Steel. The 351TX is a high precision cutter belonging to the large Tungsten Carbide cutters family. The tapered geometry facilitates the tips access to the working area, while the 351TX head dimensions support the cut. The short blade length transmits the operator's full cutting force. The flush cutting edge is suitable to perform clean cuts on the hardest wires. The 351TX is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The Tungsten Carbide insert blades are 82HRC hardness.

Key Features

• Tungsten carbide cutting edges designed for hard materials
• Anti-shock system protects the carbide inserts during cutting operations
• Suitable for precision cutting of stents, catheters and guide wires
• Designed for repetitive cutting with extended cutting edge lifetime
• Maintains cutting accuracy in demanding medical device and precision manufacturing applications

Specifications

• Material: Chrome Steel
• Full body coating/finishing/treatment: Sandblasted
• Tip Material: Tungsten Carbide
• Grip handle: Ergo-tek Slim - Thermoplastic Elastomer and Polypropylene
• ESD Safe: Yes
• Head Size/Type: Large
• Head Shape: Tapered
• Cutting Edges: Flush

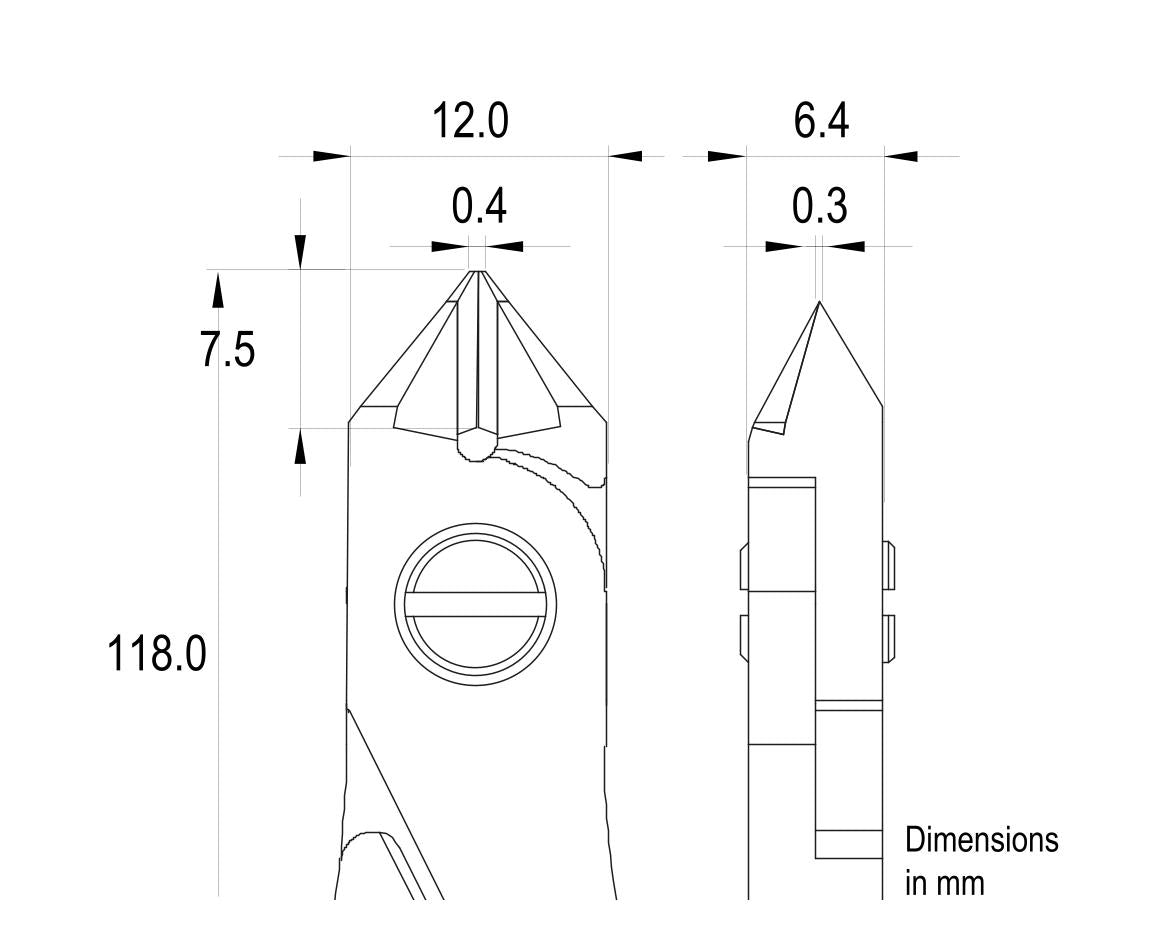

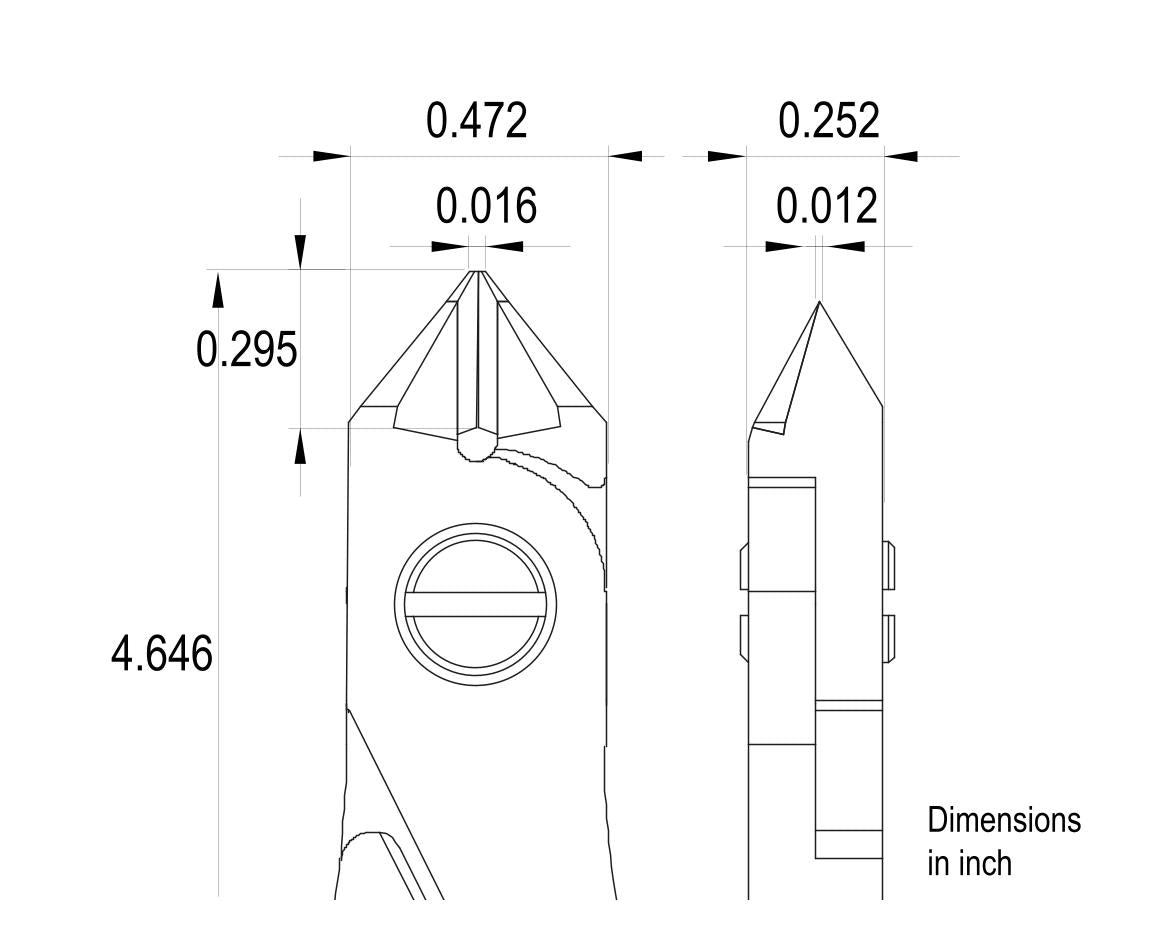

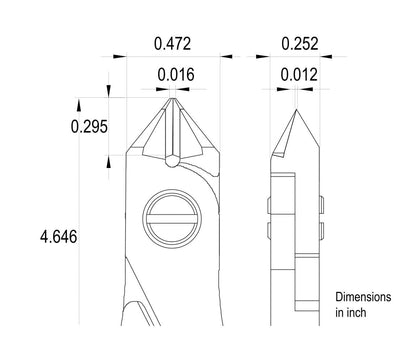

• Head length (B): 0.295 in
• Head width (C): 0.472 in
• Head thickness (D): 0.252 in
• Tip width (E): 0.016 in
• Tip thickness (F): 0.012 in
• Cutting capacity hard: 0.025-0.6 mm (50-23 AWG)
• Overall Length: 118mm (4.6″)
• Country of Origin: Italy
• Manufacturer Warranty: 1 Year
• Part Number (MPN): ES351TX.CR.BGO.ITU
• EAN: 7640144719067

Applications

These Ideal-tek precision cutters are built for electronics assembly and precision manufacturing, delivering clean cuts on wire and leads with access to tight, confined areas.
