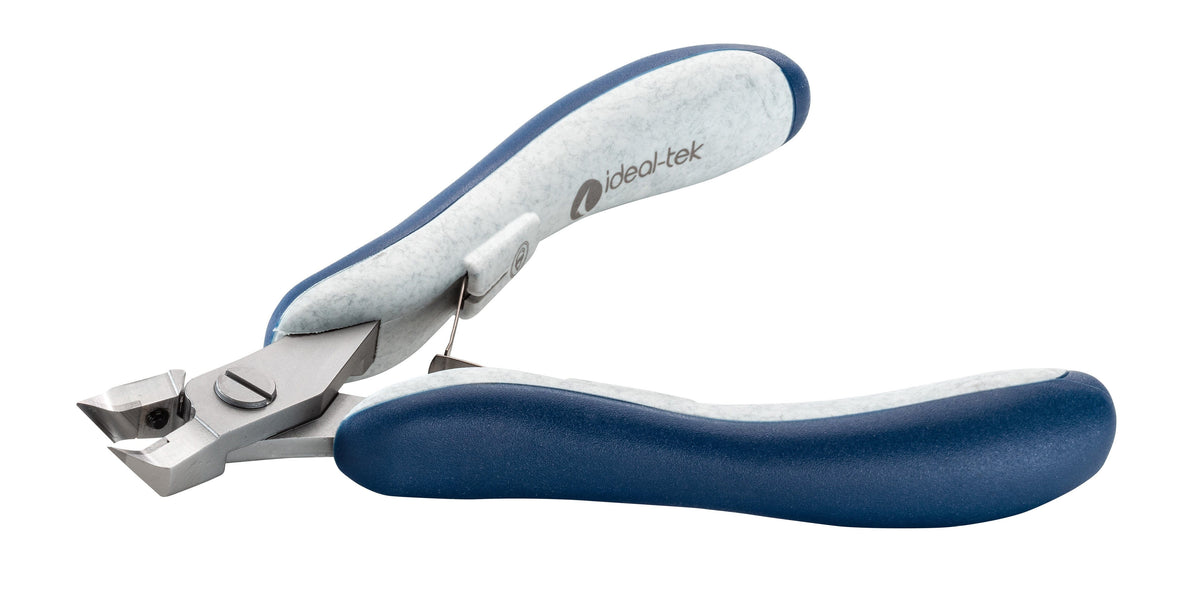

Ideal-tek High Precision TX Hard Wire Cutter – Small Tapered Angled – Full Flush – 123mm (4.8″) – ESD – Made in Italy

Ideal-tek High Precision TX Cutter – Small Tapered Angled – Full Flush – 123mm (4.8″) – ESD – Made in Italy

Clean, Accurate Cutting in Confined Work Areas

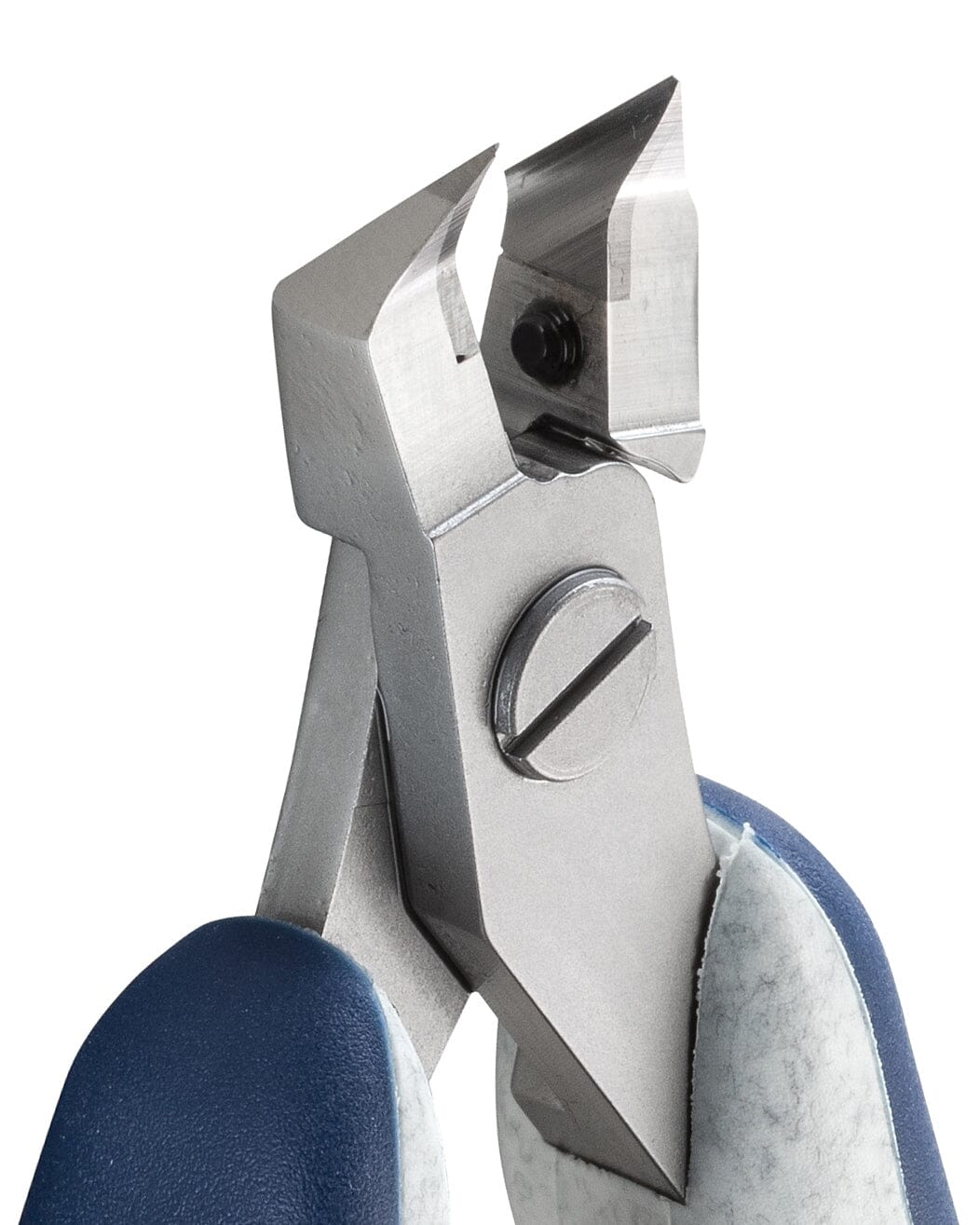

Ideal-tek Tungsten Carbide Cutters (ES248TX.CR.BGO.ITU) are Made in Italy and manufactured from Chrome Steel. The 248ATX is a high precision cutter belonging to the small Tungsten Carbide cutters family. The angled tapered geometry provides excellent ergonomics combined with good resistance, while the 248ATX tips dimensions offer the best advantage to access small areas. The short blade length transmits the operator's full cutting force. The flush cutting edge is suitable to perform clean cuts on the hardest wires. The 248ATX is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The Tungsten Carbide insert blades are 82HRC hardness.

Key Features

• Tungsten carbide cutting edges designed for hard materials
• Anti-shock system protects the carbide inserts during cutting operations
• Suitable for precision cutting of stents, catheters and guide wires
• Designed for repetitive cutting with extended cutting edge lifetime
• Maintains cutting accuracy in demanding medical device and precision manufacturing applications

Specifications

• Material: Chrome Steel
• Full body coating/finishing/treatment: Sandblasted
• Tip Material: Tungsten Carbide
• Grip handle: Ergo-tek Slim - Thermoplastic Elastomer and Polypropylene
• ESD Safe: Yes
• Head Size/Type: Small
• Head Shape: Tapered
• Cutting Edges: Full-Flush

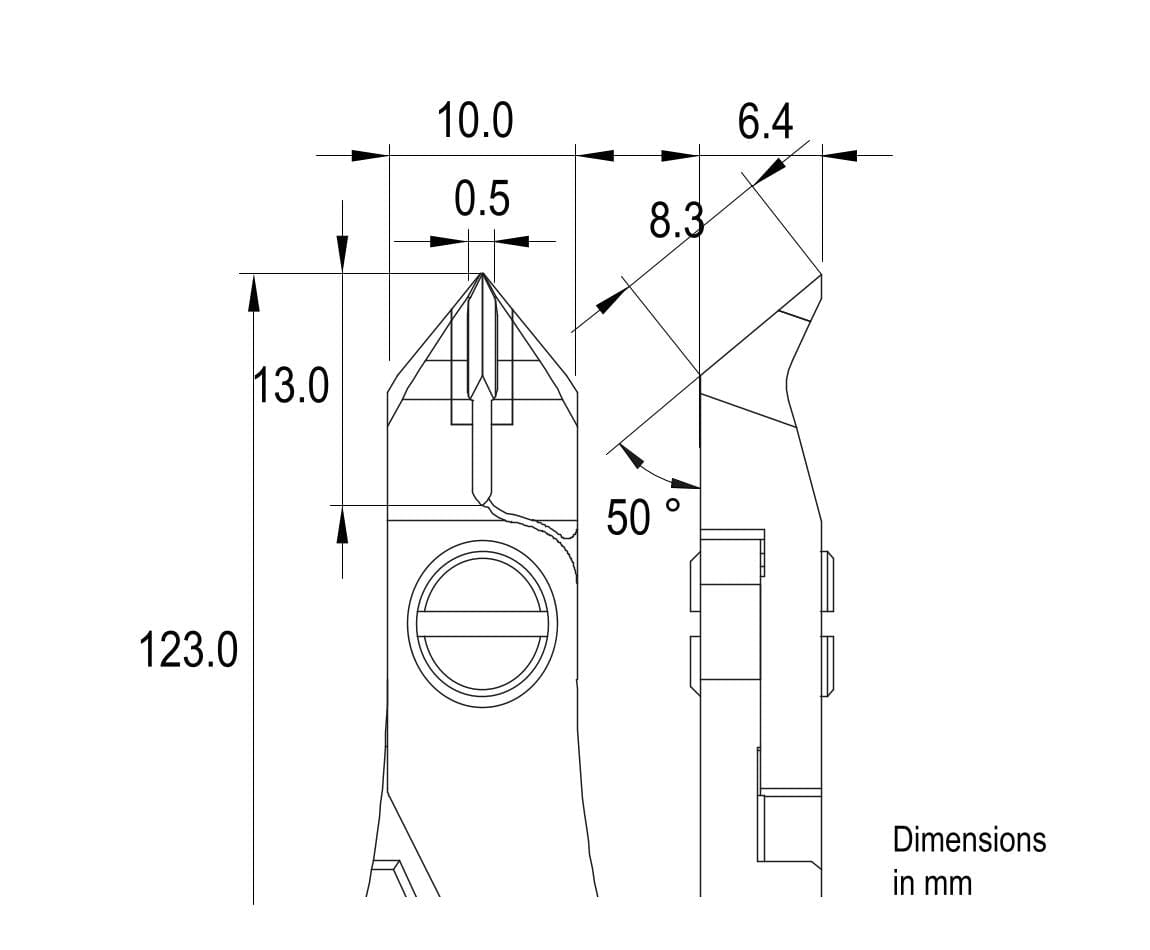

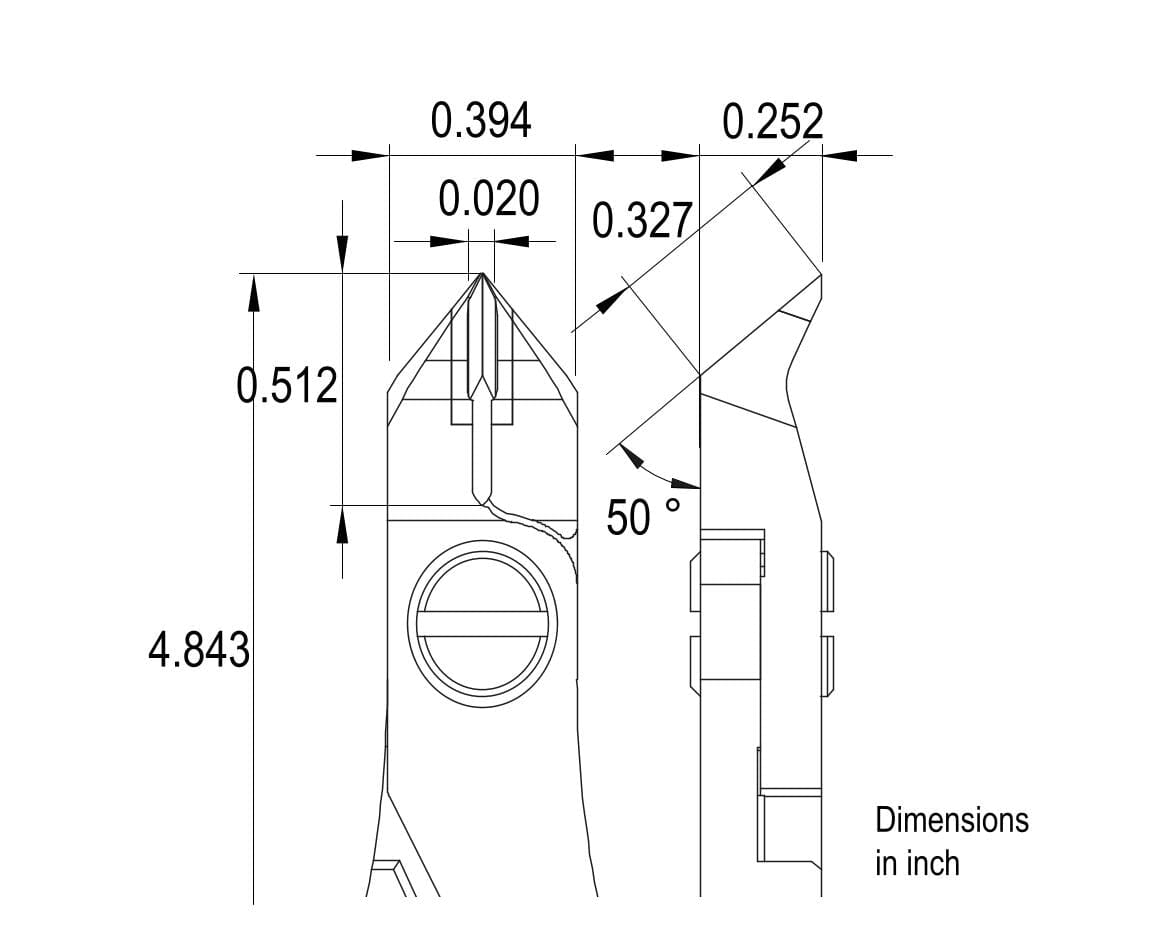

• Head length (B): 0.512 in
• Head width (C): 0.394 in
• Head thickness (D): 0.252 in
• Tip width (E): 0.02 in
• Blade length (G): 0.327 in
• Cutting capacity hard: 0.07-0.2 mm (41-32 AWG)
• Overall Length: 123mm (4.8″)
• Country of Origin: Italy
• Manufacturer Warranty: 1 Year
• Part Number (MPN): ES248TX.CR.BGO.ITU
• EAN: 7640144719418

Applications

These Ideal-tek precision cutters are built for electronics assembly and precision manufacturing, delivering clean cuts on wire and leads with access to tight, confined areas.
