Ideal-tek ESD Plastic Tips – Style 246 – PVDF tips for 246SVR.SA – 36mm (1.4″) – Swiss Made

Ideal-tek ESD Plastic Tips – Style 246 – PVDF tips for 246SVR.SA – 36mm (1.4″) – Swiss Made

Replaceable Tips to Extend Tweezer Service Life

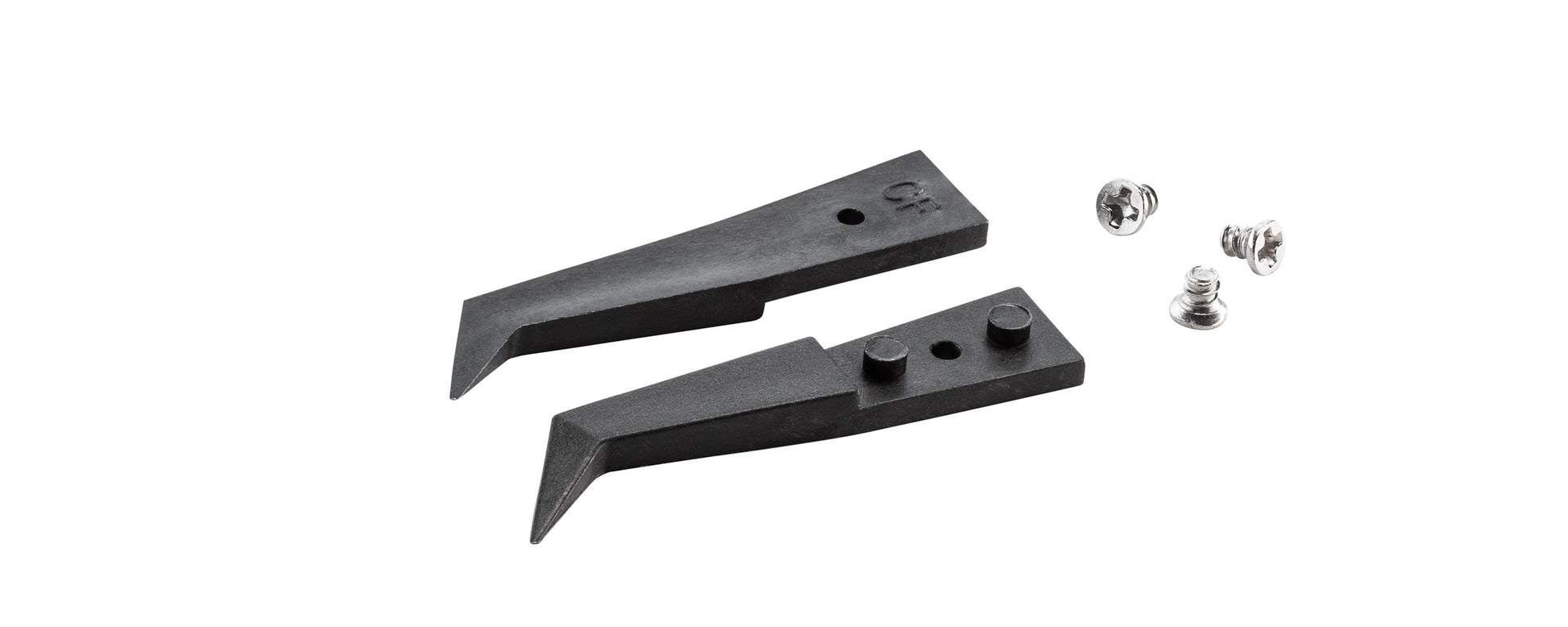

Ideal-tek Plastic Tweezer Tips (A246SV) are Swiss Made and manufactured from PVDF. Kit of 2 Carbon Fiber tips and 3 screws for type 246CP tweezers is suitable to applications which require holding a small component firmly. The bent geometry provides maximum visibility and increased ergonomics. The Carbon Fiber reinforced ESD PVDF Plastic provides the tweezers with ESD and exceptional non-scratching properties combined with excellent chemical resistance.

Key Features

• Replaceable plastic tips allow easy adaptation to different applications and materials
• Plastic tips help protect sensitive components and surfaces from damage
• Replaceable system reduces overall tool replacement costs and extends service life
• Suitable for applications requiring non-metallic contact and help avoid scratching delicate surfaces
• Ideal for electronics, laboratory work and precision assembly tasks

Specifications

• Material: PVDF
• Tip Style: 246
• Tip Type: angled, very fine, pointed
• ESD Safe: Yes
• Tip thickness: 0.01 in
• Tip width: 0.02 in
• Overall Length: 36mm (1.4″)
• Country of Origin: Switzerland
• Manufacturer Warranty: 1 Year
• Part Number (MPN): A246SV
• EAN: 7640174711147

Applications

These genuine Ideal-tek replacement tips restore worn or damaged replaceable-tip tweezers, providing a cost-effective, consistent consumable for electronics and laboratory operations.
