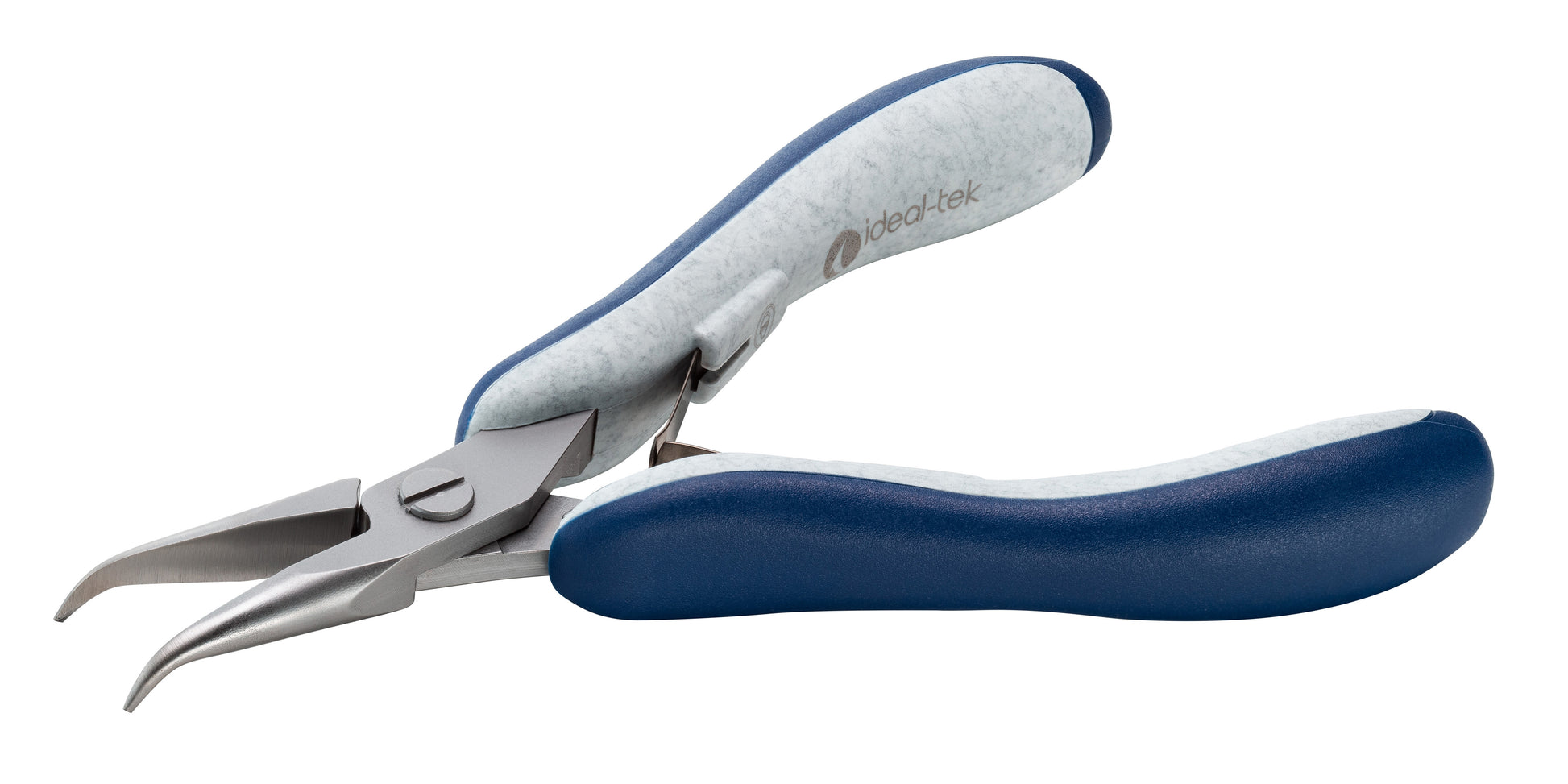

Ideal-tek High Precision Plier – Bent Nose – Smooth – 140mm (5.5″) – ESD – Made in Italy

Ideal-tek High Precision Plier – Bent Nose – Smooth – 140mm (5.5″) – ESD – Made in Italy

Controlled Gripping, Bending and Forming

Ideal-tek High Precision Pliers (ES6023B.CR.BG.ITU) are Made in Italy and manufactured from Chrome Steel. The 6023B is a high precision plier belonging to the long snipe nose plier family. The long bent jaw length improves the ease of the hold . The curved geometry provides maximum visibility. The smooth surface on the jaw prevents scratches while holding. The 6023B is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The jaw are hardened to 45HRC hardness.

Key Features

• Designed for gripping, bending, adjusting and straightening wires and components
• Part of the Ergo-tek range with bi-component ergonomic handles
• ESD-safe handles suitable for sensitive electronic components
• Manufactured from high-quality ball bearing steel with controlled hardening

Specifications

• Material: Chrome Steel
• Full body coating/finishing/treatment: Sandblasted
• Grip handle: Ergo-tek Slim - Thermoplastic Elastomer and Polypropylene
• ESD Safe: Yes
• Head Size/Type: Bent
• Head Shape: Bent Nose

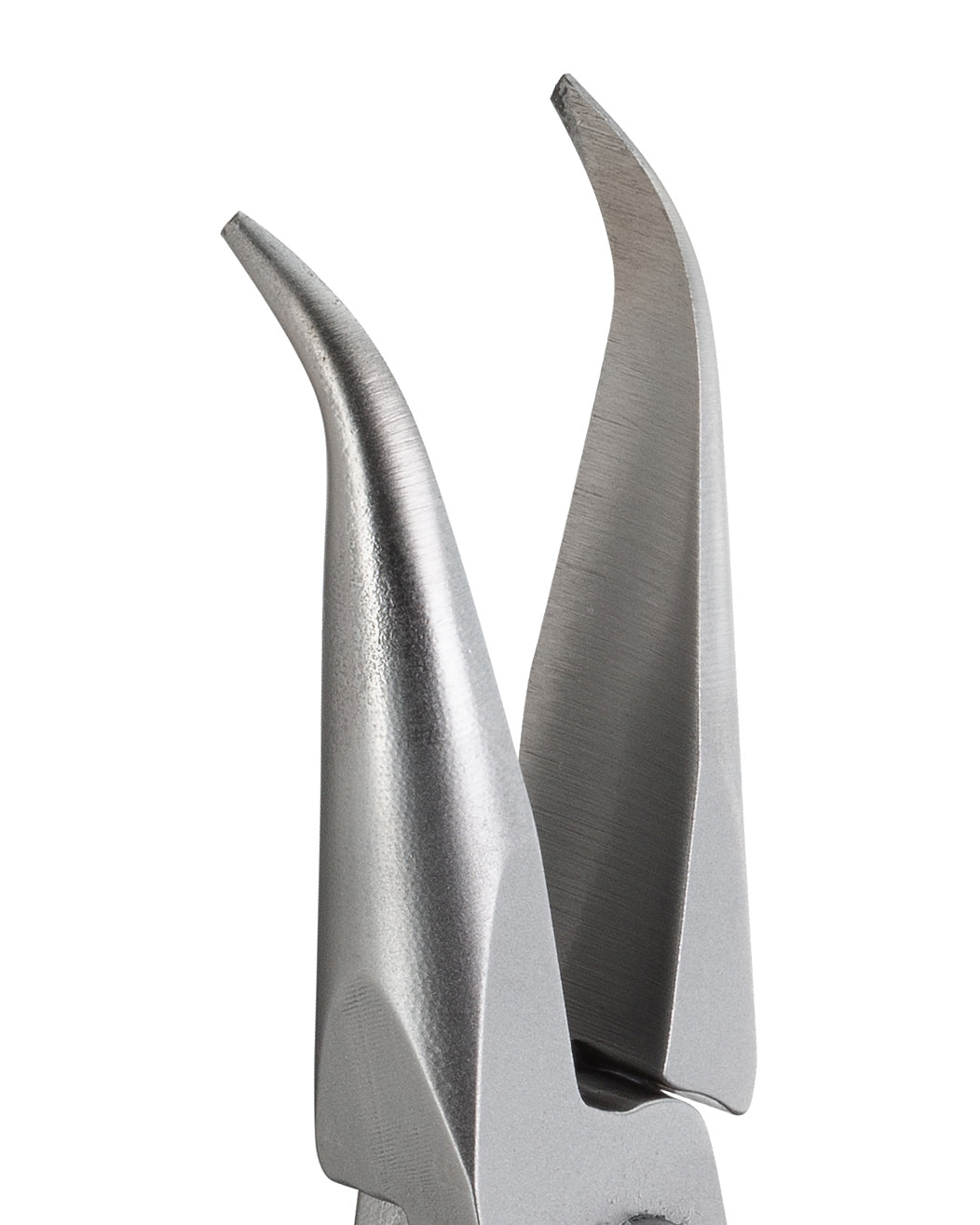

• Jaw Finishing: Smooth

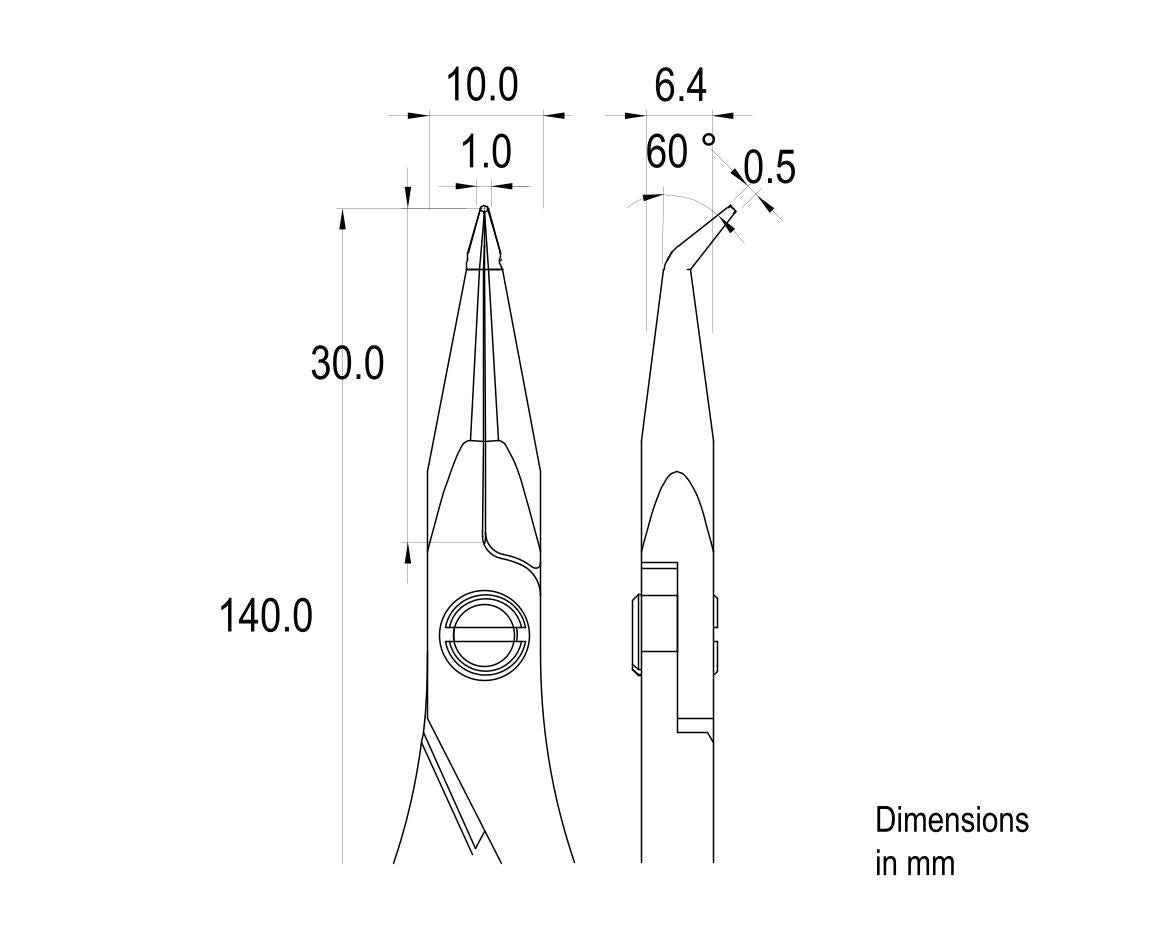

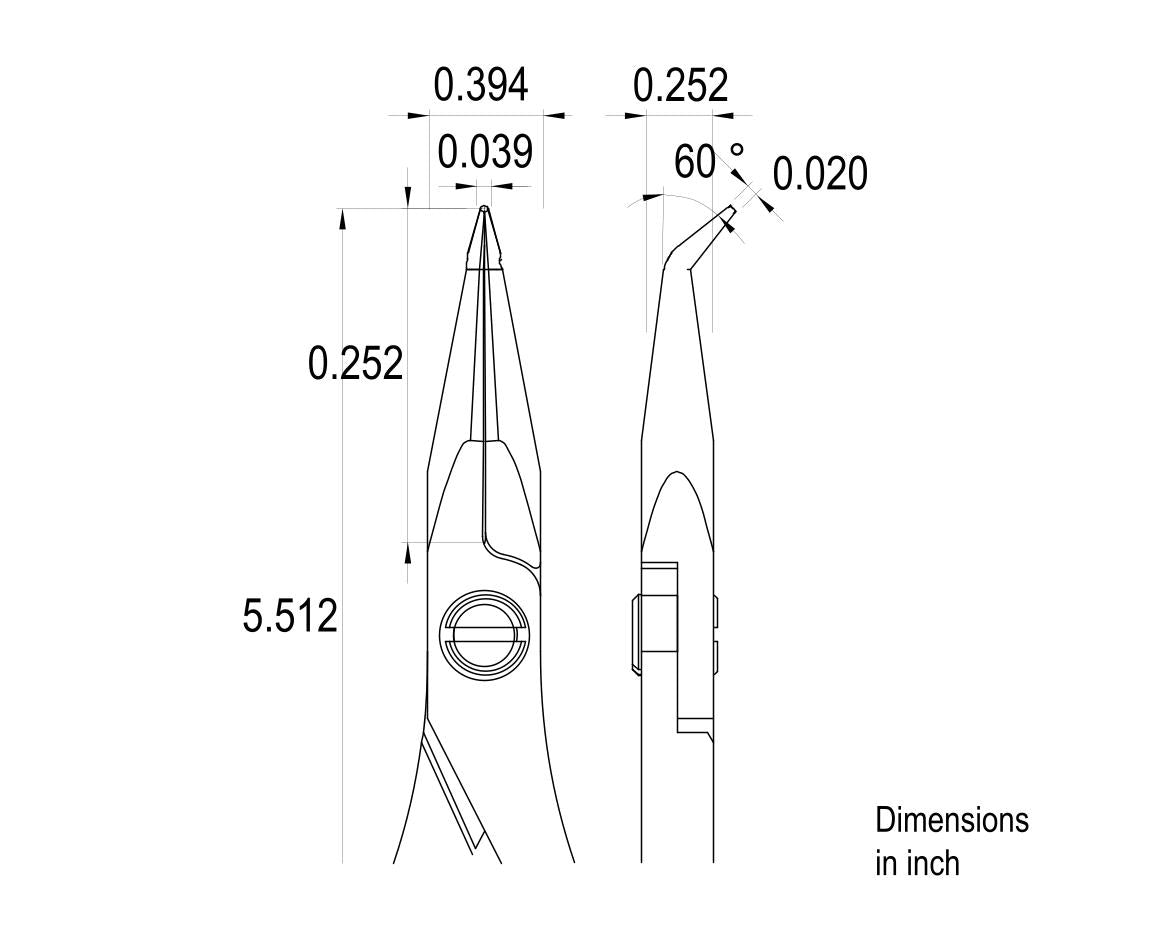

• Head length (B): 1.181 in
• Head width (C): 0.394 in
• Head thickness (D): 0.252 in
• Tip width (E): 0.039 in
• Tip thickness (F): 0.02 in
• Overall Length: 140mm (5.5″)
• Country of Origin: Italy
• Manufacturer Warranty: 1 Year
• Part Number (MPN): ES6023B.CR.BG.ITU
• EAN: 7640144719364

Applications

These Ideal-tek precision pliers support electronics and fine mechanical work requiring controlled gripping, bending or forming of small components and leads.
