Ideal-tek High Precision Plier – Flat Nose – Serrated – 130mm (5.1″) – ESD – Made in Italy

Ideal-tek High Precision Plier – Flat Nose – Serrated – 130mm (5.1″) – ESD – Made in Italy

Controlled Gripping, Bending and Forming

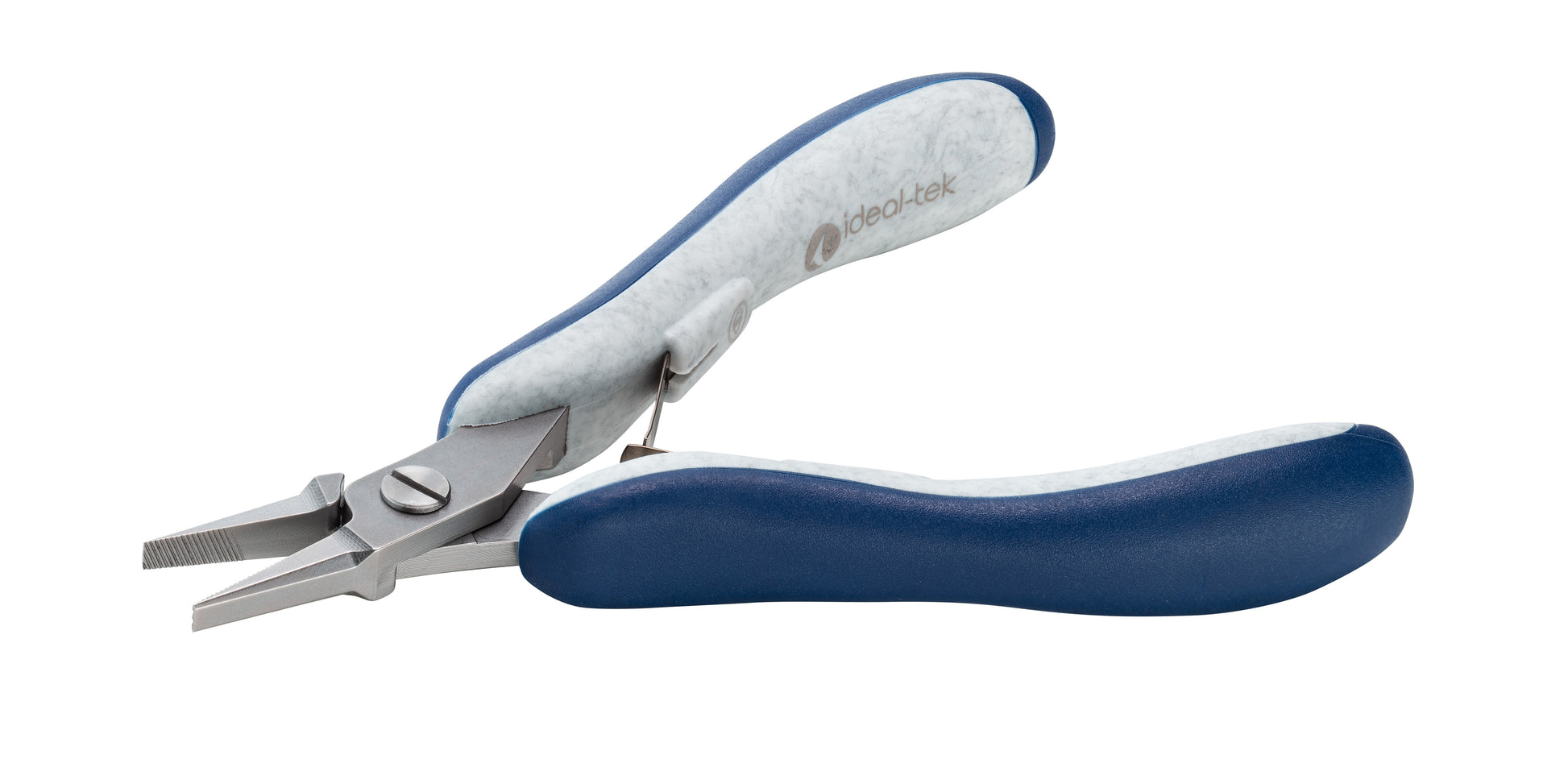

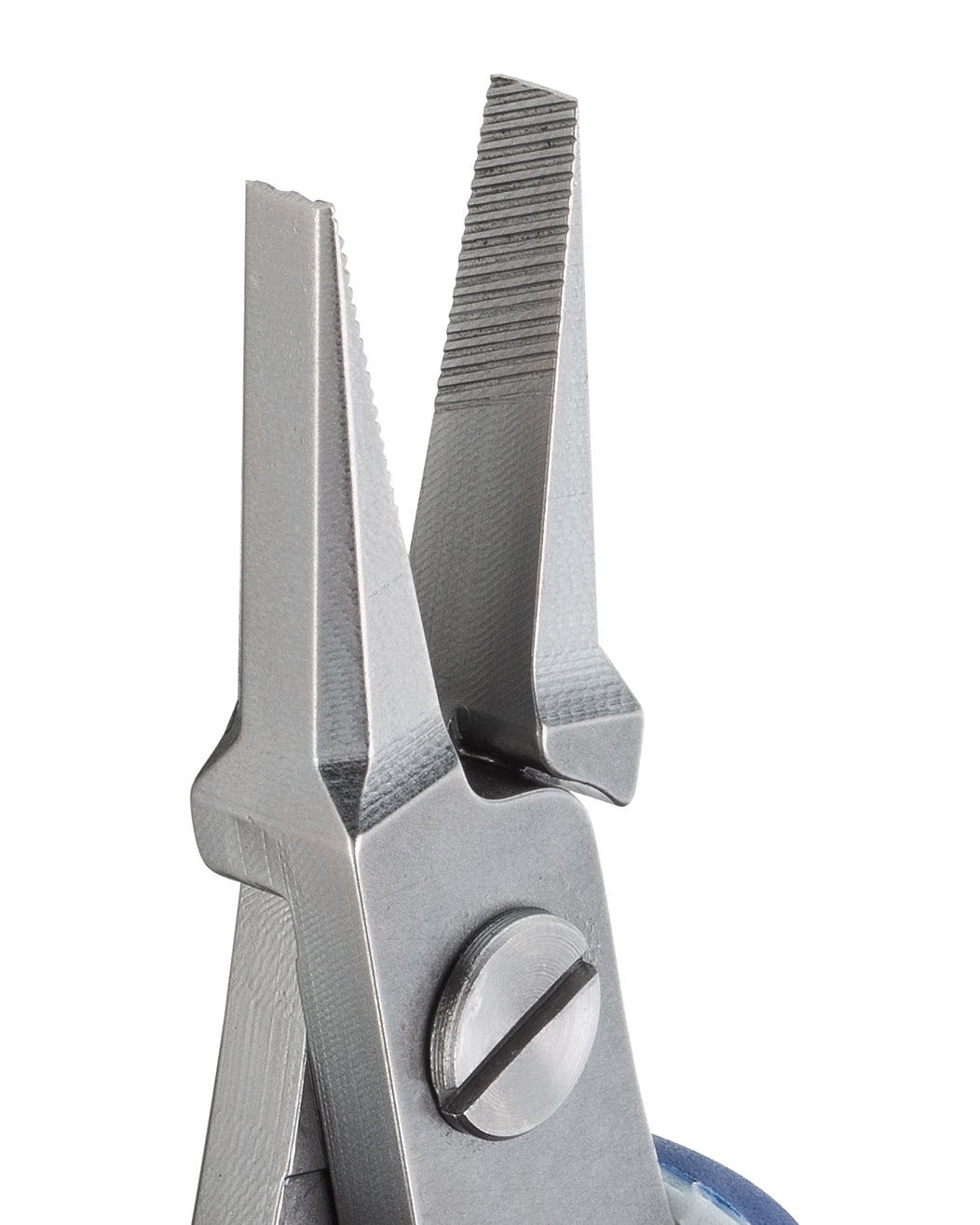

Ideal-tek High Precision Pliers (ES6012.CR.BG.ITU) are Made in Italy and manufactured from Chrome Steel. The 6012 is a high precision plier belonging to the flat nose plier family. The short jaw length increases the strength of the hold. The serrated surface on the jaw increases its holding capacity. The 6012 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The jaws are hardened to 45HRC hardness.

Key Features

• Designed for gripping, bending, adjusting and straightening wires and components
• Part of the Ergo-tek range with bi-component ergonomic handles
• ESD-safe handles suitable for sensitive electronic components
• Manufactured from high-quality ball bearing steel with controlled hardening

Specifications

• Material: Chrome Steel
• Full body coating/finishing/treatment: Sandblasted
• Grip handle: Ergo-tek Slim - Thermoplastic Elastomer and Polypropylene
• ESD Safe: Yes
• Head Size/Type: Short
• Head Shape: Flat Nose
• Jaw Finishing: Serrated

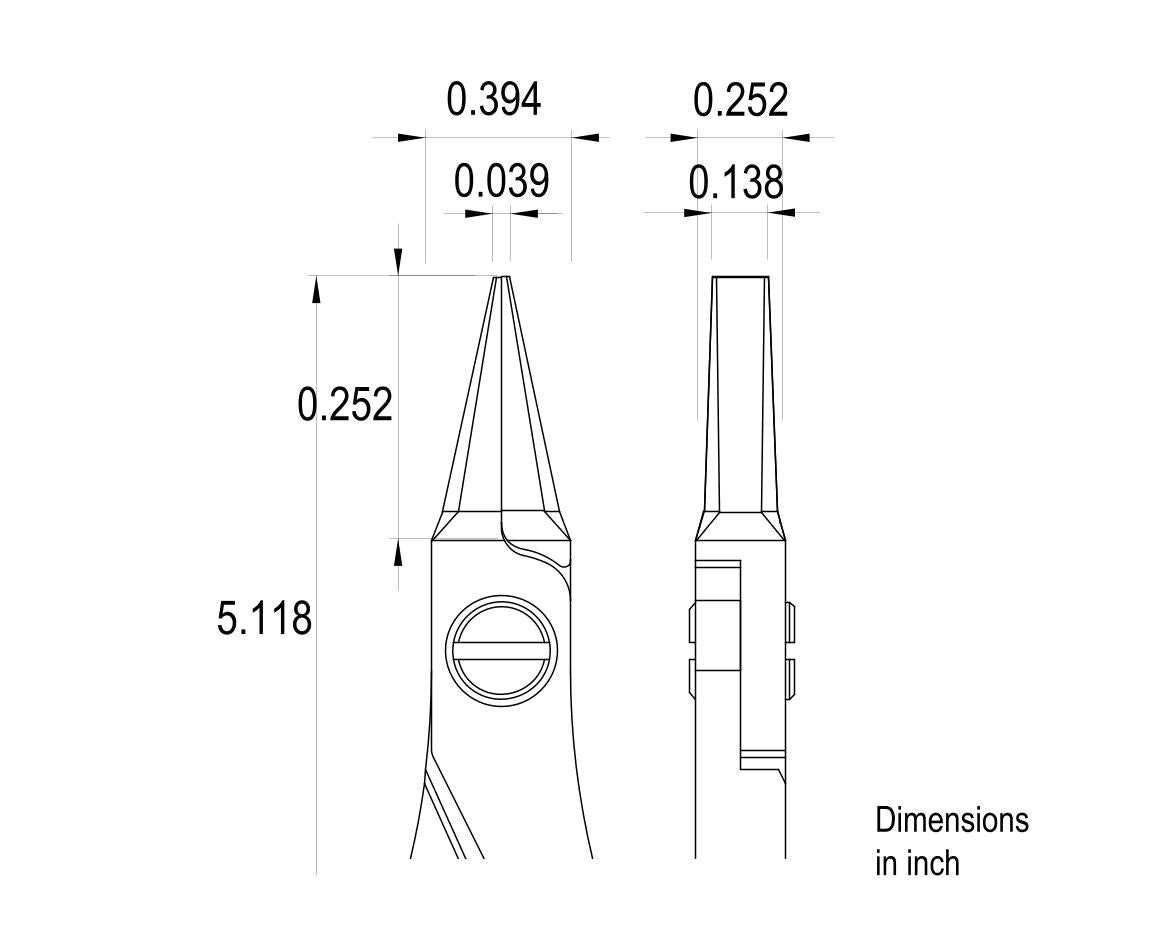

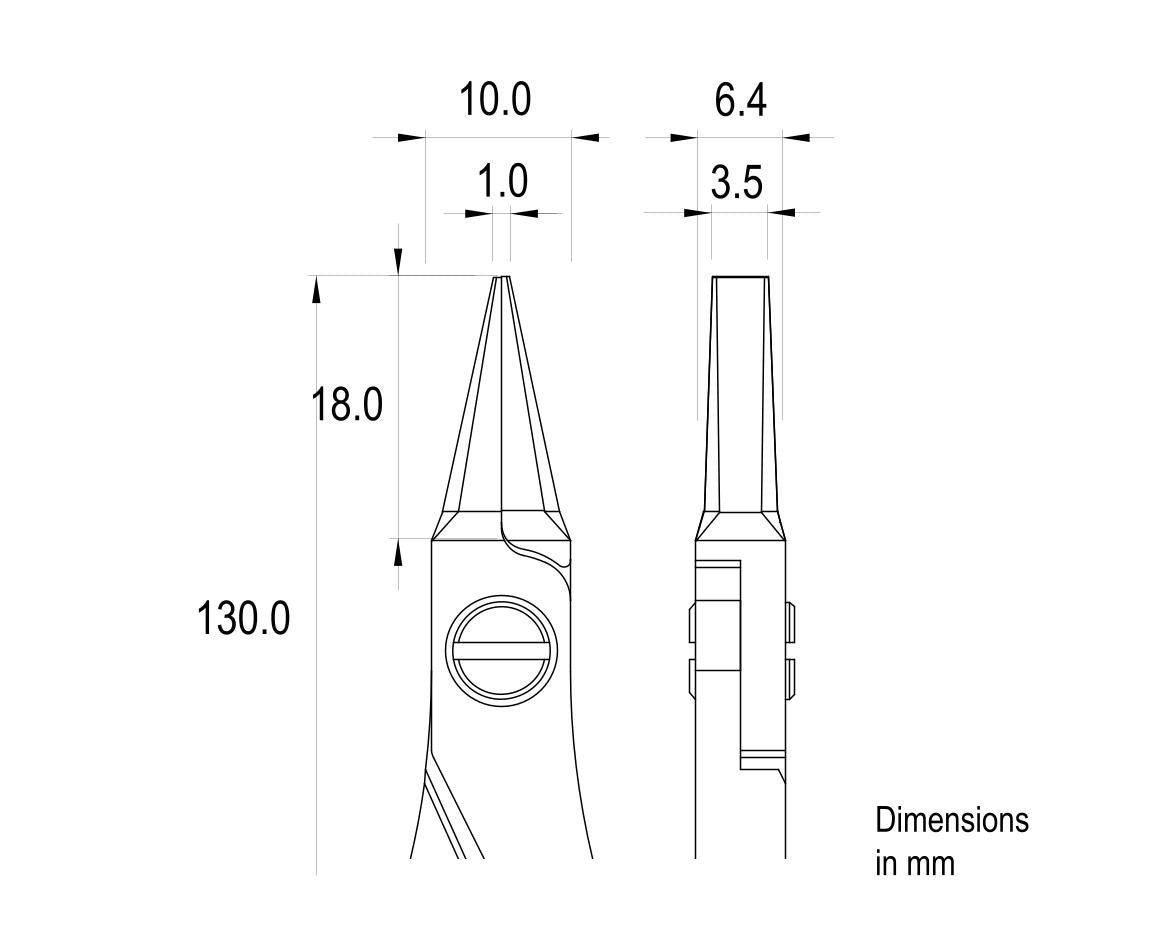

• Head length (B): 0.709 in
• Head width (C): 0.394 in
• Head thickness (D): 0.252 in
• Tip width (E): 0.039 in
• Tip thickness (F): 0.138 in
• Overall Length: 130mm (5.1″)
• Country of Origin: Italy
• Manufacturer Warranty: 1 Year
• Part Number (MPN): ES6012.CR.BG.ITU
• EAN: 7640144719302

Applications

These Ideal-tek precision pliers support electronics and fine mechanical work requiring controlled gripping, bending or forming of small components and leads.
