Clean, Accurate Cutting in Confined Work Areas

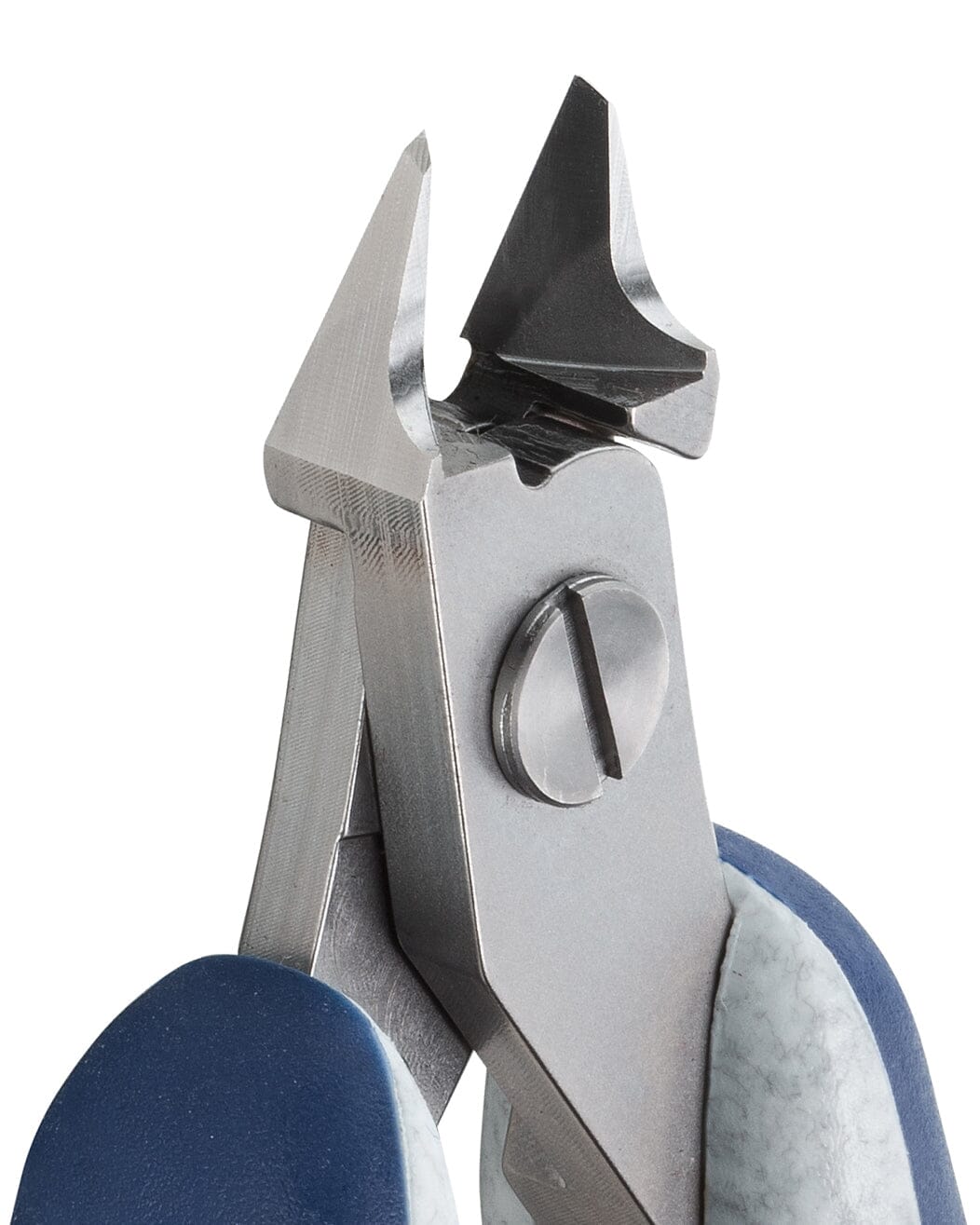

Ideal-tek High Precision Cutters (ES5542.CR.BG.ITU) are Made in Italy and manufactured from Chrome Steel. The 5542 is a high precision cutter belonging to the small tapered and relieved cutter family. This type of geometry and head dimensions offer the best advantage to access small areas. The full-flush cutting edge is suitable to perform very clean cuts on small size material. The 5542 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

Key Features

• Ergo-tek cutters line available with Semi-Flush, Flush and Full-Flush cutting profiles for precise trimming of wires
• Manufactured from high-quality ball bearing steel with controlled hardening
• Ergo-tek bi-component ergonomic handles designed to reduce strain during repetitive precision work
• ESD-safe handle design suitable for sensitive electronic components
• Robust construction with dual leaf springs

Specifications

• Material: Chrome Steel
• Full body coating/finishing/treatment: Sandblasted
• Grip handle: Ergo-tek Slim - Thermoplastic Elastomer and Polypropylene
• ESD Safe: Yes
• Head Size/Type: Small
• Head Shape: Tapered & Relieved
• Cutting Edges: Full-Flush

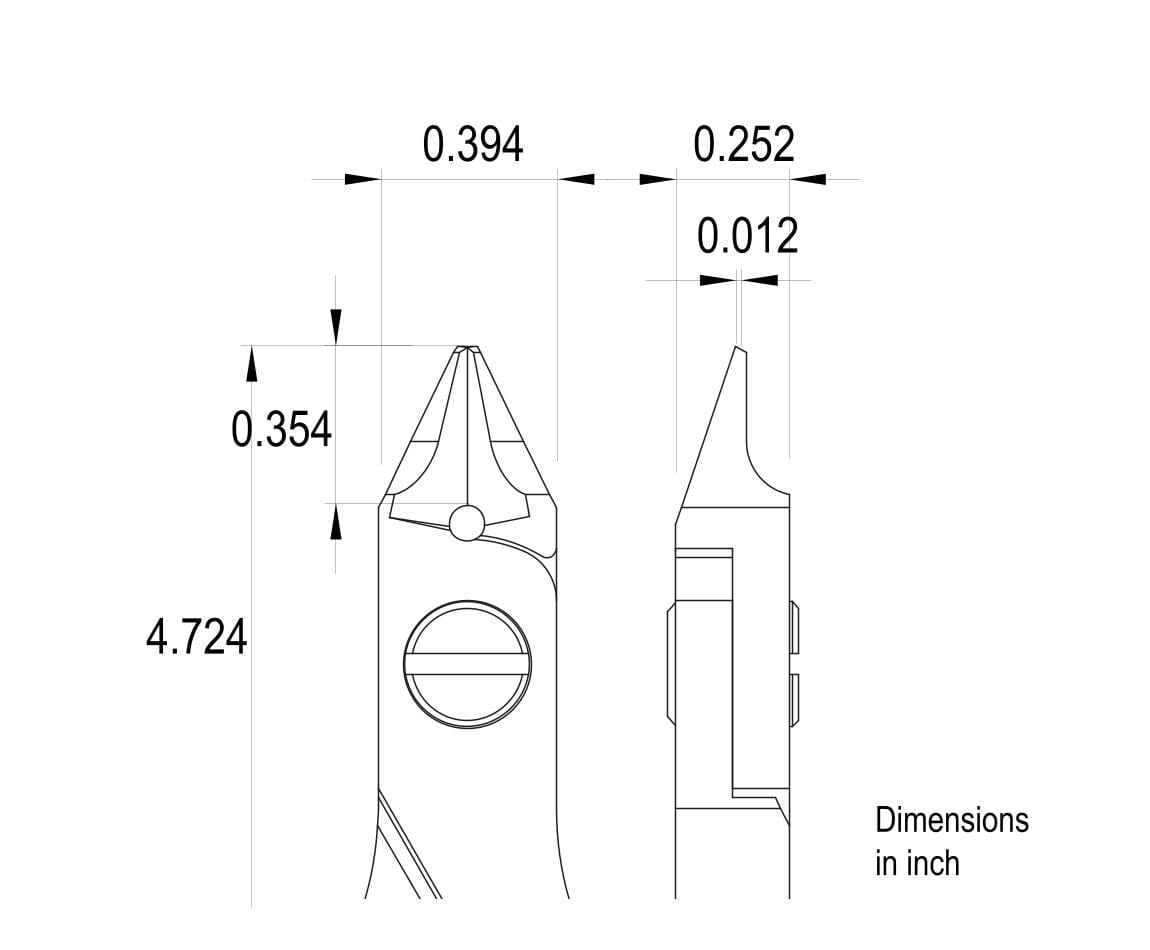

• Head length (B): 0.354 in
• Head width (C): 0.394 in
• Head thickness (D): 0.252 in
• Tip thickness (F): 0.012 in
• Cutting capacity soft: 0.10-0.80 mm (38-20 AWG)
• Cutting capacity medium: 0.10-0.40 mm (38-26 AWG)
• Overall Length: 120mm (4.7″)
• Country of Origin: Italy
• Manufacturer Warranty: 1 Year
• Part Number (MPN): ES5542.CR.BG.ITU
• EAN: 7640144719258

Applications

These Ideal-tek precision cutters are built for electronics assembly and precision manufacturing, delivering clean cuts on wire and leads with access to tight, confined areas.
