Ideal-tek High Precision Cutter – Small Taper-Relief Head – Semi Flush – 120mm (4.7″) – ESD – Made in Italy

Clean, Accurate Cutting in Confined Work Areas

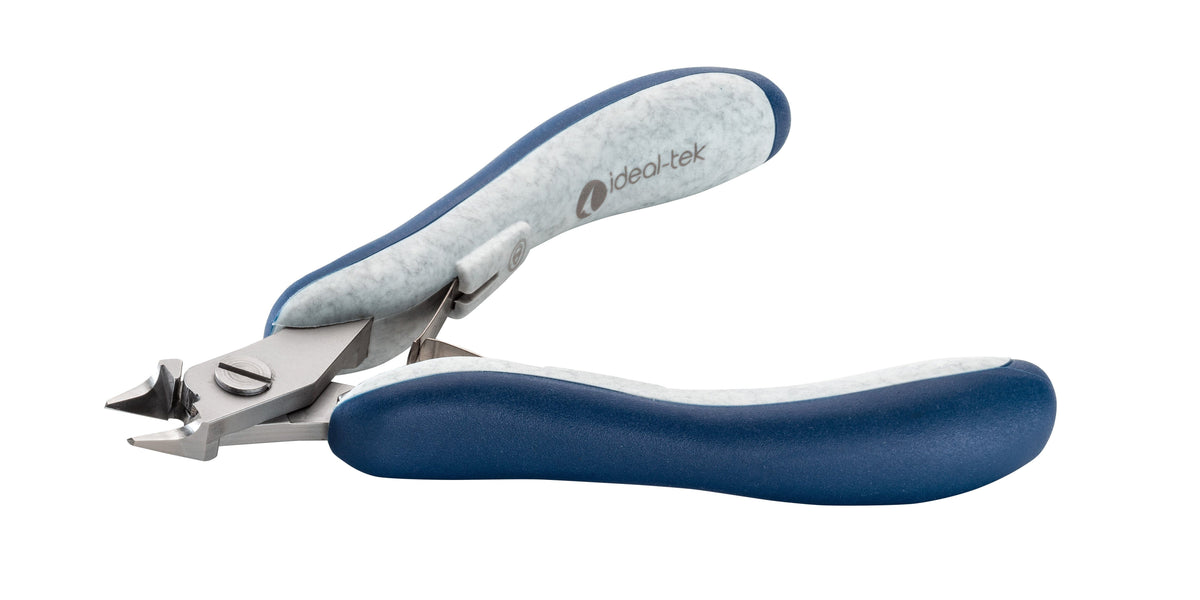

Ideal-tek High Precision Cutters (ES5540.CR.BG.ITU) are Made in Italy and manufactured from Chrome Steel. The 5540 is a high precision cutter belonging to the small tapered and relieved cutter family. This type of geometry and head dimensions offer the best advantage to access small areas. The semi-flush cutting edge is suitable to perform robust cuts. The 5540 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

Key Features

  • Ergo-tek cutters line available with Semi-Flush, Flush and Full-Flush cutting profiles for precise trimming of wires
  • Manufactured from high-quality ball bearing steel with controlled hardening
  • Ergo-tek bi-component ergonomic handles designed to reduce strain during repetitive precision work
  • ESD-safe handle design suitable for sensitive electronic components
  • Robust construction with dual leaf springs

Specifications

  • Material: Chrome Steel
  • Full body coating/finishing/treatment: Sandblasted
  • Grip handle: Ergo-tek Slim - Thermoplastic Elastomer and Polypropylene
  • ESD Safe: Yes
  • Head Size/Type: Small
  • Head Shape: Tapered & Relieved
  • Cutting Edges: Semi-Flush

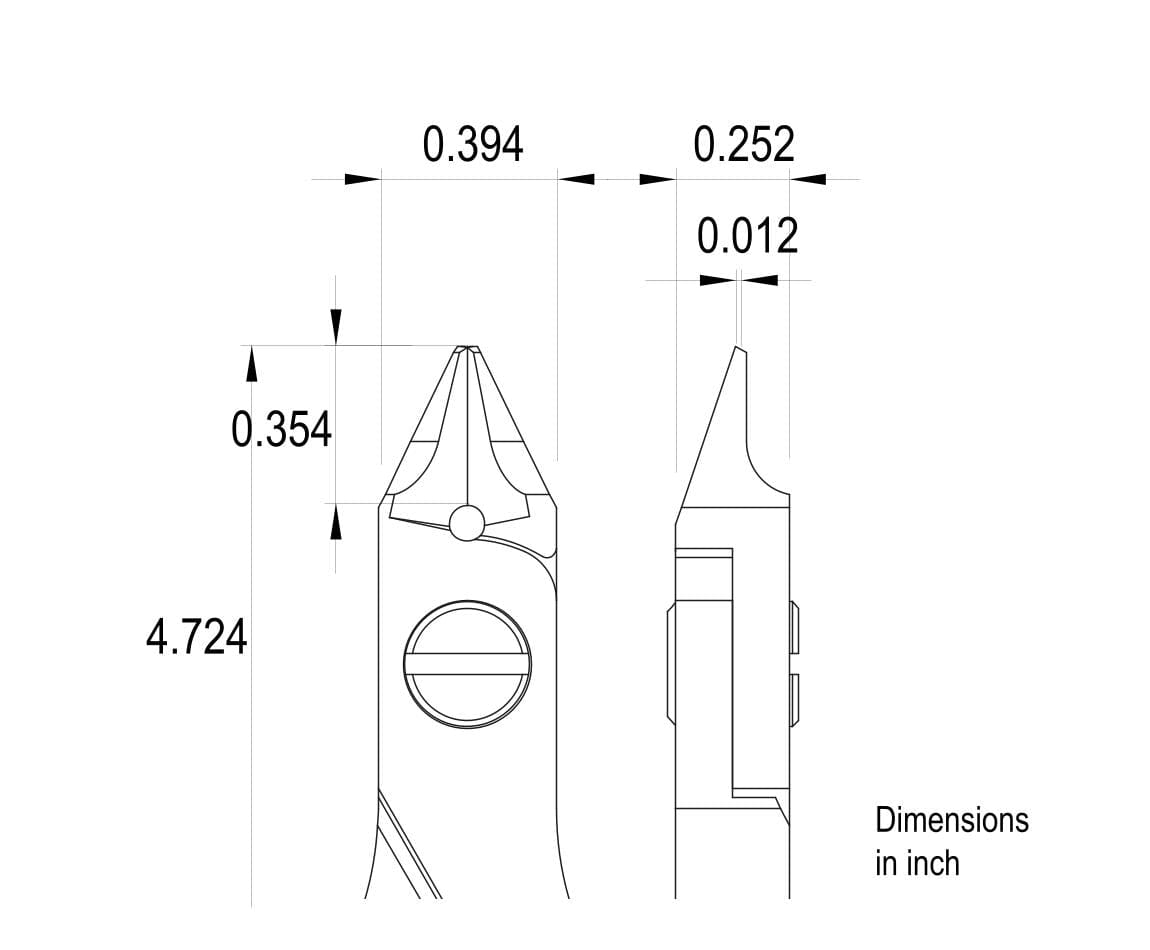

  • Head length (B): 0.354 in
  • Head width (C): 0.394 in
  • Head thickness (D): 0.252 in
  • Tip thickness (F): 0.012 in
  • Cutting capacity soft: 0.20-1.20 mm (32-17 AWG)
  • Cutting capacity medium: 0.10-1.00 mm (38-18 AWG)
  • Overall Length: 120mm (4.7″)
  • Country of Origin: Italy
  • Manufacturer Warranty: 1 Year
  • Part Number (MPN): ES5540.CR.BG.ITU
  • EAN: 7640144719234

Applications

These Ideal-tek precision cutters are built for electronics assembly and precision manufacturing, delivering clean cuts on wire and leads with access to tight, confined areas.
