Ideal-tek High Precision Cutter – XL Oval Head – Flush – 125mm (4.9″) – ESD – Made in Italy

Ideal-tek High Precision Cutter – XL Oval Head – Flush – 125mm (4.9″) – ESD – Made in Italy

ES5161L.CR.BGS.ITU

$83.60
$83.60
Sale Sold out
Shipping calculated at checkout.

Ideal-tek High Precision Cutter – XL Oval Head – Flush – 125mm (4.9″) – ESD – Made in Italy

Clean, Accurate Cutting in Confined Work Areas

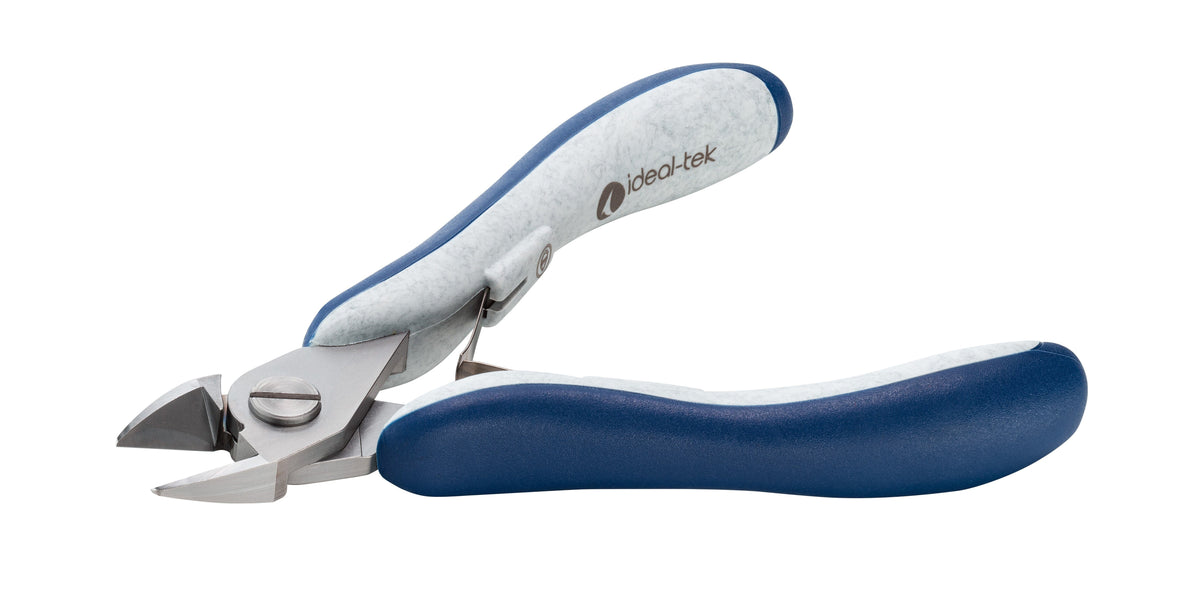

Ideal-tek High Precision Cutters (ES5161L.CR.BGS.ITU) are Made in Italy and manufactured from Chrome Steel. The 5161L is a high precision cutter belonging to the extra large oval cutter family. This type of geometry provides excellent resistance, while the 5161L head dimensions increase its cutting capacity. The flush cutting edge is suitable to perform clean cuts with some tolerances. The 5161L is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

Key Features

  • Ergo-tek cutters line available with Semi-Flush, Flush and Full-Flush cutting profiles for precise trimming of wires
  • Manufactured from high-quality ball bearing steel with controlled hardening
  • Ergo-tek bi-component ergonomic handles designed to reduce strain during repetitive precision work
  • ESD-safe handle design suitable for sensitive electronic components
  • Robust construction with dual leaf springs

Specifications

  • Material: Chrome Steel
  • Full body coating/finishing/treatment: Sandblasted
  • Grip handle: Ergo-tek Slim - Thermoplastic Elastomer and Polypropylene
  • ESD Safe: Yes
  • Head Size/Type: Extra-Large Rounded
  • Head Shape: Oval
  • Cutting Edges: Flush

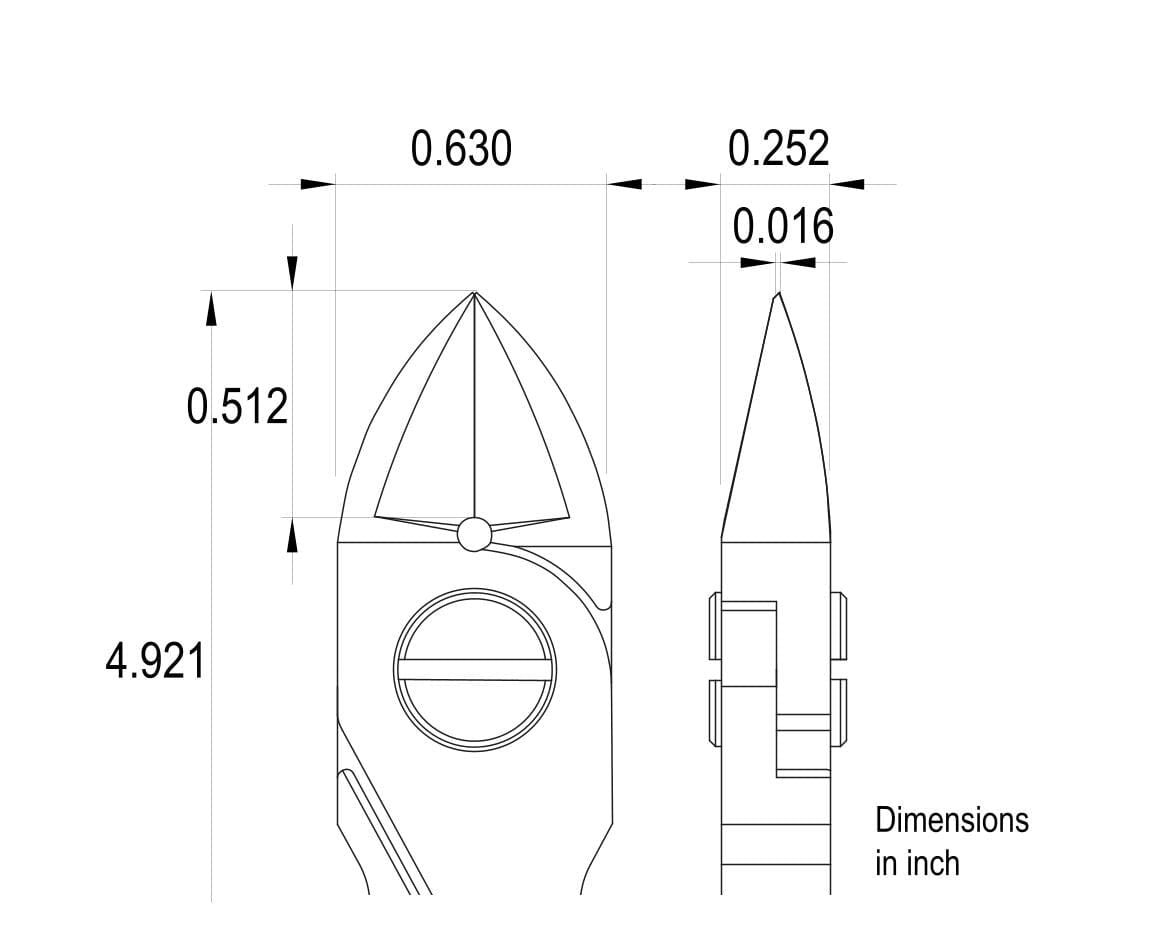

  • Head length (B): 0.512 in
  • Head width (C): 0.63 in
  • Head thickness (D): 0.252 in
  • Tip thickness (F): 0.016 in
  • Cutting capacity soft: 0.40-2.50 mm (26-10 AWG)
  • Cutting capacity medium: 0.40-2.30 mm (26-11 AWG)
  • Overall Length: 125mm (4.9″)
  • Country of Origin: Italy
  • Manufacturer Warranty: 1 Year
  • Part Number (MPN): ES5161L.CR.BGS.ITU
  • EAN: 7640144719159

Applications

These Ideal-tek precision cutters are built for electronics assembly and precision manufacturing, delivering clean cuts on wire and leads with access to tight, confined areas.
