Ideal-tek High Precision Cutter – XL Oval Head – Semi Flush – 125mm (4.9″) – ESD – Made in Italy

Ideal-tek High Precision Cutter – XL Oval Head – Semi Flush – 125mm (4.9″) – ESD – Made in Italy

Clean, Accurate Cutting in Confined Work Areas

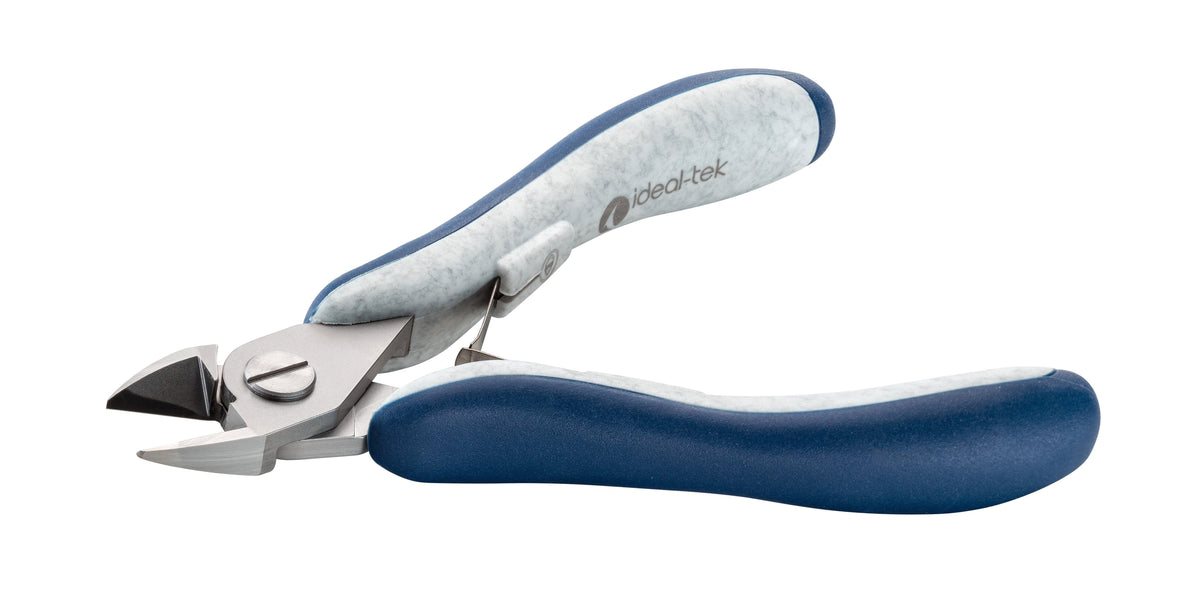

Ideal-tek High Precision Cutters (ES5160L.CR.BGS.ITU) are Made in Italy and manufactured from Chrome Steel. The 5160L is a high precision cutter belonging to the extra large oval cutter family. This type of geometry provides excellent resistance, while the 5160L head dimensions increase its cutting capacity. The semi-flush cutting edge is suitable to perform robust cuts. The 5160L is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

Key Features

• Ergo-tek cutters line available with Semi-Flush, Flush and Full-Flush cutting profiles for precise trimming of wires
• Manufactured from high-quality ball bearing steel with controlled hardening
• Ergo-tek bi-component ergonomic handles designed to reduce strain during repetitive precision work
• ESD-safe handle design suitable for sensitive electronic components
• Robust construction with dual leaf springs

Specifications

• Material: Chrome Steel
• Full body coating/finishing/treatment: Sandblasted
• Grip handle: Ergo-tek Slim - Thermoplastic Elastomer and Polypropylene
• ESD Safe: Yes
• Head Size/Type: Extra-Large Rounded
• Head Shape: Oval

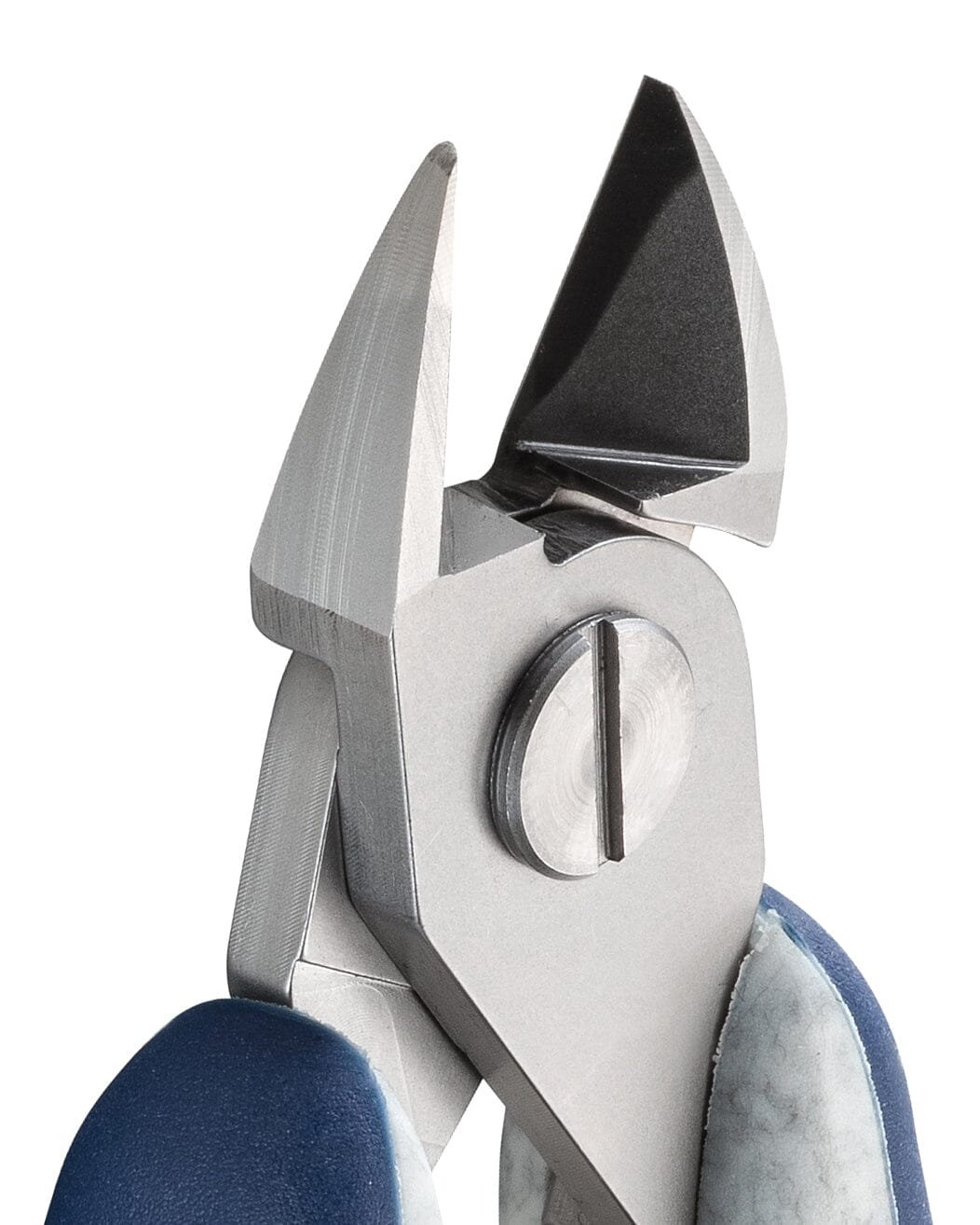

• Cutting Edges: Semi-Flush

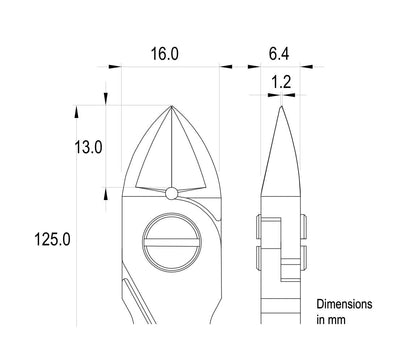

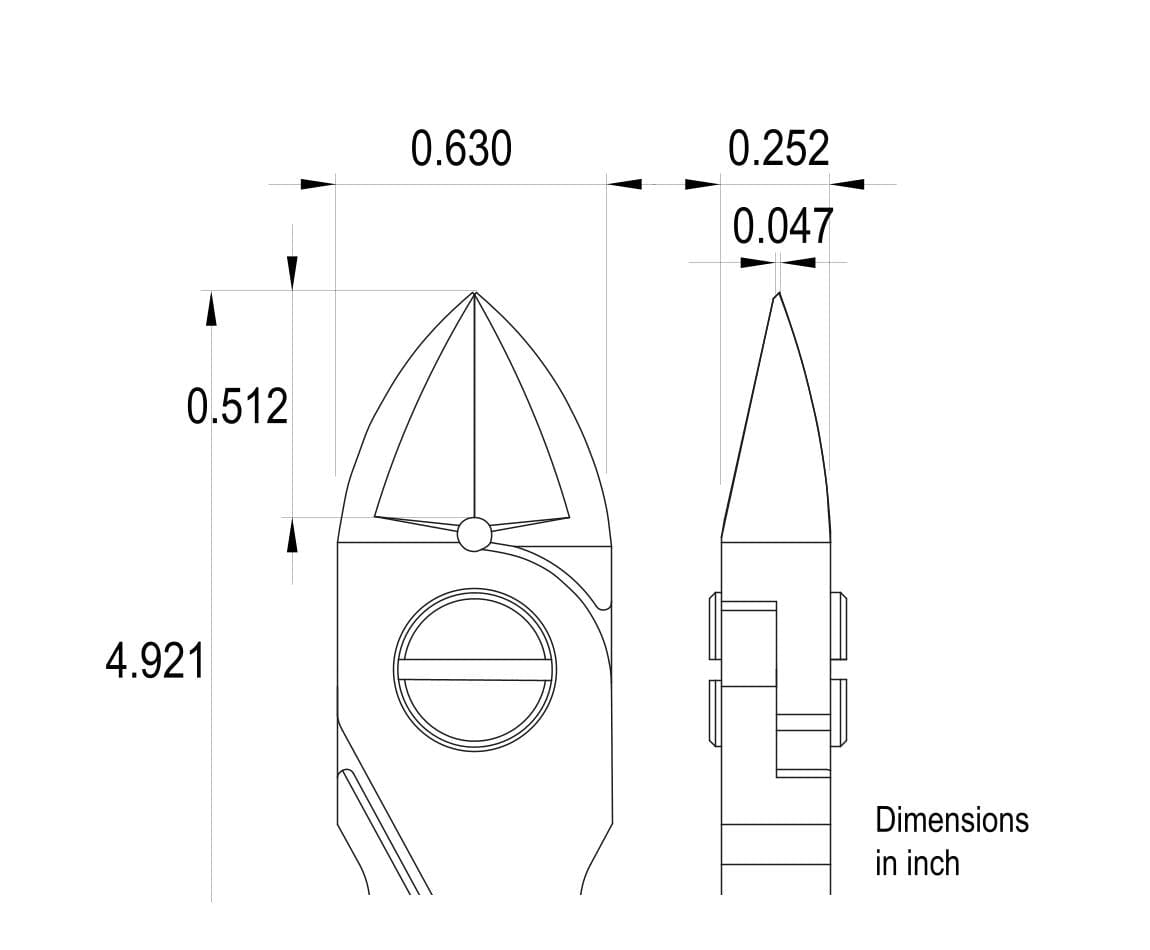

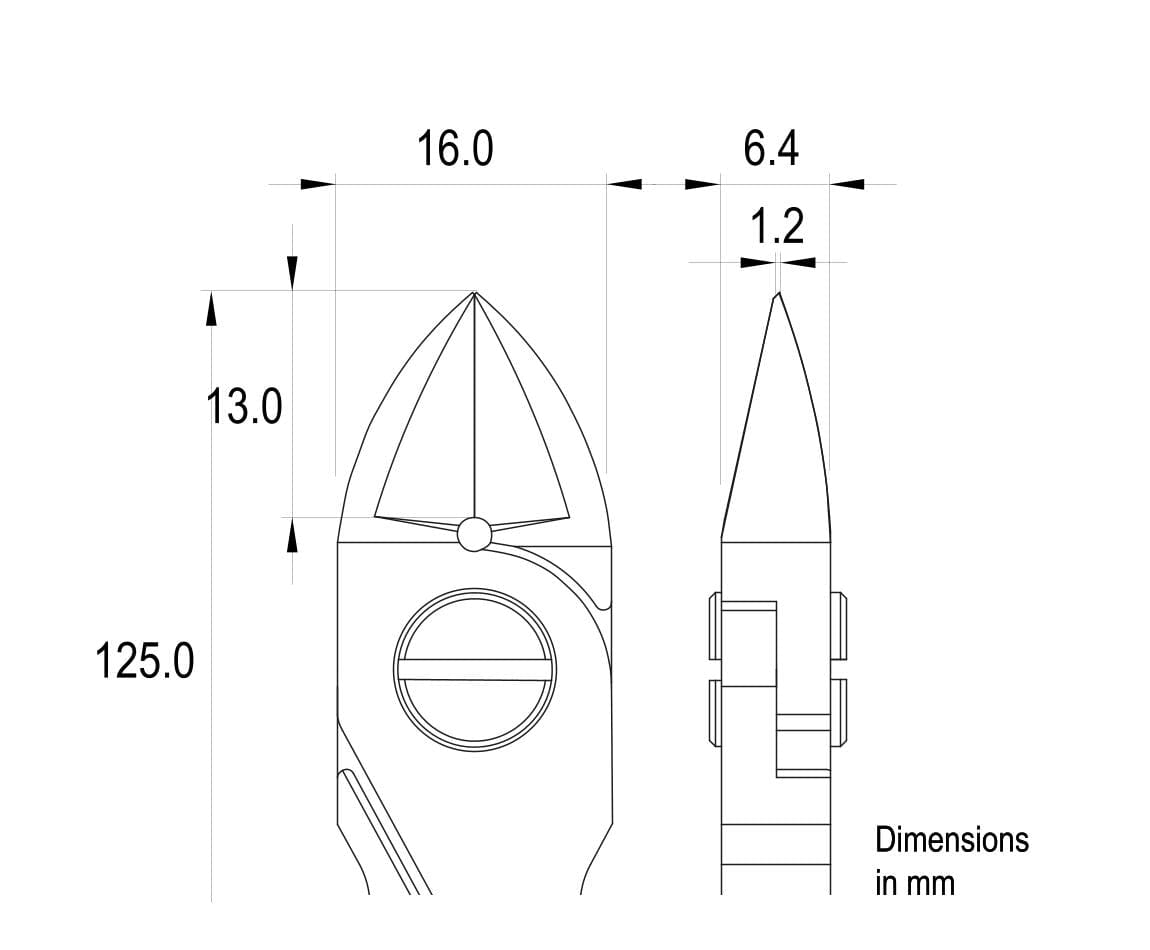

• Head length (B): 0.512 in
• Head width (C): 0.63 in
• Head thickness (D): 0.252 in
• Tip thickness (F): 0.047 in
• Cutting capacity soft: 0.50-3.00 mm (24-9 AWG)
• Cutting capacity medium: 0.40-2.50 mm (26-10 AWG)
• Cutting capacity hard: 0.06-1.10 mm (42-17 AWG)
• Overall Length: 125mm (4.9″)
• Country of Origin: Italy
• Manufacturer Warranty: 1 Year
• Part Number (MPN): ES5160L.CR.BGS.ITU
• EAN: 7640144719142

Applications

These Ideal-tek precision cutters are built for electronics assembly and precision manufacturing, delivering clean cuts on wire and leads with access to tight, confined areas.
