Ideal-tek High Precision Cutter – Small Oval Head – Flush – 120mm (4.7″) – ESD – Made in Italy

Ideal-tek High Precision Cutter – Small Oval Head – Flush – 120mm (4.7″) – ESD – Made in Italy

Clean, Accurate Cutting in Confined Work Areas

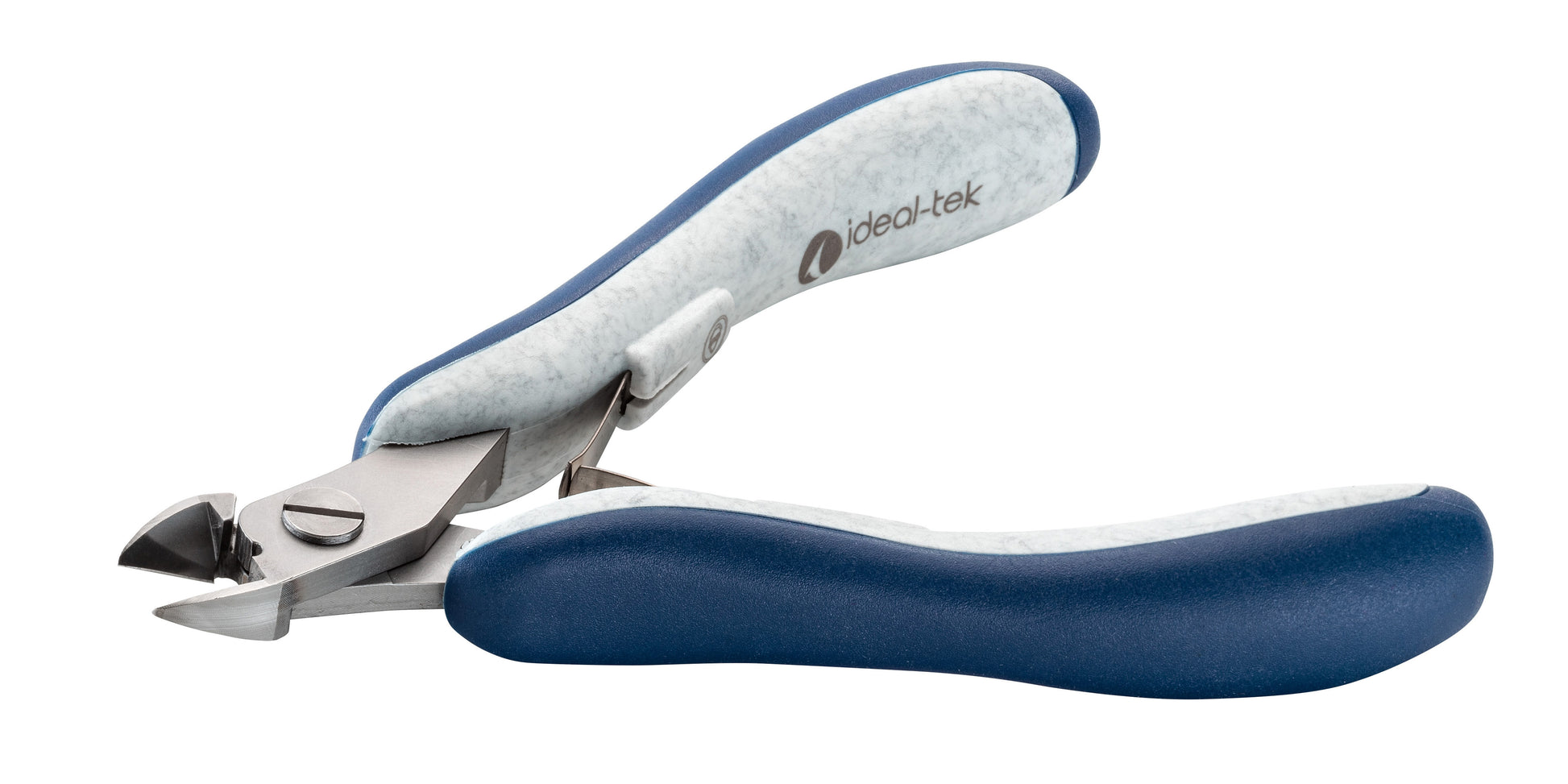

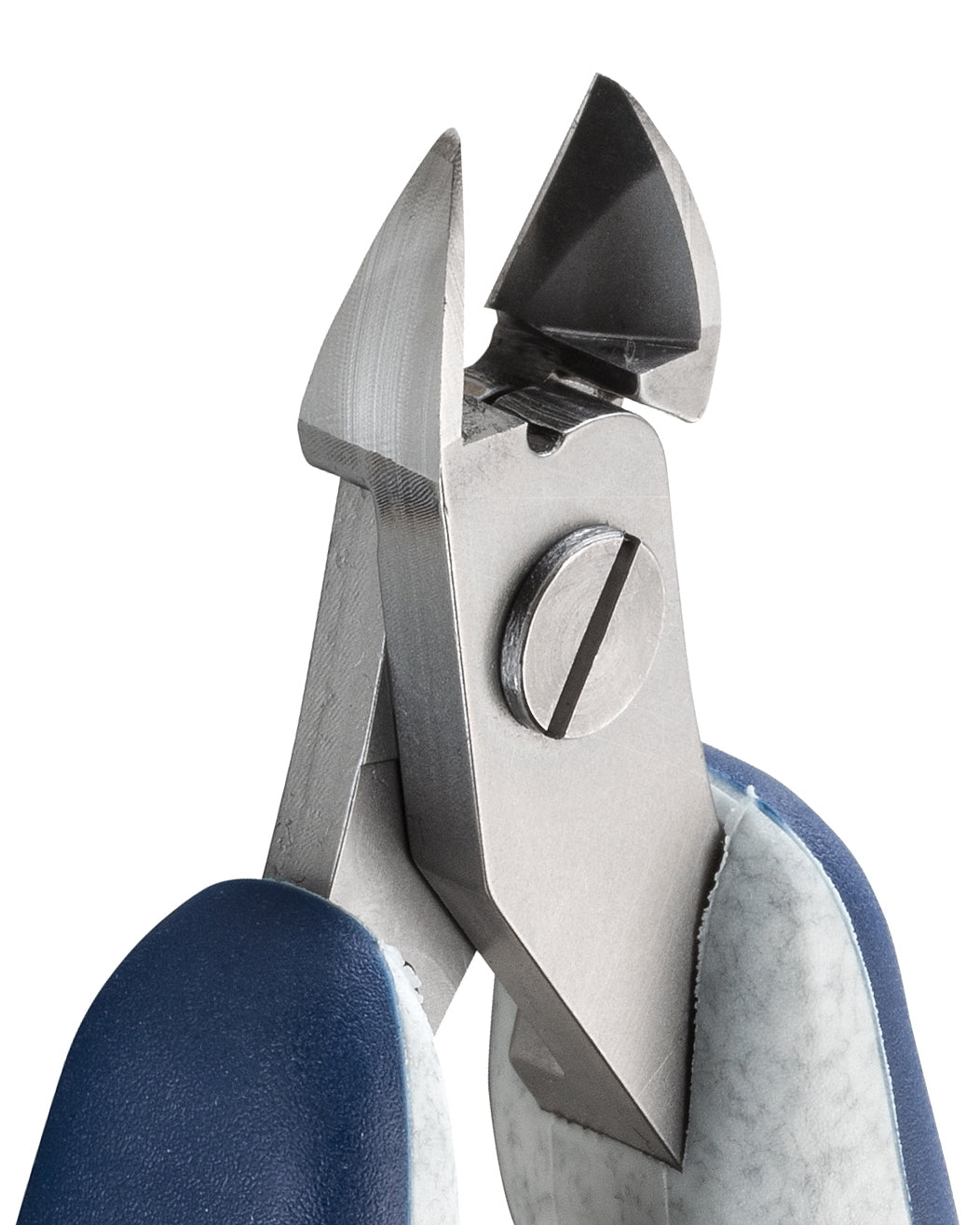

Ideal-tek High Precision Cutters (ES5141.CR.BG.ITU) are Made in Italy and manufactured from Chrome Steel. The 5141 is a high precision cutter belonging to the small oval cutter family. This type of geometry provides excellent resistance, while the 5141 head dimensions allow to access small areas. The flush cutting edge is suitable to perform clean cuts with some tolerances. The 5141 is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The blades are hardened to 67HRC hardness.

Key Features

• Ergo-tek cutters line available with Semi-Flush, Flush and Full-Flush cutting profiles for precise trimming of wires
• Manufactured from high-quality ball bearing steel with controlled hardening
• Ergo-tek bi-component ergonomic handles designed to reduce strain during repetitive precision work
• ESD-safe handle design suitable for sensitive electronic components
• Robust construction with dual leaf springs

Specifications

• Material: Chrome Steel
• Full body coating/finishing/treatment: Sandblasted
• Grip handle: Ergo-tek Slim - Thermoplastic Elastomer and Polypropylene
• ESD Safe: Yes
• Head Size/Type: Small
• Head Shape: Oval
• Cutting Edges: Flush

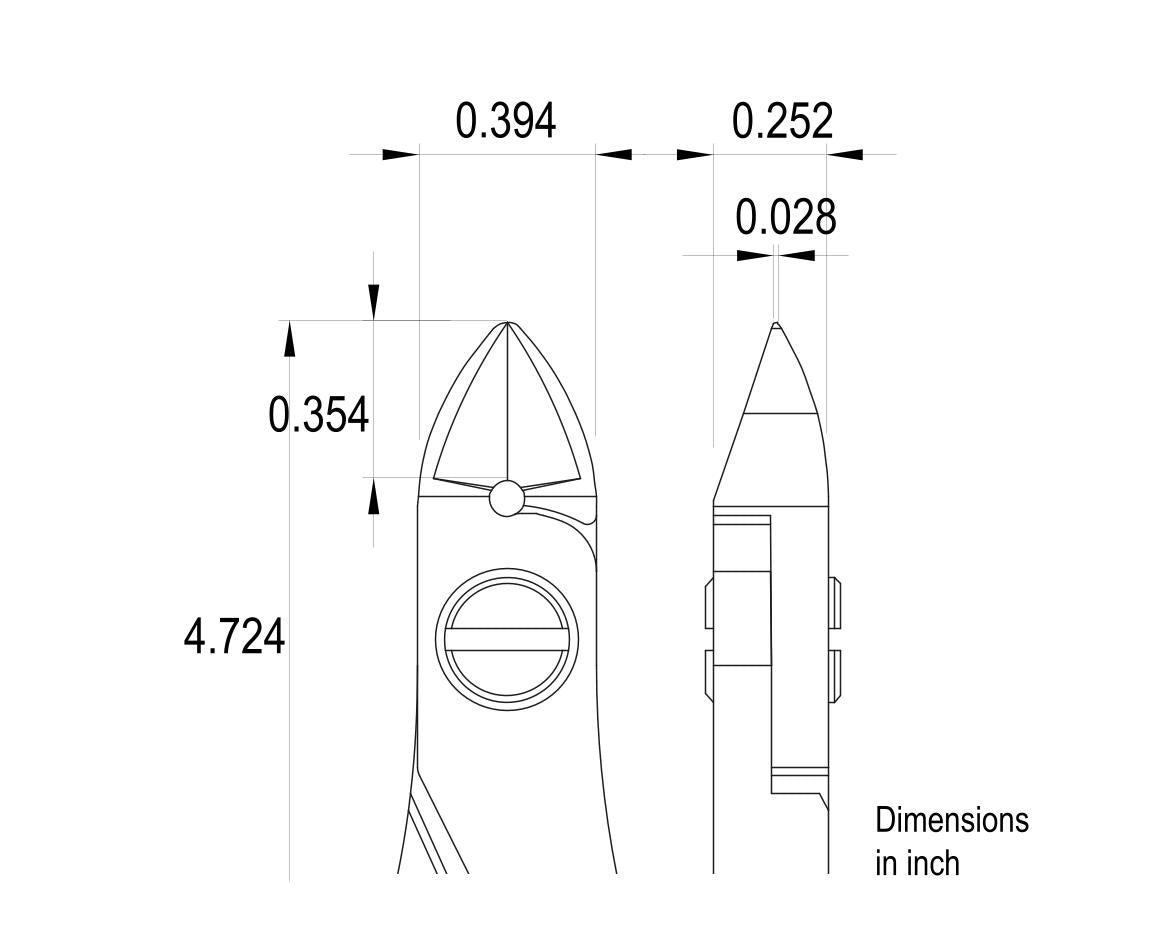

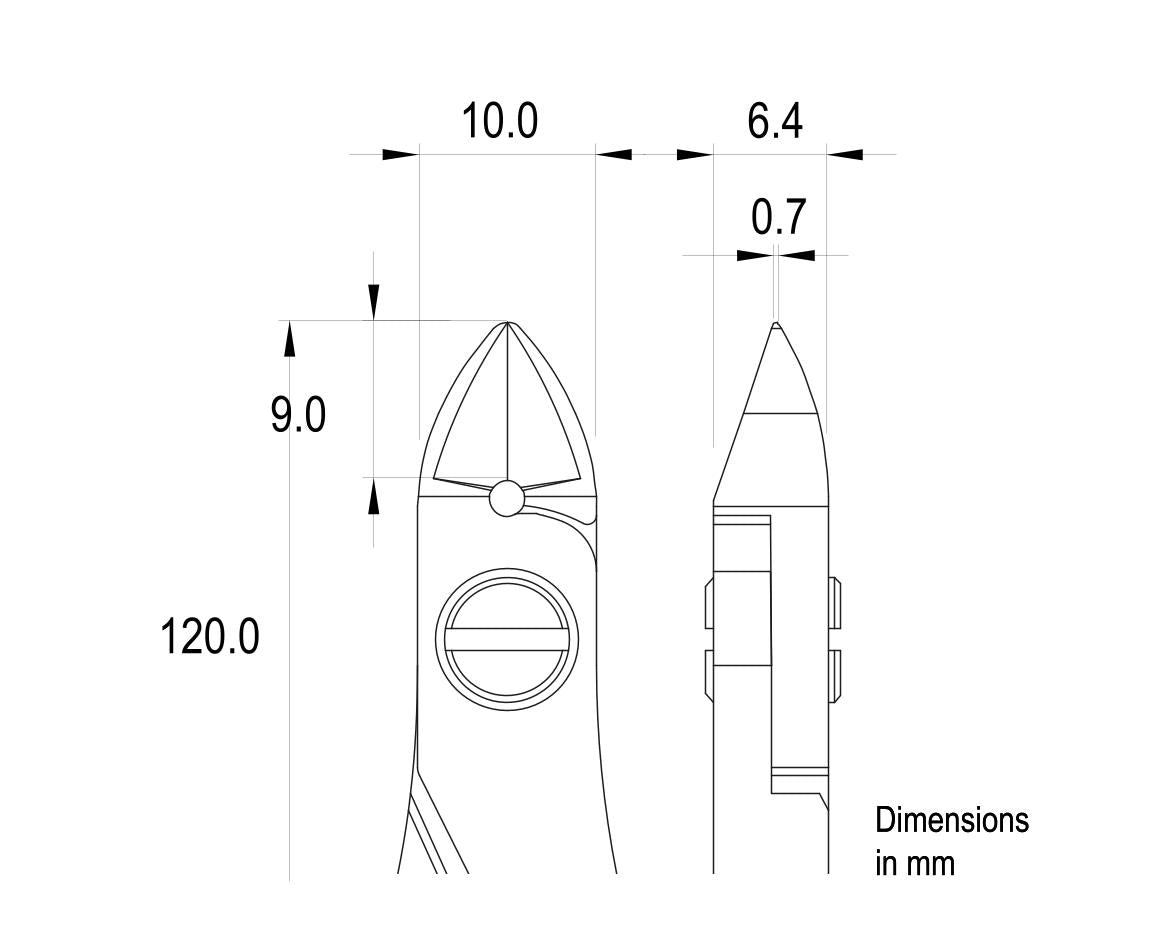

• Head length (B): 0.354 in
• Head width (C): 0.394 in
• Head thickness (D): 0.252 in
• Tip thickness (F): 0.028 in
• Cutting capacity soft: 0.10-1.20 mm (38-17 AWG)
• Cutting capacity medium: 0.10-1.00 mm (38-18 AWG)
• Overall Length: 120mm (4.7″)
• Country of Origin: Italy
• Manufacturer Warranty: 1 Year
• Part Number (MPN): ES5141.CR.BG.ITU
• EAN: 7640144719098

Applications

These Ideal-tek precision cutters are built for electronics assembly and precision manufacturing, delivering clean cuts on wire and leads with access to tight, confined areas.
