Ideal-tek ES5130 High Precision Cutters – ESD Ergo-tek – Micro Oval Head, Semi-Flush Cutting Edge – 120mm (4.7") – Made in Italy

Ideal-tek ES5130 High Precision Cutters – ESD Ergo-tek – Micro Oval Head, Semi-Flush Cutting Edge – 120mm (4.7") – Made in Italy

Ergonomic, ESD-Safe Cutting Access in Very Small Areas

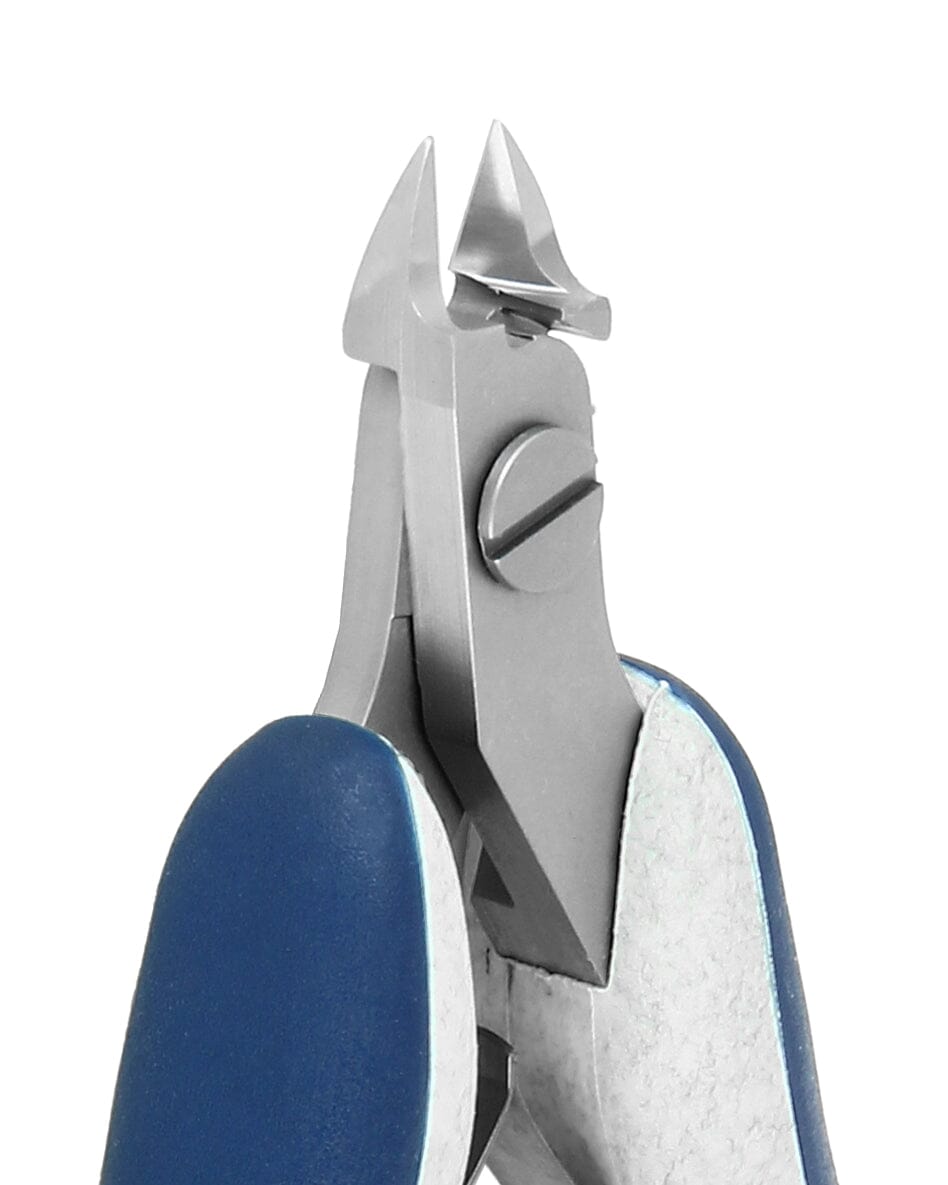

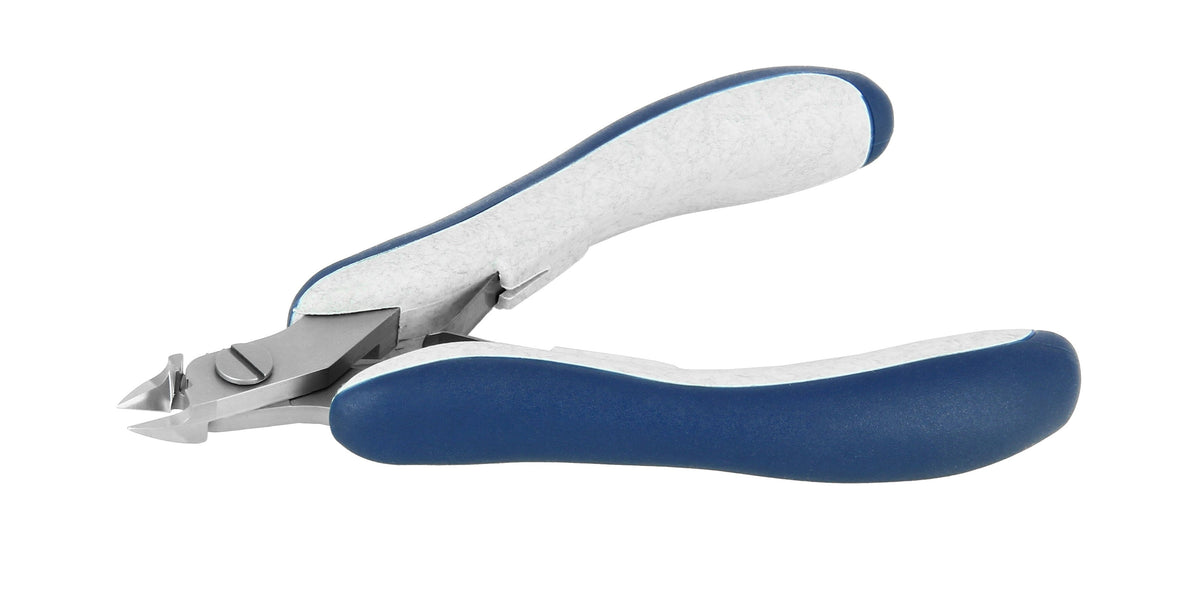

Ideal-tek ES5130 High Precision Cutters belong to the micro oval cutter family and are Made in Italy. The geometry provides excellent resistance while the micro oval head accesses very small areas, and the semi-flush cutting edge performs robust cuts. Manufactured from high-quality ball bearing steel hardened to 67HRC, the cutter uses an ESD Ergo-tek slim handle for an excellent, strain-reducing grip in electrostatic-sensitive environments.

Key Features

• Ergo-tek cutters available in Semi-Flush, Flush and Full-Flush profiles for precise wire trimming
• Manufactured from high-quality ball bearing steel with controlled hardening
• Ergo-tek bi-component ergonomic handles designed to reduce strain during repetitive precision work
• ESD-safe handle design suitable for sensitive electronic components
• Robust construction with dual leaf springs

Specifications

• Body Material: Chrome Steel (ball bearing steel)
• Blade Hardness: 67 HRC
• Head Size: Micro
• Head Shape: Oval
• Cutting Edge: Semi-Flush
• Cutting Capacity (soft): 0.20–1.00 mm (32–18 AWG)
• Cutting Capacity (medium): 0.40 mm (26 AWG)
• Tip Thickness: 0.02 in
• Handle: ESD Ergo-tek Slim (TPE / Polypropylene)
• ESD Safe: Yes
• Finish: Sandblasted

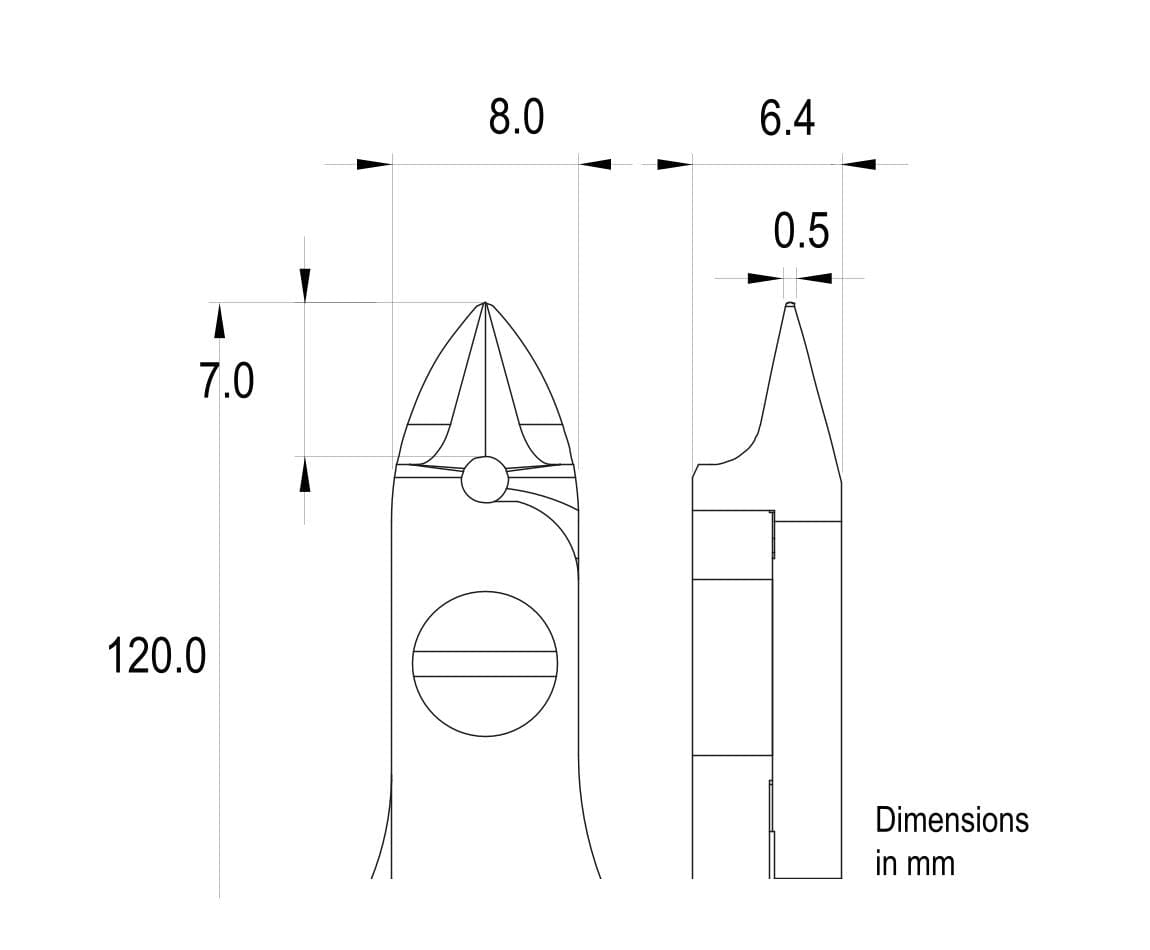

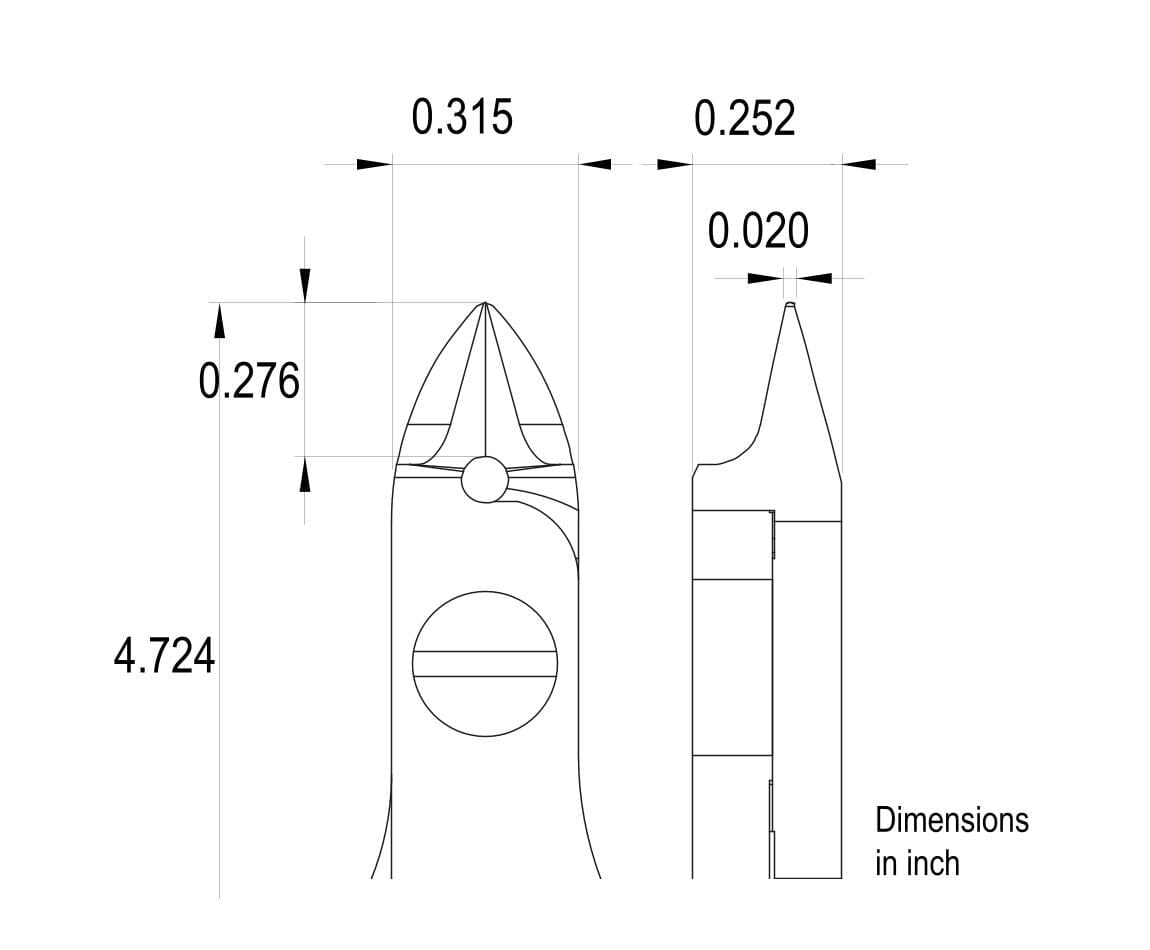

• Overall Length: 120mm (4.7")
• Country of Origin: Italy
• Manufacturer Warranty: 1 Year
• Part Number (MPN): ES5130.CR.BG.ITU
• EAN: 7640491450835

Applications

The ES5130 is suited to electronics assembly and repetitive production cutting of soft and medium wires where ergonomic comfort, ESD safety and access to confined areas are priorities.
